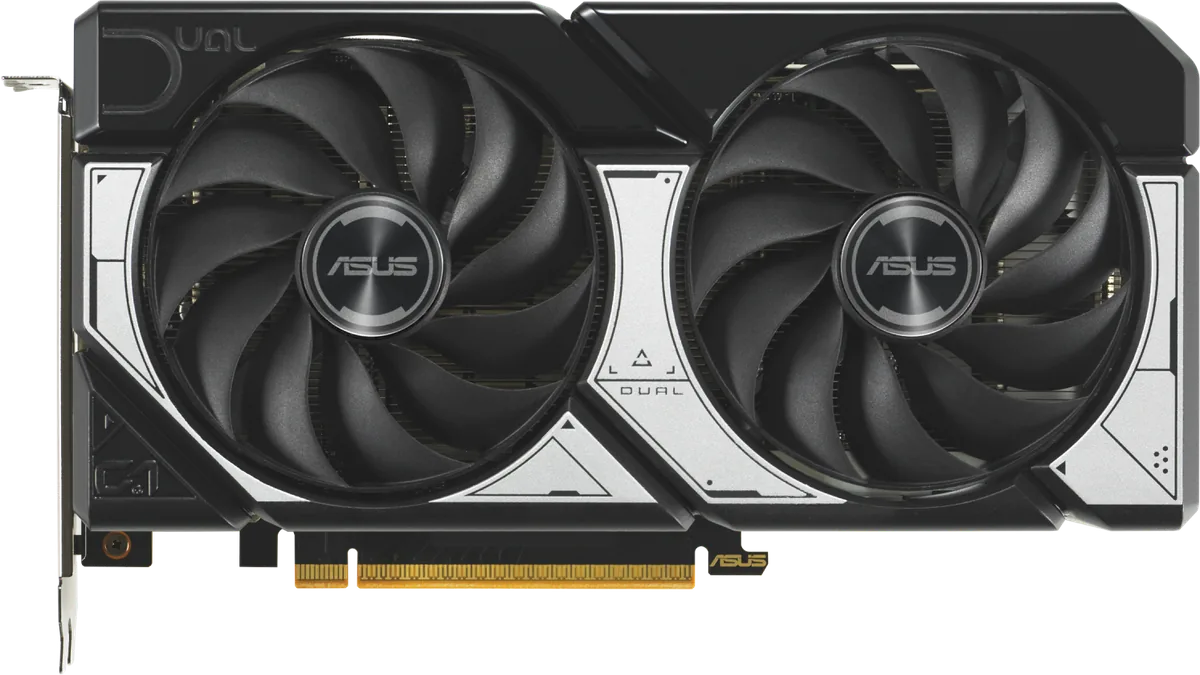

NVIDIA GeForce RTX 5060 · Photo source

NVIDIA GeForce RTX 5060
Photo 1 of 43

NVIDIA GeForce RTX 5060 · Photo source

NVIDIA · GeForce

GeForce RTX 5060

Released May 2025

An entry-level Blackwell graphics card with 8 GB of GDDR7, sold only as partner cards, aimed at 1080p gaming.

Model history · 2 models, 2023–2025
  1. 2023GeForce RTX 4060Compare
  2. 2025GeForce RTX 5060
Memory
8 GB
Shaders
3,840
Boost clock
2,500 MHz
Bandwidth
–
Power
145 W

What reviewers say

Reviewers found it a solid 1080p card with a clear gain over the RTX 4060 and useful DLSS 4 support. Both see its 8 GB of memory as the big weakness, forcing lower settings in newer games and limiting it at 1440p and its useful lifespan; they also regard Multi Frame Generation as situational because of added latency.

From club386.com and xda-developers.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Blackwell
Shader cores
3,840
Boost clock
2,500 MHz
Ray tracing
Fourth-generation RT Cores; 58 RT TFLOPS
AI cores
Fifth-generation Tensor Cores; 614 AI TOPS
Upscaling and frame generation
DLSS 4.5 with Super Resolution, DLAA, Ray Reconstruction, Frame Generation, Multi Frame Generation and Dynamic Multi Frame Generation
Base clock
2.28 GHz

Memory

Video memory
8 GB GDDR7
Memory bus
128-bit

Connections and power

Board power
145 W
Interface
PCIe 5.0

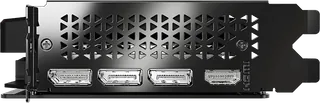

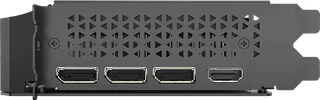

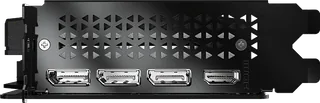

Display outputs
3 × DisplayPort 2.1b (UHBR20), 1 × HDMI 2.1b; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 480 Hz or 8K at 165 Hz with DSC

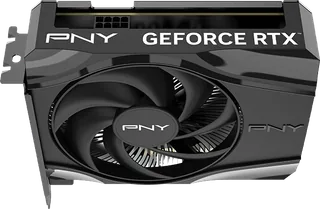

Power connector
1 × PCIe 8-pin cable, or a 300 W or greater PCIe Gen 5 cable (adapter in the box)
Recommended power supply
550 W
Video encode and decode
1 × ninth-generation NVENC, 1 × sixth-generation NVDEC; AV1 encode and decode

Pros and cons

Pros

  • 145 W total graphics power; one 8-pin connector
  • DLSS Multi Frame Generation support
  • PCIe 5.0 and DisplayPort 2.1b UHBR20 outputs

Cons

  • 8 GB of video memory on a 128-bit bus
  • No Founders Edition; size and cooling vary by manufacturer

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
AMDRadeon RX 9070
16 GB3,5842,520 MHz640 GB/s220 WMar 2025
NVIDIAGeForce RTX 5050
8 GB2,5602,570 MHz–130 WJul 2025
IntelArc B570
10 GB2,304–380 GB/s150 WJan 2025

Previous model: GeForce RTX 4060.
