Photo 1 of 11

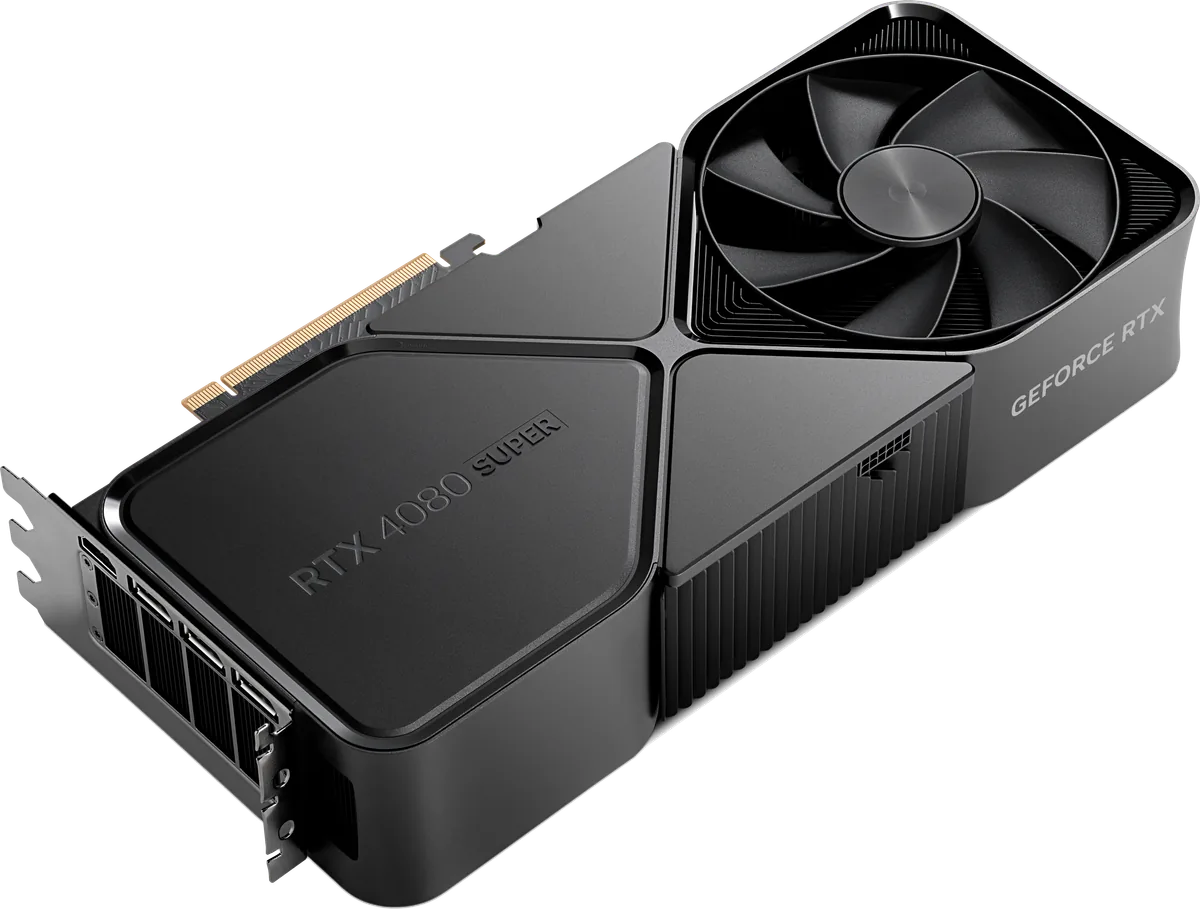

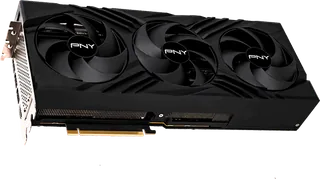

NVIDIA GeForce RTX 4080 SUPER · Photo source

NVIDIA GeForce RTX 4080 SUPER
Photo 1 of 11

NVIDIA GeForce RTX 4080 SUPER · Photo source

NVIDIA · GeForce

GeForce RTX 4080 SUPER

Released January 2024

A 2024 refresh of the Ada Lovelace RTX 4080 with more CUDA cores and faster 23 Gbps GDDR6X, aimed at 4K gaming.

Memory
16 GB
Shaders
10,240
Boost clock
2,550 MHz
Bandwidth
736 GB/s
Power
320 W

What reviewers say

Reviewers agree it is barely faster than the RTX 4080 it replaced, and that its main improvement is a lower launch price. They praise its strong, efficient gaming performance and the Founders Edition's build quality; PC Gamer still found it expensive against AMD's similarly priced and similarly fast RX 7900 XTX, and Club386 noted its large size.

From tomshardware.com, pcgamer.com and club386.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Ada Lovelace
Shader cores
10,240
Boost clock
2,550 MHz
Ray tracing
Third-generation RT Cores; 121 RT TFLOPS
AI cores
Fourth-generation Tensor Cores; 836 AI TOPS
Upscaling and frame generation
DLSS 3.5 with Super Resolution, DLAA, Ray Reconstruction and Frame Generation
Base clock
2.29 GHz
Cache
64 MB L2

Memory

Video memory
16 GB GDDR6X
Memory bus
256-bit
Memory bandwidth
736 GB/s
Memory detail
GDDR6X at 23 Gbps

Connections and power

Board power
320 W
Interface
PCIe 4.0

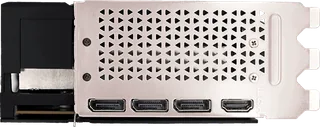

Display outputs
3 × DisplayPort 1.4a, 1 × HDMI 2.1a; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 240 Hz or 8K at 60 Hz with DSC, HDR
Power connector
1 × 450 W or greater PCIe Gen 5 cable, or 3 × PCIe 8-pin cables with the adapter in the box
Recommended power supply
750 W
Slot width
3-slot (Founders Edition)
Size (reference card)
304 × 137 mm, 3-slot (Founders Edition)
Video encode and decode
2 × eighth-generation NVENC, 1 × fifth-generation NVDEC; AV1 encode and decode

Pros and cons

Pros

  • 16 GB of 23 Gbps GDDR6X on a 256-bit bus (736 GB/s)
  • 64 MB of L2 cache
  • Two eighth-generation NVENC encoders with AV1

Cons

  • Founders Edition is a three-slot card, 304 mm long
  • DisplayPort 1.4a outputs and PCIe 4.0; no DLSS Multi Frame Generation

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce RTX 4070 Ti SUPER
16 GB8,4482,610 MHz672 GB/s285 WJan 2024
NVIDIAGeForce RTX 5080
16 GB10,7522,617 MHz960 GB/s360 WJan 2025
NVIDIAGeForce RTX 5070 Ti
16 GB8,9602,452 MHz896 GB/s300 WFeb 2025

Newer model: GeForce RTX 5080.

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/40-series/rtx-4080-family
  2. nvidia.com/en-gb/geforce/graphics-cards/compare
  3. nvidia.com/en-gb/geforce/news/geforce-rtx-4080-4070-ti-4070-super-gpu
  4. nvidia.com/en-us/geforce/news/geforce-rtx-4080-4070-ti-4070-super-gpu
