Keychron · K HE
K10 HE
Keychron's full-size wireless keyboard with magnetic (Hall effect) switches, adjustable actuation and Rapid Trigger, connecting by 2.4 GHz receiver, Bluetooth or cable, suited to people who want a number pad on a magnetic-switch keyboard.
- Layout
- Full size
- Switches
- Magnetic (Hall effect)
- Backlight
- RGB
- Battery
- 120 hours
- Connects by
- Bluetooth, USB receiver and Cable
- Weight
- 1320 g
What reviewers say
Reviewers found the magnetic switches responsive and easy to tune, the build solid and the wireless connections reliable, and judged it good value. Both note its size and weight make it poor for travel; GameRevolution found the web software limited, and The Gadgeteer noted that battery life suffers at full lighting brightness and that only Gateron's magnetic switches fit.
From gamerevolution.com and the-gadgeteer.com
Specifications
Report a wrong or missing specTyping
- Layout
- Full size
- Switches
- Magnetic (Hall effect)
- Backlight
- RGB
- Keys labelled for
- Mac, Windows and more
- Touch ID
- No
- Switches
- Gateron Double-Rail Magnetic Nebula (actuation 0.2–3.8 mm) or Keychron Ultra-fast Lime magnetic (actuation 0.2–3.3 mm) switches, both adjustable with 0.1 mm sensitivity; hot-swappable; TMR sensing
- Keycaps
- Cherry-profile double-shot PBT, shine-through (Standard Version); OSA-profile double-shot PBT, not shine-through (Special Edition)
- Layouts
- 100%; ANSI (keychron.com); UK and German ISO (ISO Layout Collection; UK ISO Special Edition in white on keychron.uk)
- Backlight
- North-facing RGB
- Special keys
- Rapid Trigger; four-in-one Dynamic Keystrokes; Last Keystroke Prioritization and Snap Click; N-key rollover wireless and wired
Connections and battery
- Connects by
- Bluetooth, USB receiver and Cable
- Devices it switches between
- 3
- Power
- Rechargeable
- Battery life (maker's claim)
- Up to 120 hours
- Receiver
- 2.4 GHz USB receiver at 1,000 Hz polling; Bluetooth 5.2 at 125 Hz to up to three devices; USB-C wired at 1,000 Hz
- Battery life detail
- 4,000 mAh lithium-polymer battery; up to 120 hours (Keychron's lab tests; Keychron doesn't say with what backlight setting)
- Works with
- Windows, macOS and Linux
- Software
- QMK firmware; Keychron Launcher web app for actuation, Rapid Trigger, key remapping and lighting
Design
- Weight
- 1320 g
- Width × depth × height
- 440.2 × 129.2 × 40.3 mm
- Size
- 440.2 × 129.2 mm, about 1,320 g (Standard Version); 444.6 × 129.2 mm, about 1,310 g (Special Edition); 33.4 mm high at the front and 40.3 mm at the back with keycaps (32.94 and 39.52 mm on the Special Edition); typing angles of 3.5°, 7.7° and 11°
- Materials
- Aluminium body (aluminium and wood on the Special Edition); aluminium plate; plate-mounted stabilisers
- Colours
- Black (Standard Version); Black or White with wood sides (Special Edition)
Pros and cons
Pros
- Actuation point adjustable per key in 0.1 mm steps (0.2–3.8 mm with Gateron switches, 0.2–3.3 mm with Keychron Lime), with Rapid Trigger
- Connects by 2.4 GHz receiver (1,000 Hz), Bluetooth to three devices, or USB-C cable (1,000 Hz)
- Full-size layout with a number pad; QMK firmware with the Keychron Launcher web app
Cons
- Up to 120 hours per charge
- Weighs about 1,320 g
- Plate-mounted rather than screw-in stabilisers
Closest rivals
Model | Layout | Switches | Backlight | Battery | Connects by | Weight | Released |
|---|---|---|---|---|---|---|---|
| Full size | Magnetic (Hall effect) | RGB | 110 hours | Bluetooth, USB receiver and Cable | 1090 g | Mar 2025 | |
| Full size | Low-profile mechanical | RGB | 800 hours | Bluetooth, USB receiver and Cable | 1080 g | Sept 2024 | |
| Full size | Mechanical | RGB | 190 hours | Bluetooth, USB receiver and Cable | 1530 g | Sept 2024 |
Sources
- keychron.uk/products/keychron-k10-he-wireless-magnetic-switch-custom-keyboard-i…
- keychron.com/products/keychron-k10-he-wireless-magnetic-switch-keyboard

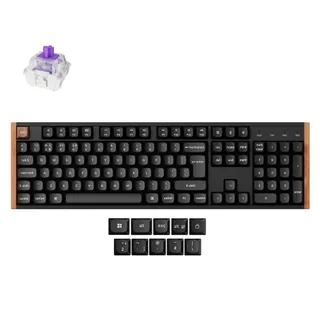

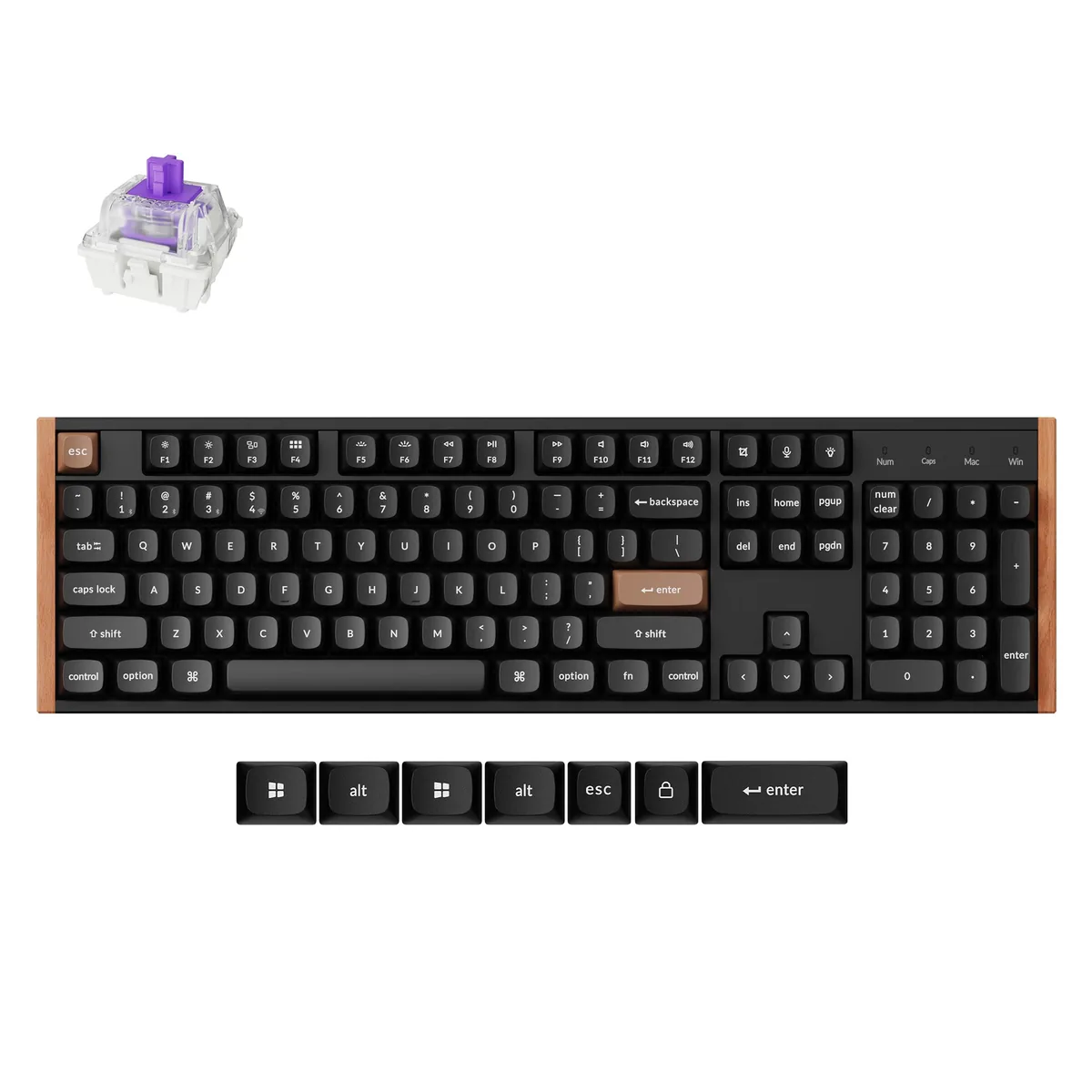

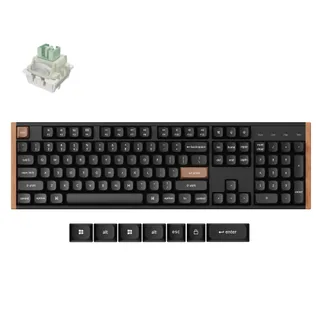

- Keychron K10 HE, Black wood-sided ANSI Special Edition with orange accent caps, Lime switch sample and supplied extra caps: Keychron official product media; Keychron K10 HE, Black wood-sided ANSI Special Edition with orange accent caps, Lime switch sample and supplied extra caps. Complete supplied framing, background and native alpha retained.
- Keychron K10 HE, Keychron-K10-HE-Swappable-RGB-Backlight-Aluminum-Keychron-Ultra-Fast-Lime-Switch-Special-Edition-White: Keychron official product media; Keychron K10 HE, Keychron-K10-HE-Swappable-RGB-Backlight-Aluminum-Keychron-Ultra-Fast-Lime-Switch-Special-Edition-White. Complete supplied framing, background and native alpha retained.
- Keychron K10 HE, Keychron-K10-HE-Swappable-RGB-Backlight-Aluminum-Keychron-Ultra-Fast-Lime-Switch-Special-Edition-Black-Standard: Keychron official product media; Keychron K10 HE, Keychron-K10-HE-Swappable-RGB-Backlight-Aluminum-Keychron-Ultra-Fast-Lime-Switch-Special-Edition-Black-Standard. Complete supplied framing, background and native alpha retained.

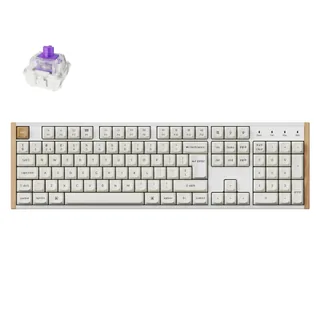

- Keychron K10 HE, Keychron K10 HE Full Size Layout Wireless Magnetic Switch Custom Keyboard Special Edition Wooden White RGB Backlight Double-Shot PBT Keycaps: Keychron official product media; Keychron K10 HE, Keychron K10 HE Full Size Layout Wireless Magnetic Switch Custom Keyboard Special Edition Wooden White RGB Backlight Double-Shot PBT Keycaps. Complete supplied framing, background and native alpha retained.

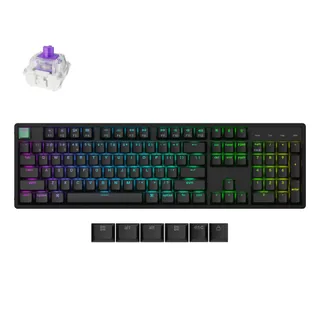

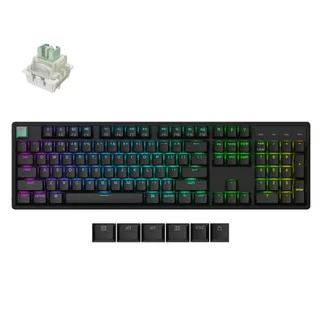

- Keychron K10 HE, Keychron K10 HE Full Size Layout Wireless Magnetic Switch Custom Keyboard Standard Version Black RGB Backlight Double-Shot PBT Keycaps: Keychron official product media; Keychron K10 HE, Keychron K10 HE Full Size Layout Wireless Magnetic Switch Custom Keyboard Standard Version Black RGB Backlight Double-Shot PBT Keycaps. Complete supplied framing, background and native alpha retained.
- Keychron K10 HE, Black wood-sided ANSI Special Edition with brown accent caps, Lime switch sample and supplied extra caps: Keychron official product media; Keychron K10 HE, Black wood-sided ANSI Special Edition with brown accent caps, Lime switch sample and supplied extra caps. Complete supplied framing, background and native alpha retained.

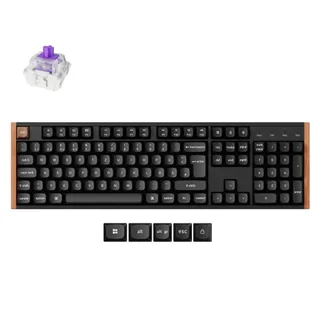

- Keychron K10 HE, Black Special Edition German ISO with Nebula switch sample and supplied extra keycaps: Keychron official product media; Keychron K10 HE, Black Special Edition German ISO with Nebula switch sample and supplied extra keycaps. Complete supplied framing, background and native alpha retained.
- Keychron K10 HE, Black Special Edition UK ISO with Nebula switch sample and supplied extra keycaps: Keychron official product media; Keychron K10 HE, Black Special Edition UK ISO with Nebula switch sample and supplied extra keycaps. Complete supplied framing, background and native alpha retained.

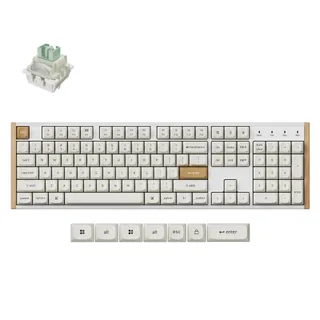

- Keychron K10 HE, White Special Edition UK ISO with Nebula switch sample and supplied extra keycaps: Keychron official product media; Keychron K10 HE, White Special Edition UK ISO with Nebula switch sample and supplied extra keycaps. Complete supplied framing, background and native alpha retained.

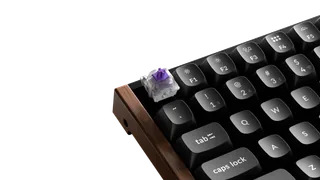

- Keychron K10 HE, Black wood-sided Special Edition Nebula hot-swap macro: Keychron official product media; Keychron K10 HE, Black wood-sided Special Edition Nebula hot-swap macro. Complete supplied framing, background and native alpha retained.

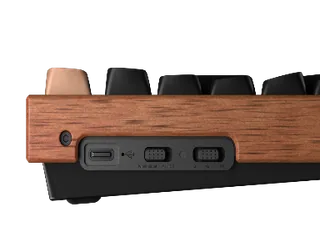

- Keychron K10 HE, Black wood-sided Special Edition side controls detail: Keychron official product media; Keychron K10 HE, Black wood-sided Special Edition side controls detail. Complete supplied framing, background and native alpha retained.

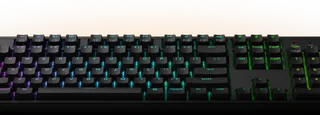

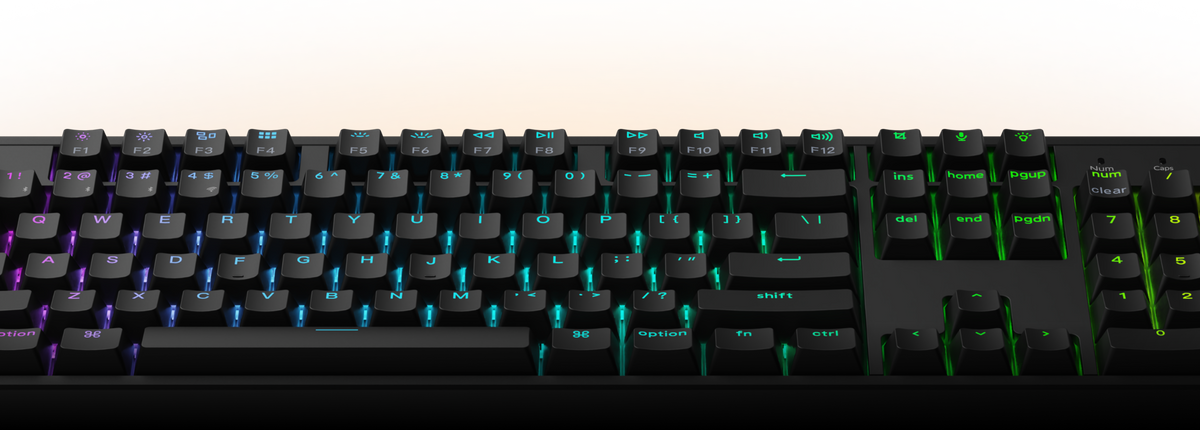

- Keychron K10 HE, Black Standard ANSI front edge with RGB lighting: Keychron official product media; Keychron K10 HE, Black Standard ANSI front edge with RGB lighting. Complete supplied framing, background and native alpha retained.

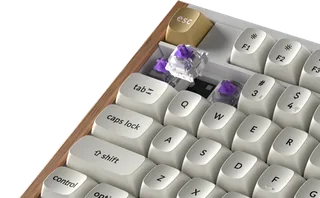

- Keychron K10 HE, White wood-sided Special Edition Nebula hot-swap detail: Keychron official product media; Keychron K10 HE, White wood-sided Special Edition Nebula hot-swap detail. Complete supplied framing, background and native alpha retained.

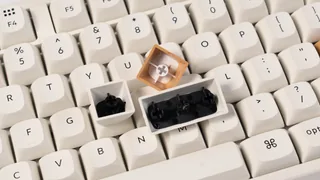

- Keychron K10 HE, White Special Edition native keycap undersides and stabiliser macro: Keychron official product media; Keychron K10 HE, White Special Edition native keycap undersides and stabiliser macro. Complete supplied framing, background and native alpha retained.

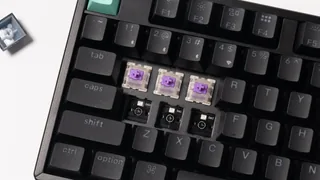

- Keychron K10 HE, Black Standard ANSI Nebula hot-swap sockets and three photographed switches: Keychron official product media; Keychron K10 HE, Black Standard ANSI Nebula hot-swap sockets and three photographed switches. Complete supplied framing, background and native alpha retained.

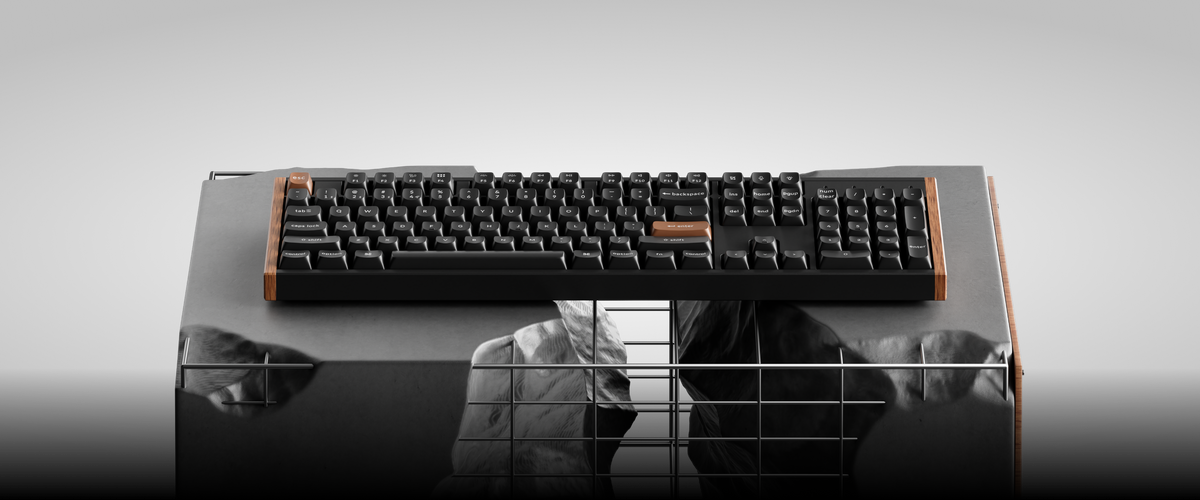

- Keychron K10 HE black wood-sided keyboard in a studio composition with rocks and a grid: Keychron official product media; Keychron K10 HE black wood-sided keyboard in a studio composition with rocks and a grid. Complete supplied framing, background and native alpha retained.

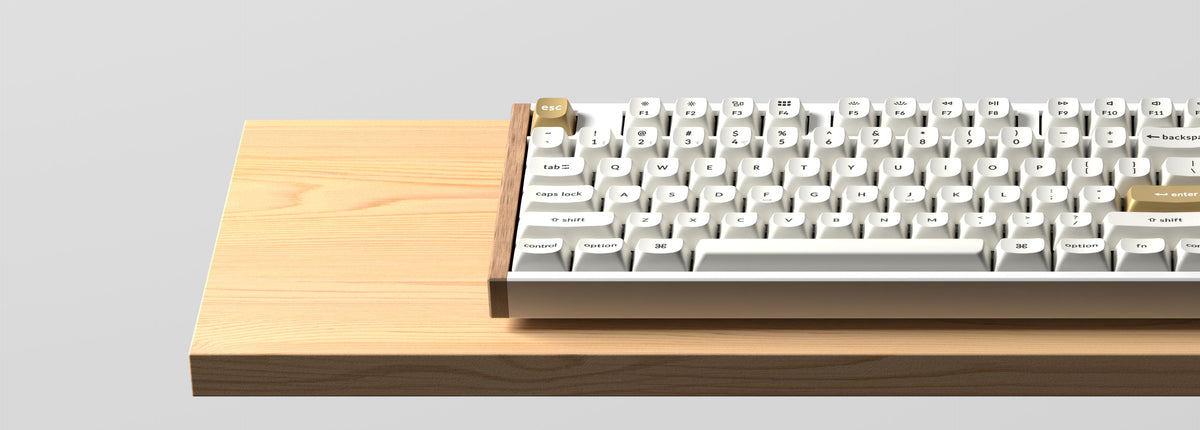

- Keychron K10 HE white wood-sided keyboard detail on a wooden table: Keychron official product media; Keychron K10 HE white wood-sided keyboard detail on a wooden table. Complete supplied framing, background and native alpha retained.

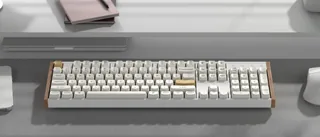

- Keychron K10 HE white wood-sided keyboard in a grey desk setup: Keychron official product media; Keychron K10 HE white wood-sided keyboard in a grey desk setup. Complete supplied framing, background and native alpha retained.

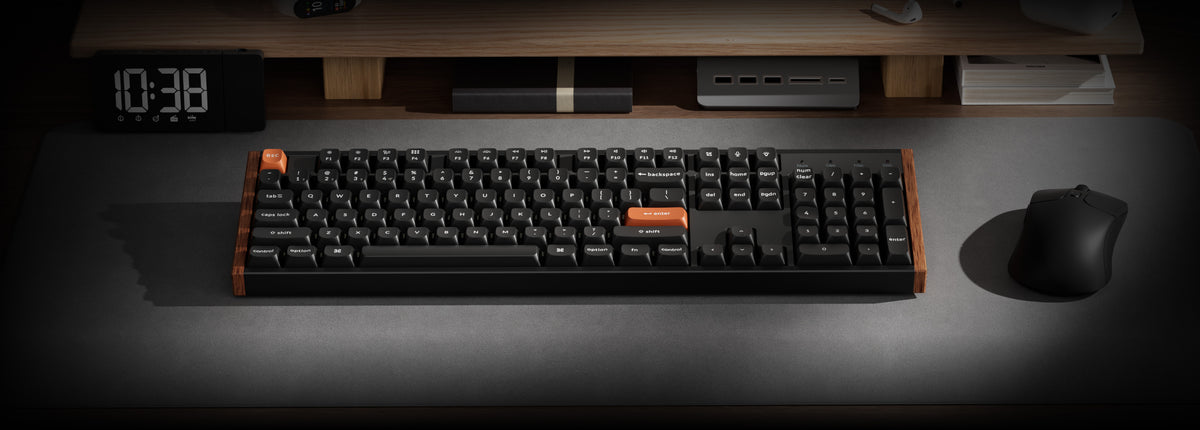

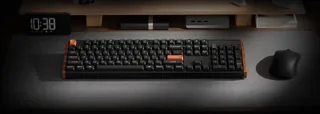

- Keychron K10 HE black wood-sided keyboard in a dark desk setup: Keychron official product media; Keychron K10 HE black wood-sided keyboard in a dark desk setup. Complete supplied framing, background and native alpha retained.

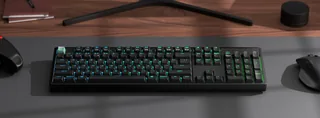

- Keychron K10 HE black Standard keyboard with RGB lighting in a desk setup: Keychron official product media; Keychron K10 HE black Standard keyboard with RGB lighting in a desk setup. Complete supplied framing, background and native alpha retained.

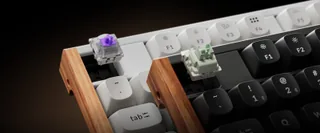

- Keychron K10 HE black and white wood-sided keyboard switch details: Keychron official product media; Keychron K10 HE black and white wood-sided keyboard switch details. Complete supplied framing, background and native alpha retained.

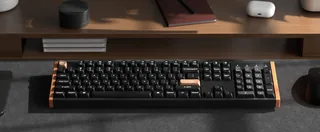

- Keychron K10 HE black wood-sided keyboard in a dimly lit desk setup: Keychron official product media; Keychron K10 HE black wood-sided keyboard in a dimly lit desk setup. Complete supplied framing, background and native alpha retained.
- Keychron K10 HE black wood-sided keyboard angled beside a monitor: Keychron official product media; Keychron K10 HE black wood-sided keyboard angled beside a monitor. Complete supplied framing, background and native alpha retained.
- Keychron K10 HE white wood-sided keyboard among white blocks: Keychron official product media; Keychron K10 HE white wood-sided keyboard among white blocks. Complete supplied framing, background and native alpha retained.
- Keychron K10 HE black wood-sided German ISO keyboard viewed from above: Keychron official product media; Keychron K10 HE black wood-sided German ISO keyboard viewed from above. Complete supplied framing, background and native alpha retained.

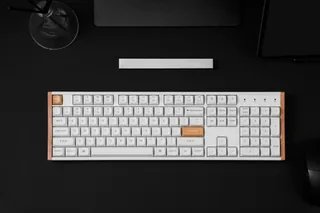

- Keychron K10 HE white wood-sided keyboard viewed from above on a black desk: Keychron official product media; Keychron K10 HE white wood-sided keyboard viewed from above on a black desk. Complete supplied framing, background and native alpha retained.

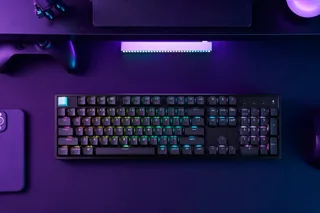

- Keychron K10 HE black keyboard with RGB lighting in a purple-lit gaming setup: Keychron official product media; Keychron K10 HE black keyboard with RGB lighting in a purple-lit gaming setup. Complete supplied framing, background and native alpha retained.

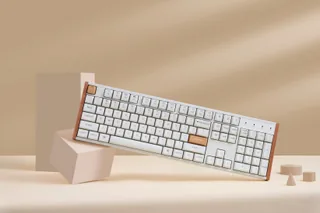

- Keychron K10 HE white wood-sided keyboard against beige studio blocks: Keychron official product media; Keychron K10 HE white wood-sided keyboard against beige studio blocks. Complete supplied framing, background and native alpha retained.

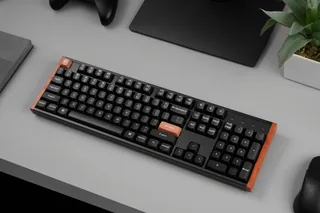

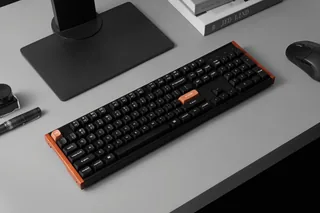

- Keychron K10 HE black wood-sided keyboard viewed diagonally in a desk setup: Keychron official product media; Keychron K10 HE black wood-sided keyboard viewed diagonally in a desk setup. Complete supplied framing, background and native alpha retained.

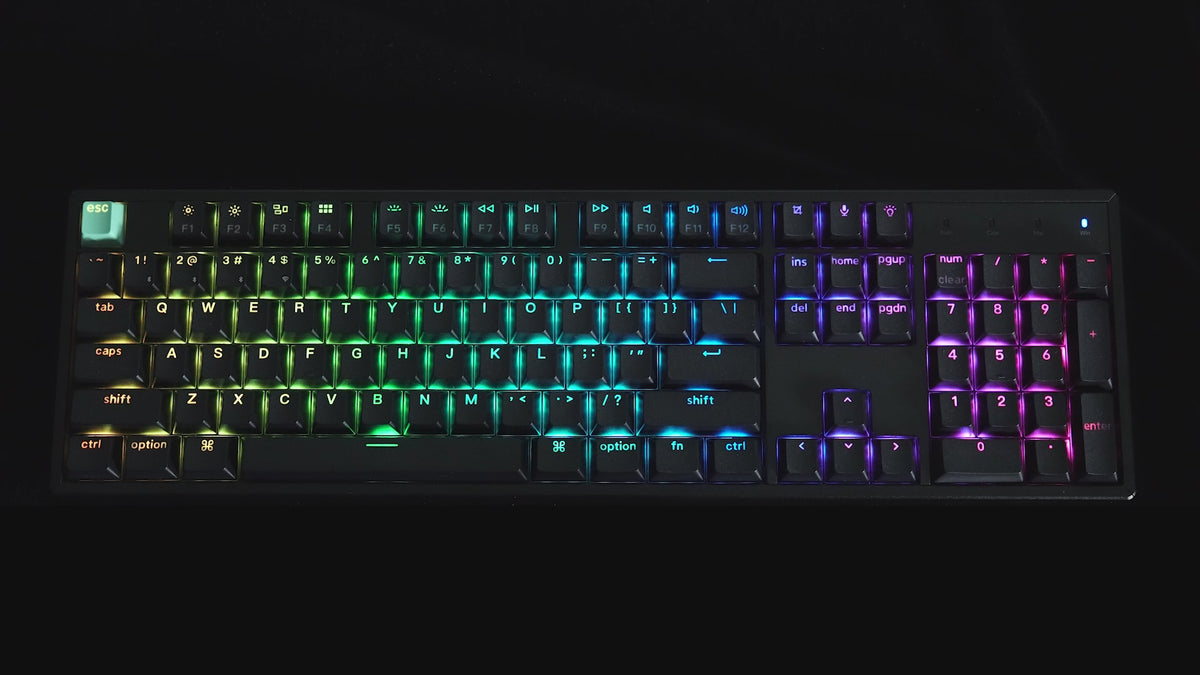

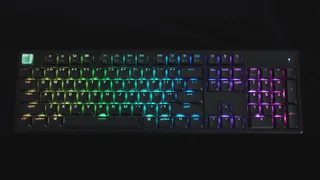

- Keychron K10 HE keyboard with RGB lighting against a dark background: Keychron official product media; Keychron K10 HE keyboard with RGB lighting against a dark background. Complete supplied framing, background and native alpha retained.
