Keychron K4 HE · Photo source
Keychron · K HE
K4 HE
Keychron's 96% wireless keyboard with magnetic (Hall effect) switches, adjustable actuation and Rapid Trigger, connecting by 2.4 GHz receiver, Bluetooth or cable, suited to people who want a number pad on a magnetic-switch keyboard without a full-size footprint.
- Layout
- Full size
- Switches
- Magnetic (Hall effect)
- Backlight
- RGB
- Battery
- 110 hours
- Connects by
- Bluetooth, USB receiver and Cable
- Weight
- 1090 g
What reviewers say
Reviewers praise its looks, pleasant typing feel and sound, the depth of its magnetic-switch gaming features and the easy web software, and call it good value. All three regret that only Keychron's own magnetic switches fit; Tom's Guide found the 96% layout awkward, Notebookcheck found the tray-mount design stiff, and Windows Central found the supplied cable too short for the wired-only software.
From tomsguide.com, notebookcheck.net and windowscentral.com
Specifications
Report a wrong or missing specTyping
- Layout
- Full size
- Switches
- Magnetic (Hall effect)
- Backlight
- RGB
- Keys labelled for
- Mac, Windows and more
- Touch ID
- No
- Switches
- Gateron Double-Rail Magnetic Nebula (actuation 0.2–3.8 mm) or Keychron Ultra-fast Lime magnetic (actuation 0.2–3.3 mm) switches, both adjustable with 0.1 mm sensitivity; hot-swappable; TMR sensing
- Keycaps
- Cherry-profile double-shot PBT, shine-through (Standard Version); OSA-profile double-shot PBT, not shine-through (Special Edition)
- Layouts
- 96%; ANSI (keychron.com); UK ISO Special Edition in black (keychron.uk)
- Backlight
- North-facing RGB
- Special keys
- Rapid Trigger; four-in-one Dynamic Keystrokes; Last Keystroke Prioritization and Snap Click; N-key rollover wireless and wired
Connections and battery
- Connects by
- Bluetooth, USB receiver and Cable
- Devices it switches between
- 3
- Power
- Rechargeable
- Battery life (maker's claim)
- Up to 110 hours
- Receiver
- 2.4 GHz USB receiver at 1,000 Hz polling; Bluetooth 5.2 at 125 Hz to up to three devices; USB-C wired at 1,000 Hz
- Battery life detail
- 4,000 mAh lithium-polymer battery; up to 110 hours (Keychron's lab tests; Keychron doesn't say with what backlight setting)
- Works with
- Windows, macOS and Linux
- Software
- QMK firmware; Keychron Launcher web app for actuation, Rapid Trigger, key remapping and lighting
Design
- Weight
- 1090 g
- Width × depth × height
- 373 × 126 × 40.3 mm
- Size
- 373 × 126 mm, about 1,090 g (Standard Version); 377 × 126 mm, about 1,066 g (Special Edition); 31.0 mm high at the front and 40.3 mm at the back with keycaps (31.7 and 40.9 mm on the Special Edition); typing angles of 5°, 8° and 11°
- Materials
- Aluminium body (aluminium and wood on the Special Edition); ABS bottom case; aluminium plate; plate-mounted stabilisers
- Colours
- Black (Standard Version); Black or White with wood sides (Special Edition)
Pros and cons
Pros
- Actuation point adjustable per key in 0.1 mm steps (0.2–3.8 mm with Gateron switches, 0.2–3.3 mm with Keychron Lime), with Rapid Trigger
- 96% layout keeps a number pad in a 373 mm wide body
- Connects by 2.4 GHz receiver (1,000 Hz), Bluetooth to three devices, or USB-C cable (1,000 Hz)
Cons
- Up to 110 hours per charge
- Weighs about 1,090 g
- Plate-mounted rather than screw-in stabilisers
Closest rivals
Model | Layout | Switches | Backlight | Battery | Connects by | Weight | Released |
|---|---|---|---|---|---|---|---|
| Full size | Low-profile mechanical | RGB | 800 hours | Bluetooth, USB receiver and Cable | 1080 g | Sept 2024 | |
| Full size | Magnetic (Hall effect) | RGB | 120 hours | Bluetooth, USB receiver and Cable | 1320 g | May 2025 | |
| Full size | Mechanical | RGB | 190 hours | Bluetooth, USB receiver and Cable | 1110 g | Feb 2024 |
Sources
- keychron.uk/products/keychron-k4-he-wireless-magnetic-switch-custom-keyboard-is…
- keychron.com/products/keychron-k4-he-wireless-magnetic-switch-custom-keyboard
Photo: cdn.shopify.com

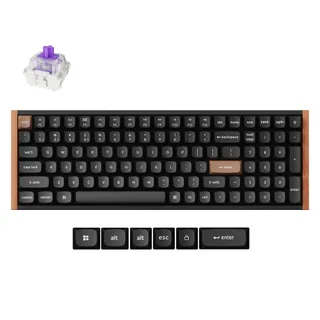

- Keychron K4 HE black wood Special Edition ANSI keyboard with Gateron double-rail magnetic switch and supplied keycaps: Keychron official global product gallery — exact published filename Keychron-K4-HE-96-Percent-Layout-Wireless-Magnetic-Switch-Custom-Keyboard-Special-Edition-Wooden-Black-RGB-Backlight-Double-Shot-PBT-Keycaps.jpg

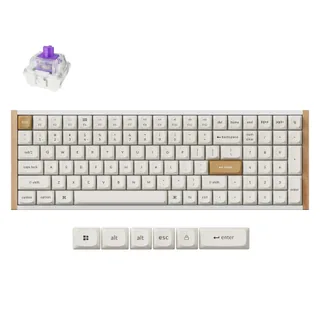

- Keychron K4 HE white wood Special Edition ANSI keyboard with Gateron double-rail magnetic switch and supplied keycaps: Keychron official global product gallery — exact published filename Keychron-K4-HE-96-Percent-Layout-Wireless-Magnetic-Switch-Custom-Keyboard-Special-Edition-Wooden-White-RGB-Backlight-Double-Shot-PBT-Keycaps.jpg

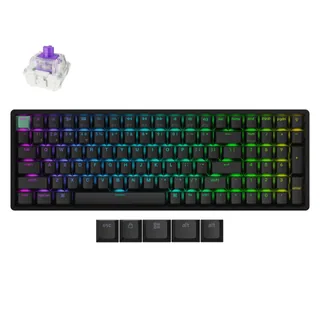

- Keychron K4 HE Standard Edition ANSI keyboard with magnetic switch and supplied keycaps: Keychron official global product gallery — exact published filename Keychron-K4-HE-96-Percent-Layout-Wireless-Magnetic-Switch-Custom-Keyboard-Standard-Version-RGB-Backlight-Double-Shot-PBT-Keycaps.jpg

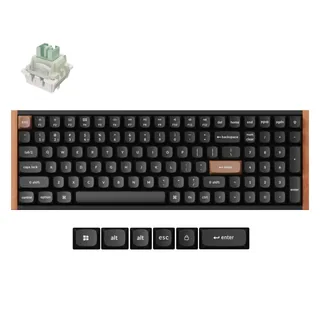

- Keychron K4 HE black wood Special Edition ANSI keyboard with Ultra-fast Lime magnetic switch and supplied keycaps: Keychron official global product gallery — exact published filename Keychron-K4-HE-96-Percent-Layout-Wireless-Magnetic-Switch-Custom-Keyboard-Special-Edition-Wooden-Black-RGB-Backlight-Double-Shot-PBT-Keycaps-Ultra-fast_Lime_Magnetic_Switch.jpg

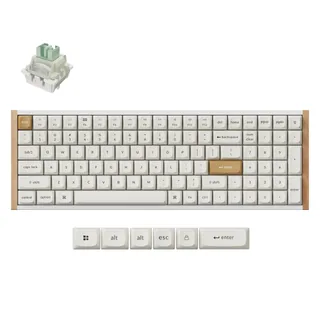

- Keychron K4 HE white wood Special Edition ANSI keyboard with Ultra-fast Lime magnetic switch and supplied keycaps: Keychron official global product gallery — exact published filename Keychron-K4-HE-96-Percent-Layout-Wireless-Magnetic-Switch-Custom-Keyboard-Special-Edition-Wooden-White-RGB-Backlight-Double-Shot-PBT-Keycaps-Ultra-fast_Lime_Magnetic_Switch.jpg

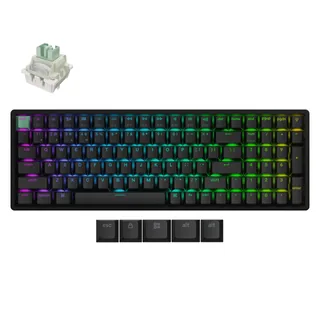

- Keychron K4 HE Standard Edition ANSI keyboard with Ultra-fast Lime magnetic switch and supplied keycaps: Keychron official global product gallery — exact published filename Keychron-K4-HE-96-Percent-Layout-Wireless-Magnetic-Switch-Custom-Keyboard-Standard-Version-RGB-Backlight-Double-Shot-PBT-Keycaps-Ultra-fast_Lime_Magnetic_Switch.jpg

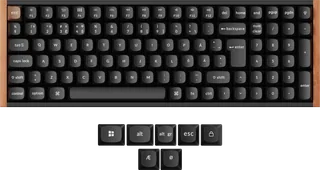

- Keychron K4 HE Nordic ISO Special Edition keyboard and supplied alternate keycaps: Keychron official global product gallery — exact published filename K4_HE_ISO_Special_Edition.png

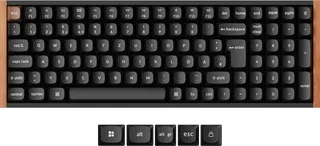

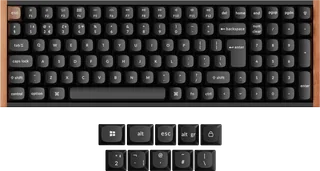

- Keychron K4 HE UK ISO Special Edition keyboard and supplied alternate keycaps: Keychron official global product gallery — exact published filename K4-HE-ISO-Layout-UK.png

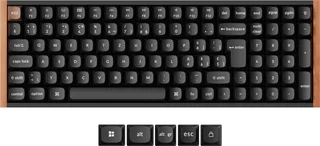

- Keychron K4 HE German ISO Special Edition keyboard and supplied alternate keycaps: Keychron official global product gallery — exact published filename K4-HE-ISO-Layout-DE.png
- Keychron K4 HE Swiss ISO Special Edition keyboard and supplied alternate keycaps: Keychron official global product gallery — exact published filename K4-HE-ISO-Layout-Swiss.png

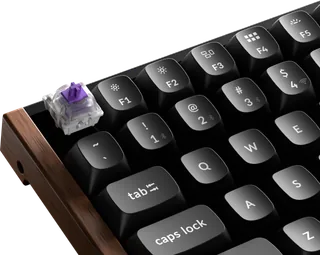

- Keychron K4 HE maker-associated black wood Special Edition magnetic switch and keycap hardware close-up: Keychron official global K4 HE product page — e42dc052ad3ecf84b3cb667d2d96b68a259c9720.png

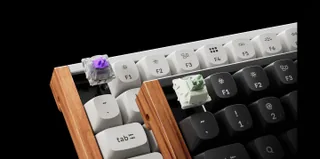

- Keychron K4 HE white and black wood Special Editions showing their fitted switch assemblies, supplied close-up.: Official Keychron exact-model product photograph; complete supplied canvas, framing, background and native transparency preserved.

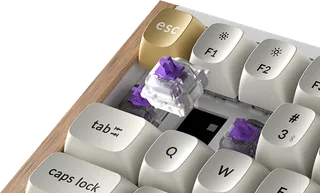

- Keychron K4 HE maker-associated white wood Special Edition magnetic switches and keycap hardware close-up: Keychron official global K4 HE product page — image_2_a15be62d-b861-43a3-aac7-15b6ed5cb090_500x.png
