Photo 1 of 17

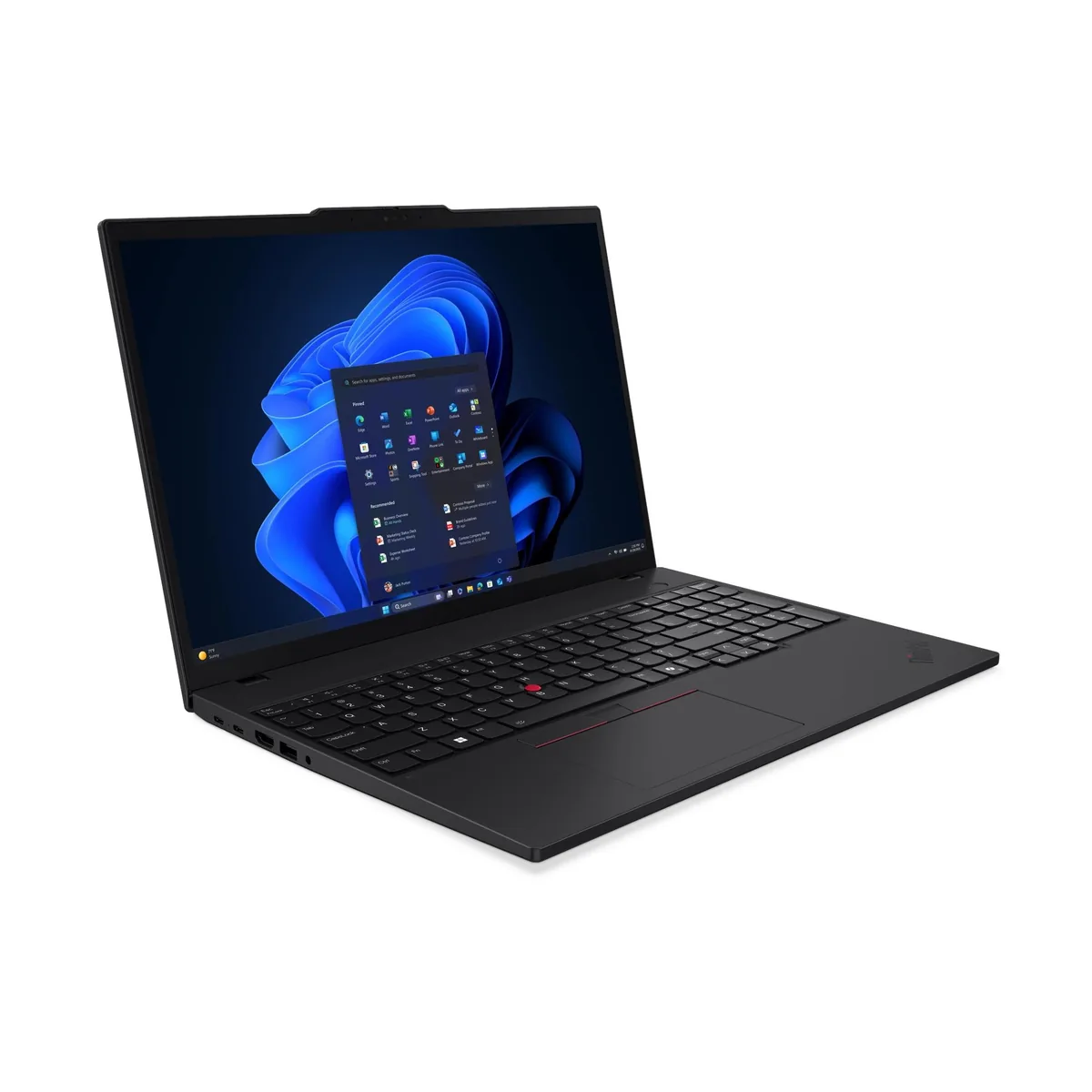

Lenovo ThinkPad T16 Gen 4 (Intel) · Photo source
Lenovo · ThinkPad T
ThinkPad T16 Gen 4 (Intel)
Lenovo's mainstream 16-inch business laptop for 2025, with Intel Core Ultra 200U, 200H or 200V processors, a numeric keypad, Ethernet and an optional 86 Wh battery, suited to office workers who want a large screen and a full set of ports.
- Size
- 16″
- Display
- IPS LCD, 60 Hz
- Processor
- Intel Core Ultra 5 or 7
- Memory
- 16 GB – 64 GB
- Weight
- 1.76 kg
- Battery
- 21.4 h
Specifications
Report a wrong or missing specDisplay
- Screen size
- 16″
- Resolution
- 1920 × 1200
- Panel
- IPS LCD
- Refresh rate
- 60 Hz
- Brightness
- 400 nits or 500 nits
- Touchscreen
- No or Yes
- Display type
- WUXGA IPS, 16:10; 400-nit non-touch or on-cell touch, 500-nit low power, or 500-nit touch with ThinkPad Privacy Guard
- Colour range
- 45% NTSC (400-nit); 100% sRGB (500-nit)
- Screen finish
- Anti-glare
- Display features
- 1,000:1 contrast (1,200:1 on the low-power panel); Eyesafe Certified 2.0 on the touch and low-power panels; 87.22% screen-to-body ratio
Performance
- Processor
- Intel Core Ultra 5 225U, Intel Core Ultra 5 225H, Intel Core Ultra 5 226V, Intel Core Ultra 5 228V, Intel Core Ultra 5 235U, Intel Core Ultra 5 235H, Intel Core Ultra 5 236V, Intel Core Ultra 5 238V, Intel Core Ultra 7 255U, Intel Core Ultra 7 255H, Intel Core Ultra 7 258V, Intel Core Ultra 7 265U, Intel Core Ultra 7 265H or Intel Core Ultra 7 268V
- CPU cores
- 8, 12, 14 or 16
- CPU threads
- 8, 14 or 16
- Graphics
- Intel Graphics, Intel Arc 130T, Intel Arc 130V, Intel Arc 140T or Intel Arc 140V
- AI engine (NPU)
- 12 TOPS, 13 TOPS, 40 TOPS, 47 TOPS or 48 TOPS
- Memory
- 16 GB, 32 GB or 64 GB
- Storage
- 256 GB to 1 TB
- CPU
- Core Ultra 200U with 2 P-cores, 8 E-cores and 2 LP E-cores; Core Ultra 200H with 4 or 6 P-cores, 8 E-cores and 2 LP E-cores; Core Ultra 200V (Lunar Lake) with 4 P-cores and 4 LP E-cores; Intel vPro Enterprise on selected models
- GPU
- Integrated Intel Graphics (200U), Intel Arc 130T or 140T (200H, with at least 16 GB dual-channel memory) or Intel Arc Graphics 130V or 140V (200V); shared memory, DirectX 12.2
- AI engine
- Copilot+ PC with Core Ultra 200V (NPU up to 48 TOPS); Core Ultra 200U and 200H models are AI PCs with an NPU up to 13 TOPS
- Memory type
- Core Ultra 200U and 200H, DDR5-5600 in two SODIMM or CSODIMM slots, up to 64 GB; Core Ultra 200V, LPDDR5X-8533 on the processor package, 16 or 32 GB, not upgradable
- Storage type
- One M.2 2280 slot, PCIe 5.0 x4 with 200V and 200H processors or PCIe 4.0 x4 with 200U; NVMe SSD up to 2 TB, Opal 2.0
Battery and size
- Battery life (maker's claim)
- Up to 21.4 hours
- Battery capacity
- 86 Wh
- Weight
- 1.76 kg
- Thickness
- 18.14 mm
- Width × depth
- 359.7 × 250.8 mm
- Battery life detail
- 52.5 Wh or 86 Wh Li-ion; Core Ultra 5 225U with 52.5 Wh and low-power WUXGA, MobileMark 25 up to 11.5 hr, JEITA 3.0 up to 12.7 hr video and 24.1 hr idle, local video up to 21.4 hr; Core Ultra 5 225H with 52.5 Wh, local video up to 18.3 hr
- Charger
- 100 W USB-C (PD 3.0) slim adapter; offerings vary by country
- Fast charging
- Rapid Charge to 80% in 1 hour (52.5 Wh with a 65 W or 100 W adapter; 86 Wh with the 100 W adapter; when off, in standby or hibernating)
- Materials
- PC with 20% carbon fibre top and bottom covers
- Colours
- Black
Connections
- Ports
- 2 × Thunderbolt 4, 2 × USB-A, HDMI, Ethernet, headphone jack
- Wi-Fi
- Wi-Fi 7 or Wi-Fi 6E
- Bluetooth
- 5.4 or 5.3 (with Wi-Fi 6E)
- Webcam
- 5MP, optional IR
- Operating system
- Windows
- Port detail
- 2 × Thunderbolt 4 (USB4 40 Gbps) with USB PD 15–100 W and DisplayPort 2.1; 2 × USB-A 5 Gbps (one Always On); HDMI 2.1 up to 4K 60 Hz; Gigabit Ethernet (RJ-45); 3.5 mm headphone/mic combo jack; optional smart card reader and nano-SIM slot (4G or 5G models)
- External displays
- Core Ultra 200U and 200H, up to three external displays (four including the built-in); Core Ultra 200V, up to two (three in total); Thunderbolt up to 8K 60 Hz, HDMI up to 4K 60 Hz
- Keyboard
- 6-row, spill-resistant, backlit or non-backlit, with numeric keypad; 1.5 mm key travel (1.35 mm on Fn row and G/H/B); Copilot key; TrackPoint
- Trackpad
- Mylar 3-button trackpad, 67.7 × 115 mm
- Speakers
- Stereo 2 W × 2, Dolby Audio
- Microphones
- Dual-microphone array, 360° far-field, Dolby Voice
- Biometrics
- Optional fingerprint reader in the power button (match-on-chip); optional IR camera for Windows Hello
Configurations
| Processor | Memory | Storage | Screen |
|---|---|---|---|
| Intel Core Ultra 5 225U | 16 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 5 225H | 16 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 5 226V | 16 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 5 228V | 32 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 5 235U | 32 GB | 1 TB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 5 235H | 16 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 5 236V | 16 GB | 256 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 5 238V | 32 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 7 255U | 32 GB | 1 TB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 7 255H | 32 GB | 1 TB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 7 258V | 32 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 7 265U | 64 GB | 512 GB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 7 265H | 64 GB | 1 TB | 1920 × 1200, 60 Hz |
| Intel Core Ultra 7 268V | 32 GB | 1 TB | 1920 × 1200, 60 Hz |
Pros and cons
Pros
- Optional 86 Wh battery
- Two SODIMM slots on Core Ultra 200U and 200H models (up to 64 GB DDR5)
- Gigabit Ethernet, two Thunderbolt 4, two USB-A and HDMI 2.1
Cons
- Only 1920 × 1200 IPS screens at 60 Hz; the base panel is 400 nits and 45% NTSC
- Starts at 1.76 kg, or 1.89 kg with the 86 Wh battery
- No SD card reader
Closest rivals
Model | Size | Display | Processor | Memory | Weight | Battery | Released |
|---|---|---|---|---|---|---|---|
| 16″ | IPS LCD, 60 Hz | Intel Core Ultra 5 or 7 | 16 GB | 1.92 kg | – | Mar 2025 | |
| 15.6″ | 60 Hz | Intel Core i5 | 4 GB | – | – | 2011 | |
| 16″ | IPS LCD, 60 Hz | AMD Ryzen AI 5 or 7 | 16 GB – 64 GB | 1.76 kg | 28 h | Jun 2025 |
Sources
- psref.lenovo.com/Product/ThinkPad/ThinkPad_T16_Gen_4_Intel
- psref.lenovo.com/syspool/Sys/PDF/ThinkPad/ThinkPad_T16_Gen_4_Intel/ThinkPad_T16…
- news.lenovo.com/pressroom/press-releases/advancing-ai-powered-business-computin…
Photo: psrefstuff.lenovo.com

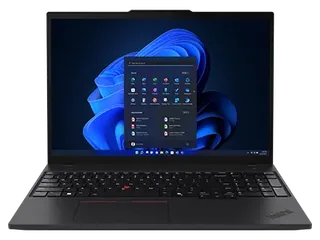

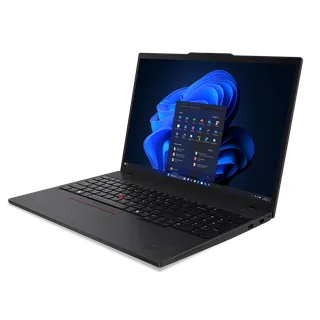

- Lenovo ThinkPad T16 Gen 4 (Intel), black, front open elevated angle: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

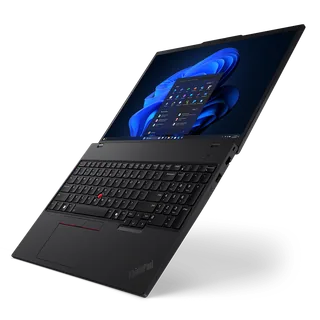

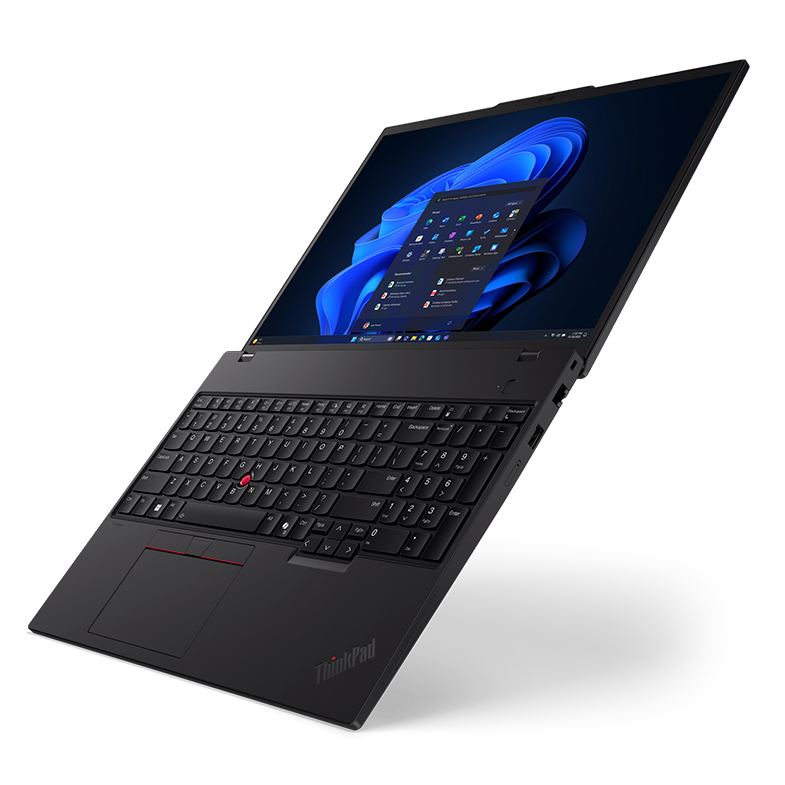

- Lenovo ThinkPad T16 Gen 4 (Intel), black, angled vertical laptop balanced open: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

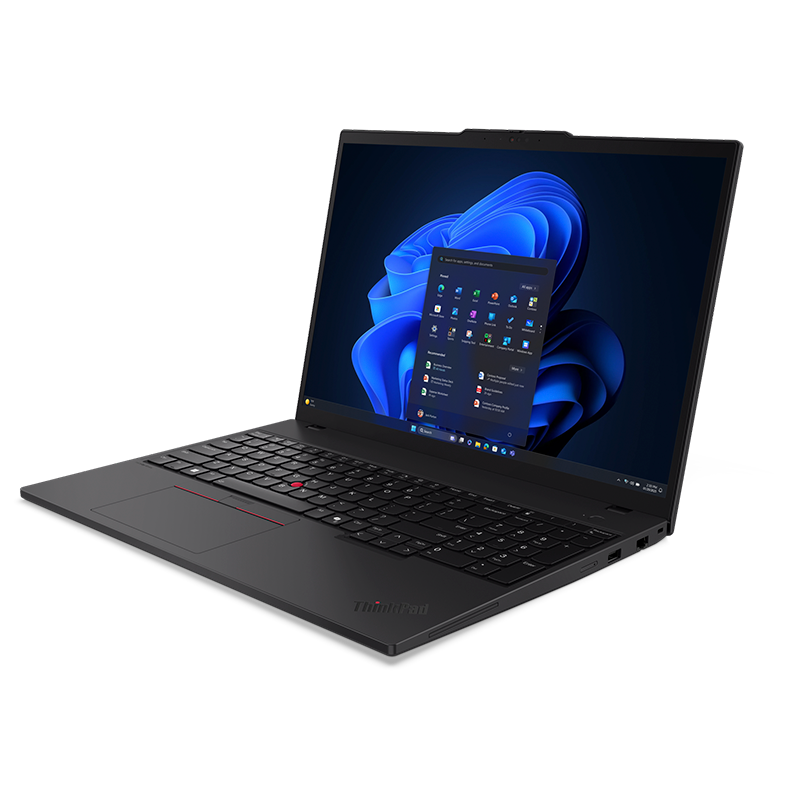

- Lenovo ThinkPad T16 Gen 4 (Intel), black, front angle from Ethernet/USB-A side: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

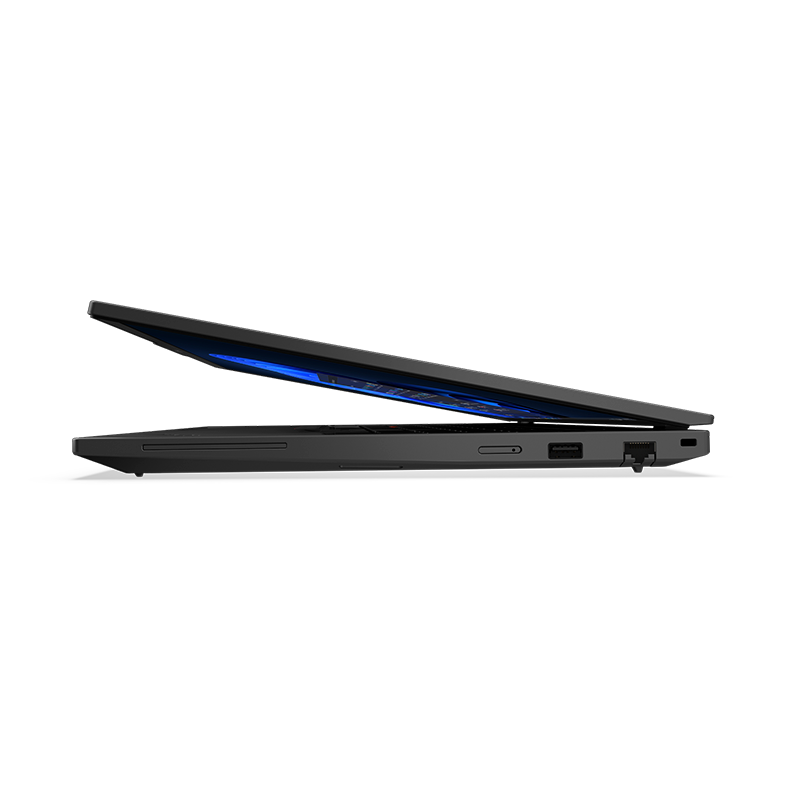

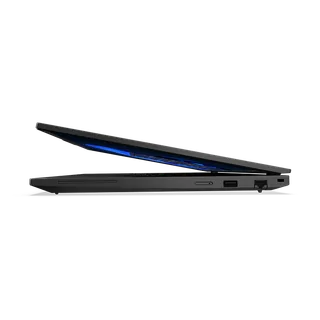

- Lenovo ThinkPad T16 Gen 4 (Intel), black, side view lid slightly open: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

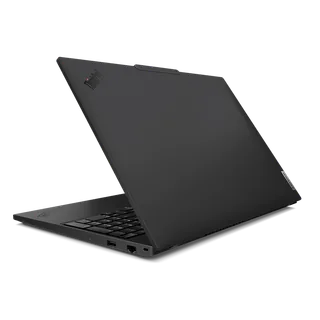

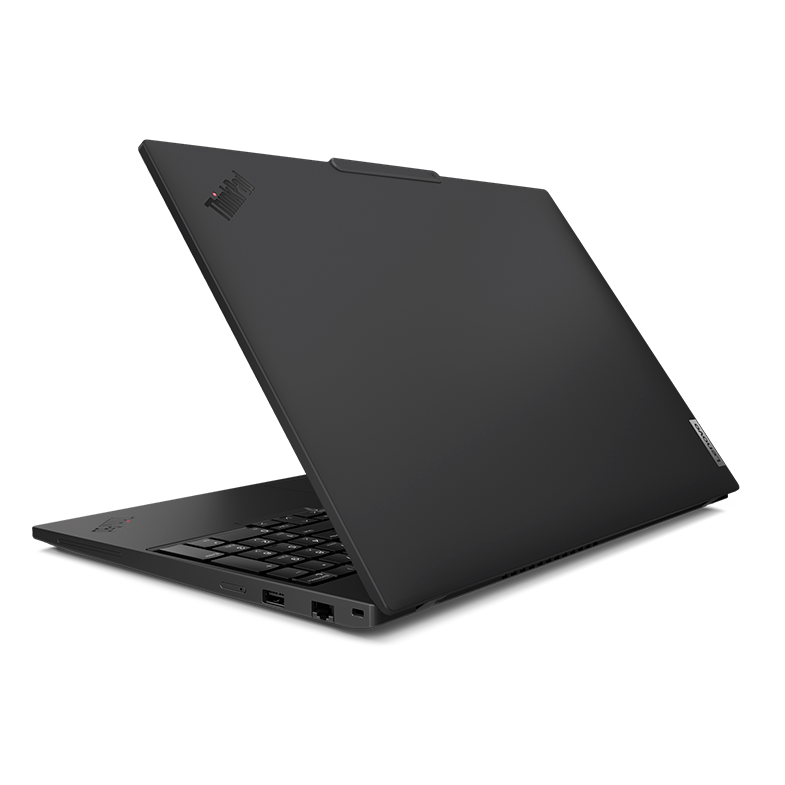

- Lenovo ThinkPad T16 Gen 4 (Intel), black, rear lid open angled: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

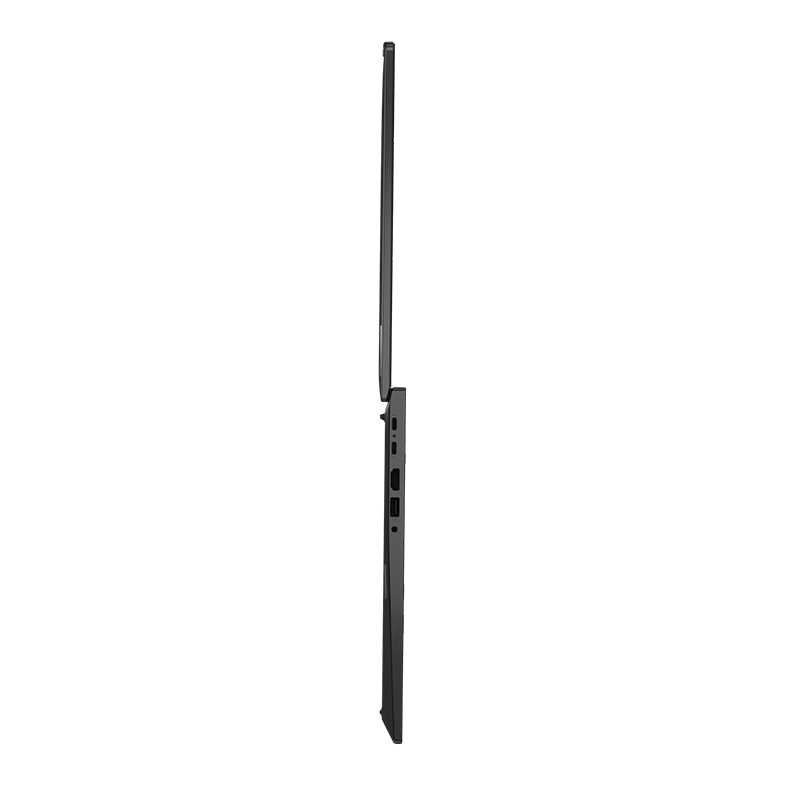

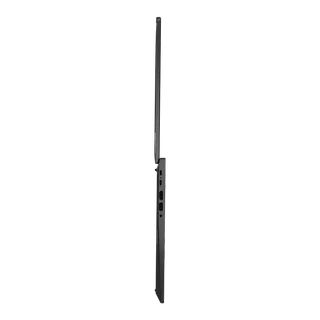

- Lenovo ThinkPad T16 Gen 4 (Intel), black, open180degree edge-on vertical: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

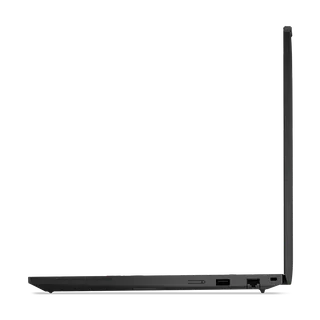

- Lenovo ThinkPad T16 Gen 4 (Intel), black, open side profile from Ethernet/smart-card side: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

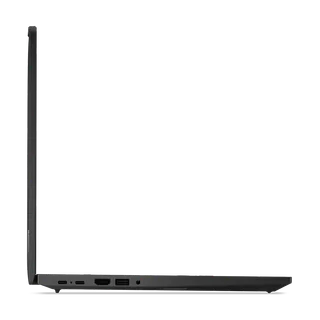

- Lenovo ThinkPad T16 Gen 4 (Intel), black, open side profile from Thunderbolt/HDMI side: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

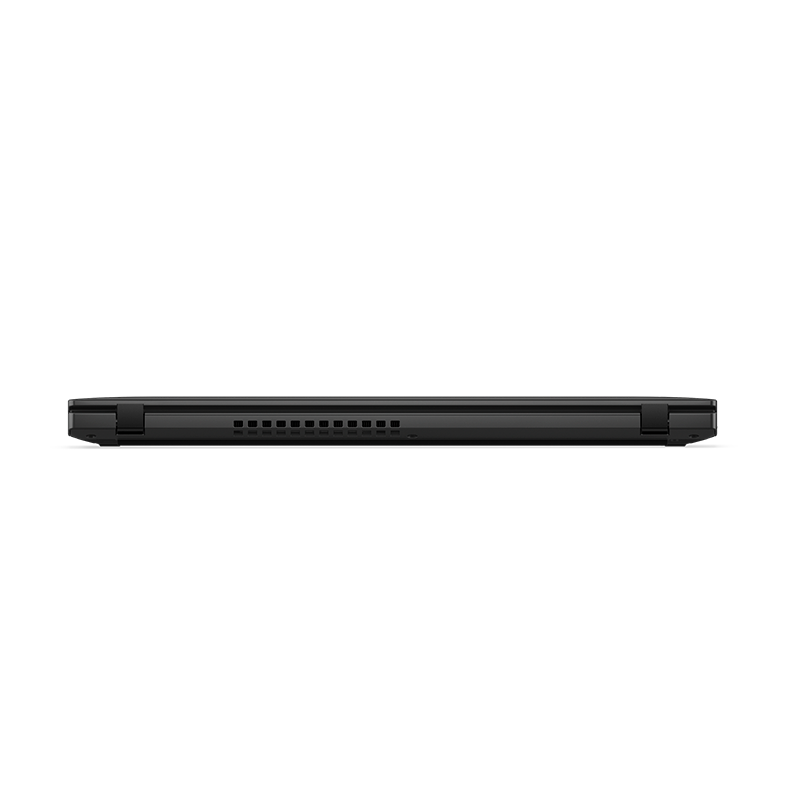

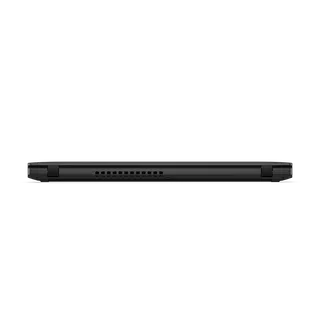

- Lenovo ThinkPad T16 Gen 4 (Intel), black, rear edge lid closed: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

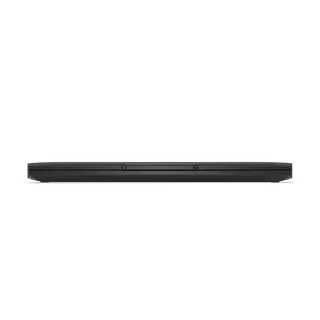

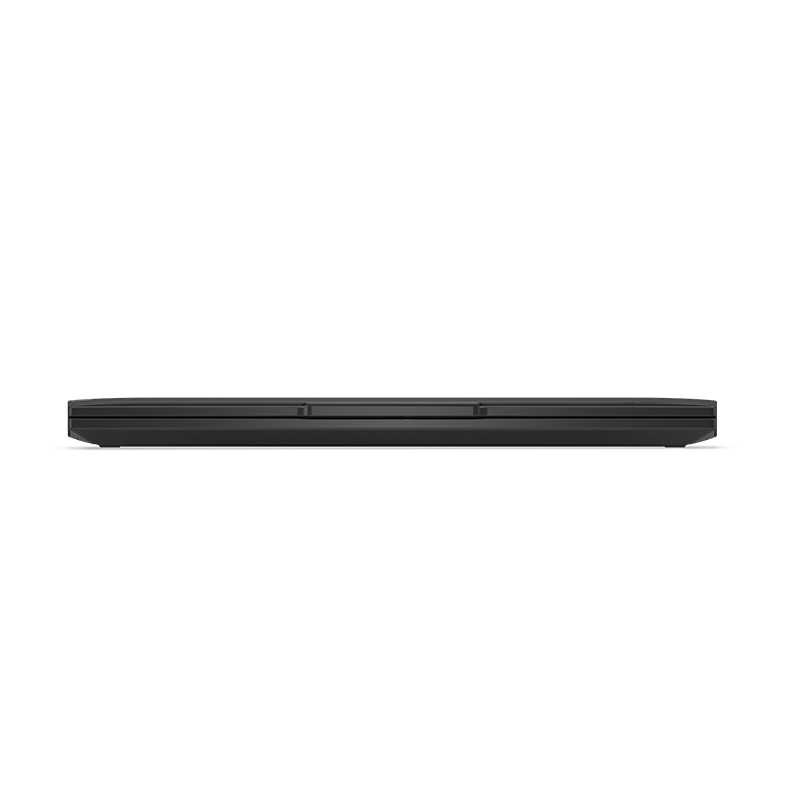

- Lenovo ThinkPad T16 Gen 4 (Intel), black, front edge lid closed: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

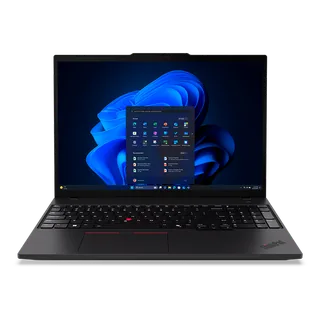

- Lenovo ThinkPad T16 Gen 4 (Intel), black, front open photographed WindowsStartscreen close view: Lenovo exact INTEL product gallery photograph. Complete supplied photograph canvas, background and native alpha retained.

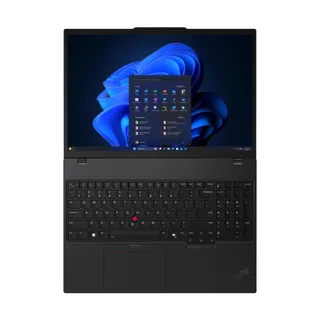

- Lenovo ThinkPad T16 Gen 4 (Intel), black, display and keyboard flat overhead: Lenovo exact INTEL product PSREF PDF PDFimage object165. Complete supplied photograph canvas, background and native alpha retained.

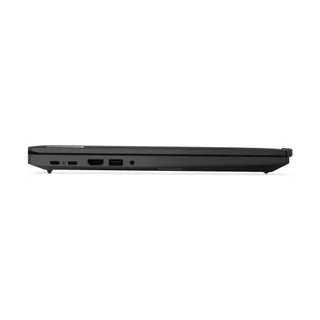

- Lenovo ThinkPad T16 Gen 4 (Intel), black, Thunderbolt/HDMI side lid closed: Lenovo exact INTEL product PSREF PDF PDFimage object166. Complete supplied photograph canvas, background and native alpha retained.

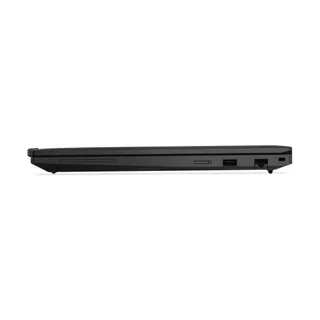

- Lenovo ThinkPad T16 Gen 4 (Intel), black, Ethernet/smart-card side lid closed: Lenovo exact INTEL product PSREF PDF PDFimage object167. Complete supplied photograph canvas, background and native alpha retained.

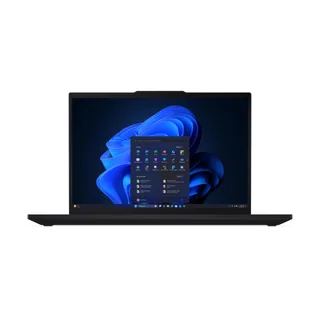

- Lenovo ThinkPad T16 Gen 4 (Intel), black, front at eye level lid open: Lenovo exact INTEL product PSREF PDF PDFimage object168. Complete supplied photograph canvas, background and native alpha retained.

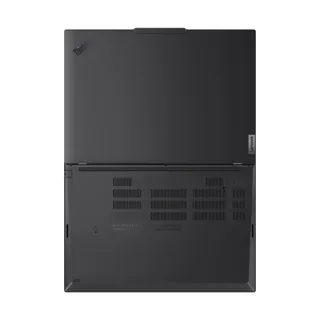

- Lenovo ThinkPad T16 Gen 4 (Intel), black, lid and underside overhead: Lenovo exact INTEL product PSREF PDF PDFimage object169. Complete supplied photograph canvas, background and native alpha retained.
