Lenovo · ThinkPad T

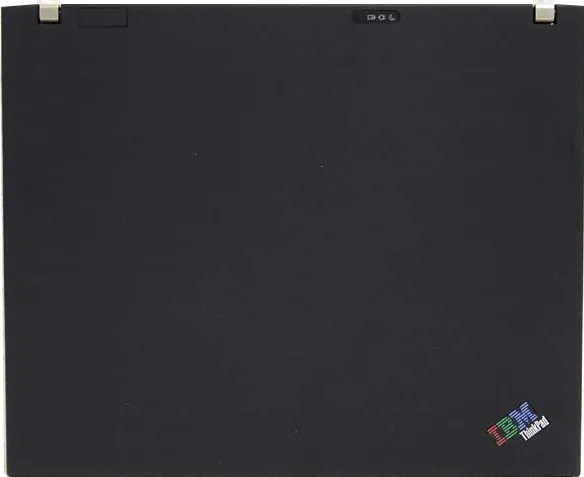

ThinkPad T60

Released February 2006

A Core Duo business laptop with a magnesium roll cage, replaceable memory and SATA hard drive, and a removable Ultrabay Slim optical drive.

Size: 14.1″
Display: –
Processor: Intel Core Duo T2400
Memory: 512 MB
Weight: 2.5 kg
Battery: 6 h

What reviewers say

Both reviews praise the sturdy construction, security features and battery endurance, but criticise the XGA screen's viewing angles. Notebookcheck likes the keyboard and quiet cooling, while NOTEBOOK.cz finds the keys louder and the fan less quiet. Their integrated-GMA and Radeon configurations suit office work; neither is recommended for demanding games.

From notebookcheck.net and notebook.cz

Specifications

Report a wrong or missing spec

Display

Screen size: 14.1″
Resolution: 1024 × 768
Brightness: 150 nits
Touchscreen: No
Display type: 14.1-inch XGA TFT LCD on listed 1951-43U; native refresh and panel subtype unpublished in PSREF
Screen finish: Anti-glare

Performance

Processor: Intel Core Duo T2400
CPU cores: 2
Graphics: Intel GMA 950
Memory: 512 MB
Storage: 60 GB
CPU: Listed US 1951-43U has dual-core Core Duo T2400 at 1.83 GHz,667 MHz bus and 2 MB shared L 2 cache; later T60 configurations also offered Core 2 Duo
GPU: Intel GMA 950 integrated in 945GM on listed 1951 configuration; other T60 variants offered separate Radeon graphics, while T60p is a separate workstation model
Memory type: Listed 1951-43U has 512 MB PC2-5300 DDR2-667 in one socket; two 200-pin SO-DIMM sockets, maker 4 GB maximum
Storage type: Listed 1951-43U has 60 GB 5400 rpm SATA hard drive and DVD-ROM/CD-RW combo drive; replaceable 9.5 mm SATA disk with shock mount and Active Protection System; removable 9.5 mm Ultrabay Slim optical drive

Battery and size

Battery life (maker's claim): Up to 6 hours
Weight: 2.5 kg
Thickness: 31 mm
Width × depth: 311 × 255 mm
Battery life detail: Six-cell lithium-ion battery; maker maximum 6 hours, optional nine-cell up to 9 hours or nine-cell plus Ultrabay battery up to 11.5 hours; headline weight is maker upper figure with optical drive and battery, not a bare-body measurement
Charger: 65 W AC adapter for integrated-GMA configuration
Materials: Magnesium-composite top cover, carbon-fibre-reinforced plastic bottom and internal magnesium roll cage; maker height range 26.6–31 mm, maximum 31 mm listed
Colours: Black

Connections

Ports: 3 × USB-A, Ethernet, headphone jack
Wi-Fi: Intel PRO/Wireless 3945ABG, 802.11a/b/g on listed US 1951-43U
Webcam: No built-in camera listed; USB webcam offered as accessory
Operating system: Windows
Port detail: Three USB 2.0, VGA, infrared 4 Mbps, RJ-11 modem, Gigabit RJ-45, separate microphone input/headphone output, CardBus slot and ExpressCard 34/54 slot; docking connector, with DVI through optional Advanced Mini Dock or Advanced Dock
Keyboard: 89-key spill-resistant keyboard with ThinkVantage button and ThinkLight keyboard illumination
Trackpad: UltraNav touchpad and TrackPoint
Speakers: Stereo 1 W speakers with dedicated volume/mute buttons
Microphones: Internal microphone and separate microphone-input jack
Biometrics: Trusted Platform Module 1.2; fingerprint reader optional and not present on listed 1951-43U; power-on, supervisor and hard-drive passwords

Configurations

Processor	Memory	Storage	Graphics
Intel Core Duo T2400	512 MB	60 GB	Intel GMA 950

Pros and cons

Pros

Two memory sockets and replaceable hard drive
TrackPoint and touchpad with spill-resistant keyboard
Gigabit Ethernet and three USB ports

Cons

XGA display on the listed configuration
No built-in memory-card reader
DVI requires an optional dock

Closest rivals

Model	Size	Display	Processor	Memory	Weight	Battery	Released
IBMThinkPad T42	14.1″	–	Intel Pentium M 735	512 MB	2.3 kg	4.6 h	May 2004
LenovoThinkPad T61	14.1″	–	Intel Core 2	1 GB – 2 GB	2.4 kg	3.8 h	May 2007
LenovoThinkPad T400	14.1″	–	Intel Core 2	2 GB	2.3 kg	6.5 h	Aug 2008
