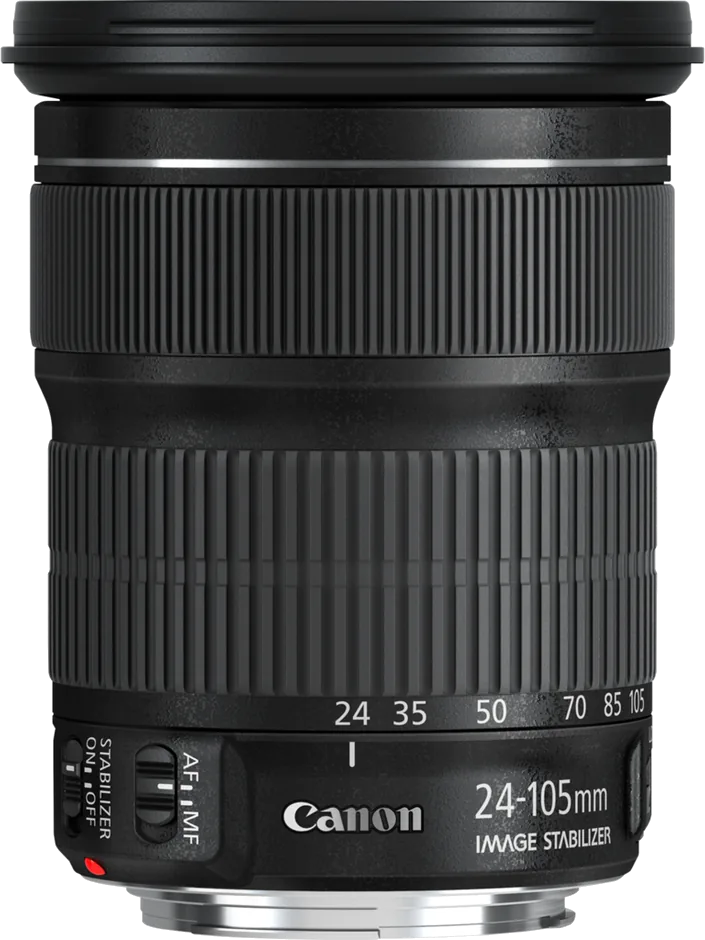

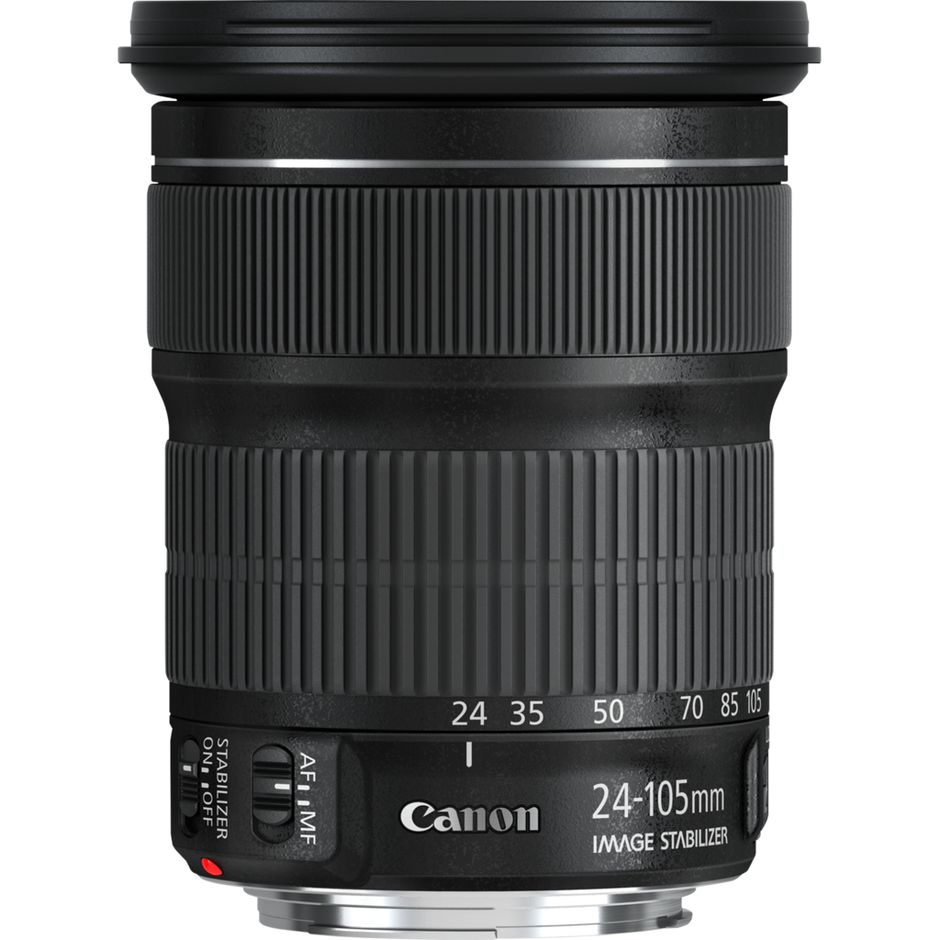

EF 24–105mm f/3.5–5.6 IS STM

Released December 2014

A full-frame EF standard zoom with STM autofocus, optical stabilisation, electronic manual focusing and a transport lock at 24 mm.

Mount: Canon EF
Focal length: 24–105 mm
Max aperture: f/3.5–5.6
Stabilisation: Yes
Weight: 525 g

What reviewers say

Both reviews find good value, quick quiet autofocus and useful stabilisation, with visible shading and distortion. ePHOTOzine finds excellent central sharpness throughout the range but weaker wide-angle edges and substantial colour fringing. Photography Blog finds fringing well controlled and stronger wide-angle sharpness, while reporting softer wide-open results at 50–105 mm that improve stopped down.

From ephotozine.com, photographyblog.com, photographyblog.com, photographyblog.com, photographyblog.com, photographyblog.com, photographyblog.com and photographyblog.com

Specifications

Report a wrong or missing spec

Optics

Lens type: Zoom
Focal length: 24–105 mm
Maximum aperture: f/3.5–5.6
Minimum aperture: f/22–36
Optical construction: Seventeen elements in thirteen groups
Special elements: Aspherical and UD elements
Aperture detail: Minimum aperture f/22–36 with third-stop increments, or f/22–32 with half-stop increments, according to Canon's exact manual and Museum table
Diaphragm: Seven blades with a circular aperture
Angle of view: 84°–23°20′ diagonal, 74°–19°20′ horizontal and 53°–13° vertical

Mount and compatibility

Mounts: Canon EF
Image circle: Full frame
Compatibility: Canon EF cameras with full-frame or APS-C sensors
Teleconverter support: Canon's manual excludes extenders
Adaptor support: EF12 II gives 0.61–0.50× at 24 mm and 0.46–0.12× at 105 mm; EF25 II is incompatible at 24 mm and gives 0.67–0.27× at 105 mm

Focus and stabilisation

Autofocus: Yes
Minimum focus distance: 0.4 m
Maximum magnification: 0.3×
Optical stabilisation: Yes
Autofocus detail: Lead-screw STM autofocus with electronic manual focusing. One Shot AF permits manual adjustment with the shutter half-pressed; manual focusing is unavailable when the camera is off or the lens is asleep
Focus distance detail: Internal focusing with a non-rotating filter thread according to ePHOTOzine. Canon instructs users to finish zooming before focusing
Stabilisation detail: Four-stop claim measured at 105 mm with the EOS-1D X under CIPA standards. The manual describes automatic correction for still subjects and panning
Video features: Smooth Movie Servo AF with compatible cameras; the original manual lists EOS 70D, 700D, 100D and 650D, plus EOS M/M2 with an EF-EOS M adaptor

Design

Filter diameter: 77 mm
Maximum diameter: 83.4 mm
Length: 104 mm
Weight: 525 g
Controls: AF/MF and stabilisation switches, separate focus and zoom rings, and a zoom lock at 24 mm
Zoom design: Extending barrel with transport lock at the shortest position
Dimensions detail: Maximum diameter × length; size and 525 g weight are lens-only. Caps add 24.2 mm to length according to Canon's manual
Lens hood: Optional EW-83M hood with release button; reversible for storage
Release detail: Canon Camera Museum records December 2014 marketing; no first-sale day is given

Pros and cons

Pros

Optical image stabilisation
STM autofocus
Zoom transport lock

Cons

Maximum aperture narrows to f/5.6
Manual focusing requires camera power
Hood sold separately

Closest rivals

Model	Mount	Focal length	Max aperture	Stabilisation	Weight	Released
CanonEF 24–105mm f/4L IS II USM	Canon EF	24–105 mm	f/4	Yes	795 g	2016
CanonEF 24–70mm f/4L IS USM	Canon EF	24–70 mm	f/4	Yes	600 g	Dec 2012
CanonEF 24–105mm f/4L IS USM	Canon EF	24–105 mm	f/4	Yes	670 g	2005
