Home Lenses Canon EF-S 17–55mm f/2.8 IS USM Canon · EF

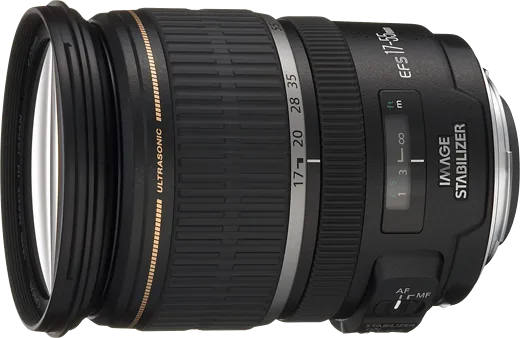

EF-S 17–55mm f/2.8 IS USM Released May 2006
A Canon EF-S standard zoom with a constant f/2.8 maximum aperture, three-stop optical stabilisation and USM autofocus with full-time manual override.
Compare with another lens Compare with… EF 70–200mm f/2.8L IS III USM (2018) EF 70–200mm f/4L IS II USM (2018) EF 85mm f/1.4L IS USM (2017) EF-S 35mm f/2.8 Macro IS STM (2017) EF-S 18–55mm f/4–5.6 IS STM (2017) EF 16–35mm f/2.8L III USM (2016) EF-S 18–135mm f/3.5–5.6 IS USM (2016) EF 24–105mm f/4L IS II USM (2016) EF 35mm f/1.4L II USM (2015) EF 50mm f/1.8 STM (2015) EF 24–105mm f/3.5–5.6 IS STM (2014) EF-S 24mm f/2.8 STM (2014) EF-S 10–18mm f/4.5–5.6 IS STM (2014) EF-S 55–250mm f/4–5.6 IS STM (2013) EF-S 18–55mm f/3.5–5.6 IS STM (2013) EF 24–70mm f/4L IS USM (2012) EF 35mm f/2 IS USM (2012) EF 24–70mm f/2.8L II USM (2012) EF 24mm f/2.8 IS USM (2012) EF 28mm f/2.8 IS USM (2012) EF-S 18–135mm f/3.5–5.6 IS STM (2012) EF-S 55–250mm f/4–5.6 IS II (2011) EF-S 18–55mm f/3.5–5.6 III (2011) EF-S 18–55mm f/3.5–5.6 IS II (2011) EF 70–200mm f/2.8L IS II USM (2010) EF 100mm f/2.8L Macro IS USM (2009) EF-S 15–85mm f/3.5–5.6 IS USM (2009) EF-S 18–135mm f/3.5–5.6 IS (2009) EF 24mm f/1.4L II USM (2008) EF-S 18–200mm f/3.5–5.6 IS (2008) EF-S 55–250mm f/4–5.6 IS (2007) EF-S 18–55mm f/3.5–5.6 IS (2007) EF 50mm f/1.2L USM (2007) EF 16–35mm f/2.8L II USM (2007) EF 70–200mm f/4L IS USM (2006) EF 85mm f/1.2L II USM (2006) EF-S 18–55mm f/3.5–5.6 II (2005) EF-S 18–55mm f/3.5–5.6 II USM (2005) EF-S 60mm f/2.8 Macro USM (2005) EF 24–105mm f/4L IS USM (2005) EF-S 10–22mm f/3.5–4.5 USM (2004) EF-S 17–85mm f/4–5.6 IS USM (2004) EF-S 18–55mm f/3.5–5.6 USM (2003) EF 24–70mm f/2.8L USM (2002) EF 16–35mm f/2.8L USM (2001) EF 70–200mm f/2.8L IS USM (2001) EF 100mm f/2.8 Macro USM (2000) EF 70–200mm f/4L USM (1999) EF 35mm f/1.4L USM (1998) EF 24mm f/1.4L USM (1997) EF 135mm f/2L USM (1996) EF 200mm f/2.8L II USM (1996) EF 28mm f/1.8 USM (1995) EF 70–200mm f/2.8L USM (1995) EF 50mm f/1.4 USM (1993) EF 85mm f/1.8 USM (1992) EF 200mm f/2.8L USM (1991) EF 50mm f/1.8 II (1990) EF 35mm f/2 (1990) EF 100mm f/2.8 Macro (1990) EF 80–200mm f/2.8L (1989) EF 85mm f/1.2L USM (1989) EF 24mm f/2.8 (1988) EF 28mm f/2.8 (1987) EF 50mm f/1.8 (1987) RF 20-50mm F4L IS USM PZ (2026) RF 14mm F1.4L VCM (2026) RF 7-14mm F2.8-3.5L FISHEYE STM (2026) RF 45mm F1.2 STM (2025) RF 85mm F1.4L VCM (2025) RF 75–300mm F4–5.6 (2025) RF 20mm F1.4 L VCM (2025) RF-S 14–30mm F4–6.3 IS STM PZ (2025) RF 16–28mm F2.8 IS STM (2025) RF 24mm F1.4 L VCM (2024) RF 50mm F1.4 L VCM (2024) RF 70-200mm F2.8L IS USM Z (2024) RF 28–70mm F2.8 IS STM (2024) RF 35mm F1.4 L VCM (2024) RF 200–800mm F6.3–9 IS USM (2023) RF 24-105mm F2.8 L IS USM Z (2023) RF-S 10–18mm F4.5–6.3 IS STM (2023) RF 10–20mm F4 L IS STM (2023) RF 28mm F2.8 STM (2023) RF 100–300mm F2.8L IS USM (2023) RF 24–50mm F4.5–6.3 IS STM (2023) RF-S 55–210mm F5–7.1 IS STM (2023) RF 135mm F1.8 L IS USM (2023) RF 15–30mm F4.5–6.3 IS STM (2022) RF 24mm F1.8 MACRO IS STM (2022) RF-S 18–150mm F3.5–6.3 IS STM (2022) RF-S 18–45mm F4.5–6.3 IS STM (2022) RF 1200mm F8L IS USM (2022) RF 800mm F5.6L IS USM (2022) RF 100–400mm F5.6–8 IS USM (2021) RF 16mm F2.8 STM (2021) RF 14–35mm F4 L IS USM (2021) RF 100mm F2.8 L Macro IS USM (2021) RF 400mm F2.8L IS USM (2021) RF 600mm F4L IS USM (2021) RF 70–200mm F4 L IS USM (2021) RF 50mm F1.8 STM (2020) RF 85mm F2 MACRO IS STM (2020) RF 100–500mm F4.5–7.1L IS USM (2020) RF 600mm F11 IS STM (2020) RF 800mm F11 IS STM (2020) RF 24–105mm F4–7.1 IS STM (2020) RF 85mm F1.2 L USM DS (2019) RF 70–200mm F2.8 L IS USM (2019) RF 15–35mm F2.8 L IS USM (2019) RF 24–240mm F4–6.3 IS USM (2019) RF 24–70mm F2.8L IS USM (2019) RF 85mm F1.2 L USM (2019) RF 28–70mm F2 L USM (2018) RF 35mm F1.8 MACRO IS STM (2018) RF 24–105mm F4L IS USM (2018) RF 50mm F1.2 L USM (2018) NIKKOR Z 70–200mm f/2.8 VR S II (2026) NIKKOR Z 24–105mm f/4–7.1 (2026) NIKKOR Z DX 16–50mm f/2.8 VR (2025) NIKKOR Z DX MC 35mm f/1.7 (2025) NIKKOR Z 24-70mm f/2.8 S II (2025) NIKKOR Z 28-135mm f/4 PZ (2025) NIKKOR Z 35mm f/1.2 S (2025) NIKKOR Z 50mm f/1.4 (2024) NIKKOR Z 35mm f/1.4 (2024) NIKKOR Z 28-400mm f/4-8 VR (2024) NIKKOR Z 135mm f/1.8 S Plena (2023) NIKKOR Z 600mm f/6.3 VR S (2023) NIKKOR Z 180-600mm f/5.6-6.3 VR (2023) NIKKOR Z 70-180mm f/2.8 (2023) NIKKOR Z DX 24mm f/1.7 (2023) NIKKOR Z DX 12-28mm f/3.5-5.6 PZ VR (2023) NIKKOR Z 26mm f/2.8 (2023) NIKKOR Z 85mm f/1.2 S (2023) NIKKOR Z 600mm f/4 TC VR S (2022) NIKKOR Z 17-28mm f/2.8 (2022) NIKKOR Z 400mm f/4.5 VR S (2022) NIKKOR Z 800mm f/6.3 VR S (2022) NIKKOR Z 400mm f/2.8 TC VR S (2022) NIKKOR Z 28-75mm f/2.8 (2022) NIKKOR Z 100-400mm f/4.5-5.6 VR S (2021) NIKKOR Z 24-120mm f/4 S (2021) NIKKOR Z DX 18-140mm f/3.5-6.3 VR (2021) NIKKOR Z 40mm f/2 (2021) NIKKOR Z 28mm f/2.8 (2021) NIKKOR Z MC 105mm f/2.8 VR S (2021) NIKKOR Z MC 50mm f/2.8 (2021) NIKKOR Z 50mm f/1.2 S (2020) NIKKOR Z 14-24mm f/2.8 S (2020) NIKKOR Z 24-50mm f/4-6.3 (2020) NIKKOR Z 70-200mm f/2.8 VR S (2020) NIKKOR Z 24-200mm f/4-6.3 VR (2020) NIKKOR Z 20mm f/1.8 S (2020) NIKKOR Z DX 16-50mm f/3.5-6.3 VR (2019) NIKKOR Z DX 50-250mm f/4.5-6.3 VR (2019) NIKKOR Z 58mm f/0.95 S Noct (2019) NIKKOR Z 24mm f/1.8 S (2019) NIKKOR Z 85mm f/1.8 S (2019) NIKKOR Z 24-70mm f/2.8 S (2019) NIKKOR Z 14-30mm f/4 S (2019) NIKKOR Z 50mm f/1.8 S (2018) NIKKOR Z 24-70mm f/4 S (2018) NIKKOR Z 35mm f/1.8 S (2018) AF-S NIKKOR 500mm f/5.6E PF ED VR (2018) AF-S NIKKOR 180-400mm f/4E TC1.4 FL ED VR (2018) AF-S NIKKOR 28mm f/1.4E ED (2017) AF-S NIKKOR 70–200mm f/2.8E FL ED VR (2016) AF-S NIKKOR 105mm f/1.4E ED (2016) AF-S NIKKOR 24-70mm f/2.8E ED VR (2015) AF-S NIKKOR 200–500mm f/5.6E ED VR (2015) AF-S NIKKOR 24mm f/1.8G ED (2015) AF-S NIKKOR 500mm f/4E FL ED VR (2015) AF-S NIKKOR 600mm f/4E FL ED VR (2015) AF-S NIKKOR 20mm f/1.8G ED (2014) AF-S NIKKOR 400mm f/2.8E FL ED VR (2014) AF-S DX NIKKOR 18–300mm f/3.5–6.3G ED VR (2014) AF-S NIKKOR 35mm f/1.8G ED (2014) AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR (2013) AF-S NIKKOR 800mm f/5.6E FL ED VR (2013) AF-S NIKKOR 28mm f/1.8G (2012) AF-S NIKKOR 85mm f/1.8G (2012) AF-S DX Micro NIKKOR 40mm f/2.8G (2011) AF-S NIKKOR 50mm f/1.8G (2011) AF-S NIKKOR 35mm f/1.4G (2010) AF-S NIKKOR 24–120mm f/4G ED VR (2010) AF-S NIKKOR 85mm f/1.4G (2010) AF-S NIKKOR 24mm f/1.4G ED (2010) AF-S NIKKOR 16–35mm f/4G ED VR (2010) AF-S DX NIKKOR 35mm f/1.8G (2009) AF-S NIKKOR 50mm f/1.4G (2008) AF-S NIKKOR 14–24mm f/2.8G ED (2007) FE 400mm F4.5 GM OSS (2026) FE 600mm F6.3 GM OSS (2026) FE 8–14mm F3.5 Fisheye G (2026) FE 100–400mm F5.6–8 OSS (2026) FE 100–400mm F4.5 GM OSS (2026) FE 28-70mm F3.5-5.6 OSS II (2026) FE 100mm F2.8 Macro GM OSS (2025) FE 50–150mm F2 GM (2025) FE 16mm F1.8 G (2025) FE 400–800mm F6.3–8 G OSS (2025) FE 28–70mm F2 GM (2024) FE 85mm F1.4 GM II (2024) E PZ 16-50mm F3.5-5.6 OSS II (2024) FE 16-25mm F2.8 G (2024) FE 24-50mm F2.8 G (2024) FE 300mm F2.8 GM OSS (2024) FE 16–35mm F2.8 GM II (2023) FE 70-200mm F4 Macro G OSS II (2023) FE 50mm F1.4 GM (2023) FE 20-70mm F4 G (2023) E 11mm F1.8 (2022) E 15mm F1.4 G (2022) E PZ 10-20mm F4 G (2022) FE 24–70mm F2.8 GM II (2022) FE PZ 16-35mm F4 G (2022) FE 70–200mm F2.8 GM OSS II (2021) FE 14mm F1.8 GM (2021) FE 24mm F2.8 G (2021) FE 40mm F2.5 G (2021) FE 50mm F1.2 GM (2021) FE 50mm F2.5 G (2021) FE 35mm F1.4 GM (2021) FE 28-60mm F4-5.6 (2020) FE 12-24mm F2.8 GM (2020) FE 20mm F1.8 G (2020) E 70-350mm F4.5-6.3 G OSS (2019) E 16-55mm F2.8 G (2019) FE 35mm F1.8 (2019) FE 200-600mm F5.6-6.3 G OSS (2019) FE 600mm F4 GM OSS (2019) FE 135mm F1.8 GM (2019) FE 24mm F1.4 GM (2018) FE 400mm F2.8 GM OSS (2018) E 18-135mm F3.5-5.6 OSS (2018) FE 24-105mm F4 G OSS (2017) FE 100-400mm F4.5-5.6 GM OSS (2017) FE 12-24mm F4 G (2017) FE 16-35mm F2.8 GM (2017) FE 100mm F2.8 STF GM OSS (2017) FE 85mm F1.8 (2017) E PZ 18-110mm F4 G OSS (2016) FE 50mm F2.8 Macro (2016) FE 70-200mm F2.8 GM OSS (2016) Planar T* FE 50mm F1.4 ZA (2016) FE 50mm F1.8 (2016) FE 70-300mm F4.5-5.6 G OSS (2016) FE 24-70mm F2.8 GM (2016) FE 85mm F1.4 GM (2016) FE 90mm F2.8 Macro G OSS (2015) Distagon T* FE 35mm F1.4 ZA (2015) FE 24-240mm F3.5-6.3 OSS (2015) FE 28mm F2 (2015) FE PZ 28-135mm F4 G OSS (2014) Vario-Tessar T* FE 16-35mm F4 ZA OSS (2014) FE 70-200mm F4 G OSS (2014) Vario-Tessar T* FE 24-70mm F4 ZA OSS (2014) E PZ 18-105mm F4 G OSS (2013) Sonnar T* FE 55mm F1.8 ZA (2013) 70-200mm F2.8 G SSM II (2013) Sonnar T* FE 35mm F2.8 ZA (2013) Vario-Tessar T* E 16-70mm F4 ZA OSS (2013) Planar T* 50mm F1.4 ZA SSM (2013) E 20mm F2.8 (2013) E 10-18mm F4 OSS (2012) E 35mm F1.8 OSS (2012) E PZ 18-200mm F3.5-6.3 OSS (2012) E 18-200mm F3.5-6.3 OSS LE (2012) E 50mm F1.8 OSS (2011) Sonnar T* E 24mm F1.8 ZA (2011) DT 16–50mm F2.8 SSM (2011) E 55-210mm F4.5-6.3 OSS (2011) E 30mm F3.5 Macro (2011) DT 35mm F1.8 SAM (2010) E 16mm F2.8 (2010) DT 30mm F2.8 Macro SAM (2009) DT 50mm F1.8 SAM (2009) Vario-Sonnar T* 16-35mm F2.8 ZA SSM (2009) Vario-Sonnar T* 24–70mm F2.8 ZA SSM (2008) Vario-Sonnar T* DT 16–80mm F3.5–4.5 ZA (2007) Planar T* 85mm F1.4 ZA (2006) Sonnar T* 135mm F1.8 ZA (2006) 70–200mm F2.8 G (2006) 50mm F1.4 (2006) 50mm F2.8 Macro (2006)
Mount Canon EF-S
Focal length 17–55 mm
Max aperture f/2.8
Stabilisation Yes
Weight 645 g What reviewers say Reviewers praise fast quiet autofocus, sharp images and useful stabilisation, but question the price. Photozone finds outstanding resolution, noticeable f/2.8 vignetting and construction too reliant on plastic; ePHOTOzine finds good wide-open resolution that becomes excellent at f/5.6 and praises low-light usability. Both flag distortion, although their reported focal-length patterns differ. ePHOTOzine also considers it bulky.
From photozone.de , photozone.de , photozone.de and ephotozine.com
Optics
Lens type Zoom
Focal length 17–55 mm
Maximum aperture f/2.8
Minimum aperture f/22
Optical construction 19 elements in 12 groups
Special elements Three aspherical elements, including one glass-moulded and two replica elements; two UD elements according to Canon Japan
Coatings Super Spectra coatings according to Canon UK
Diaphragm Seven blades with a circular aperture according to Canon Camera Museum
Angle of view Horizontal 68°40′–23°20′, vertical 48°–15°40′, diagonal 78°30′–27°50′ Mount and compatibility
Mounts Canon EF-S
Image circle APS-C
Compatibility Canon EF-S compatible APS-C cameras; equivalent angle of view to 27–88 mm on full frame
Teleconverter support Canon extenders are not compatible
Adaptor support Canon UK confirms EOS M compatibility using the EF-EOS M adapter Focus and stabilisation
Autofocus Yes
Minimum focus distance 0.35 m
Maximum magnification 0.17×
Optical stabilisation Yes
Autofocus detail USM autofocus with full-time manual override; distance information is transmitted for E-TTL II flash metering according to Canon UK
Focus distance detail Internal focusing keeps lens length constant during focusing; front element does not rotate according to Photozone
Magnification detail Maximum 0.17× at 55 mm according to Canon Japan; EF12 II extension tube and 500D close-up lens supported, 250D close-up lens not supported
Stabilisation detail Canon states three shutter-speed stops of optical correction; Canon Japan lists no coordinated correction with camera IBIS Design
Dust and moisture resistant No
Filter diameter 77 mm
Maximum diameter 83.5 mm
Length 110.6 mm
Weight 645 g
Controls AF/MF and stabiliser switches; distance window and rear focus ring
Zoom design Extends towards the telephoto end according to Photozone and ePHOTOzine
Weather resistance Canon Japan lists no dust or drip resistance
Dimensions detail 83.5 mm maximum diameter × 110.6 mm length according to Canon
Lens hood EW-83J hood and LP1219 pouch are optional accessories; Canon UK's box list includes neither. Canon Camera Museum's price table says case and built-in hood, conflicting with the UK package and separately listed removable EW-83J hood
In the box Lens, E77II front cap, Lens Dust Cap E and user manual according to Canon UK
Release detail Canon Camera Museum records May 2006 marketing. Canon Japan records announcement on 22 February and Japanese first sale on 31 May 2006; a separately established UK first-sale day is not published in these sources. Pros and cons Pros + Constant f/2.8 maximum aperture+ Three-stop optical stabilisation claim+ Full-time manual focus overrideCons − No dust or drip resistance− 645 g weight− Hood sold separately in the UK
