RF 200–800mm F6.3–9 IS USM

Released December 2023

A full-frame super-telephoto zoom for EOS R cameras with Nano USM autofocus, optical stabilisation, dust and moisture resistant construction and RF extender compatibility throughout its zoom range.

Mount: Canon RF
Focal length: 200–800 mm
Max aperture: f/6.3–9
Stabilisation: Yes
Weight: 2,060 g

What reviewers say

Both reviews value the reach, fast autofocus and useful stabilisation, while warning that the narrow aperture demands higher ISO in poor light. Digital Camera World finds noticeably softer results at 800mm. Amateur Photographer is more positive about detail throughout its field test, but finds a monopod helpful and criticises the fixed tripod collar and bulk.

From digitalcameraworld.com and amateurphotographer.com

Specifications

Report a wrong or missing spec

Optics

Lens type: Zoom
Focal length: 200–800 mm
Maximum aperture: f/6.3–9
Minimum aperture: f/32–54
Optical construction: Seventeen elements in eleven groups
Special elements: Three UD elements
Coatings: Super Spectra coating; no fluorine coating
Aperture detail: Maximum f/6.3 at 200 mm and f/9 at 800 mm; minimum f/32–54 in the current UK specification. Canon Camera Museum instead lists f/51 at 800 mm
Diaphragm: Nine aperture blades
Angle of view: 12°–3°05′ diagonal, 10°–2°35′ horizontal and 7°–1°40′ vertical

Mount and compatibility

Mounts: Canon RF
Image circle: Full frame
Compatibility: Canon RF mount for full-frame and APS-C EOS R cameras
Teleconverter support: RF 1.4× gives 280–1120 mm at f/9–13, maximum 0.37×; RF 2× gives 400–1600 mm at f/13–18, maximum 0.54×. Autofocus and stabilisation supported throughout the zoom range; autofocus coverage depends on camera and extender

Focus and stabilisation

Autofocus: Yes
Minimum focus distance: 0.8 m
Maximum magnification: 0.25×
Optical stabilisation: Yes
Autofocus detail: Nano USM autofocus for fast stills focusing and smooth video transitions
Focus distance detail: Minimum focus 0.8 m at 200 mm and 3.3 m at 800 mm
Magnification detail: Maximum 0.25× at 200 mm and 0.2× at 800 mm
Stabilisation detail: Up to 5.5 stops optical stabilisation with EOS R at 800 mm, or 5.5 stops coordinated stabilisation with EOS R3 at 800 mm; CIPA yaw and pitch testing. Coordinated correction has greater effect towards the wide end

Design

Dust and moisture resistant: Yes
Filter diameter: 95 mm
Maximum diameter: 102.3 mm
Length: 314.1 mm
Weight: 2,060 g
Controls: Combined focus/control ring, customisable lens function buttons, AF/MF and stabiliser switches, and smooth/tight zoom torque adjustment
Zoom design: Barrel extends when zooming towards 800 mm
Weather resistance: Dust and moisture resistant construction; white exterior helps limit heating in sunlight
Dimensions detail: 102.3 mm maximum diameter × 314.1 mm length with barrel retracted
Weight detail: Approximately 2060 g current production; products manufactured before July 2026 weigh 2050 g. Canon's Japanese notice attributes the change to revised component specifications
Tripod mount: Attached rotating tripod collar; not removable or Arca-Swiss compatible (Amateur Photographer)
Lens hood: ET-101 hood included
In the box: Lens, E-95 cap, ET-101 hood, RF dust cap, Lens Strap 40 and user manual
Release detail: December 2023 release confirmed retrospectively by Canon's February 2024 global announcement; Japan's launch notice states early December and the US announcement expected December. Canon Camera Museum instead labels November 2023 as marketed

Pros and cons

Pros

200–800 mm zoom range
RF 1.4× and 2× extender support across the zoom range
Optical stabilisation and included tripod collar

Cons

Maximum aperture narrows to f/9 at 800 mm
2060 g current-production weight
95 mm filter thread

Closest rivals

Model	Mount	Focal length	Max aperture	Stabilisation	Weight	Released
CanonRF 100–400mm F5.6–8 IS USM	Canon RF	100–400 mm	f/5.6–8	Yes	635 g	Oct 2021
CanonRF 100–500mm F4.5–7.1L IS USM	Canon RF	100–500 mm	f/4.5–7.1	Yes	1,370 g	Aug 2020
CanonRF 800mm F5.6L IS USM	Canon RF	800 mm	f/5.6	Yes	3,140 g	May 2022

Sources

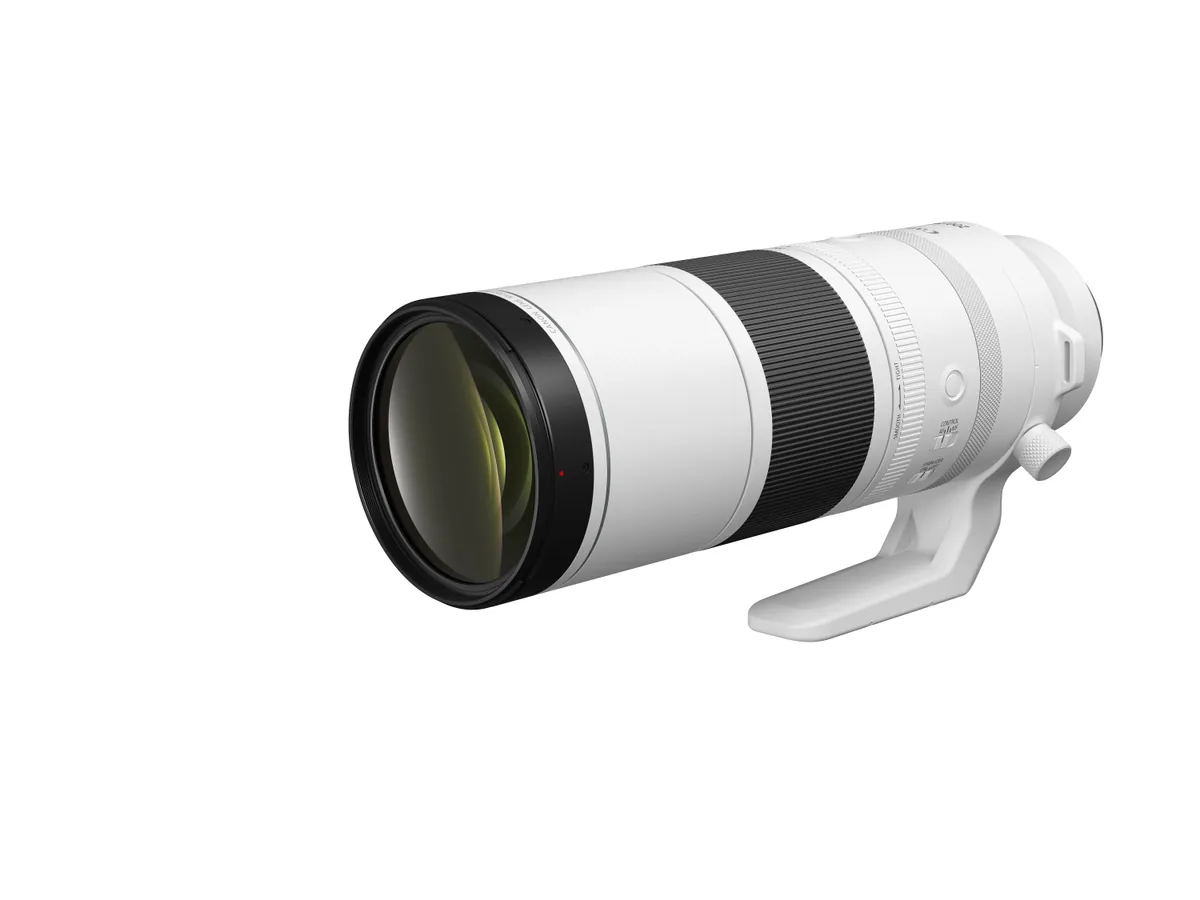

Photo: Canon Asia Photo Library; official press archive member RF200-800mm f6.3-9 IS USM Front Slant.jpg; complete supplied canvas and white background retained.

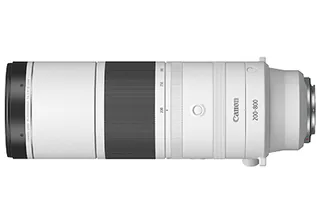

Side profile of the Canon RF 200–800mm F6.3–9 IS USM lens: personal.canon.jp/-/media/Project/Canon/CanonJP/Personal/product/camera/rf/rf20…
Canon RF200-800mm F6.3-9 IS USM Side, official press photograph: Canon Asia Photo Library; official press archive member RF200-800mm f6.3-9 IS USM Side.jpg; complete supplied canvas and white background retained.
Canon RF200-800mm F6.3-9 IS USM Side with switches, official press photograph: Canon Asia Photo Library; official press archive member RF200-800mm f6.3-9 IS USM Side with switches.jpg; complete supplied canvas and white background retained.

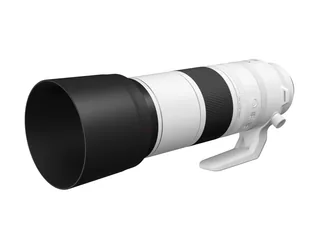

Canon RF200-800mm F6.3-9 IS USM Front Slant with Hood, official press photograph: Canon Asia Photo Library; official press archive member RF200-800mm f6.3-9 IS USM Front Slant with Hood.jpg; complete supplied canvas and white background retained.
Canon RF200-800mm F6.3-9 IS USM Front slant with hood and strap, official press photograph: Canon Asia Photo Library; official press archive member RF200-800mm f6.3-9 IS USM Front slant with hood and strap.jpg; complete supplied canvas and white background retained.

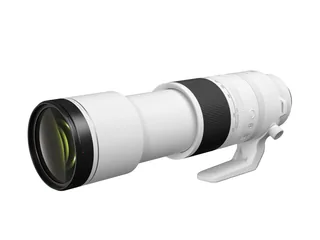

Canon RF200-800mm F6.3-9 IS USM Front Slant Extended 02, official press photograph: Canon Asia Photo Library; official press archive member RF200-800mm f6.3-9 IS USM Front Slant Extended 02.jpg; complete supplied canvas and white background retained.
