Nikon · NIKKOR

AF-S DX NIKKOR 18-140mm f/3.5-5.6G ED VR

Released August 2013

A 490 g Nikon F-mount DX travel zoom covering 18–140 mm, with a Silent Wave Motor and optical vibration reduction.

Mount: Nikon F mount
Focal length: 18–140 mm
Max aperture: f/3.5–5.6
Stabilisation: Yes
Weight: 490 g

What reviewers say

Both find its broad zoom range convenient, with good central sharpness, controlled colour fringing and effective stabilisation. Edges benefit from stopping down and wide-angle distortion needs correction. Photography Blog particularly praises autofocus on the D7100 but dislikes busy background blur and limited close-up ability. ePHOTOzine considers its original standalone price high for the performance, while seeing it as a useful kit option.

From ephotozine.com, photographyblog.com, photographyblog.com, photographyblog.com, photographyblog.com and photographyblog.com

Specifications

Report a wrong or missing spec

Optics

Lens type: Zoom
Focal length: 18–140 mm
Maximum aperture: f/3.5–5.6
Minimum aperture: f/22–38
Optical construction: 17 elements in 12 groups
Special elements: One ED element and one aspherical element
Diaphragm: Seven rounded blades
Angle of view: DX 76°–11°30′; Nikon gives a 27–210 mm equivalent field of view

Mount and compatibility

Mounts: Nikon F mount
Image circle: APS-C
Compatibility: Nikon F mount; DX/APS-C image circle

Focus and stabilisation

Autofocus: Yes
Minimum focus distance: 0.45 m
Maximum magnification: 0.23×
Optical stabilisation: Yes
Autofocus detail: Silent Wave Motor with manual focus override; Photography Blog confirms internal focusing and a non-rotating filter thread
Focus distance detail: Minimum 0.45 m from the focal plane at every zoom position
Magnification detail: Maximum reproduction ratio 0.23×; not a life-size macro lens
Stabilisation detail: Optical VR rated at four stops under CIPA testing with a DX DSLR at the longest focal length. Photography Blog confirms no selectable Active VR mode

Design

Filter diameter: 67 mm
Maximum diameter: 78 mm
Length: 97 mm
Weight: 490 g
Controls: Zoom and focus rings, A–M focus switch and VR on/off switch; no distance scale, focus limiter or aperture ring, as Photography Blog confirms
Zoom design: Barrel extends during zooming; ePHOTOzine finds sufficient resistance to prevent creep despite the lack of a zoom lock
Filter detail: 67 mm screw-in filters; 0.75 mm thread pitch
Weather resistance: Both reviews identify a rubber mount gasket without a claim of full weather sealing. No general protection rating is assigned
Dimensions detail: Approximately 78 mm maximum diameter × 97 mm length from the lens mount flange
Weight detail: Approximately 490 g
Lens hood: HB-32 bayonet hood sold separately
In the box: LC-67 front cap and LF-4 rear cap; hood and pouch are not included according to Nikon's launch announcement
Release detail: Nikon Japan records first sale on 29 August 2013; the global announcement was issued on 6 August

Pros and cons

Pros

18–140 mm zoom range
Optical VR rated at four stops
Internal focusing keeps the filter thread from rotating

Cons

Variable f/3.5–5.6 maximum aperture
Hood sold separately
No focus-distance scale

Closest rivals

Model	Mount	Focal length	Max aperture	Stabilisation	Weight	Released
NikonAF-S DX NIKKOR 18–300mm f/3.5–6.3G ED VR	Nikon F mount	18–300 mm	f/3.5–6.3	Yes	550 g	Apr 2014
NikonAF-S NIKKOR 24–120mm f/4G ED VR	Nikon F mount	24–120 mm	f/4	Yes	710 g	Sept 2010
NikonAF-S NIKKOR 24-70mm f/2.8E ED VR	Nikon F mount	24–70 mm	f/2.8	Yes	1,070 g	Oct 2015

Sources

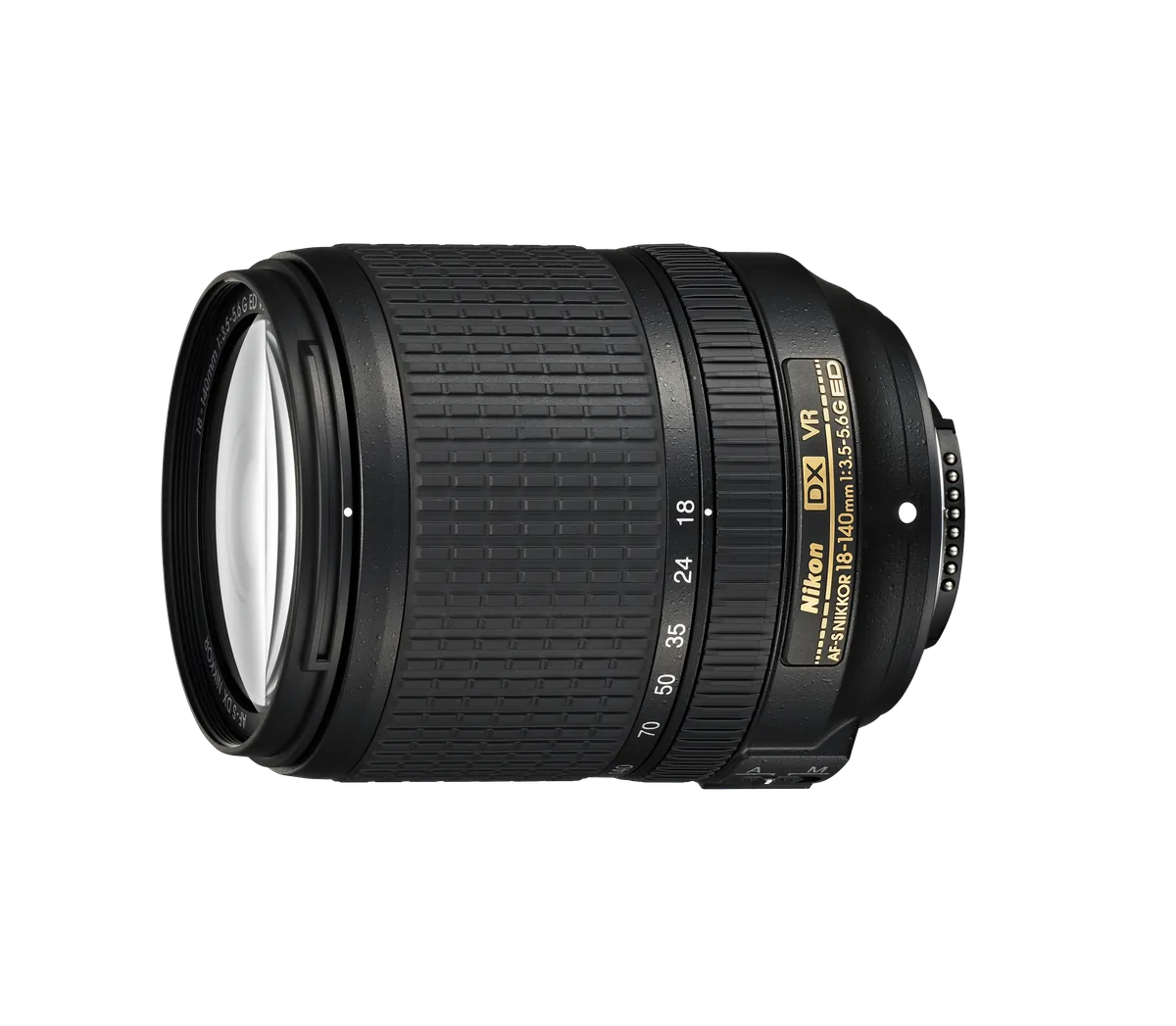

Photo: Nikon UK lens photograph
