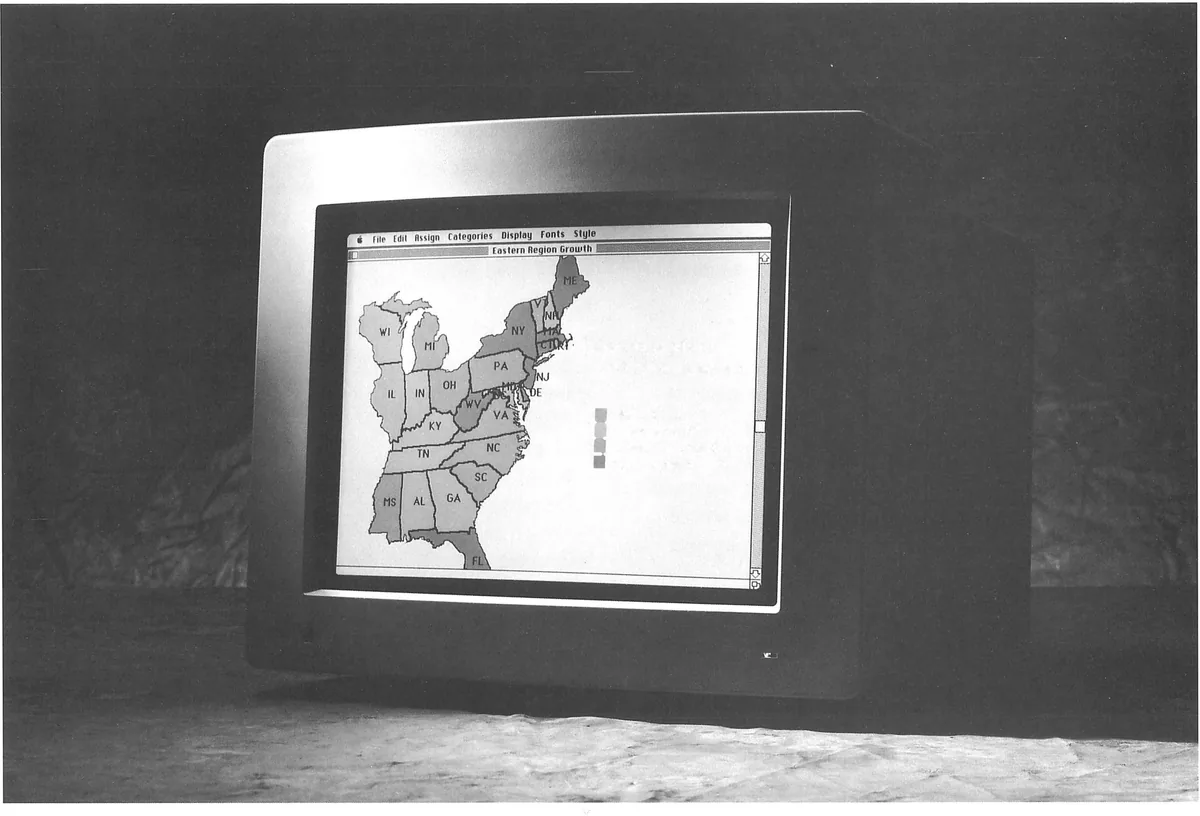

AppleColor High-Resolution RGB Monitor

Released 1987

A 13-inch Trinitron colour CRT for the Macintosh II family, supporting a 640 × 480 signal at 66.7 Hz through a Macintosh DA-15 connection.

Specifications

Screen size: 12.8″
Panel: CRT (Apple support specifies a nominal 13-inch Trinitron tube and 12.8-inch viewable diagonal; owner and service manuals instead call it 13-inch viewable. Service Source gives 0.26 mm aperture grille pitch, while TIL2165 and TIL8439 give 0.25 mm. Analogue CRT has no fixed native pixel matrix.)
Colour modes: Owner guide lists 256 colours with Macintosh Display Card 4•8 and 16.7 million with 8•24 or 8•24 GC; not an independent monitor colour-depth limit
Supported signal modes: Maker documents support 640 × 480 at 66.7 Hz, 35 kHz horizontal scan and a 30.24 MHz pixel clock. These describe the supported analogue signal, not a native fixed matrix. Factory-adjusted active image area is 235 × 176 mm with a dark surrounding border; colour depth depends on the video card.
Calibration: Maker TIL8439 states luminance of 20 footlamberts at the brightness-control detent and 25 footlamberts fully open; no conversion to an unpublished cd/m² figure. A thin horizontal grille-support line in the lower third is normal for this Trinitron tube according to the owner and service guides.

Video inputs: DA-15
USB-C charging: None
Speakers: No
Other connections: Macintosh DA-15 analogue RGB input with composite negative-going TTL sync and detachable video cable; this is not a PC VGA connector. Compatible Macintosh video circuitry or video card is required. No integrated speakers or audio ports.

Weight with stand: 15.5 kg
Height adjustment: Owner guide supplies a height-adjustment bar that raises the front by one-quarter or one-half inch. Tilt-and-swivel Universal Monitor Stand is a separately sold accessory and is not counted as the included stand.
Size with stand: Service Source gives body height 281 mm, width 344 mm and depth 385 mm; current support archive instead gives 11 × 13.5 × 16 inches. Optional monitor stand dimensions are not substituted.
Weight detail: Service Source gives 15.5 kg (34 lb), with TIL2165 also specifying 34 lb including video and power cables. Owner guide instead publishes 20 kg (44 lb) including cables; this maker conflict is retained without attributing it to an undocumented revision.
Controls: Power and manual degauss buttons on the rear; brightness with centre detent and contrast on the right side. Automatic degauss at power-up; maker specifies 20-minute warm-up to meet all specifications.

Power use: Current support, TIL2165 and owner guide give 160 W maximum; Service Source instead lists 90 W without the same maximum qualification
Power supply: Current support and Service Source specify 85–270 V AC, 47–63 Hz. Owner guide gives 90–270 V AC, 47–63 Hz; TIL2165 instead gives 85–270 V AC, 50–60 Hz. These are mains ratings, not display refresh.
Software: Apple support dates introduction March 1987; March 2 1987 maker price list explicitly schedules M0401 availability in May, rather than immediate March retail. Actual first retail month remains unverified, so year 1987 is retained. AppleColor High-Resolution RGB for Macintosh is distinct from the earlier AppleColor RGB monitor for Apple IIgs; no hardware or release figures are borrowed from that display. No inferred direct successor.
