Apple · Studio Display

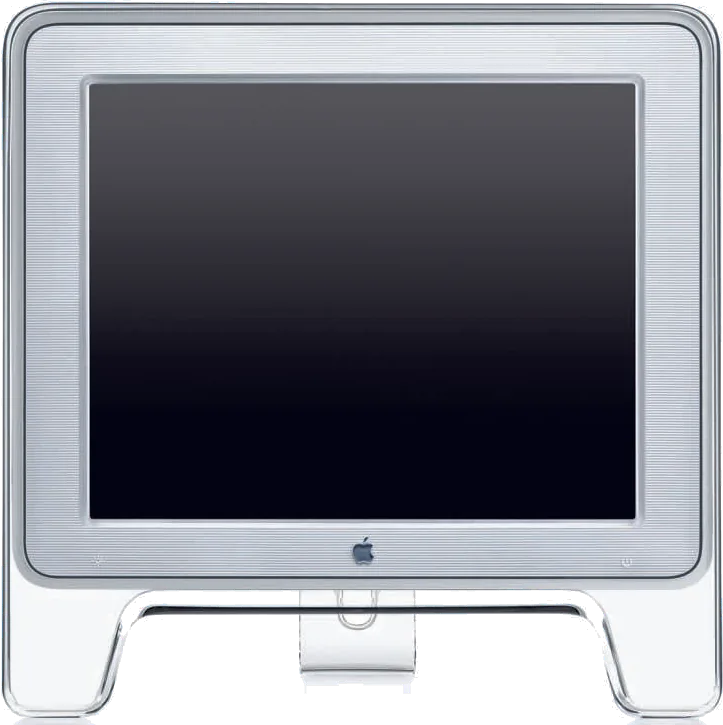

Studio Display (17-inch LCD, 2001)

Released June 2001

Apple's 17-inch LCD has a 1280 × 1024 display, a clear acrylic tilting stand and one ADC cable carrying digital video, USB and power.

Specifications

Screen size: 17″
Resolution: 1280 × 1024
Sharpness: 96 pixels per inch
Panel: LCD (TFT active-matrix LCD; Apple does not identify the panel subtype)
Brightness (typical): 200 nits
Contrast ratio: 350:1
Shape: Flat
Colour depth: 24-bit colour; up to 16.7 million colours
Viewing angles: Typical 160° horizontal and vertical

Video inputs: Apple Display Connector
USB-C charging: None
USB ports: 2 × USB-A
Other connections: Integrated ADC cable carries digital video, power and USB; two powered downstream USB ports

Power use: Archived Apple support sheet specifies maximum 40 W operating and 5 W or less in energy-saving mode. Original May 2001 French datasheet instead gives maximum 50 W and less than 35 W respectively; these surviving maker figures conflict.
Power supply: 24.5 V or 28 V DC through ADC, from Apple's archived technical specifications
Software: Announced 21 May 2001 with first shipments expected in early June; June is used for retail timing. Native refresh is unpublished and omitted. Requires an ADC-equipped computer; Apple's later support sheet also lists compatible DVI Power Mac G4 and PowerBook G4 systems through the powered Apple DVI to ADC Adapter M8661LL/A. Co-marketed with the 15-inch ADC display, so no direct predecessor link is inferred.

Model	Size	Resolution	PPI	Panel	Refresh	Brightness	HDR	USB-C power	Released
AppleStudio Display (15-inch LCD, 1998)	15.1″	1024 × 768	85	LCD	75 Hz	180 nits	–	–	May 1998
AppleStudio Display (15-inch LCD, 1999)	15.1″	1024 × 768	85	LCD	75 Hz	200 nits	–	–	Jan 1999
AppleStudio Display (15-inch DVI, 1999)	15.1″	1024 × 768	85	LCD	75 Hz	200 nits	–	–	Dec 1999
