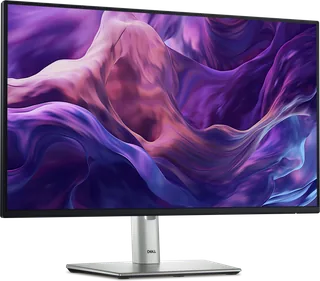

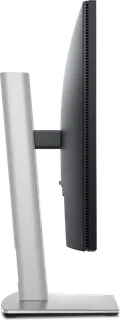

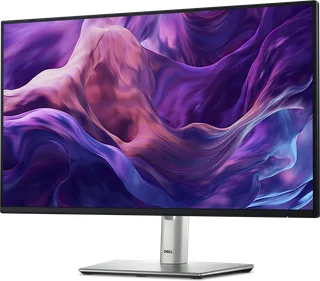

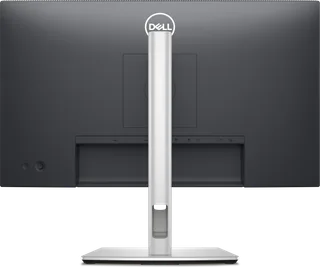

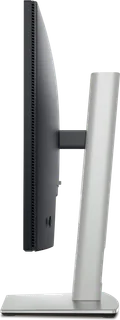

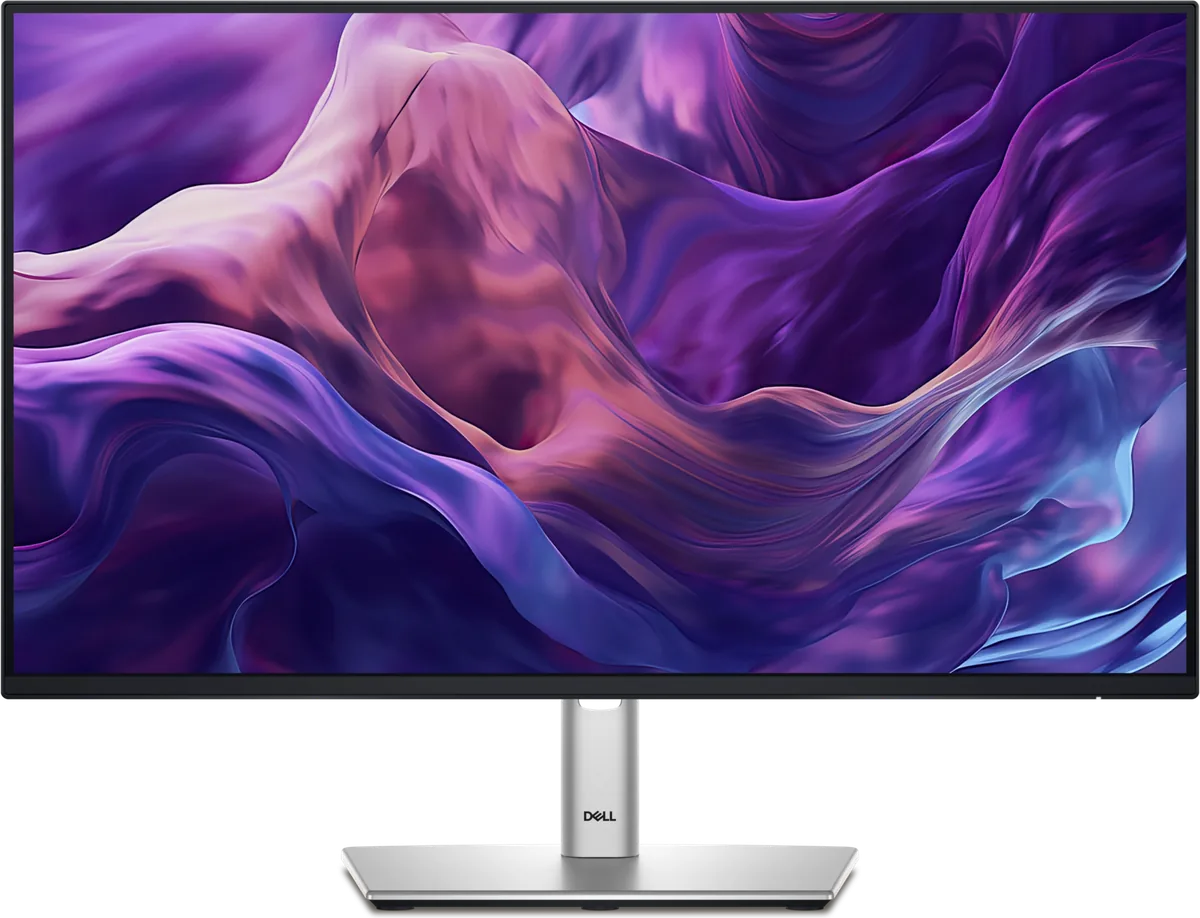

Dell Pro 24 Plus USB-C Hub (P2425HE) · Photo source

Dell Pro 24 Plus USB-C Hub (P2425HE)
Photo 1 of 8

Dell Pro 24 Plus USB-C Hub (P2425HE) · Photo source

Dell · Dell Pro

Pro 24 Plus USB-C Hub (P2425HE)

Released March 2024

Dell's 23.8-inch 1080p 100Hz IPS business monitor with a USB-C hub, 90W laptop charging, Ethernet and a DisplayPort out for daisy chaining.

Size
23.8″
Resolution
1920 × 1080
PPI
93
Panel
IPS
Refresh
100 Hz
Brightness
250 nits
HDR
–
USB-C power
90 W

Specifications

Report a wrong or missing spec

Display

Screen size
23.8″
Resolution
1920 × 1080 (Full HD)
Sharpness
93 pixels per inch
Panel
IPS
Refresh rate
100 Hz
Response time (grey to grey)
5 ms
Brightness (typical)
250 nits
Contrast ratio
1,500:1
Colour range
99% sRGB
Screen finish
Matte
Shape
Flat
Colour depth
16.7 million colours
sRGB coverage
99%
Response time detail
5 ms (Fast), 8 ms (Normal)
Variable refresh range
48–100 Hz (vertical scan range)
Viewing angles
178° horizontal, 178° vertical (typical)
Pixel pitch
0.2745 mm x 0.2745 mm
Eye care
ComfortView Plus hardware low blue light (TÜV Rheinland Category 2); TÜV Rheinland Eye Comfort 3.0 (4 star); flicker-free

Connections

Video inputs
HDMI 1.4, DisplayPort 1.4, USB-C
USB-C charging
Up to 90 W
USB ports
USB-C, 3 × USB-A
Ethernet
Yes
Speakers
No
HDMI detail
1 x HDMI 1.4 (HDCP 1.4), up to 1920 x 1080 at 100 Hz
DisplayPort detail
1 x DisplayPort 1.4 in (HDCP 1.4); 1 x DisplayPort out with MST
USB-C detail
USB-C 5Gbps upstream (DisplayPort 1.4 Alt Mode, Power Delivery up to 90 W); 1 x USB-C 5Gbps downstream quick-access port (5 V/3 A)
Daisy chaining
DisplayPort out (MST)
USB hub detail
USB 5Gbps; 2 x USB-A rear; quick access ports with 1 x USB-A and 1 x USB-C (5 V/3 A)

Design

Stand adjusts
Height, tilt, swivel, pivot
VESA mount
Yes
Weight with stand
5.44 kg
Height adjustment
150 mm
Tilt
-5° to 21°
Swivel
-45° to 45°
Pivot
-90° to 90°
VESA pattern
100 x 100 mm
Size with stand
538.64 x 181.75 x 364–496.53 mm (W x D x H)
Size without stand
538.64 x 50.03 x 314.23 mm (W x D x H)
Weight without stand
3.69 kg

Power and support

Power use
13.9 W on mode, 0.3 W standby, 1.0 W networked standby, 0.3 W off, 180 W maximum
Energy class
D
Power supply
100–240 VAC, 50/60 Hz, 2 A (typical)
Certifications
TÜV Rheinland Eye Comfort 3.0 (4 star), TÜV Rheinland hardware low blue light (Category 2)
In the box
Stand, power cable, DisplayPort 1.4 cable (1.8 m), USB-C 3.2 Gen 2 cable (1 m), cable tie

Pros and cons

Pros

  • USB-C input with DisplayPort Alt Mode and 90W charging, plus RJ45 Ethernet for a single-cable desk

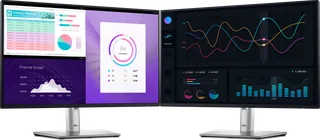

  • DisplayPort out with MST for daisy chaining a second monitor
  • Stand adjusts 150 mm in height, with tilt, swivel and pivot

Cons

  • 1920 x 1080 on 23.8 inches is 93 ppi; 250-nit brightness
  • USB ports run at 5Gbps
  • HDMI 1.4 input, and no HDMI cable in the box

Closest rivals

Model
SizeResolutionPPIPanelRefreshBrightnessHDRUSB-C powerReleased
DellPro 24 Monitor (E2425HM)
23.8″1920 × 108093IPS100 Hz250 nits––Mar 2025
DellPro 24 Plus (P2425H)
23.8″1920 × 108093IPS100 Hz250 nits––Mar 2024
AppleCinema HD Display (23-inch, ADC)
23″1920 × 120098IPS–200 nits––Apr 2002
