Nokia 7110 · Photo source
7110

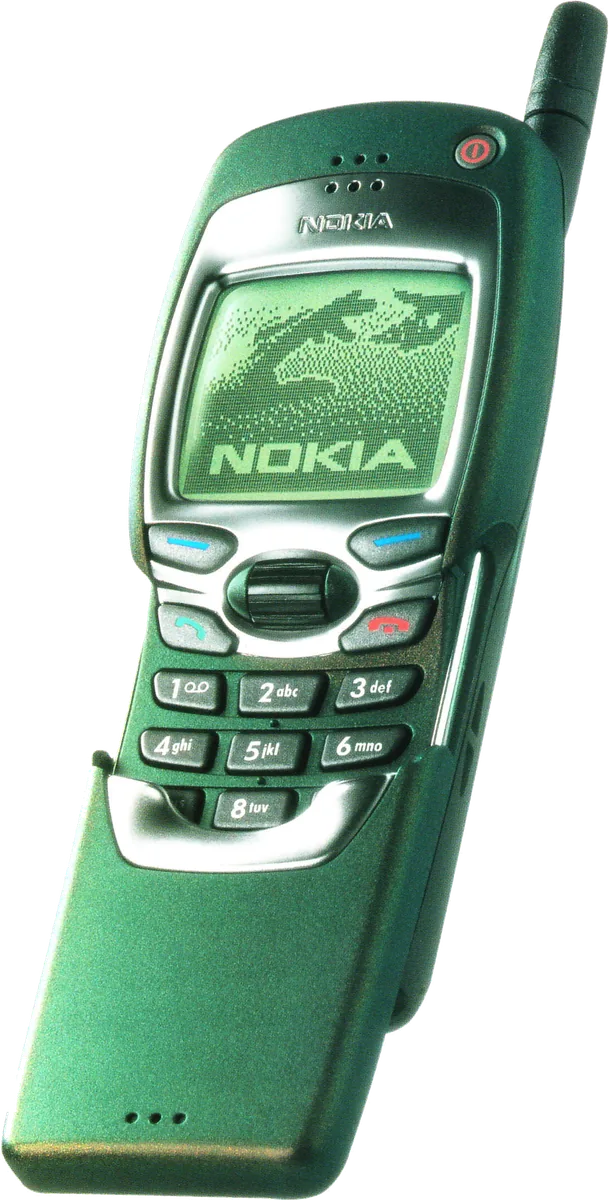

The original Nokia 7110 is a dual-band GSM phone with a spring-loaded sliding keypad cover, a Navi Roller control and a WAP browser. It has infrared communication, a removable battery and a handset phonebook for up to 1,000 names.
- Screen
- –
- Display
- LCD
- Chip
- –
- Memory
- –
- Storage
- –
- Main camera
- None
- Zoom
- –
- Battery
- 900 mAh
- Weight
- 141 g
What reviewers say
iXBT and GSMOnline praise the large display, organiser functions and roller navigation. Both report problems with older software freezing and with regional text entry; iXBT finds later firmware substantially better, while GSMOnline's sample still needs a battery removal to recover. iXBT reports good reception and natural call sound but a weak ringtone and increased battery drain during games or WAP use. GSMOnline finds the sliding cover convenient, while its own cover remains reliable despite other users' reported failures.
From ixbt.com and gsmonline.pl
Product links
Specifications
Report a wrong or missing specDisplay
- Resolution
- 96 × 65
- Panel
- LCD
- Display type
- Backlit monochrome graphic display, 96 × 65 pixels, with dynamically sized text and up to six text lines in the maker brochure. Physical diagonal is not published in the retrieved maker documents.
Cameras
- Main camera
- None
- Ultra wide camera
- None
- Telephoto camera
- None
- Optical zoom
- None
- Main camera
- No camera (GSMArena exact 7110 table).
Battery and charging
- Battery
- 900 mAh
- Wireless charging
- None
- Battery life detail
- Removable standard BLS-2S Li-ion pack, 900 mAh; maker brochure gives 2 hours 30 minutes to 4 hours 30 minutes of talk and 55–260 hours standby. Optional BPS-1 is 600 mAh, BLS-2H 1,000 mAh, BMS-2S 900 mAh NiMH and BLS-4 1,500 mAh, with different handset weights and runtimes. Network, SIM and usage affect runtime.
- Wired charging
- Proprietary charging connector. Maker guide gives approximately 1 hour 30 minutes for the BLS-2S with the ACP-8 charger; the June 2000 brochure instead gives four hours standard charging or two hours fast charging. These maker documents differ; charger and pack affect charging time. No inferred wattage.
Design
- Type
- Standard
- Weight
- 141 g
- Thickness
- 24 mm
- Height × width
- 125 × 53 mm
- Weight detail
- 141 g with standard BLS-2S battery, and 125 × 53 × 24 mm in the exact maker brochure. Optional batteries change the complete handset weight.
- Colours
- Green cover with a colour-shifting finish in the maker brochure. German-screen press photographs illustrate the same original hardware, with regional software.
- Buttons
- Physical number keypad, two selection keys, call/end keys, push-and-scroll Navi Roller, side volume keys, top power button and rear slider-release button. Opening the spring-loaded cover answers a call; closing it ends a call, as described in the maker guide.
Software
- Operating system
- Proprietary software
- Software features
- WAP services, predictive text entry, SMS folders, calendar, alarm, calculator, profiles and Snake II, Rotation, Opposite and Racket games. Network services and language dictionaries depend on region and software version; WAP is distinct from a modern web browser.
- Release detail
- Announced in February 1999 in Nokia's annual report. The report and full-year results confirm 1999 deliveries and fourth-quarter production ramp-up but do not establish the first sale month; retain the verified sale year.
Performance
- Memory
- The maker guide specifies space for 1,000 names with three numbers and one text field each; fewer names allow up to five numbers and two text fields per name. Counts of contacts and calendar entries are not user storage in GB.
- Storage type
- No memory-card slot (GSMArena exact 7110 table).
Connectivity
- Mobile network
- GSM 900 and GSM 1800. Built-in circuit-switched data modem supports up to 14,400 bps in the maker brochure. No GPRS or EDGE (GSMArena).
- SIM
- Mini-SIM (GSMArena), installed behind the removable battery in the maker guide. Alternate-line service requires a supporting SIM and operator; it is not two physical SIM slots.
- Wi-Fi
- No Wi-Fi (GSMArena).
- Bluetooth
- No Bluetooth (GSMArena). Infrared enables compatible phone, computer and printer communication; serial cable connection requires optional accessories and compatible software.
- Positioning
- No satellite positioning (GSMArena).
Pros and cons
Pros
- WAP browser and infrared communication
- Roller control and spring-loaded keypad cover
- Up to 1,000 phonebook names
Cons
- No camera or packet data
- No Bluetooth or Wi-Fi
- No memory-card slot
Closest rivals
Model | Screen | Display | Chip | Memory | Storage | Main camera | Zoom | Battery | Weight | Released |
|---|---|---|---|---|---|---|---|---|---|---|
| – | LCD | – | – | – | None | – | 1,250 mAh | 151 g | 1999 | |
| – | LCD | – | – | – | None | – | 650 mAh | 79 g | 1999 | |
| – | LCD | – | – | – | None | – | 900 mAh | 133 g | 2000 |
Sources
- altehandys.de/downloads/pros-no-7110.pdf
- altehandys.de/downloads/man-no-7110.pdf
- gsmarena.com/nokia_7110-15.php
- web.lib.aalto.fi/fi/old/yrityspalvelin/pdf/1999/Enokia.pdf
- investegate.co.uk/announcement/rns/nokia-oyj--0haf/4th-quarter-final-results-/1…
- manualmachine.com/nokia/7110/202086-service-manual-disassy
Photo: altehandys.de

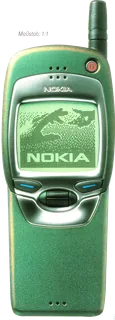

- Front with keypad cover closed; original brochure includes its printed scale annotation: altehandys.de/downloads/pros-no-7110.pdf

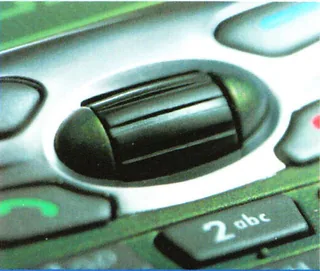

- Close-up of the Navi Roller and adjacent keypad: altehandys.de/downloads/pros-no-7110.pdf

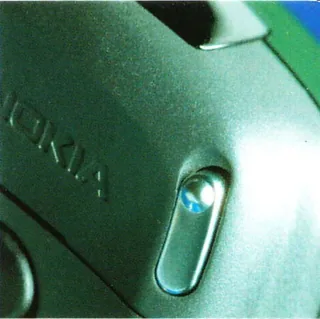

- Close-up of the rear slider-release button: altehandys.de/downloads/pros-no-7110.pdf

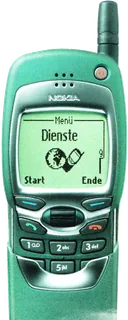

- Open keypad cover and WAP services menu on a German-language press handset: altehandys.de/downloads/pros-no-7110.pdf

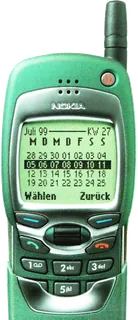

- Calendar screen on a German-language press handset; brochure crops the lower cover: altehandys.de/downloads/pros-no-7110.pdf

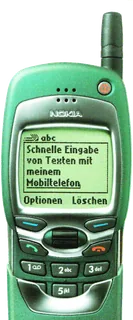

- Predictive text-entry screen on a German-language press handset; brochure crops the lower cover: altehandys.de/downloads/pros-no-7110.pdf

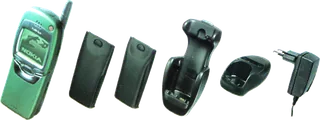

- Maker accessory composition including optional batteries, car holder, desk stand and charger: altehandys.de/downloads/pros-no-7110.pdf
