OnePlus

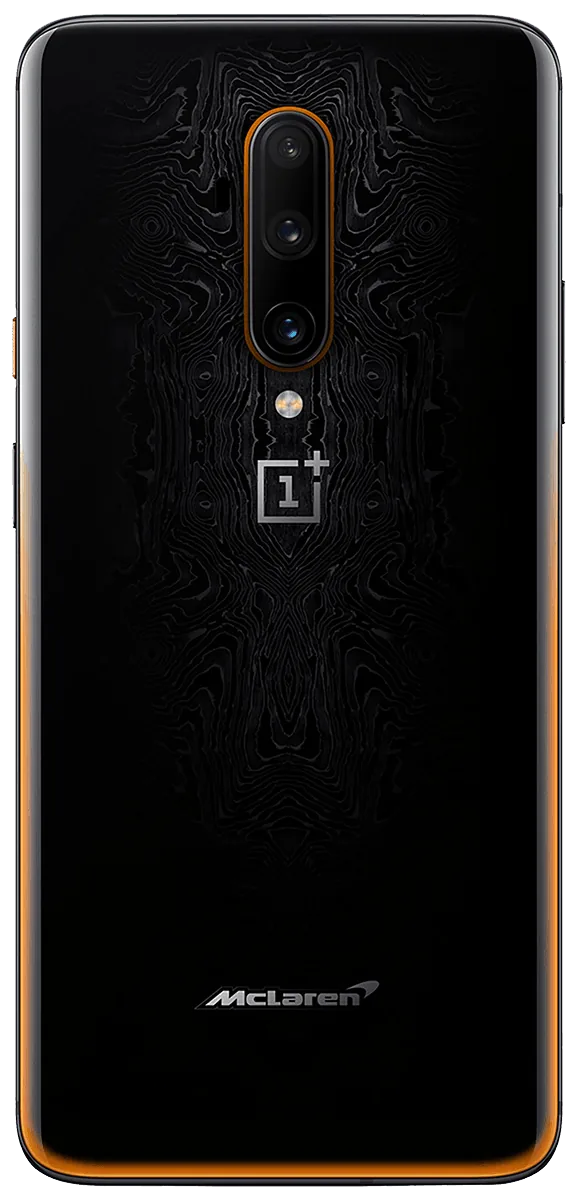

OnePlus 7T Pro 5G McLaren

Released December 2019

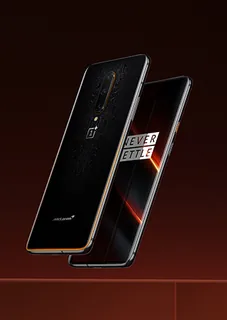

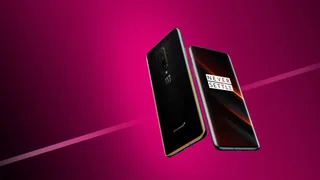

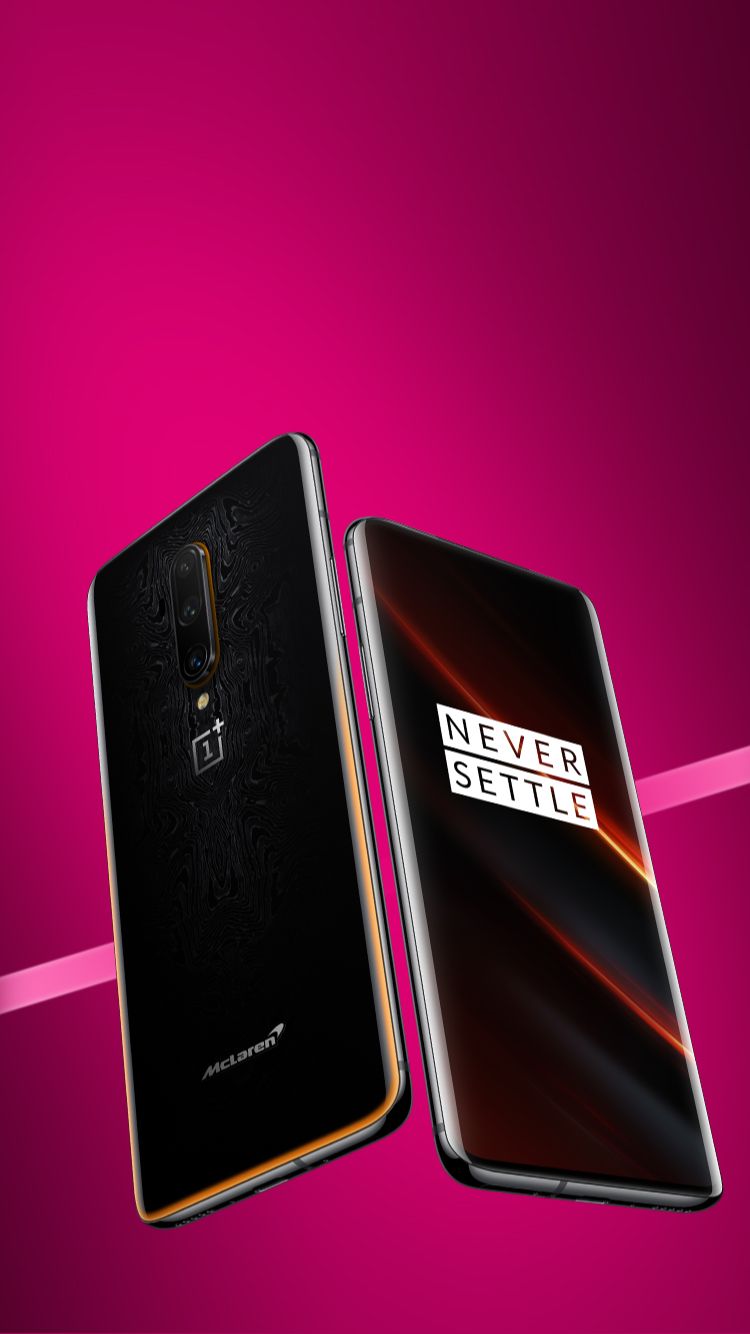

The US T-Mobile 5G McLaren edition of the 7T Pro, with a Snapdragon X55 modem, 12 GB RAM and 256 GB storage. It has a 90 Hz AMOLED display, pop-up selfie camera and Papaya Orange detailing; its single-SIM hardware differs from the 4G McLaren edition.

Screen
6.67″
Display
OLED, 90 Hz
Chip
Snapdragon 855 Plus
Memory
12 GB
Storage
256 GB
Main camera
48 MP
Zoom
2.87×
Battery
4,085 mAh
Weight
210 g

Specifications

Report a wrong or missing spec

Display

Screen size
6.67″
Resolution
3120 × 1440
Sharpness
515 pixels per inch
Panel
OLED
Refresh rate
90 Hz
Display type

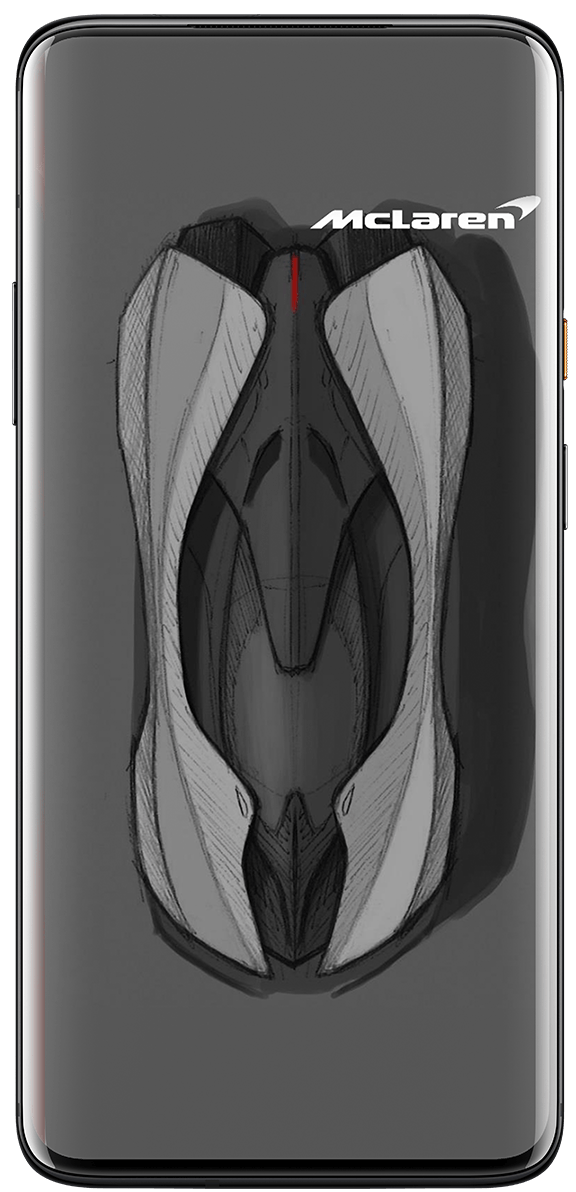

Fluid AMOLED; curved display; 19.5:9 aspect ratio
Screen protection
3D Corning Gorilla Glass; generation not stated
Display features
sRGB and Display P3; 6.67 inches measured as a rectangle, 6.46 inches accounting for rounded corners

Performance

Chip
Snapdragon 855 Plus
Memory
12 GB
Storage
256 GB
CPU
Snapdragon 855 Plus, 7 nm, octa-core up to 2.96 GHz; separate Snapdragon X55 5G modem
GPU
Adreno 640
Storage type
LPDDR4X RAM; UFS 3.0 two-lane storage

Cameras

Main camera
48 MP
Ultra wide camera
16 MP
Telephoto camera
8 MP
Optical zoom
2.87×
Front camera
16 MP
Main camera
Sony IMX586, f/1.6, seven-element lens; OIS and EIS; 0.8 µm pixels, 1.6 µm with four-to-one binning
Ultra wide camera
f/2.2; 117° nominal field of view, 102° with distortion correction
Telephoto camera
8 MP, f/2.4, 1 µm pixels; maker equivalent focal length 73.7 mm
Front camera
Pop-up Sony IMX471, f/2.0, fixed focus; EIS; 1 µm pixels
Zoom
Maker’s rounded 3× optical claim is 2.87× in its footnote, comparing the 73.7 mm telephoto and 25.7 mm main-camera equivalent focal lengths; effective telephoto output is 8 MP
Video recording
4K and 1080p at 30/60 fps; slow motion at 1080p 240 fps or 720p 480 fps. The spec page promised 720p 960 fps in a later update; that promise is not treated as proof it shipped.
Front video
1080p at 30 fps
Camera features
PDAF, laser autofocus and continuous autofocus; dual LED flash; Nightscape, portrait, Pro mode and RAW

Battery and charging

Battery
4,085 mAh
Wired charging
Up to 30 W
Wireless charging
None
Battery life detail
4085 mAh typical; 4010 mAh rated; non-removable
Wired charging
Warp Charge 30T, 5 V/6 A; supplied adapter and braided cable. Maker’s approximately 68% in 30 minutes claim uses its supplied charger and laboratory conditions.

Design

Type
Standard
Weight
210 g
Thickness
8.8 mm
Height × width
162.6 × 75.9 mm
Colours

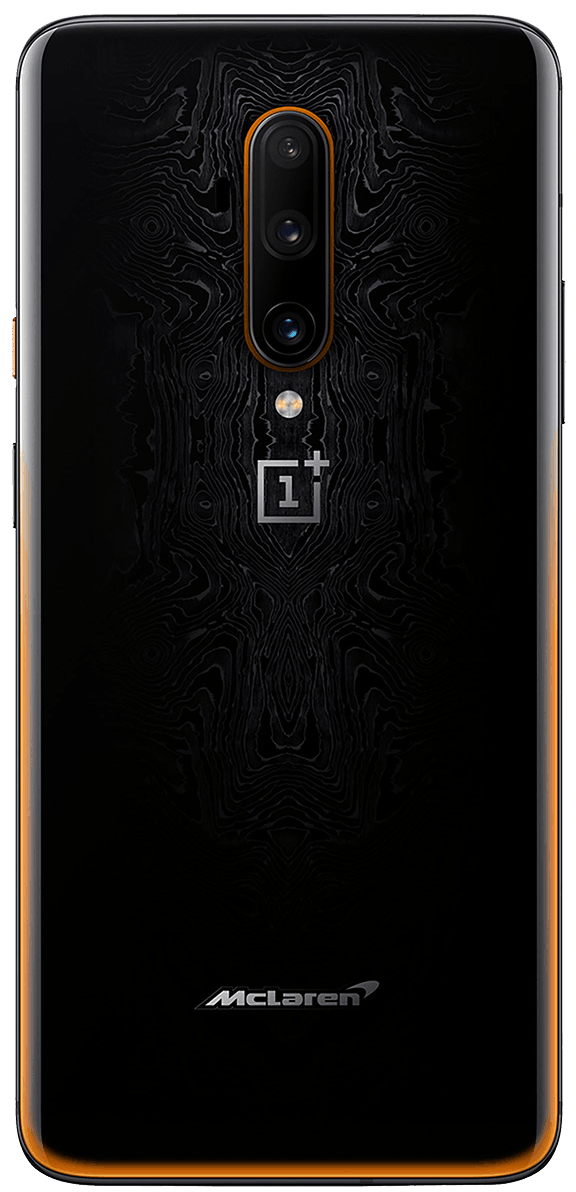

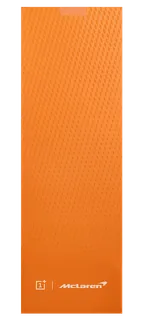

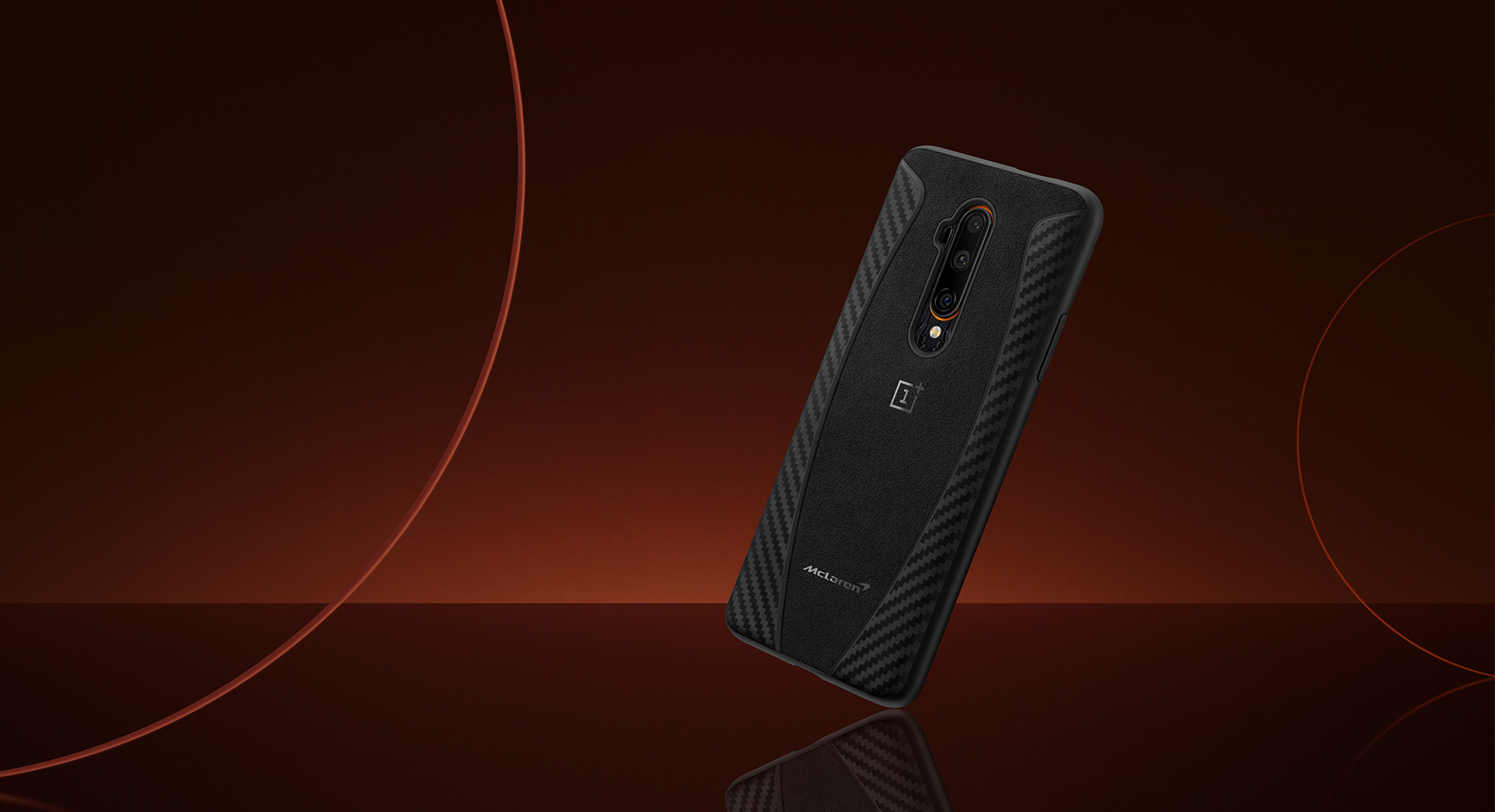

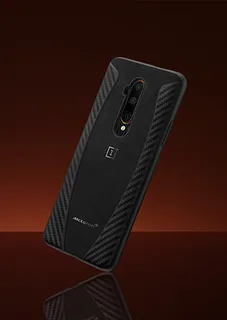

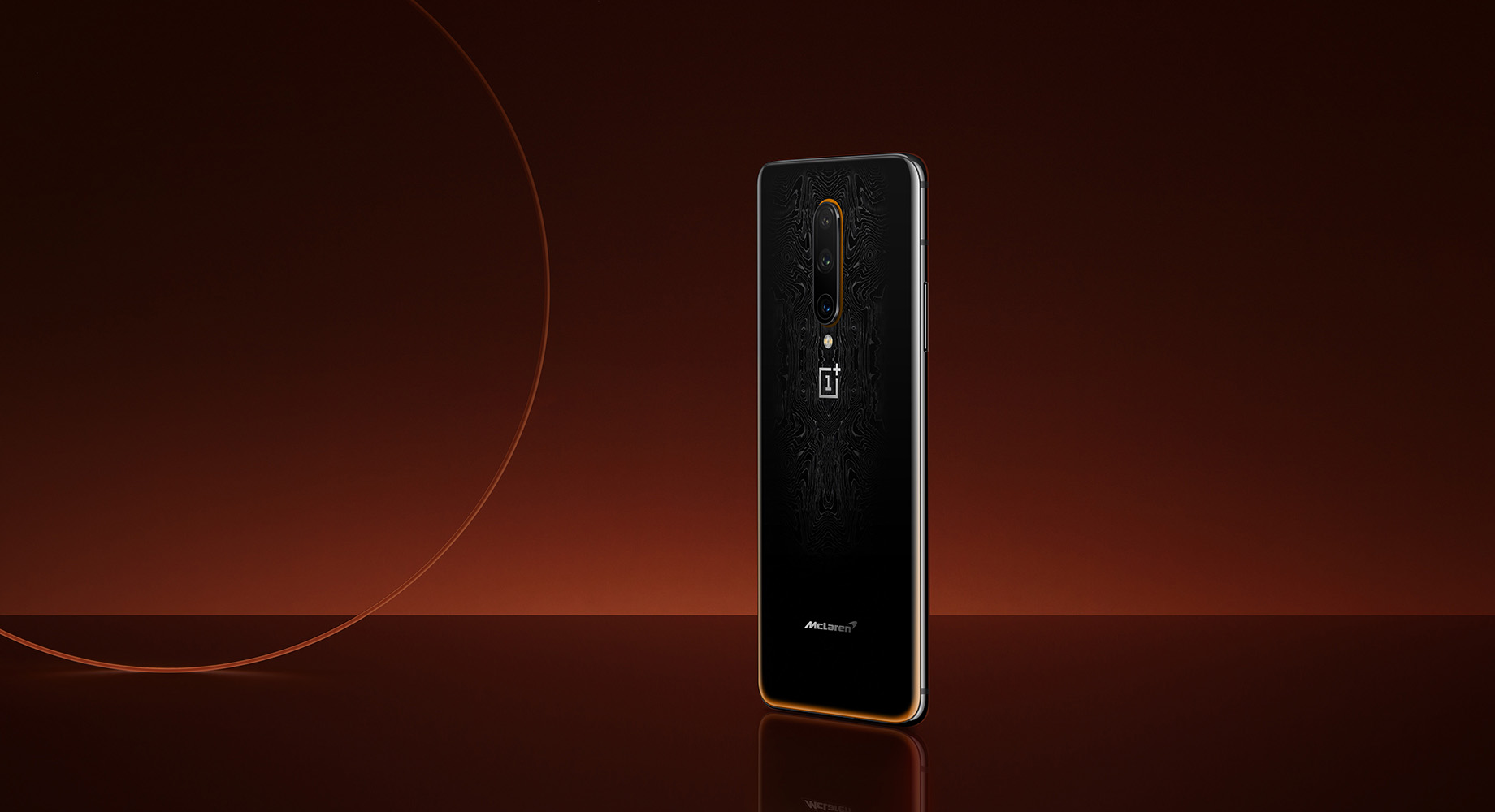

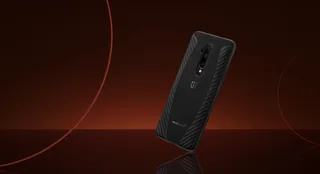

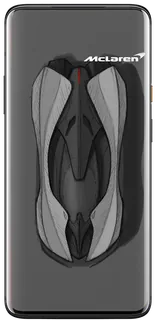

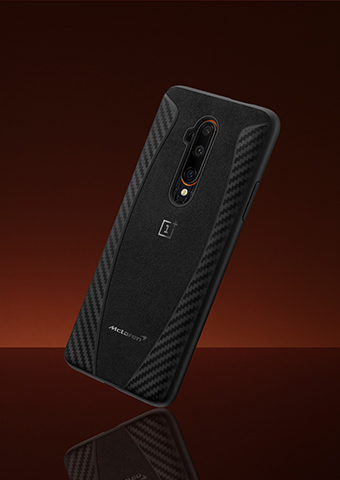

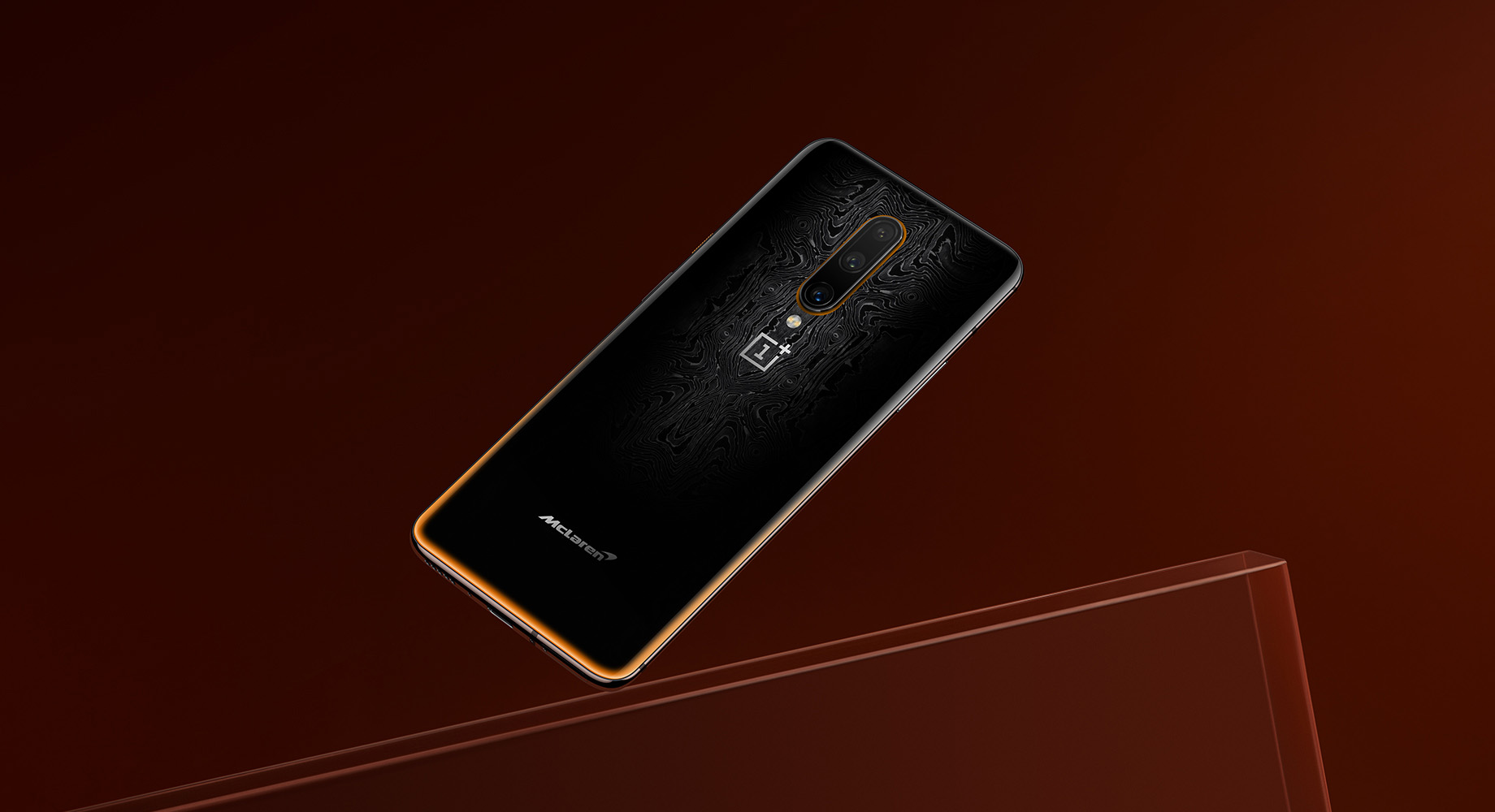

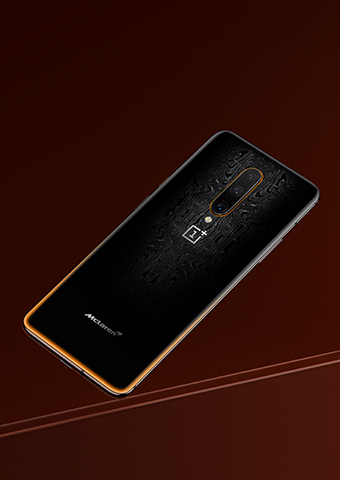

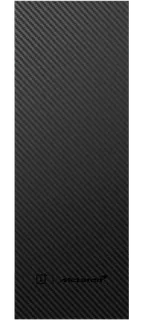

Papaya Orange detailing on black; McLaren software theme and protective case included
Buttons
Alert Slider
Biometrics
In-display fingerprint sensor; camera-based face unlock
Speakers
Dual stereo speakers; Dolby Atmos

Software

Operating system
Android
Software at launch
OxygenOS based on Android 10; US carrier version

Connectivity

Mobile network
US T-Mobile-specific 5G model; the exact maker table lists FR1 n71 (600 MHz). This launch table is not a claim of every later firmware-supported band. LTE mandatory bands 2/4/5/12/25/26/41/46/48/66/71; roaming bands 1/3/7/8/20/28/38/39; additional bands 17/18/19/29/34/40. LTE Cat 18 downlink and Cat 13 uplink; theoretical maxima depend on carrier support. The 4G McLaren model is separate. Carrier evidence confirms US retail sale on 6 December 2019, following preorders from 2 December.
SIM
Single nano-SIM
Wi-Fi
Wi-Fi 5, 802.11 a/b/g/n/ac; 2.4 and 5 GHz; 2×2 MIMO
Bluetooth
Bluetooth 5.0; aptX, aptX HD, LDAC and AAC
NFC
Yes
USB
USB-C, USB 3.1 Gen 1; supplied cable supports USB 2.0; no 3.5 mm headphone socket
Positioning
GPS L1/L5; Galileo E1/E5a; GLONASS, BeiDou and A-GPS

Storage options

Storage
256 GB

Pros and cons

Pros

  • 90 Hz display without a notch or camera hole
  • 12 GB RAM and 256 GB UFS 3.0 storage
  • 30 W wired charging

Cons

  • No wireless charging or published IP rating
  • Single SIM; US carrier-specific model
  • No 3.5 mm headphone socket

Closest rivals

Model
ScreenDisplayChipMemoryStorageMain cameraZoomBatteryWeightReleased
OnePlusOnePlus 7 Pro
6.67″OLED, 90 HzSnapdragon 8556 GB – 12 GB128 GB – 256 GB48 MP2.87×4,000 mAh206 gMay 2019
OnePlusOnePlus 7T Pro
6.67″OLED, 90 HzSnapdragon 855 Plus8 GB – 12 GB256 GB48 MP3×4,085 mAh206 gOct 2019
SamsungGalaxy Note10+
6.8″OLED, 60 HzExynos 982512 GB256 GB – 512 GB12 MP2×4,300 mAh196 gAug 2019

Sources

  1. oneplus.com/us/7t-pro/specs
  2. oneplus.com/us/7t-pro-mclaren
  3. t-mobile.com/news/press/oneplus-7t-pro-5g
  4. t-mobile.com/news/press/americas-first-nationwide-5g-network
  5. t-mobile.com/news/press/1st-family-5g
