LG · OLED

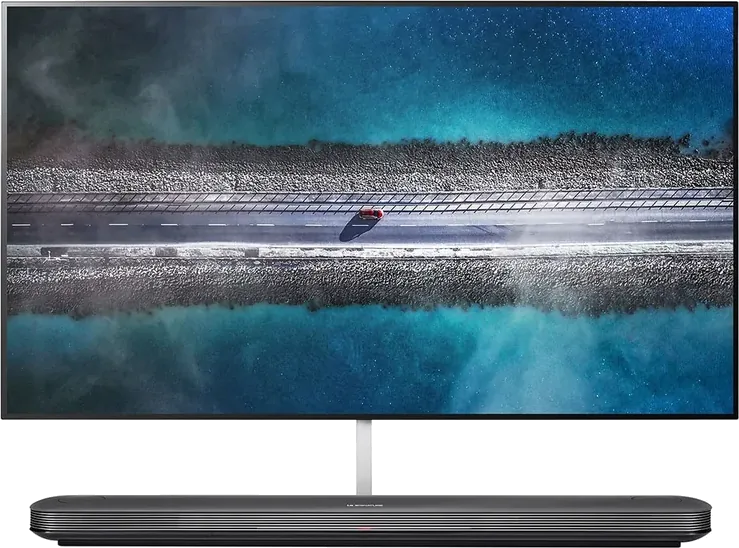

SIGNATURE OLED W9

Released 2019

A 2019 Picture-on-Wall 4K OLED series with a separate soundbar/control unit, α9 Gen 2 processing and HDMI 2.1, in 65 and 77-inch UK models.

Model history · 3 models, 2017–2019

Specifications

Panel: OLED
Panel detail: Picture-on-Wall OLED screen with pixel dimming and a separate soundbar/control unit
Resolution: 3840 × 2160 (4K)
HDR formats: Dolby Vision, HDR10, HLG
HDR extras: LG also lists Advanced HDR by Technicolor; HDR10 Pro is LG's processing, not HDR10+ support
Picture processing: α9 Gen 2 with Deep Learning AI Picture, AI Brightness, Object Depth Enhancer, Quad Step Noise Reduction and HDR Dynamic Tone Mapping Pro
Motion handling: LG lists OLED Motion and 4K high frame rate; its UK sheet says 4K HFR over HDMI was to be enabled by update, without confirming the update's delivery

HDMI ports: 4 (all HDMI 2.1 at 4K 120 Hz+)
Variable refresh rate: None
Auto low latency mode: Yes
HDMI detail: Four HDMI 2.1 inputs are housed in the separate soundbar/control unit. LG's UK sheets list eARC on HDMI 2. FlatpanelsHD reports that W9 is the exception to the 2019 LG OLED series' VRR support.
Game features: Instant Game Response (ALLM) on both UK sizes; HDMI VRR and G-Sync are not supported on W9 according to FlatpanelsHD

Smart TV platform: webOS
Processor: α9 Gen 2 Intelligent Processor
Speakers: 60 W, 4.2 channels
Dolby Atmos: Yes
eARC: Yes
Wi-Fi: Wi-Fi 5 (802.11ac)
Bluetooth: 5.0
Speaker detail: Separate 60 W, 4.2-channel soundbar/control unit with 20 W assigned to two woofers; UK unit weight is 10 kg on the 65-inch and 13.1 kg on the 77-inch sheet
Audio features: Dolby Atmos, LG Sound Sync, One Touch Sound Tuning and WiSA speaker compatibility
Voice assistants: UK LG sheet lists Google Assistant, unavailable in the Republic of Ireland, and Amazon Alexa compatibility with the 2019.5 Magic Remote
Casting: LG Screen Share and Apple AirPlay 2 on the UK 65W9PLA sheet
Software updates: webOS with Magic Remote and ThinQ AI. UK launch coverage gave May 6 as a planned sale date, but actual first on-sale was not verified, so release uses year precision.
TV tuners: UK 65 and 77-inch sheets list twin DVB-T2/C/S2 reception
USB: Three USB ports on both UK sizes
Ethernet: One LAN input on both UK sizes
Optical audio out: Optical digital audio output on both UK sizes

Size: Display only (W × H × D): 65W9PLA 1446 × 823 × 3.85 mm; 77W9PLA 1721 × 989 × 5.96 mm
Stand: Wall mounting required. The soundbar/control unit measures 1260 × 78 × 198 mm for 65W9PLA and 1460 × 84 × 208 mm for 77W9PLA.
Power use: Both UK models list under 0.5 W standby
In the box: MR19 Magic Remote and two AA batteries on both UK sizes

Size	Model	Weight without stand
65″	OLED65W9PLA	6.7 kg
77″	OLED77W9PLA	12.3 kg

Model	Sizes	Panel	Refresh	HDR	HDMI 2.1	Software	Released
PanasonicEZ1002	65–77″	OLED	–	HDR10, HLG	0 of 4	my Home Screen	Jun 2017
PanasonicLZ2000	55–77″	OLED	120 Hz	Dolby Vision, HDR10+	2 of 4	my Home Screen	2022
PanasonicMZ2000	55–77″	OLED	120 Hz	Dolby Vision, HDR10+	2 of 4	my Home Screen	Aug 2023

Previous model: SIGNATURE OLED W8. Newer model: OLED WX.
