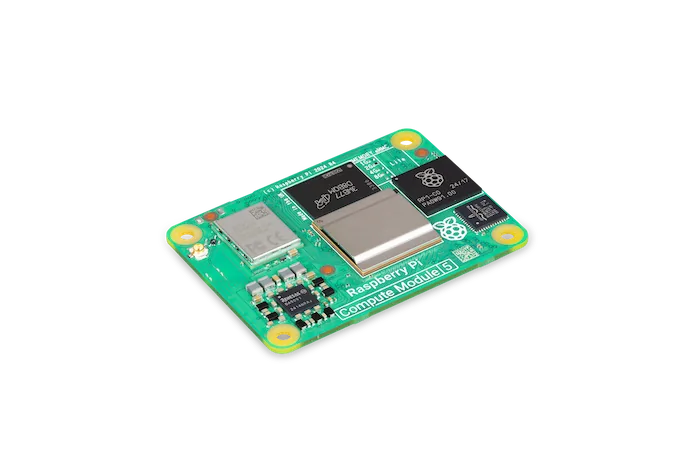

Raspberry Pi Compute Module 5 · Raspberry Pi official supplied product photograph; Compute Module 5, angled documentation photograph. Complete supplied canvas, background and alpha retained.
Raspberry Pi · Compute Module
Compute Module 5
Raspberry Pi 5 on a 55 × 40 mm module for building into products on a carrier board, with 2 GB to 16 GB of memory and optional eMMC storage and wireless, and the same form factor as Compute Module 4.
Model history · 2 models, 2020–2024
- 2020Compute Module 4Compare
- 2024Compute Module 5
- Processor
- Broadcom BCM2712 (Arm Cortex-A76)
- Clock
- 2.4 GHz
- Memory
- 2 GB – 16 GB
- Wi-Fi
- Yes
What reviewers say
Reviewers agree it packs Raspberry Pi 5 performance, two to three times the CM4, into a module that drops into most CM4 carrier boards, and passive cooling suffices for most uses. Jeff Geerling found it draws nearly twice the CM4's power at full load, Tom's Hardware found camera and display set-up fiddly at launch, and CNX Software hit a fan-at-shutdown firmware bug.
From tomshardware.com, jeffgeerling.com and cnx-software.com
Specifications
Report a wrong or missing specPerformance
- Processor
- Broadcom BCM2712 (Arm Cortex-A76)
- CPU cores
- 4
- Clock
- 2.4 GHz
- Memory
- 2 GB – 16 GB
- CPU
- Quad-core 64-bit Arm Cortex-A76 (Armv8) at 2.4GHz
- GPU
- VideoCore VII; OpenGL ES 3.1, Vulkan 1.3; 4Kp60 HEVC decoder
- Memory
- 2GB, 4GB, 8GB or 16GB LPDDR4X-4267 SDRAM with ECC; 16GB versions followed the 2024 launch
- Storage
- 0GB (Lite), 16GB, 32GB or 64GB eMMC flash; SDIO 2.0 on Lite versions
Connections
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Ethernet
- Yes
- USB ports
- 3
- Display outputs
- 2
- GPIO pins
- 30
- PCIe
- Yes
- Ports
- Through the carrier board - Gigabit Ethernet PHY with IEEE 1588, 2 × USB 3.0 (simultaneous 5Gbps), 1 × USB 2.0, PCIe Gen 2 x1 root complex, 2 × HDMI 2.0; two 100-pin high-density connectors
- Displays
- 2 × HDMI 2.0, up to 4Kp60 on both at once; DPI parallel RGB display interface
- Wi-Fi and Bluetooth
- Optional certified radio module with 2.4GHz and 5GHz 802.11b/g/n/ac Wi-Fi and Bluetooth 5.0, BLE; switch between PCB trace and external antenna
- GPIO
- Up to 30 GPIO with 1.8V or 3.3V signalling; up to 5 × UART, 5 × I2C, 5 × SPI; I2S, SDIO, PWM
- Camera and display connectors
- 2 × 4-lane MIPI ports, each usable for DSI displays or CSI-2 cameras
Design
- Size
- 55 × 40 mm
- Power
- Single 5V input with USB PD support for up to 5A
- Size
- 55 × 40 × 4.7 mm module with 4 × M2.5 mounting holes
- Operating temperature
- −20°C to +85°C
Memory options
| Memory |
|---|
| 2 GB |
| 4 GB |
| 8 GB |
| 16 GB |
Pros and cons
Pros
- 2.4GHz Cortex-A76, the same processor as Raspberry Pi 5
- Two USB 3.0 interfaces and PCIe Gen 2 x1
- Same form factor as Compute Module 4
Cons
- Needs a carrier board (such as the CM5 IO Board) for any ports
- Wi-Fi, Bluetooth and eMMC depend on the version bought
- Lite versions have no eMMC and need an SD card slot on the carrier board
Closest rivals
Model | Processor | Clock | Memory | Wi-Fi | Released |
|---|---|---|---|---|---|
| Broadcom BCM2712 (Arm Cortex-A76) | 2.4 GHz | 1 GB – 16 GB | Yes | Oct 2023 | |
| Broadcom BCM2712 (Arm Cortex-A76) | 2.4 GHz | 16 GB | Yes | Sept 2025 | |
| Broadcom BCM2712 (Arm Cortex-A76) | 2.4 GHz | 8 GB | Yes | Dec 2024 |
Previous model: Compute Module 4.
Sources
- pip-assets.raspberrypi.com/categories/944-raspberry-pi-compute-module-5/documen…
- pip-assets.raspberrypi.com/categories/944-raspberry-pi-compute-module-5/documen…
- github.com/raspberrypi/documentation/blob/master/documentation/asciidoc/compute…
- raspberrypi.com/news/compute-module-5-on-sale-now

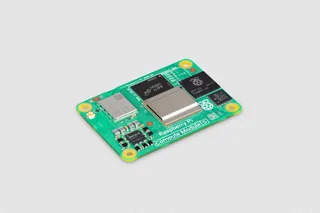

- Compute Module 5, angled launch photograph: Raspberry Pi official supplied product photograph; Compute Module 5, angled launch photograph. Complete supplied canvas, background and alpha retained.

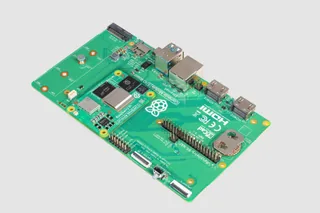

- Compute Module 5 installed on the optional IO Board: Raspberry Pi official supplied product photograph; Compute Module 5 installed on the optional IO Board. Complete supplied canvas, background and alpha retained.

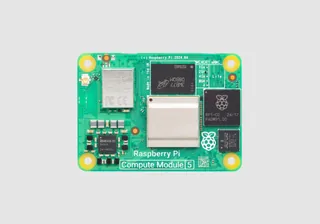

- Compute Module 5, top view: Raspberry Pi official supplied product photograph; Compute Module 5, top view. Complete supplied canvas, background and alpha retained.

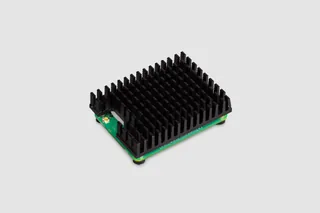

- Compute Module 5 fitted with the optional Cooler: Raspberry Pi official supplied product photograph; Compute Module 5 fitted with the optional Cooler. Complete supplied canvas, background and alpha retained.

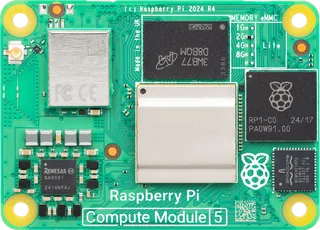

- Compute Module 5, component-side top view with R4 board marking: Raspberry Pi official supplied product photograph; Compute Module 5, component-side top view with R4 board marking. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.

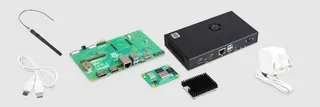

- Compute Module 5 Development Kit components including the module, I/O board, case and accessories: Raspberry Pi official supplied product photograph; Compute Module 5 Development Kit components including the module, I/O board, case and accessories. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.

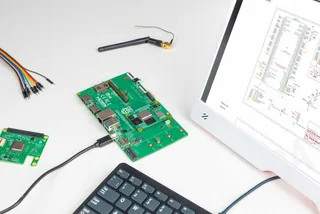

- Compute Module 5 development setup with the I/O board, keyboard and displayed circuit documentation: Raspberry Pi official supplied product photograph; Compute Module 5 development setup with the I/O board, keyboard and displayed circuit documentation. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.
- Compute Module 5 Development Kit packaging: Raspberry Pi official supplied product photograph; Compute Module 5 Development Kit packaging. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.

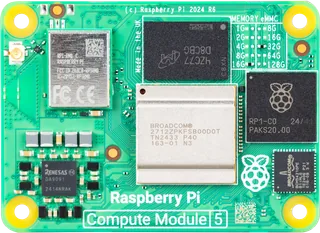

- Compute Module 5, component-side top view with R6 board marking: Raspberry Pi official supplied publication photograph; Compute Module 5, component-side top view with R6 board marking. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.

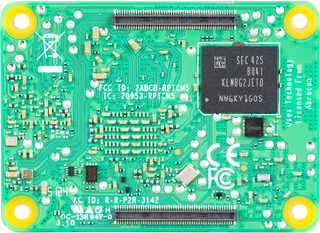

- Compute Module 5, underside with board connectors: Raspberry Pi official supplied publication photograph; Compute Module 5, underside with board connectors. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.

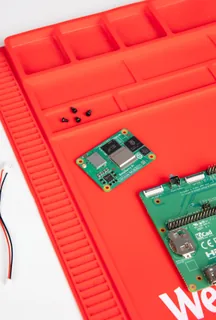

- Compute Module 5 and part of its I/O board on a red work mat: Raspberry Pi official supplied publication photograph; Compute Module 5 and part of its I/O board on a red work mat. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.

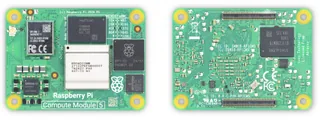

- Compute Module 5, supplied component-side and underside paired photograph: Raspberry Pi official supplied publication photograph; Compute Module 5, supplied component-side and underside paired photograph. Visible module configuration only; RAM, eMMC and wireless SKU unspecified. Complete supplied framing, background and native alpha retained.
