Raspberry Pi 5
Raspberry Pi's current flagship single-board computer, with a quad-core 2.4GHz Arm Cortex-A76 processor and 1 GB to 16 GB of memory, for desktop use, home servers and projects that need the most speed.
Model history · 7 models, 2012–2023
- Processor
- Broadcom BCM2712 (Arm Cortex-A76)
- Clock
- 2.4 GHz
- Memory
- 1 GB – 16 GB
- Wi-Fi
- Yes
What reviewers say
Reviewers agree it is two to three times faster than the Pi 4 for little more money, with much faster I/O, dual 4K output and PCIe expansion. The common criticisms are the need for active cooling and a new power supply, cases and cables; CNX Software noted the loss of H.264 hardware decoding, and Tom's Hardware found some HATs needed software updates at launch.
From tomshardware.com, trustedreviews.com and cnx-software.com
Specifications
Report a wrong or missing specPerformance
- Processor
- Broadcom BCM2712 (Arm Cortex-A76)
- CPU cores
- 4
- Clock
- 2.4 GHz
- Memory
- 1 GB – 16 GB
- CPU
- Quad-core 64-bit Arm Cortex-A76 at 2.4GHz with Cryptographic Extension; 512KB L2 cache per core and 2MB shared L3 cache
- GPU
- VideoCore VII at 800MHz; OpenGL ES 3.1, Vulkan 1.2; 4Kp60 HEVC decoder
- Memory
- LPDDR4X-4267 SDRAM
- Storage
- microSD card slot with high-speed SDR104 mode; NVMe SSD through the PCIe connector with a separate M.2 HAT
Connections
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Ethernet
- Yes
- USB ports
- 4
- Display outputs
- 2
- GPIO pins
- 40
- PCIe
- Yes
- Ports
- 2 × USB 3.0 (simultaneous 5Gbps), 2 × USB 2.0, Gigabit Ethernet with PoE+ support (needs separate PoE+ HAT), 2 × micro HDMI, USB-C power; PCIe FFC connector, UART connector, RTC battery connector, 4-pin PWM fan connector, power button
- Displays
- Dual 4Kp60 HDMI output with HDR support
- Wi-Fi and Bluetooth
- Dual-band 802.11ac Wi-Fi; Bluetooth 5.0 and Bluetooth Low Energy
- GPIO
- Standard Raspberry Pi 40-pin header
- Camera and display connectors
- 2 × 4-lane MIPI camera/display transceivers (mini 22-pin connectors), for any mix of two cameras or displays
Design
- Size
- 85 × 56 mm
- Power
- 5V/5A DC through USB-C with Power Delivery support; with a 5V/3A supply, USB peripherals are limited to 600mA
- Size
- 85 × 56 mm board
- Operating temperature
- 0°C to 70°C
Memory options
| Memory |
|---|
| 1 GB |
| 2 GB |
| 4 GB |
| 8 GB |
| 16 GB |
Pros and cons
Pros
- 2.4GHz Cortex-A76 CPU, 2–3× the CPU performance of Raspberry Pi 4 (maker's figure)
- PCIe 2.0 x1 connector for an NVMe SSD or AI accelerator (with a separate M.2 HAT)
- Built-in real-time clock and power button
Cons
- No 3.5 mm audio and composite video jack
- Needs a 5V/5A USB-C supply for full power to USB devices
- Needs the Active Cooler or a fan case to run heavy loads continuously without throttling
Closest rivals
Model | Processor | Clock | Memory | Wi-Fi | Released |
|---|---|---|---|---|---|
| Broadcom BCM2712 (Arm Cortex-A76) | 2.4 GHz | 2 GB – 16 GB | Yes | Nov 2024 | |
| Broadcom BCM2712 (Arm Cortex-A76) | 2.4 GHz | 16 GB | Yes | Sept 2025 | |
| Broadcom BCM2712 (Arm Cortex-A76) | 2.4 GHz | 8 GB | Yes | Dec 2024 |
Previous model: Raspberry Pi 4 Model B.
Sources
- datasheets.raspberrypi.com/rpi5/raspberry-pi-5-product-brief.pdf
- pip.raspberrypi.com/categories/892-raspberry-pi-5
- pip-assets.raspberrypi.com/categories/892-raspberry-pi-5/documents/RP-008347-DS…
- github.com/raspberrypi/documentation/blob/master/documentation/asciidoc/compute…
- raspberrypi.com/news/introducing-raspberry-pi-5
- raspberrypi.com/news/raspberry-pi-5-available-now
- raspberrypi.com/news/16gb-raspberry-pi-5-on-sale-now-at-120
- raspberrypi.com/news/1gb-raspberry-pi-5-now-available-at-45-and-memory-driven-p…

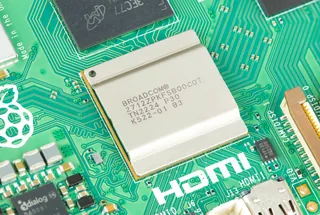

- Raspberry Pi 5 BCM2712 processor detail: Raspberry Pi official supplied product photograph; Raspberry Pi 5 BCM2712 processor detail. Complete supplied canvas, background and alpha retained.

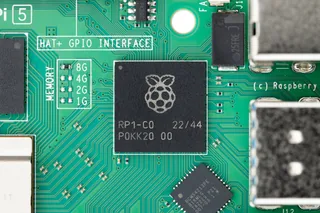

- Raspberry Pi 5 RP1 controller detail: Raspberry Pi official supplied product photograph; Raspberry Pi 5 RP1 controller detail. Complete supplied canvas, background and alpha retained.

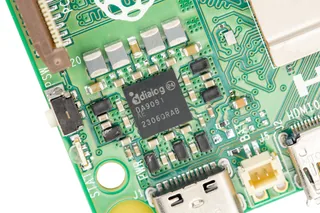

- Raspberry Pi 5 power circuitry detail: Raspberry Pi official supplied product photograph; Raspberry Pi 5 power circuitry detail. Complete supplied canvas, background and alpha retained.

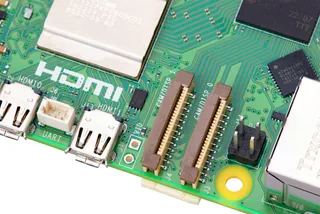

- Raspberry Pi 5 MIPI connector detail: Raspberry Pi official supplied product photograph; Raspberry Pi 5 MIPI connector detail. Complete supplied canvas, background and alpha retained.
- Raspberry Pi 5 retail packaging detail: Raspberry Pi official supplied product photograph; Raspberry Pi 5 retail packaging detail. Complete supplied canvas, background and alpha retained.

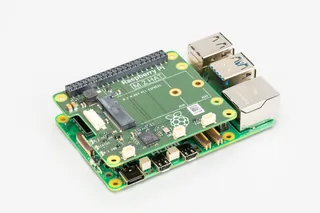

- Raspberry Pi 5 fitted with a prototype optional M.2 HAT: Raspberry Pi official supplied product photograph; Raspberry Pi 5 fitted with a prototype optional M.2 HAT. Complete supplied canvas, background and alpha retained.

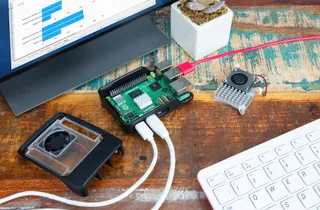

- Raspberry Pi 5 in a desk benchmark setup: Raspberry Pi official supplied product photograph; Raspberry Pi 5 in a desk benchmark setup. Complete supplied canvas, background and alpha retained.

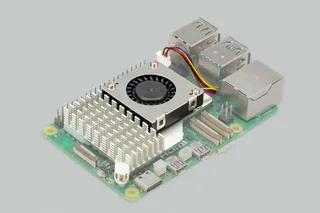

- Raspberry Pi 5 fitted with the optional Active Cooler: Raspberry Pi official supplied product photograph; Raspberry Pi 5 fitted with the optional Active Cooler. Visible supplied configuration pictured; other internal configuration unspecified. Complete supplied framing, background and native alpha retained.

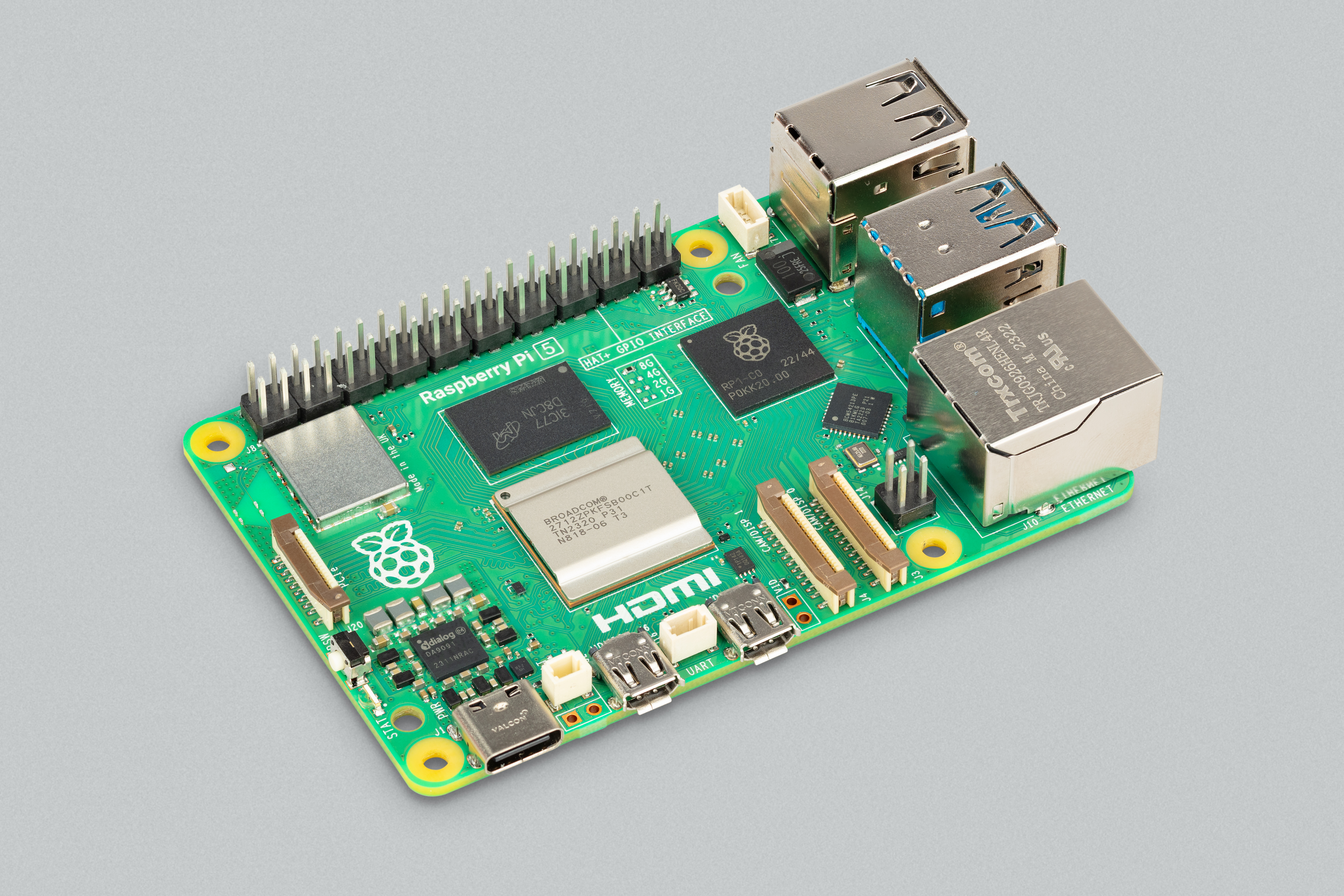

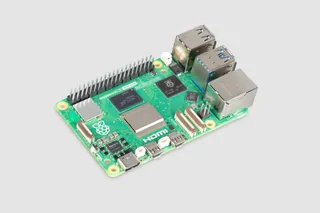

- Raspberry Pi 5 16GB, angled board photograph on a grey background: Raspberry Pi official supplied product photograph; Raspberry Pi 5 16GB, angled board photograph on a grey background. 16GB configuration pictured. Complete supplied framing, background and native alpha retained.

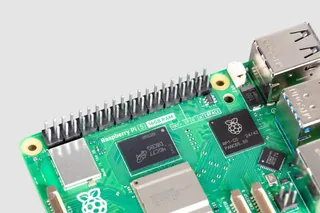

- Raspberry Pi 5 16GB memory and GPIO detail: Raspberry Pi official supplied product photograph; Raspberry Pi 5 16GB memory and GPIO detail. 16GB configuration pictured. Complete supplied framing, background and native alpha retained.

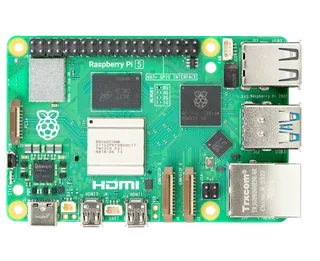

- Raspberry Pi 5, component-side top view: Raspberry Pi official supplied publication photograph; Raspberry Pi 5, component-side top view. Visible supplied configuration pictured; other internal configuration unspecified. Complete supplied framing, background and native alpha retained.

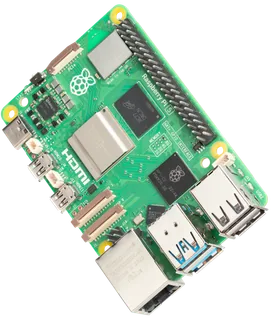

- Raspberry Pi 5, angled component-side photograph: Raspberry Pi official supplied publication photograph; Raspberry Pi 5, angled component-side photograph. Visible supplied configuration pictured; other internal configuration unspecified. Complete supplied framing, background and native alpha retained.
