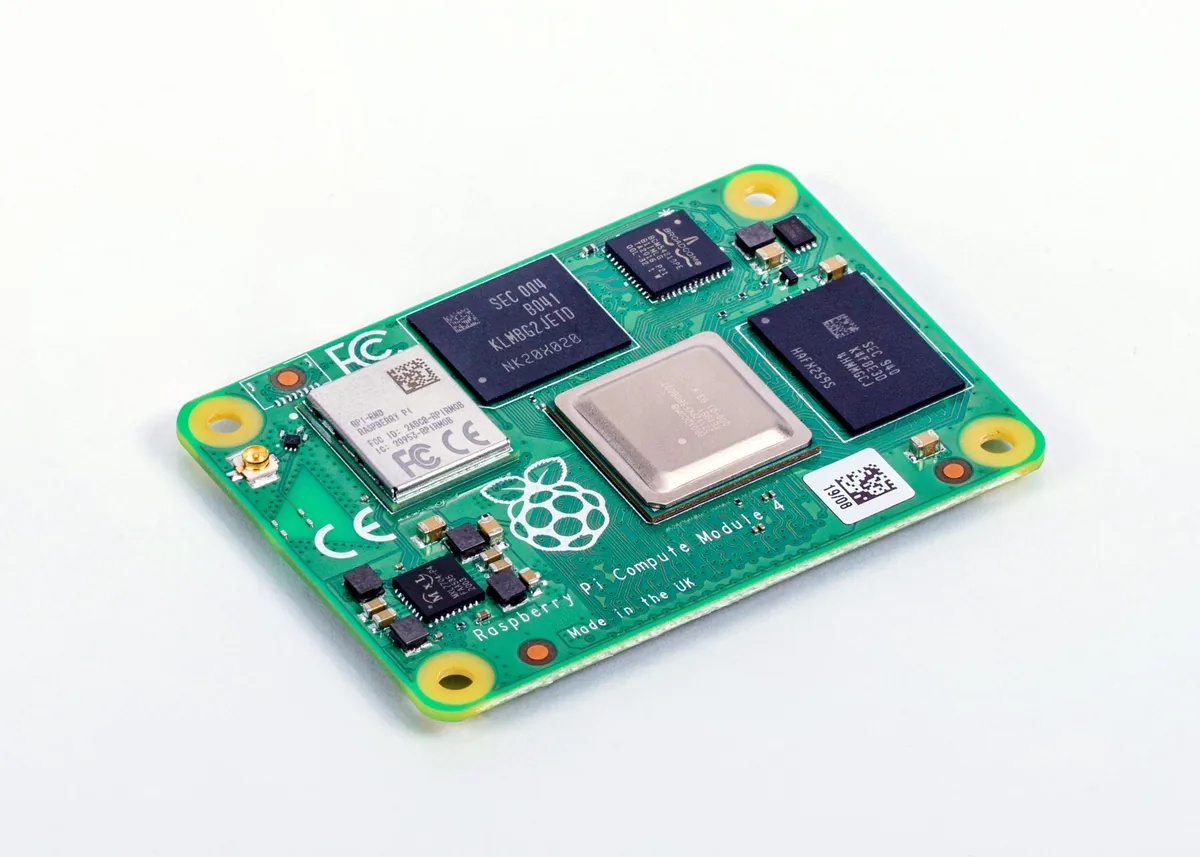

Raspberry Pi Compute Module 4 · Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 angled on the supplied white studio background. Complete manufacturer-supplied canvas and background retained.
Raspberry Pi · Compute Module
Compute Module 4
Raspberry Pi 4 on a 55 × 40 mm module with no connectors of its own, for building into products on a carrier board, with 1 GB to 8 GB of memory and optional eMMC storage and wireless.
- Processor
- Broadcom BCM2711 (Arm Cortex-A72)
- Clock
- 1.5 GHz
- Memory
- 1 GB – 8 GB
- Wi-Fi
- Yes
What reviewers say
Reviewers agree it puts Raspberry Pi 4 performance, native PCIe and optional wireless into a compact module well suited to embedded projects and custom carrier boards. Tom's Hardware found it expensive and suited only to those with the skills to design around it; Jeff Geerling found the official IO board large and the module fiddly to detach.
From tomshardware.com and jeffgeerling.com
Specifications
Report a wrong or missing specPerformance
- Processor
- Broadcom BCM2711 (Arm Cortex-A72)
- CPU cores
- 4
- Clock
- 1.5 GHz
- Memory
- 1 GB – 8 GB
- CPU
- Quad-core Cortex-A72 (Arm v8) 64-bit SoC at 1.5GHz
- GPU
- VideoCore VI; OpenGL ES 3.0; H.265 4Kp60 decode, H.264 1080p60 decode and 1080p30 encode
- Memory
- 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
- Storage
- 0GB (Lite), 8GB, 16GB or 32GB eMMC flash (the product brief also lists 64GB); SD card interface on Lite versions
Connections
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Ethernet
- Yes
- USB ports
- 1
- Display outputs
- 2
- GPIO pins
- 28
- PCIe
- Yes
- Ports
- Through the carrier board - Gigabit Ethernet PHY with IEEE 1588, 1 × USB 2.0 interface, PCIe Gen 2 x1, dual HDMI; two 100-pin high-density connectors
- Displays
- Dual HDMI interfaces, up to 4Kp60
- Wi-Fi and Bluetooth
- Optional 2.4GHz and 5GHz 802.11b/g/n/ac Wi-Fi and Bluetooth 5.0, BLE, with onboard and external antenna options
- GPIO
- 28 GPIO signals
- Camera and display connectors
- 2-lane and 4-lane MIPI DSI display interfaces; 2-lane and 4-lane MIPI CSI camera interfaces
Design
- Size
- 55 × 40 mm
- Power
- 5V DC
- Size
- 55 × 40 mm module
- Operating temperature
- −20°C to +85°C; −40°C to +85°C for extended temperature range versions
Memory options
| Memory |
|---|
| 1 GB |
| 2 GB |
| 4 GB |
| 8 GB |
Pros and cons
Pros
- PCIe Gen 2 x1 interface, unlike Raspberry Pi 4
- Two 4-lane MIPI camera and display interfaces as well as two 2-lane ones
- Versions rated for −20°C to +85°C, with extended-temperature ones down to −40°C
Cons
- Needs a carrier board (such as the CM4 IO Board) for any ports
- Wi-Fi, Bluetooth and eMMC depend on the version bought
- 1.5GHz, slower than Raspberry Pi 4's current 1.8GHz
Closest rivals
Model | Processor | Clock | Memory | Wi-Fi | Released |
|---|---|---|---|---|---|
| Broadcom BCM2711 (Arm Cortex-A72) | 1.8 GHz | 1 GB – 8 GB | Yes | Jun 2019 | |
| Broadcom BCM2711 (Arm Cortex-A72) | 1.8 GHz | 4 GB | Yes | Nov 2020 | |
| Broadcom BCM2712 (Arm Cortex-A76) | 2.4 GHz | 8 GB | Yes | Dec 2024 |
Newer model: Compute Module 5.
Sources
- pip-assets.raspberrypi.com/categories/634-raspberry-pi-compute-module-4/documen…
- pip-assets.raspberrypi.com/categories/634-raspberry-pi-compute-module-4/documen…
- github.com/raspberrypi/documentation/blob/master/documentation/asciidoc/compute…
- raspberrypi.com/news/raspberry-pi-compute-module-4

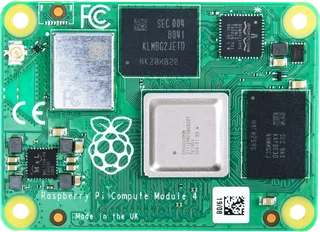

- Raspberry Pi Compute Module 4 top view with manufacturer-supplied transparency: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 top view with manufacturer-supplied transparency. Complete manufacturer-supplied canvas and background retained.

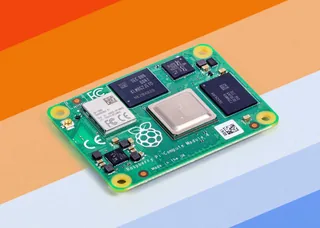

- Raspberry Pi Compute Module 4 angled on the supplied orange and blue studio background: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 angled on the supplied orange and blue studio background. Complete manufacturer-supplied canvas and background retained.

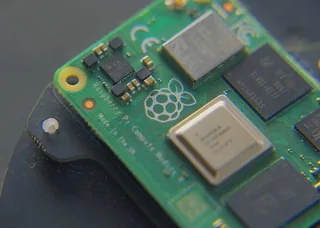

- Raspberry Pi Compute Module 4 component close-up: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 component close-up. Complete manufacturer-supplied canvas and background retained.

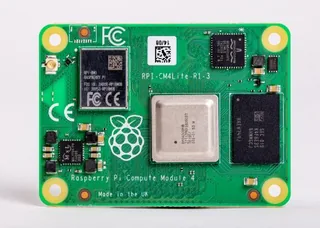

- Raspberry Pi Compute Module 4 Lite without eMMC flash: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 Lite without eMMC flash. Complete manufacturer-supplied canvas and background retained.

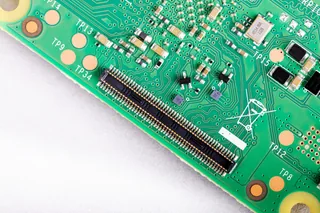

- Raspberry Pi Compute Module 4 underside connector detail: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 underside connector detail. Complete manufacturer-supplied canvas and background retained.

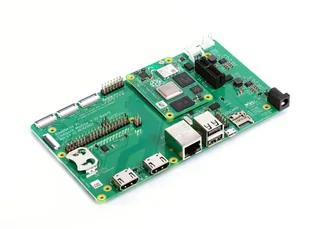

- Raspberry Pi Compute Module 4 mounted on the optional IO Board, launch composition: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 mounted on the optional IO Board, launch composition. Complete manufacturer-supplied canvas and background retained.

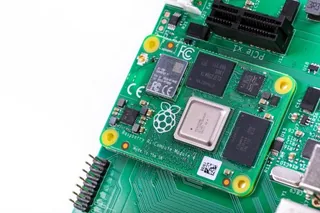

- Raspberry Pi Compute Module 4 mounted on the optional IO Board, close-up: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 mounted on the optional IO Board, close-up. Complete manufacturer-supplied canvas and background retained.

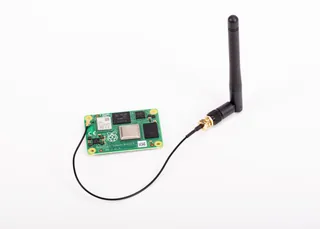

- Raspberry Pi Compute Module 4 with the optional external antenna connected: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 with the optional external antenna connected. Complete manufacturer-supplied canvas and background retained.

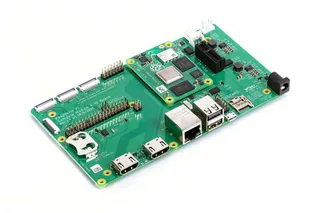

- Raspberry Pi Compute Module 4 mounted on the optional IO Board, product-page composition: Raspberry Pi official supplied product photograph; Raspberry Pi Compute Module 4 mounted on the optional IO Board, product-page composition. Complete manufacturer-supplied canvas and background retained.
