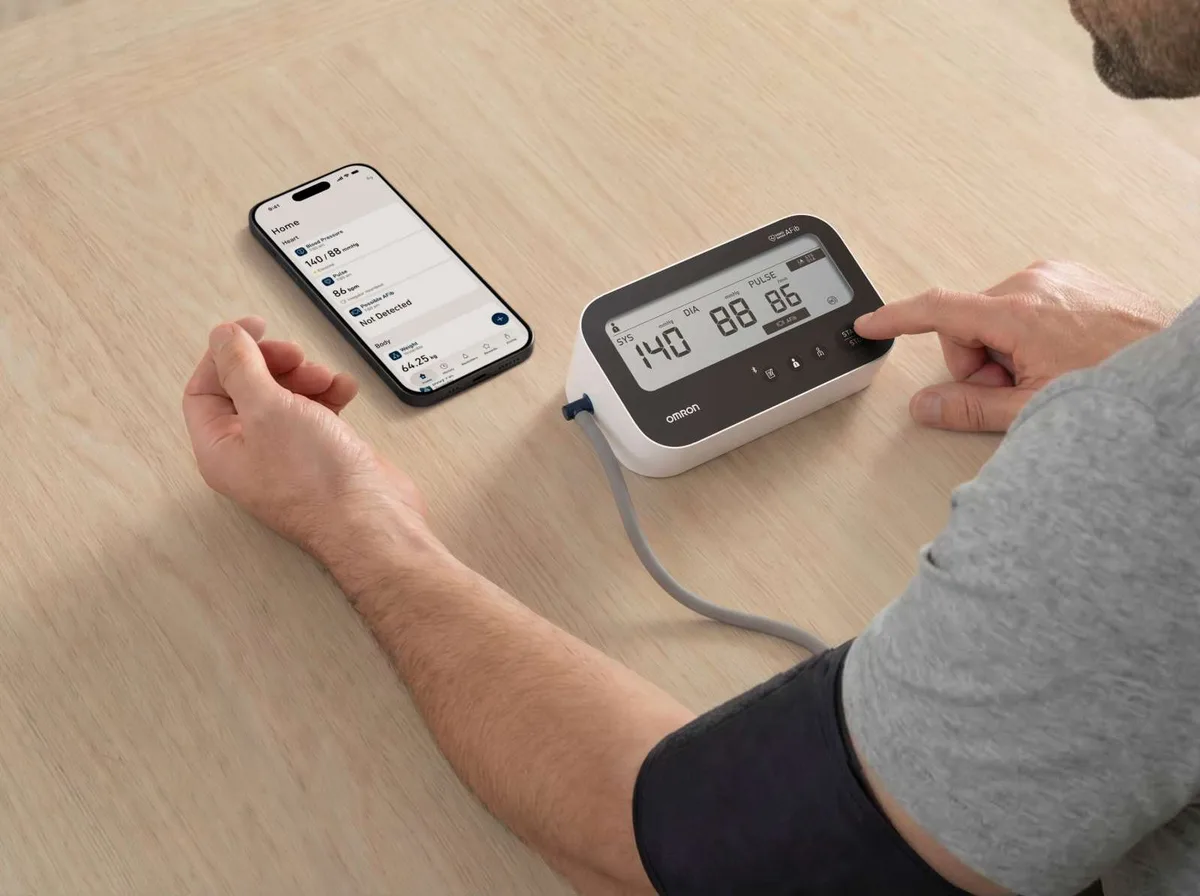

M4 Connect AFib
An upper-arm blood pressure monitor with possible AFib screening, Bluetooth app sync and separate memories for two users.
- Type
- Upper arm
- Users
- 2
- App
- Yes
- Validated
- Yes
Specifications
Report a wrong or missing specMeasuring
- Type
- Upper arm
- Clinically validated
- Yes
- Irregular heartbeat detection
- Yes
- AFib detection or ECG
- Yes
- Method
- Automatic oscillometric upper-arm measurement; HEM-7196T1-FLE. First retail release date has not been established; the manual's December 2024 revision is not an on-sale date
- Accuracy
- Maker's pressure accuracy ±3 mmHg and pulse accuracy ±5% of displayed reading; systolic range 60–260 mmHg, diastolic 40–215 mmHg and pulse 40–180 beats/minute
- Clinical validation
- STRIDE BP approves this exact hardware code as equivalent to Omron BP760N (HEM-7320-Z), with adults, diabetes and pregnancy/preeclampsia listed; equivalent-device approval is distinct from a direct test of this model or validation of its AFib algorithm
- Features
- Pulse-wave screening for possible AFib, rather than an ECG or diagnosis; irregular heartbeat, body movement and cuff-wrap indicators. The exact manual describes three consecutive readings at 30-second intervals with their average; this conflicts with the UK page's averaging-function No table entry
Cuff
- Cuff fits
- 22–42 cm
- Cuff
- HEM-FL31 preformed Intelli Wrap Cuff; approximately 145 × 532 mm, 750 mm air tube and 163 g
Connections and memory
- Users
- 2
- Readings stored
- 60 per user
- Bluetooth and app
- Yes
- Memory
- Up to 60 readings per user for two users; guest mode takes one measurement without saving it
- App
- Bluetooth Low Energy sync with OMRON connect; readings can be transferred to a compatible smart device
- Power
- Four AA batteries included; optional HHP-CM01, HHP-AM01 or HHP-BFH01 AC adapter. Approximately 900 measurements with new alkaline batteries and the included cuff, depending on batteries and cuff
Design
- Display details
- Digital LCD; monitor IP21
- Size
- Approximately 165 × 70 × 98 mm (W × H × L); monitor approximately 350 g without batteries
- In the box
- Monitor, HEM-FL31 cuff, four AA batteries, instruction manuals 1/2, storage case and blood pressure pass
Pros and cons
Pros
- Preformed cuff fits arms from 22 to 42 cm
- Bluetooth transfers readings to OMRON connect
- Three-reading mode takes and averages consecutive measurements
Cons
- AC adapter is optional
- AFib screening does not record an ECG
Closest rivals
Model | Type | Users | App | Validated | Released |
|---|---|---|---|---|---|
| Upper arm | 2 | Yes | – | – | |
| Upper arm | 2 | Yes | – | – | |
| Upper arm | 1 | Yes | Yes | – |
