AMD · Ryzen

Ryzen 9 7900X3D

Released February 2023

A 12-core Zen 4 desktop processor for AM5 with 3D V-Cache for gaming.

Cores: 12/24
Boost: 5.6 GHz
L3: 128 MB
Power: 120 W
Socket: AM5

What reviewers say

Strong gaming and excellent efficiency, but lower application performance than 7900X and awkward launch value between 7800X3D and 7950X3D. Its cache chiplet has only six active cores; correct driver scheduling matters. Better suited to mixed work at a discount than a pure gaming build.

From techspot.com, techradar.com and tomshardware.com

Specifications

Report a wrong or missing spec

Cores and clocks

Cores: 12
Threads: 24
Base clock: 4.4 GHz
Boost clock: 5.6 GHz
L3 cache: 128 MB
Cores: Zen 4; Raphael; 3 package dies; simultaneous multithreading; two compute chiplets with 6 active cores each, one with 3D V-Cache (Tom's Hardware)
Clocks: Direct CPU frequency overclocking is disabled; Precision Boost Overdrive, Curve Optimizer and memory tuning are supported (Tom's Hardware). AMD product launch date 28 February 2023 is corroborated as retail release by TechRadar
Cache: L1 768 KB; L2 12 MB; L3 128 MB; 96 MB L3 on the cache chiplet and 32 MB on the other (Tom's Hardware)

Graphics and AI

Built-in graphics: Yes
Graphics: AMD Radeon Graphics; 2 graphics cores at 2200 MHz; USB-C DisplayPort Alternate Mode supported

Platform

Socket: AM5
Base power: 120 W
Unlocked: No
Cooler in the box: No
Memory support: DDR5 UDIMM; 2 memory channels; maximum 128 GB; ECC requires motherboard support. 2 single- or dual-rank DIMMs: DDR5-5200; 4 single- or dual-rank DIMMs: DDR5-3600; AMD EXPO memory overclocking supported
PCIe: PCIe 5.0; 28 native lanes, 24 usable; 4 native USB 3.2 Gen 2 ports, 1 USB 2.0 port; no native SATA ports
Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840 and B850
Process: TSMC 5nm FinFET CPU cores; TSMC 6nm FinFET I/O die; CPU compute die 71 mm², I/O die 122 mm²
Cooler: Not included; Tjmax 89°C; AMD recommends liquid cooling for optimal performance

Pros and cons

Pros

Additional L3 cache using 3D V-Cache
120 W default TDP
Built-in Radeon graphics for display output

Cons

Requires an AM5 motherboard and DDR5 memory
CPU cooler sold separately
Direct CPU multiplier overclocking is disabled

Closest rivals

Model	Cores	Boost	L3	Power	Socket	Released
IntelCore i5-14600K	14/20	5.3 GHz	24 MB	125 W	LGA1700	Oct 2023
AMDRyzen 9 9900X	12/24	5.6 GHz	64 MB	120 W	AM5	Aug 2024
IntelCore i5-13600K	14/20	5.1 GHz	24 MB	125 W	LGA1700	Oct 2022

Sources

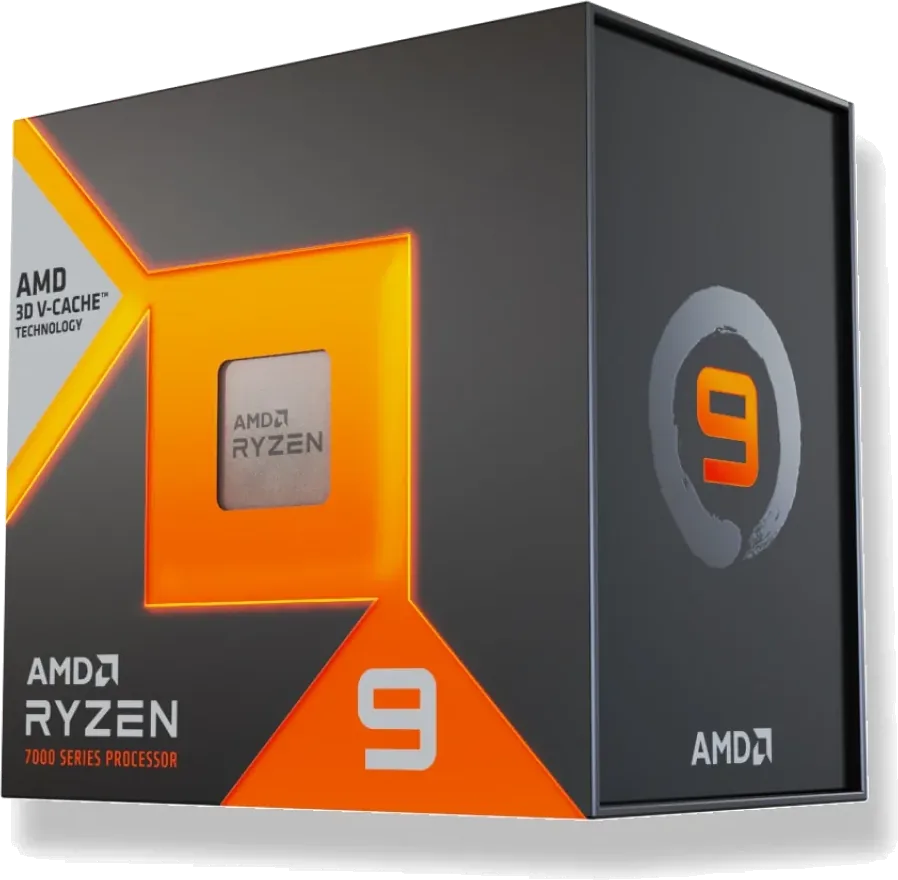

Photo: amd.com
