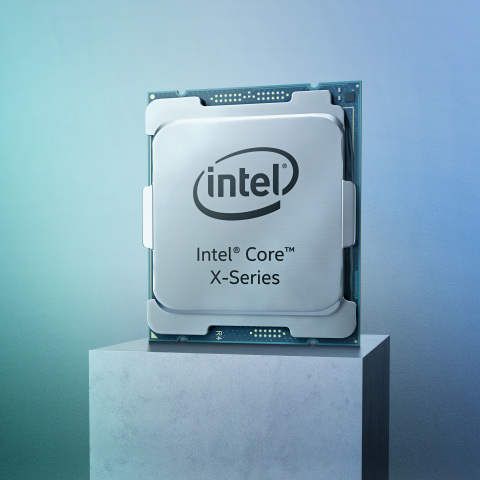

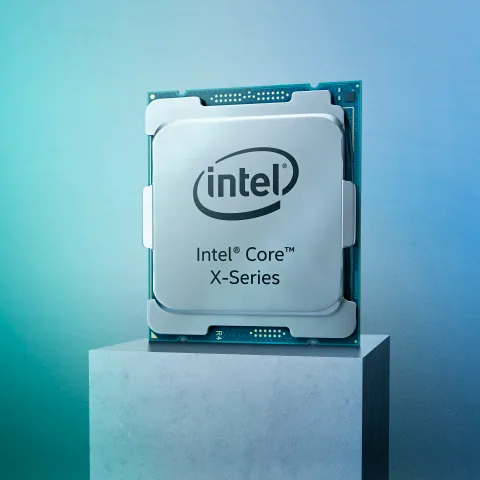

An unlocked 10-core Cascade Lake-X desktop processor with Hyper-Threading, four-channel DDR4 memory and 48 CPU PCIe lanes for LGA2066 enthusiast systems.
TechSpot and Puget found weak value against Ryzen alternatives in their tested workloads. TechSpot criticised the small generational gains and rendering value; Puget found the 10900X had weaker live playback than the higher-core Cascade Lake-X models. Its platform connections may matter for specialised systems, but neither review makes it a strong general-purpose purchase.
Cascade Lake-X; Hyper-Threading and an unlocked multiplier, confirmed by Intel’s exact-model family product brief.
Clocks
Turbo Boost Max 3.0 up to 4.70 GHz on the preferred cores; ordinary Turbo Boost 2.0 up to 4.50 GHz. Intel targeted November 2019 availability, but first actual sale was not established in the bounded source pass; conservative year precision is retained.
Cache
19.25 MB Intel Smart Cache; Intel’s exact-model product-brief table identifies it as L3 cache.
Graphics and AI
Built-in graphics
No
Graphics
No processor graphics, explicitly confirmed by Intel’s exact-model support table.
AI engine
Intel Deep Learning Boost provides CPU inference instructions; this is not a separate NPU.
Platform
Socket
LGA2066
Base power
165 W
Unlocked
Yes
Cooler in the box
No
Memory support
Up to 256 GB; four channels of DDR4-2933; 94 GB/s maximum published bandwidth; no ECC.
PCIe
48 CPU lanes; PCIe 3.0. The 72-lane family platform figure includes chipset lanes.
Chipsets
Intel X299; LGA2066.
Process
14 nm; Cascade Lake-X.
Cooler
Intel explicitly excludes a fan and heatsink from the boxed product. Intel’s support article confirms solder thermal interface material for this exact model; published junction limit 94°C.
