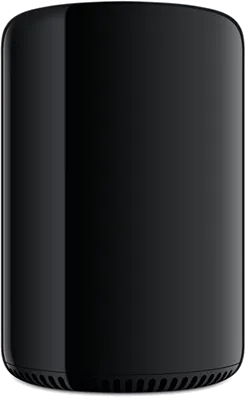

Mac Pro (Late 2013)
A cylindrical Intel Xeon workstation with dual AMD FirePro graphics, PCIe flash storage and six Thunderbolt 2 ports.
Model history · 18 models, 1999–2013
- 1999Power Mac G4 (AGP Graphics)Compare
- 2000Power Mac G4 (Gigabit Ethernet)Compare
- 2001Power Mac G4 (Digital Audio)Compare
- 2001Power Mac G4 (QuickSilver 2001)Compare
- 2002Power Mac G4 (QuickSilver 2002)Compare
- 2002Power Mac G4 (Mirrored Drive Doors 2002)Compare
- 2003Power Mac G4 (FW800)Compare
- 2003Power Mac G4 (Mirrored Drive Doors 2003)Compare
- 2003Power Mac G5 (2003)Compare
- 2004Power Mac G5 (June 2004)Compare
- 2005Power Mac G5 (Early 2005)Compare
- 2005Power Mac G5 (Late 2005)Compare
- 2006Mac Pro (2006)Compare
- 2008Mac Pro (Early 2008)Compare
- 2009Mac Pro (Early 2009)Compare
- 2010Mac Pro (Mid 2010)Compare
- 2012Mac Pro (Mid 2012)Compare
- 2013Mac Pro (Late 2013)
- Type
- Compact
- Processor
- Intel Xeon E5-1620 v2, Xeon E5-1650 v2, Xeon E5-1680 v2 or Xeon E5-2697 v2
- Memory
- 12 GB – 64 GB
- Storage
- 256 GB – 1 TB
- Screen
- –
- Weight
- 5 kg
What reviewers say
Reviewers praised the compact design, quiet operation and fast flash storage. Its dual GPUs delivered strong results in software designed to use them, particularly Final Cut Pro. Benefits varied with the application, while the loss of internal expansion added external hardware costs. Ars also found the single processor socket restrictive for demanding CPU rendering.
From macworld.com, engadget.com and arstechnica.com
Specifications
Report a wrong or missing specPerformance
- Processor
- Intel Xeon E5-1620 v2, Intel Xeon E5-1650 v2, Intel Xeon E5-1680 v2 or Intel Xeon E5-2697 v2
- CPU cores
- 4, 6, 8 or 12
- CPU threads
- 8, 12, 16 or 24
- Graphics
- Dual AMD FirePro D300 (2 GB GDDR5 each), Dual AMD FirePro D500 (3 GB GDDR5 each) or Dual AMD FirePro D700 (6 GB GDDR5 each)
- Memory
- 12 GB, 16 GB, 32 GB or 64 GB
- Storage
- 256 GB to 1 TB
- CPU
- 3.7 GHz quad-core, 3.5 GHz six-core, 3.0 GHz eight-core or 2.7 GHz twelve-core Intel Xeon E5. Exact identities are E5-1620 v2, E5-1650 v2, E5-1680 v2 and E5-2697 v2, cross-checked against Geekbench device records and Ars hardware testing; Intel specifications supply thread counts and maximum Turbo frequencies.
- GPU
- Dual AMD FirePro D300 with 2 GB GDDR5 per GPU, D500 with 3 GB per GPU, or D700 with 6 GB per GPU. Memory is specified separately for each GPU, rather than pooled. All graphics options are available by upgrading the original quad-core base configuration.
- Memory type
- Four user-accessible slots for 1866 MHz DDR3 ECC memory; 12 GB (three 4 GB modules), 16 GB (four 4 GB), 32 GB (four 8 GB) or 64 GB (four 16 GB)
- Storage type
- PCIe-based SSD; 256 GB, 512 GB or 1 TB. No internal hard-drive bays or optical drive.
- Expansion slots
- No internal PCIe card slots; peripherals and compatible external expansion chassis connect through Thunderbolt
Display
- Screen
- None built in
Connections
- Ports
- 4 × USB-A, 6 × Thunderbolt 2, 2 × Ethernet, HDMI, headphone jack
- Ethernet
- 1 Gb/s
- External displays
- Up to 6
- Wi-Fi
- 802.11ac
- Bluetooth
- 4.0
- Back ports
- Four USB 3 USB-A ports, six Thunderbolt 2 ports, two Gigabit Ethernet ports, HDMI 1.4 Ultra HD, 3.5 mm headphone jack with headset support, and a separate combined optical digital audio output/analogue line-out minijack. Thunderbolt ports are divided across three controllers, as explained in Macworld and Ars reviews.
- External displays
- Apple's current support specifications allow six Thunderbolt displays or three dual-cable 5K displays. The launch announcement specified support for three 4K displays; the later 5K statement should not be read as launch-day capability.
- Speakers
- Built-in speaker; HDMI supports multichannel audio output
- Keyboard and mouse
- Keyboard, mouse and display sold separately
Design and power
- Type
- Compact
- Weight
- 5 kg
- Width × depth × height
- 167 × 167 × 251 mm
- Operating system
- macOS
- Size and weight detail
- Cylindrical enclosure; 251 mm high and 167 mm in diameter, with 5 kg weight from Apple's Japanese specification sheet. Weight varies by configuration and manufacturing process.
- Power supply
- 100–240 V AC, 50–60 Hz, single phase; maximum continuous power 450 W
- Noise
- Apple's overview reports 12 dBA operator-position sound pressure at idle, while the acoustic table reports 14 dB at idle and 14.5 dB during wireless web. These are conflicting maker statements; no single noise value is selected.
- Materials
- Highly recyclable enclosure; BFR-free and PVC-free, with regional exceptions for the power lead
- In the box
- Mac Pro and power lead. Launched with OS X Mavericks; the current support page describes the later macOS Mojave release. Original standard configurations were quad-core with 12 GB memory and D300 graphics, and six-core with 16 GB and D500. The current support sheet also lists an eight-core standard configuration with 16 GB and D700. Configurations below include independent processor, memory, graphics and storage upgrades of the original quad-core base, so 12 GB or D300 with a higher-core processor represents a customised base model.
Configurations
| Processor | Memory | Storage | Storage type | Graphics |
|---|---|---|---|---|
| Intel Xeon E5-1620 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1620 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1650 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-1680 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 12 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 16 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 32 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D300 (2 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D500 (3 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 256 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 512 GB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
| Intel Xeon E5-2697 v2 | 64 GB | 1 TB | SSD | Dual AMD FirePro D700 (6 GB GDDR5 each) |
Pros and cons
Pros
- Dual professional graphics processors in every configuration
- Six Thunderbolt 2 ports and two Gigabit Ethernet connections
- User-accessible ECC memory slots
Cons
- No internal PCIe expansion slots or hard-drive bays
- Single processor socket
- No Nvidia graphics option for CUDA applications
Closest rivals
Model | Type | Processor | Memory | Storage | Screen | Weight | Released |
|---|---|---|---|---|---|---|---|
| Compact | Intel Core i3, i5 or i7 | 8 GB – 64 GB | 128 GB – 2 TB | – | 1.3 kg | Nov 2018 | |
| Compact | Intel Core i5 or i7 | 4 GB – 16 GB | 256 GB – 1 TB | – | 1.22 kg | Oct 2012 | |
| Compact | Intel Core i5 or i7 | 4 GB – 16 GB | 256 GB – 2 TB | – | – | Oct 2014 |
Previous model: Mac Pro (Mid 2012). Newer model: Mac Pro (2019).
Sources
- support.apple.com/en-gb/112025
- support.apple.com/ja-jp/112025
- apple.com/uk/newsroom/2013/12/18All-New-Mac-Pro-Available-Starting-Tomorrow
- browser.geekbench.com/macs/mac-pro-late-2013-intel-xeon-e5-1620-v2-3-7-ghz-4-co…
- browser.geekbench.com/geekbench2/2494928
- browser.geekbench.com/macs/mac-pro-late-2013-intel-xeon-e5-2697-v2-2-7-ghz-12-c…
- macworld.com/article/222619/mac-pro-late-2013-review-apples-new-mac-pro-really-…
- engadget.com/2013-12-23-apple-mac-pro-review-2013.html
- arstechnica.com/gadgets/2014/01/two-steps-forward-a-review-of-the-2013-mac-pro
- support.apple.com/en-gb/102887
Photo: cdsassets.apple.com
