Intel · Arc
Arc B570
A cut-down version of Intel's Arc B580 with 10 GB of GDDR6, sold only as partner cards, aimed at 1080p gaming on a budget.
- Memory
- 10 GB
- Shaders
- 2,304
- Boost clock
- –
- Bandwidth
- 380 GB/s
- Power
- 150 W
What reviewers say
Reviewers agree it is a capable budget 1080p card with more memory than 8 GB rivals, competitive with the RTX 4060 and RX 7600, and cool and quiet. All three found the Arc B580 better value for a little more, and flag remaining driver problems; Club386 and KitGuru also raise weaker performance with older processors.
From tomshardware.com, club386.com and kitguru.net
Specifications
Report a wrong or missing specPerformance
- Chip maker
- Intel
- Architecture
- Xe2 (Battlemage)
- Shader cores
- 2,304
- Architecture
- 18 Xe-cores in 5 render slices; 144 Xe Vector Engines; Intel lists a 2500 MHz graphics clock
- Manufacturing process
- TSMC N5
- Ray tracing
- 18 second-generation ray tracing units
- AI cores
- 144 Intel XMX engines; 203 TOPS INT8
- Upscaling and frame generation
- XeSS 2 with XeSS Super Resolution, XeSS Frame Generation and Xe Low Latency
Memory
- Video memory
- 10 GB GDDR6
- Memory bus
- 160-bit
- Memory bandwidth
- 380 GB/s
- Memory detail
- GDDR6 at 19 Gbps
Connections and power
- Board power
- 150 W
- Interface
- PCIe 4.0 x8
- Display outputs
- HDMI 2.1, DisplayPort 2.1 up to UHBR 13.5, DisplayPort 2.1 up to UHBR 10; up to 4 displays
- Maximum resolution
- 7680 × 4320 at 120 Hz over HDMI, 7680 × 4320 at 60 Hz over DisplayPort
- Video encode and decode
- 2 multi-format codec engines; H.264, HEVC and AV1 encode and decode; HDR10, HDR10+ Gaming and Dolby Vision
Pros and cons
Pros
- 10 GB of GDDR6, more than 8 GB cards at a similar price
- XeSS 2 with Super Resolution, Frame Generation and Xe Low Latency
- 150 W board power
Cons
- 160-bit memory bus (380 GB/s) and 18 Xe-cores, against the B580's 192-bit bus and 20 Xe-cores
- PCIe 4.0 x8 interface rather than x16
- No Intel reference card; size and cooling vary by manufacturer
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 8 GB | 2,048 | 3,130 MHz | 320 GB/s | 150 W | Jun 2025 | |
| 8 GB | 2,560 | 2,570 MHz | – | 130 W | Jul 2025 | |
| 16 GB | 2,048 | 3,130 MHz | 320 GB/s | 160 W | Jun 2025 |
Sources
- intel.com/content/www/uk/en/products/sku/241676/intel-arc-b570-graphics/specifi…
- intel.com/content/www/us/en/newsroom/news/intel-launches-arc-b-series-graphics-…

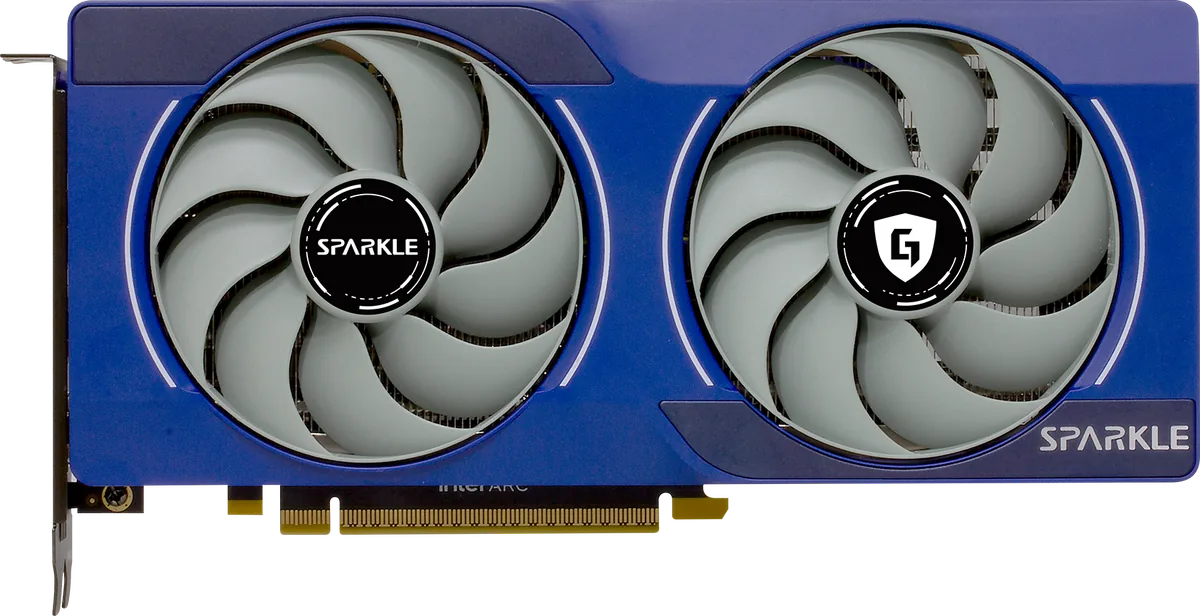

Photo: sparkle.com.tw
