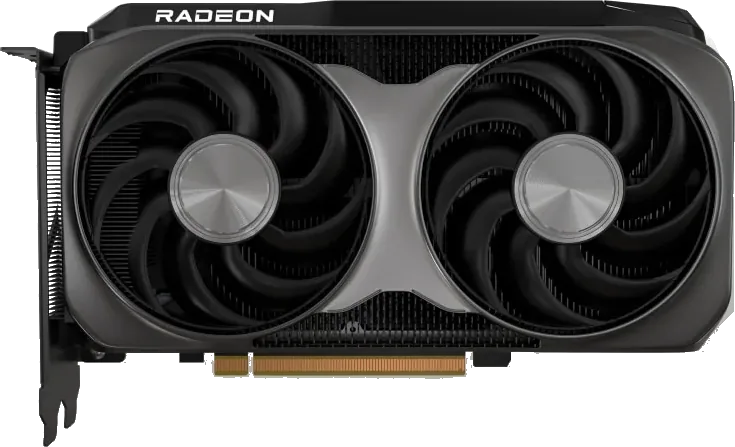

AMD · Radeon
Radeon RX 9060 XT
AMD's mid-range RDNA 4 graphics card with 16 GB of GDDR6, sold as partner cards and aimed at 1080p and 1440p gaming.
- Memory
- 16 GB
- Shaders
- 2,048
- Boost clock
- 3,130 MHz
- Bandwidth
- 320 GB/s
- Power
- 160 W
What reviewers say
Reviewers agree it is the best-value card in its class, beating the RTX 5060 and coming close to the RTX 5060 Ti for less money, while running cool and efficiently, with 16 GB of memory that should age well. The main reservations are that NVIDIA's software features, DLSS especially, remain ahead of FSR, and that street prices were above AMD's list price.
From tomshardware.com, pcgamer.com and club386.com
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA 4
- Shader cores
- 2,048
- Boost clock
- 3,130 MHz
- Architecture
- 32 compute units, 64 ROPs; game clock 2530 MHz; 29.7 billion transistors
- Ray tracing
- 32 third-generation Ray Accelerators
- AI cores
- 64 AI Accelerators; up to 410 TOPS INT8 or 821 TOPS INT4 with structured sparsity
- Upscaling and frame generation
- AMD FSR "Redstone" (including FSR 4 upscaling), AMD Fluid Motion Frames, Radeon Super Resolution
- Cache
- 32 MB AMD Infinity Cache
Memory
- Video memory
- 16 GB GDDR6
- Memory bus
- 128-bit
- Memory bandwidth
- 320 GB/s
- Memory detail
- GDDR6 at up to 20 Gbps
Connections and power
- Board power
- 160 W
- Interface
- PCIe 5.0 x16
- Display outputs
- DisplayPort 2.1a, HDMI 2.1b (number of ports depends on the card)
- Power connector
- 1 × 8-pin
- Recommended power supply
- 450 W
- Video encode and decode
- H.264, HEVC and AV1 encode and decode
Pros and cons
Pros
- 160 W typical board power; one 8-pin connector and a 450 W power supply
- 32 MB of Infinity Cache and a 3130 MHz boost clock
- PCIe 5.0 x16, DisplayPort 2.1a and HDMI 2.1b
Cons
- 128-bit memory bus (320 GB/s)
- GDDR6 rather than GDDR7
- No AMD reference card; size and cooling vary by manufacturer
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 10 GB | 2,304 | – | 380 GB/s | 150 W | Jan 2025 | |
| 8 GB | 2,048 | 3,130 MHz | 320 GB/s | 150 W | Jun 2025 | |
| 12 GB | 2,560 | – | 456 GB/s | 190 W | Dec 2024 |
