AMD · Radeon
Radeon RX 9060 XT (8GB)
AMD's mid-range RDNA 4 graphics card with 8 GB of GDDR6, sold as partner cards and aimed at 1080p and 1440p gaming.
- Memory
- 8 GB
- Shaders
- 2,048
- Boost clock
- 3,130 MHz
- Bandwidth
- 320 GB/s
- Power
- 150 W
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA 4
- Shader cores
- 2,048
- Boost clock
- 3,130 MHz
- Architecture
- 32 compute units, 64 ROPs; game clock 2530 MHz; 29.7 billion transistors
- Ray tracing
- 32 third-generation Ray Accelerators
- AI cores
- 64 AI Accelerators; up to 410 TOPS INT8 or 821 TOPS INT4 with structured sparsity
- Upscaling and frame generation
- AMD FSR "Redstone" (including FSR 4 upscaling), AMD Fluid Motion Frames, Radeon Super Resolution
- Cache
- 32 MB AMD Infinity Cache
Memory
- Video memory
- 8 GB GDDR6
- Memory bus
- 128-bit
- Memory bandwidth
- 320 GB/s
- Memory detail
- GDDR6 at up to 20 Gbps
Connections and power
- Board power
- 150 W
- Interface
- PCIe 5.0 x16
- Display outputs
- DisplayPort 2.1a, HDMI 2.1b (number of ports depends on the card)
- Power connector
- 1 × 8-pin
- Recommended power supply
- 450 W
- Video encode and decode
- H.264, HEVC and AV1 encode and decode
Pros and cons
Pros
- 150 W typical board power; one 8-pin connector and a 450 W power supply
- 32 MB of Infinity Cache and a 3130 MHz boost clock
- PCIe 5.0 x16, DisplayPort 2.1a and HDMI 2.1b
Cons
- 128-bit memory bus (320 GB/s)
- 8 GB of video memory; a 16 GB version is sold under almost the same name
- No AMD reference card; size and cooling vary by manufacturer
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 10 GB | 2,304 | – | 380 GB/s | 150 W | Jan 2025 | |
| 8 GB | 2,560 | 2,570 MHz | – | 130 W | Jul 2025 | |
| 16 GB | 2,048 | 3,130 MHz | 320 GB/s | 160 W | Jun 2025 |
Sources
- amd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9060xt-8…
- amd.com/en/newsroom/press-releases/2025-5-20-amd-introduces-new-radeon-graphics…
- amd.com/content/dam/amd/en/documents/corporate/events/computex-press-deck-2025.…
- newsroom.amd.com/news/amd-unveils-next-generation-amd-rdna-4-architectu

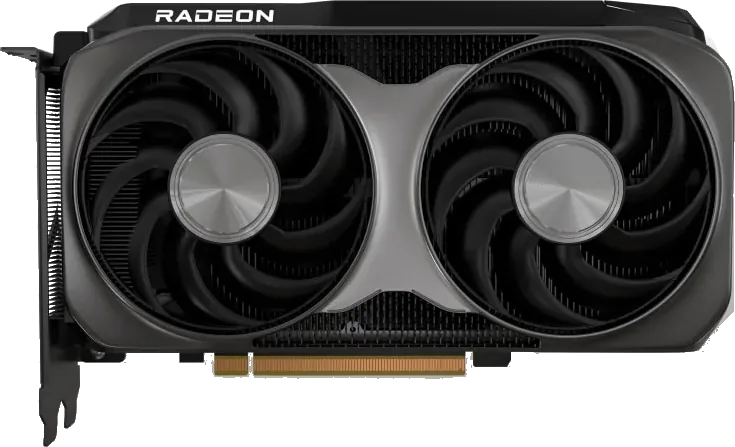

Photo: amd.com
