NVIDIA · GeForce
GeForce GTX 1070
A Pascal graphics card with 8 GB of GDDR5 memory, introduced below the GTX 1080 for 1440p gaming.
Model history · 2 models, 2014–2016
- 2014GeForce GTX 970Compare
- 2016GeForce GTX 1070
- Memory
- 8 GB
- Shaders
- 1,920
- Boost clock
- 1,683 MHz
- Bandwidth
- –
- Power
- 150 W
What reviewers say
Reviewers find the GTX 1070 a strong 1440p card with performance near the previous generation's high end and improved efficiency. Demanding 4K games need reduced settings, and the Founders Edition carried a launch price premium. TechRadar tested MSI's overclocked Gaming X, so its quieter cooler findings apply to that board.
From pcgamer.com, techradar.com and gamespot.com
Specifications
Report a wrong or missing specPerformance
- Chip maker
- NVIDIA
- Architecture
- Pascal
- Shader cores
- 1,920
- Boost clock
- 1,683 MHz
- Architecture
- Main figures and photo describe the Founders Edition, verified in MSI's retained datasheet. Partner boards can use different clocks, coolers and connectors.
- Ray tracing
- No dedicated RT Cores
- AI cores
- No Tensor Cores
- Upscaling and frame generation
- No NVIDIA DLSS
- Base clock
- 1506 MHz
Memory
- Video memory
- 8 GB GDDR5
- Memory bus
- 256-bit
- Memory detail
- 8008 MHz effective memory speed (MSI Founders Edition); numerical bandwidth omitted because the maker source used does not publish it.
Connections and power
- Board power
- 150 W
- Interface
- PCIe 3.0
- Display outputs
- 3 × DisplayPort 1.4, 1 × HDMI 2.0b and 1 × dual-link DVI-D; up to 4 displays; HDCP 2.2
- Maximum resolution
- 7680 × 4320
- Power connector
- 1 × 8-pin
- Recommended power supply
- 500 W
- Size (reference card)
- 268 × 111 × 38 mm and 1096 g (MSI Founders Edition)
Pros and cons
Pros
- 8 GB of video memory
- Two-way SLI support
- Single 8-pin power connector on the Founders Edition
Cons
- No dedicated ray tracing or Tensor Cores
- No NVIDIA DLSS
- Founders Edition uses a blower cooler
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 4 GB or 8 GB | 2,048 | 1,244 MHz | 224 GB/s or – | 150 W | Apr 2017 | |
| 8 GB or 4 GB | 2,304 or 2,048 | 1,340 MHz or – | 256 GB/s or – | 185 W, – or 150 W | Apr 2017 | |
| 8 GB | 2,560 | 1,733 MHz or 1,759 MHz | 320 GB/s or – | 180 W | May 2016 |
Previous model: GeForce GTX 970. Newer model: GeForce RTX 2070.
Sources
- storage-asset.msi.com/datasheet/vga/global/GeForce-GTX-1070-Founders-Edition.pdf
- nvidia.com/en-us/geforce/news/geforce-gtx-1070

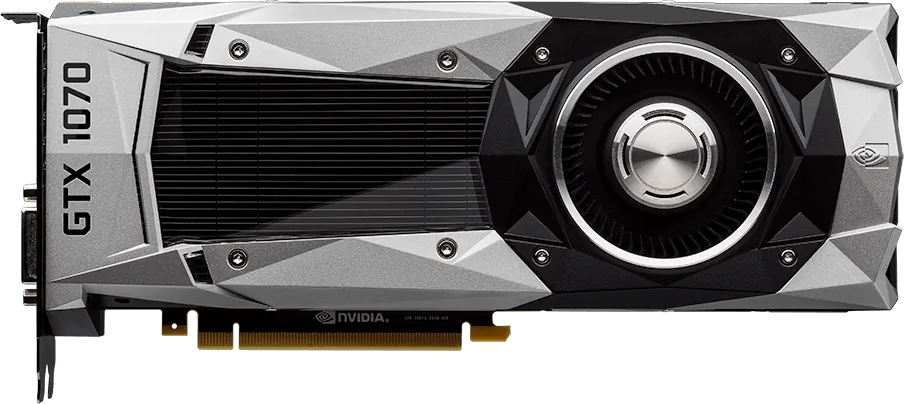

Photo: storage-asset.msi.com
