NVIDIA GeForce GTX 1070 Ti
Photo 1 of 6

NVIDIA GeForce GTX 1070 Ti · Photo source

NVIDIA · GeForce

GeForce GTX 1070 Ti

Released November 2017

A Pascal graphics card with 8 GB of GDDR5 memory, positioned between the GTX 1070 and GTX 1080.

Memory
8 GB
Shaders
2,432
Boost clock
1,683 MHz
Bandwidth
256 GB/s
Power
180 W

What reviewers say

Reviewers agree the GTX 1070 Ti delivers strong 1440p performance between the GTX 1070 and GTX 1080, with useful overclocking headroom. They disagree on launch value; PC Gamer questions its narrow market position, while TechRadar and PCWorld are more positive. Power use is higher than the GTX 1070, and demanding 4K games require compromises.

From pcgamer.com, techradar.com and pcworld.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Pascal
Shader cores
2,432
Boost clock
1,683 MHz
Architecture

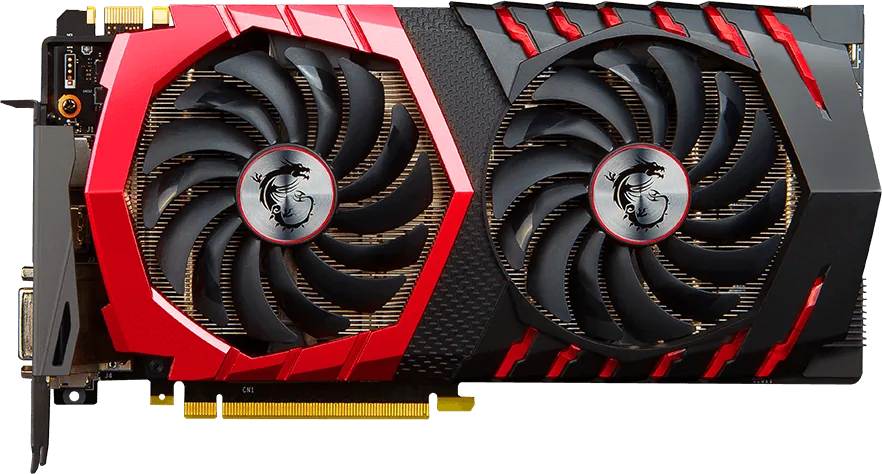

NVIDIA launch specifications with stock clocks verified in MSI's GTX 1070 Ti GAMING 8G datasheet. The photo shows this MSI partner board; its connectors and dimensions differ from the Founders Edition.
Ray tracing
No dedicated RT Cores
AI cores
No Tensor Cores
Upscaling and frame generation
No NVIDIA DLSS
Base clock
1607 MHz

Memory

Video memory
8 GB GDDR5
Memory bus
256-bit
Memory bandwidth
256 GB/s
Memory detail
8 Gbps GDDR5 (NVIDIA); MSI lists 8008 MHz effective speed

Connections and power

Board power
180 W
Interface
PCIe 3.0
Display outputs
3 × DisplayPort 1.4, 1 × HDMI 2.0b and 1 × dual-link DVI-D; up to 4 displays; HDCP 2.2 (MSI GAMING 8G)
Power connector
1 × 6-pin and 1 × 8-pin (MSI GAMING 8G)
Recommended power supply
500 W (MSI GAMING 8G)
Size (reference card)
279 × 140 × 42 mm and 1075 g (pictured MSI GAMING 8G partner board)

Pros and cons

Pros

  • 8 GB of video memory
  • Two-way SLI support
  • 256 GB/s memory bandwidth

Cons

  • No dedicated ray tracing or Tensor Cores
  • No NVIDIA DLSS
  • 180 W board power

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
AMDRadeon RX 580
8 GB or 4 GB2,304 or 2,0481,340 MHz or –256 GB/s or –185 W, – or 150 WApr 2017
AMDRadeon RX 570
4 GB or 8 GB2,0481,244 MHz224 GB/s or –150 WApr 2017
NVIDIAGeForce GTX 1080
8 GB2,5601,733 MHz or 1,759 MHz320 GB/s or –180 WMay 2016

Sources

  1. storage-asset.msi.com/datasheet/vga/global/GeForce-GTX-1070-Ti-GAMING-8G.pdf
  2. nvidia.com/en-us/geforce/news/nvidia-geforce-gtx-1070-ti

Photo: storage-asset.msi.com
