Photo 1 of 28

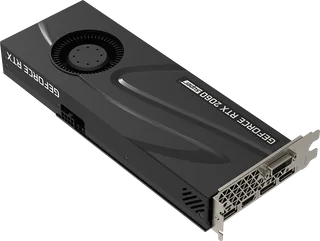

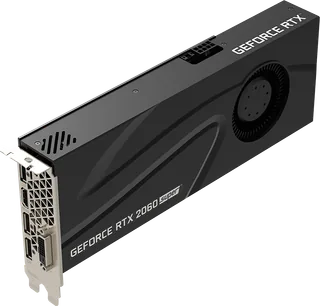

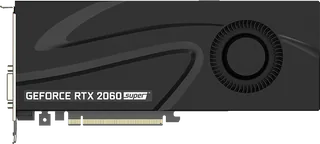

NVIDIA GeForce RTX 2060 SUPER · Photo source

NVIDIA GeForce RTX 2060 SUPER
Photo 1 of 28

NVIDIA GeForce RTX 2060 SUPER · Photo source

NVIDIA · GeForce

GeForce RTX 2060 SUPER

Released July 2019

A 2019 Turing graphics card with 8 GB of GDDR6, hardware ray tracing and more cores than the original RTX 2060.

Memory
8 GB
Shaders
2,176
Boost clock
1,650 MHz
Bandwidth
448 GB/s
Power
175 W

What reviewers say

Reviewers found performance close to the original RTX 2070, useful extra memory over the RTX 2060 and capable 1440p gaming. They considered demanding 4K less comfortable and noted the higher launch price than the RTX 2060. PC Gamer, TechRadar and PCWorld tested the Founders Edition; partner cooling and noise can differ.

From pcgamer.com, techradar.com and pcworld.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Turing
Shader cores
2,176
Boost clock
1,650 MHz
Architecture

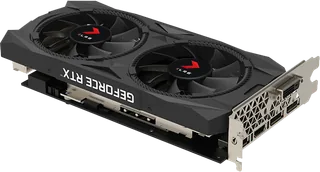

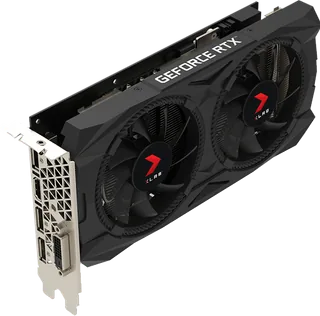

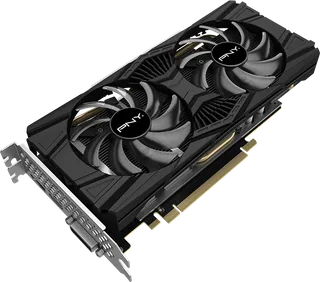

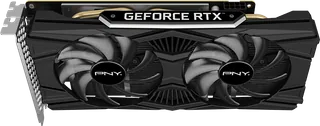

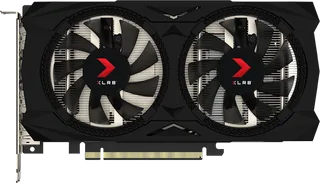

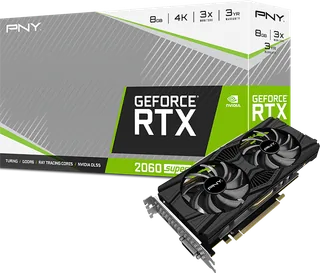

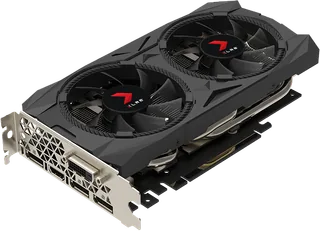

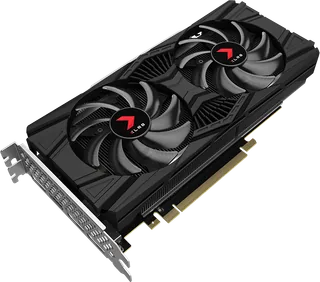

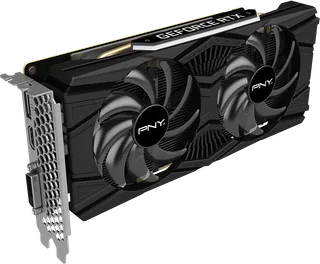

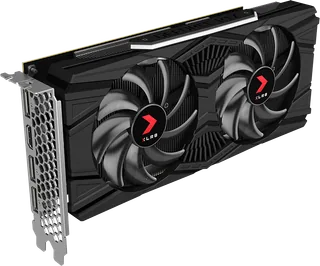

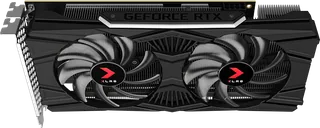

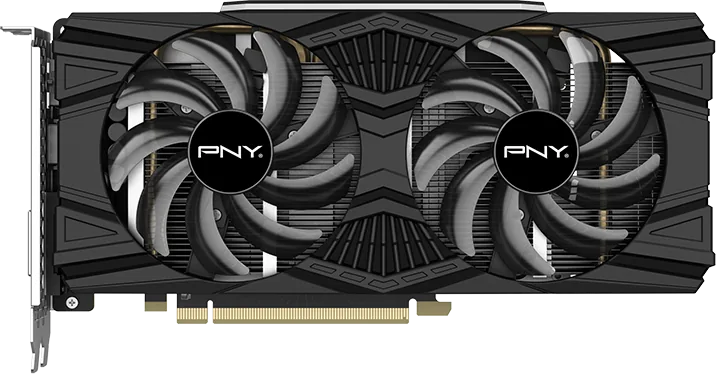

NVIDIA reference/Founders Edition GPU figures; the photo shows PNY's stock-clock Dual Fan partner card
Ray tracing
First-generation RT Cores
AI cores
Second-generation Tensor Cores
Upscaling and frame generation
NVIDIA DLSS super resolution; no DLSS frame generation
Base clock
1,470 MHz

Memory

Video memory
8 GB GDDR6
Memory bus
256-bit
Memory bandwidth
448 GB/s
Memory detail
PNY publishes 14 Gbps GDDR6 and 448 GB/sec bandwidth

Connections and power

Board power
175 W
Interface
PCIe 3.0

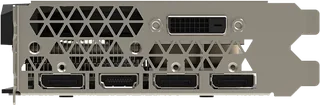

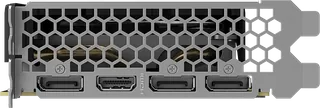

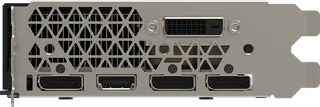

Display outputs

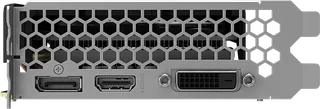

NVIDIA's original Founders Edition manual shows 2 × DisplayPort, HDMI, DVI and USB-C; its current comparison table omits USB-C. Pictured PNY Dual Fan lists DisplayPort 1.4, HDMI 2.0b and DVI-D, with no USB-C listed.
Maximum resolution
7680 × 4320; NVIDIA specifies support for four displays
Power connector
1 × 8-pin
Recommended power supply
NVIDIA specifies 550 W; requirements depend on the system
Slot width
Two slots for the Founders Edition and pictured PNY Dual Fan
Size (reference card)
NVIDIA reference/Founders Edition is 228.60 × 112.6 mm; pictured PNY Dual Fan is 1.65 × 9.25 × 4.4 inches
Video encode and decode
Seventh-generation NVIDIA Encoder and fourth-generation Decoder; PNY specifies PCIe 3.0 x16. NVIDIA specifies no NVLink support.

Pros and cons

Pros

  • 8 GB of GDDR6 on a 256-bit memory bus
  • Hardware ray tracing and DLSS upscaling
  • Dual-slot Founders Edition

Cons

  • Published 175 W graphics-card power
  • Requires an eight-pin power connector
  • No NVIDIA DLSS frame generation

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
AMDRadeon RX 5700
8 GB2,3041,725 MHz448 GB/s180 WJul 2019
AMDRadeon RX 5700 XT
8 GB2,5601,905 MHz or 1,980 MHz448 GB/s or –225 W or –Jul 2019
NVIDIAGeForce RTX 2060
6 GB or 12 GB1,920 or 2,1761,680 MHz or 1,650 MHz336 GB/s160 W or 185 WJan 2019

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/compare
  2. nvidia.com/en-us/geforce/news/nvidia-geforce-rtx-2060-super-rtx-2070-super-out-…
  3. pny.com/geforce-rtx-2060-super-8gb-dual-fan
  4. nvidia.com/content/geforce-gtx/GEFORCE_RTX_2060_SUPER_USER_GUIDE_v02.pdf
