AMD · Radeon
Radeon RX 5700 XT
A first generation RDNA graphics card with 8 GB of GDDR6 memory, offered in standard and faster 50th Anniversary editions.
- Memory
- 8 GB
- Shaders
- 2,560
- Boost clock
- 1,905 MHz or 1,980 MHz
- Bandwidth
- 448 GB/s or –
- Power
- 225 W or –
What reviewers say
Reviews of the original reference card praise strong 1440p performance and improved efficiency over Vega. The blower cooler's heat and noise and the lack of hardware ray tracing are common reservations. PC Gamer and PCWorld are more enthusiastic about its launch value than TechRadar; these reviews do not assess the Anniversary edition.
From pcgamer.com, techradar.com and pcworld.com
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA
- Shader cores
- 2,560
- Boost clock
- 1,905 MHz or 1,980 MHz
- Architecture

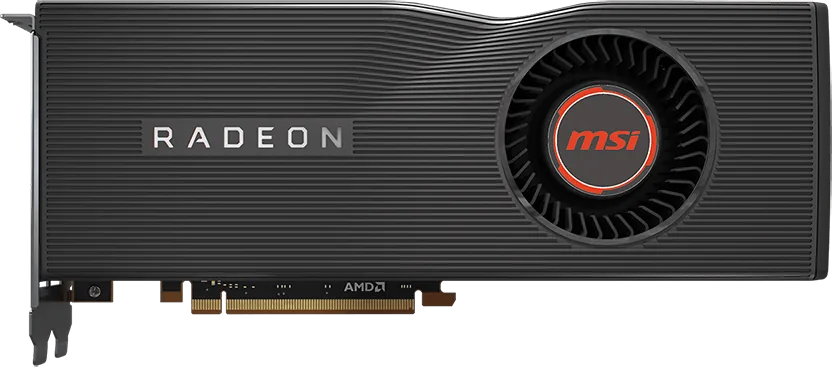

- 40 compute units; 160 texture units and 64 ROPs; 10.3 billion transistors. Main figures and photo describe the standard reference card, pictured as MSI's RX 5700 XT 8G.
- Manufacturing process
- 7 nm
- Ray tracing
- No dedicated ray accelerators
- Base clock
- Standard edition 1605 MHz base and 1755 MHz game clock; 50th Anniversary edition 1680 MHz base, 1830 MHz game clock and 1980 MHz boost.
Memory
- Video memory
- 8 GB GDDR6
- Memory bus
- 256-bit or –
- Memory bandwidth
- 448 GB/s or –
- Memory detail
- Standard edition 14 Gbps GDDR6. AMD's launch table confirms the Anniversary edition's 8 GB GDDR6 but does not publish its bus, bandwidth or board power; those configuration fields are omitted independently.
Connections and power
- Board power
- 225 W or –
- Interface
- PCIe 4.0
- Display outputs
- 3 × DisplayPort 1.4 and 1 × HDMI 2.0b; up to 4 displays (MSI standard RX 5700 XT 8G). AMD lists DisplayPort 1.4a support.
- Maximum resolution
- 7680 × 4320 (MSI standard RX 5700 XT 8G)
- Power connector
- 1 × 8-pin and 1 × 6-pin (standard)
- Recommended power supply
- 600 W (standard)
- Size (reference card)
- 270 × 110 × 40 mm and 1110 g (MSI standard reference-design RX 5700 XT 8G)
- Video encode and decode
- H.264 and H.265/HEVC encode and decode
Versions
| Version | Memory | Shaders | Boost clock | Memory bus | Bandwidth | Board power |
|---|---|---|---|---|---|---|
| Standard edition | 8 GB GDDR6 | 2,560 | 1,905 MHz | 256-bit | 448 GB/s | 225 W |
| 50th Anniversary edition | 8 GB GDDR6 | 2,560 | 1,980 MHz | – | – | – |
Pros and cons
Pros
- 8 GB of GDDR6 memory
- PCIe 4.0 interface
- 448 GB/s bandwidth on the standard edition
Cons
- No dedicated hardware ray tracing
- Standard reference design uses a blower cooler
- 225 W standard board power
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 8 GB | 2,560 | 1,770 MHz | 448 GB/s | 215 W | Jul 2019 | |
| 8 GB | 3,072 | 1,815 MHz | 496 GB/s | 250 W | Jul 2019 | |
| 8 GB | 2,176 | 1,650 MHz | 448 GB/s | 175 W | Jul 2019 |
Sources
- amd.com/en/support/downloads/drivers.html/graphics/radeon-rx/radeon-rx-5000-ser…
- storage-asset.msi.com/datasheet/vga/global/Radeon-RX-5700-XT-8G.pdf
- ir.amd.com/news-events/press-releases/detail/899/amd-unleashes-ultimate-pc-gami…
Photo: storage-asset.msi.com
