NVIDIA · GeForce

GeForce RTX 2080 SUPER

Released July 2019

A 2019 Turing graphics card with 8 GB of faster GDDR6 memory, more CUDA cores and higher clocks than the original RTX 2080.

Memory
8 GB
Shaders
3,072
Boost clock
1,815 MHz
Bandwidth
496 GB/s
Power
250 W

What reviewers say

Reviewers find strong 1440p and useful 4K performance, but only a small improvement over the original RTX 2080 and little reason for its owners to upgrade. PC Gamer favours cheaper cards for most systems; PCWorld similarly finds the RTX 2070 SUPER better value, while considering the extra performance useful for less compromised 4K gaming.

From techradar.com, pcgamer.com and pcworld.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Turing
Shader cores
3,072
Boost clock
1,815 MHz
Architecture

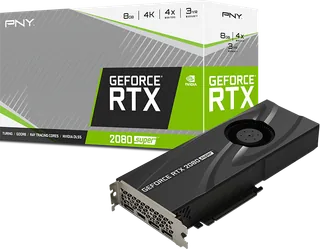

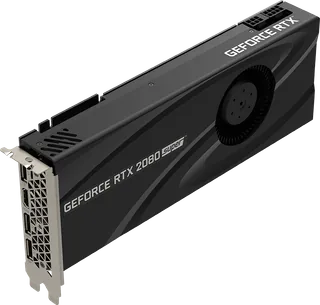

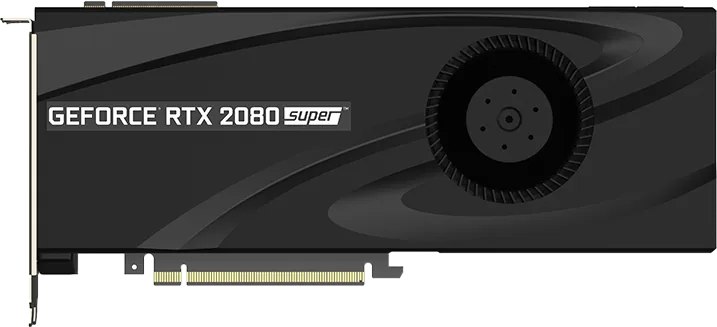

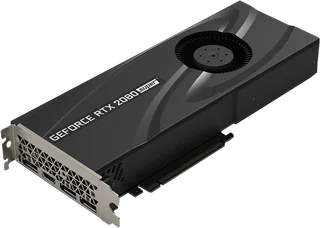

NVIDIA reference specifications. The photo shows PNY's stock-clock 8 GB Blower, whose cooler differs from the Founders Edition geometry below.
Ray tracing
Hardware RT Cores
AI cores
Tensor Cores
Upscaling and frame generation
NVIDIA DLSS upscaling; no DLSS Frame Generation
Base clock
1650 MHz base; 1815 MHz boost

Memory

Video memory
8 GB GDDR6
Memory bus
256-bit
Memory bandwidth
496 GB/s
Memory detail
15.5 Gbps GDDR6

Connections and power

Board power
250 W
Interface
PCIe 3.0
Display outputs

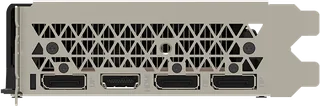

NVIDIA lists DisplayPort 1.4a and HDMI 2.0b, up to 4 displays and HDCP 2.2. Its feature list includes USB-C while the connector table omits it; the pictured PNY Blower specifies 3 × DisplayPort 1.4 and 1 × HDMI 2.0b without USB-C. Check the board manufacturer for its connectors.
Maximum resolution
7680 × 4320; DisplayPort supports 4K 144 Hz or 8K 60 Hz with DSC
Power connector
1 × PCIe 6-pin and 1 × PCIe 8-pin (reference)
Recommended power supply
650 W, based on NVIDIA's 3.2 GHz Intel Core i7 test system
Slot width
2-slot (Founders Edition)
Size (reference card)
266.74 × 115.7 mm, 2-slot (Founders Edition)
Video encode and decode
Turing NVENC; no hardware AV1 encoding

Pros and cons

Pros

  • Hardware ray tracing and DLSS upscaling
  • 496 GB/s memory bandwidth
  • NVLink support

Cons

  • 8 GB of video memory
  • 250 W graphics card power
  • No hardware AV1 encoding or DLSS Frame Generation

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
AMDRadeon RX 5700 XT
8 GB2,5601,905 MHz or 1,980 MHz448 GB/s or –225 W or –Jul 2019
NVIDIAGeForce RTX 2070 SUPER
8 GB2,5601,770 MHz448 GB/s215 WJul 2019
NVIDIAGeForce RTX 2080
8 GB2,9441,710 MHz or 1,800 MHz448 GB/s215 W or 225 WSept 2018

Sources

  1. nvidia.com/tr-tr/geforce/graphics-cards/rtx-2080-super
  2. pny.com/geforce-rtx-2080-super-8gb-blower
  3. nvidia.com/en-gb/geforce/news/nvidia-geforce-rtx-2080-super-out-now
  4. pcworld.com/article/397804/nvidia-geforce-rtx-2080-super-founders-edition-revie…
