NVIDIA GeForce RTX 4070 Ti
Photo 1 of 21

NVIDIA GeForce RTX 4070 Ti · Photo source

NVIDIA · GeForce

GeForce RTX 4070 Ti

Released January 2023

A 2023 Ada Lovelace graphics card with 12 GB of GDDR6X for high-refresh 1440p gaming.

Memory
12 GB
Shaders
7,680
Boost clock
2,610 MHz
Bandwidth
504 GB/s
Power
285 W

What reviewers say

Reviewers praise its strong 1440p performance, efficiency and DLSS Frame Generation, but criticise the launch price and limited memory capacity for demanding 4K gaming. TechRadar tested ASUS's TUF OC and PC Gamer tested Gigabyte's Gaming OC; cooler behaviour and factory clocks depend on the partner card.

From techradar.com and pcgamer.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Ada Lovelace
Shader cores
7,680
Boost clock
2,610 MHz
Architecture

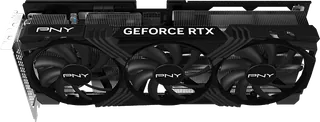

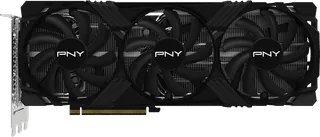

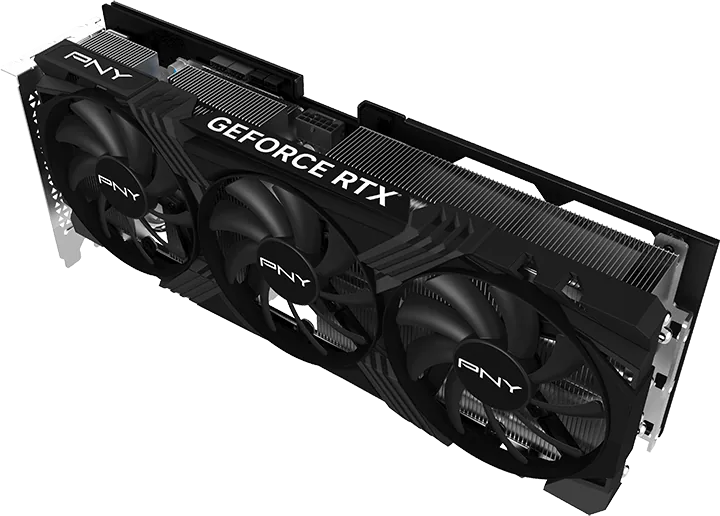

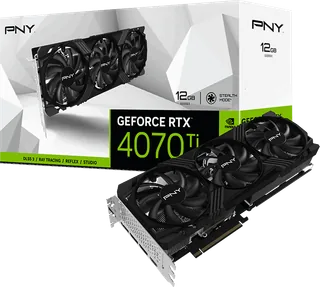

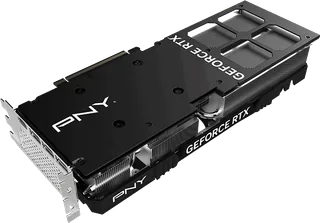

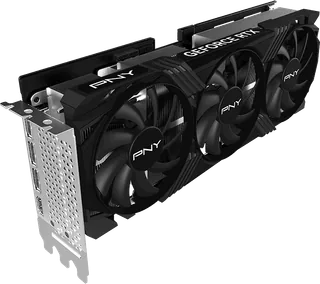

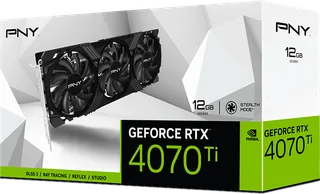

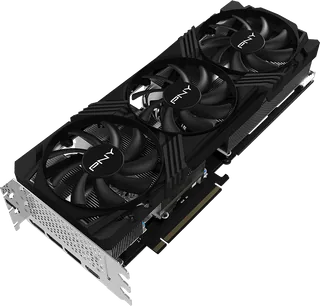

NVIDIA reference GPU specifications; partner cards have different coolers and may use factory overclocks. Photo shows PNY's stock-clock RTX 4070 Ti VERTO Triple Fan, not the later RTX 4070 Ti SUPER.
Ray tracing
Third-generation RT Cores; 93 RT TFLOPS
AI cores
Fourth-generation Tensor Cores; 641 AI TOPS
Upscaling and frame generation
DLSS 3.5 with Super Resolution, DLAA, Ray Reconstruction and Frame Generation
Base clock
2.31 GHz

Memory

Video memory
12 GB GDDR6X
Memory bus
192-bit
Memory bandwidth
504 GB/s
Memory detail
21 Gbps GDDR6X (PNY stock-clock VERTO specification)

Connections and power

Board power
285 W
Interface
PCIe 4.0

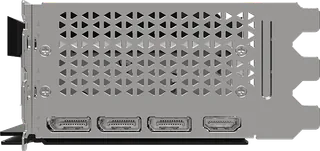

Display outputs

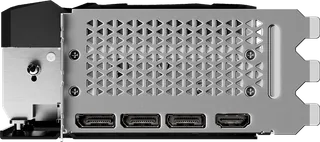

3 × DisplayPort 1.4a, 1 × HDMI 2.1a; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 240 Hz or 8K at 60 Hz with DSC and HDR
Power connector
2 × PCIe 8-pin cables through an adapter, or 1 × 300 W or greater PCIe Gen 5 cable; check the chosen partner card
Recommended power supply
700 W
Slot width
Varies by manufacturer; NVIDIA publishes no Founders Edition dimensions
Video encode and decode
2 × eighth-generation NVENC, fifth-generation NVDEC; AV1 encode and decode

Pros and cons

Pros

  • DLSS Frame Generation and third-generation ray tracing hardware
  • Two AV1-capable eighth-generation NVENC encoders
  • 504 GB/s memory bandwidth

Cons

  • 12 GB of video memory on a 192-bit bus
  • 285 W total graphics power and a recommended 700 W power supply
  • DisplayPort 1.4a rather than DisplayPort 2.1

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce RTX 4070 SUPER
12 GB7,1682,480 MHz504 GB/s220 WJan 2024
NVIDIAGeForce RTX 4070 Ti SUPER
16 GB8,4482,610 MHz672 GB/s285 WJan 2024
NVIDIAGeForce RTX 4070
12 GB5,8882,475 MHz504 GB/s or 480 GB/s200 WApr 2023
