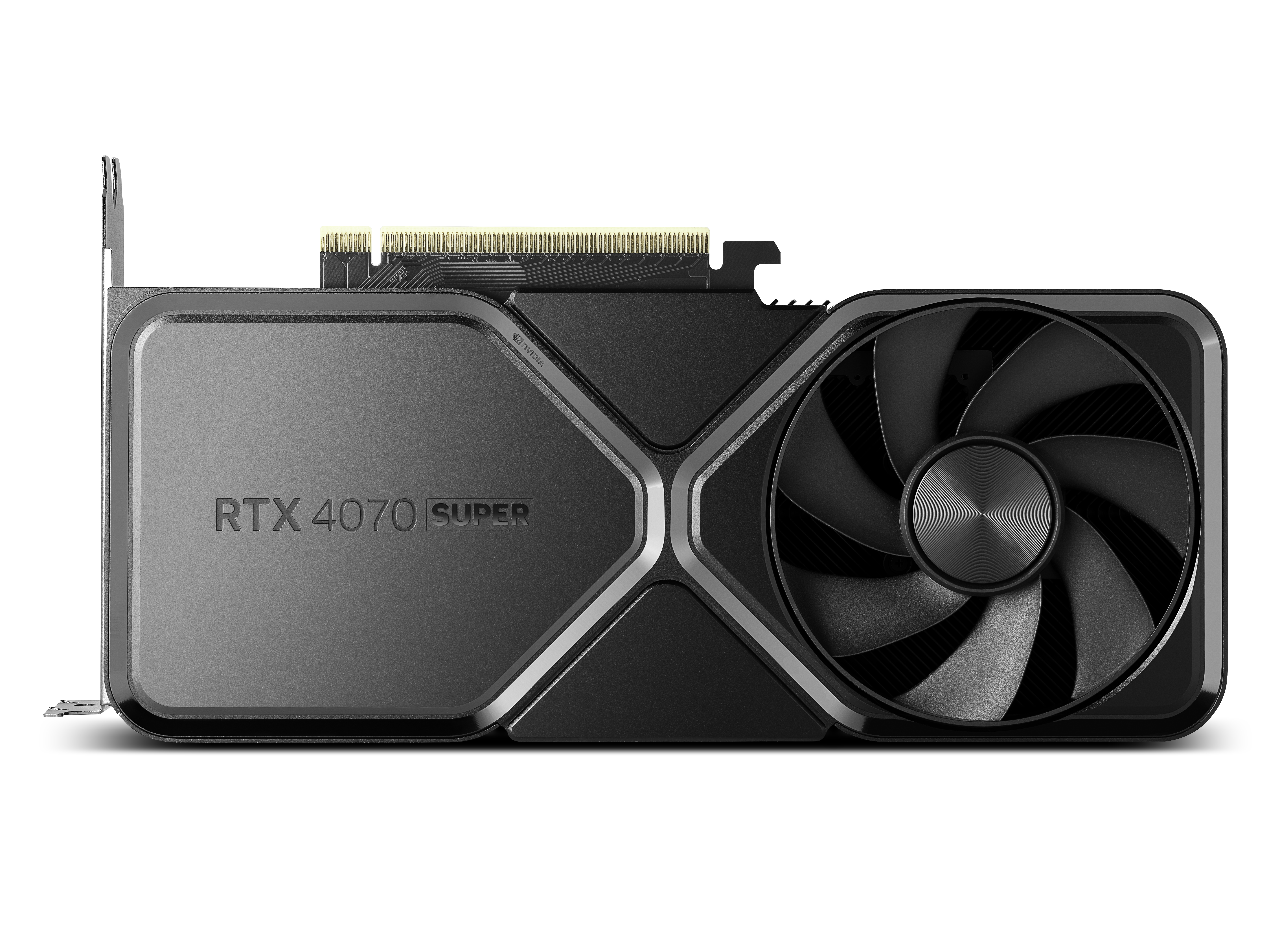

NVIDIA GeForce RTX 4070 SUPER · Photo source

NVIDIA GeForce RTX 4070 SUPER
Photo 1 of 21

NVIDIA GeForce RTX 4070 SUPER · Photo source

NVIDIA · GeForce

GeForce RTX 4070 SUPER

Released January 2024

A 2024 refresh of the Ada Lovelace RTX 4070, with 20% more CUDA cores and 12 GB of GDDR6X, aimed at 1440p gaming.

Memory
12 GB
Shaders
7,168
Boost clock
2,480 MHz
Bandwidth
504 GB/s
Power
220 W

What reviewers say

Reviewers agree it is a solid refresh, around 16 per cent faster than the RTX 4070 at the same launch price, and very efficient, cool and quiet. TechRadar found it faster overall than AMD's RX 7800 XT. The common criticism is that 12 GB of memory feels stingy at the price, which TechRadar also considered high for a mid-range card.

From tomshardware.com, pcgamer.com and techradar.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Ada Lovelace
Shader cores
7,168
Boost clock
2,480 MHz
Ray tracing
Third-generation RT Cores; 82 RT TFLOPS
AI cores
Fourth-generation Tensor Cores; 568 AI TOPS
Upscaling and frame generation
DLSS 3.5 with Super Resolution, DLAA, Ray Reconstruction and Frame Generation
Base clock
1.98 GHz
Cache
48 MB L2

Memory

Video memory
12 GB GDDR6X
Memory bus
192-bit
Memory bandwidth
504 GB/s

Connections and power

Board power
220 W
Interface
PCIe 4.0

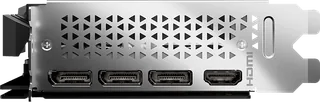

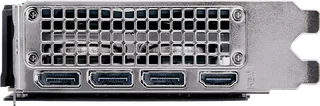

Display outputs
3 × DisplayPort 1.4a, 1 × HDMI 2.1a; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 240 Hz or 8K at 60 Hz with DSC, HDR
Power connector
1 × 300 W or greater PCIe Gen 5 cable, or 2 × PCIe 8-pin cables with the adapter in the box; some partner cards use 1 × 8-pin
Recommended power supply
650 W
Slot width

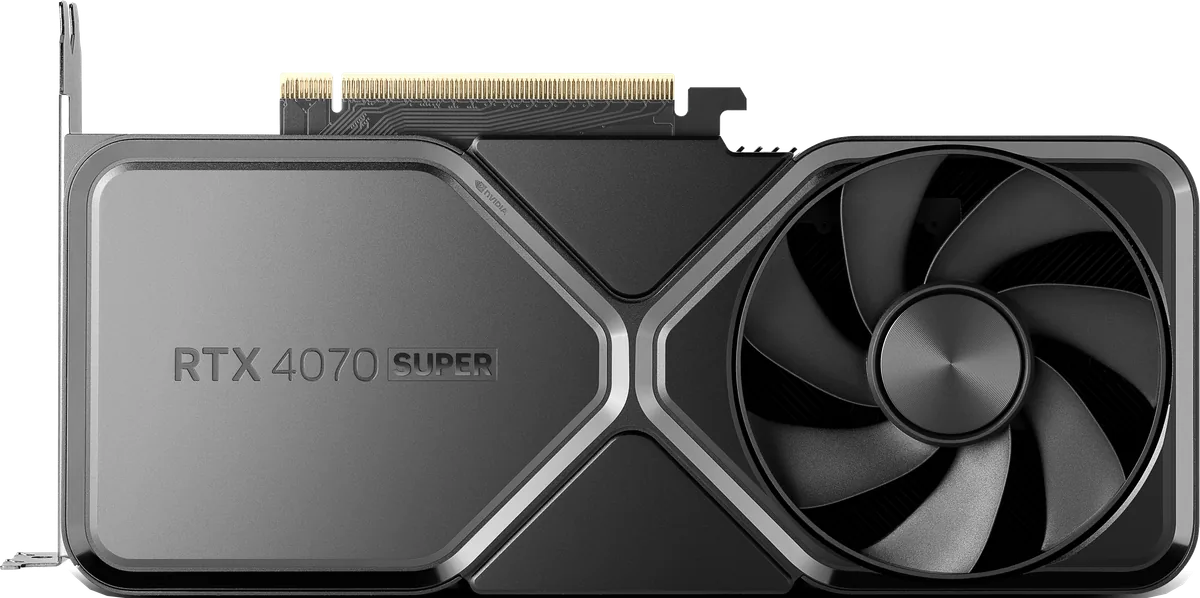

2-slot (Founders Edition)
Size (reference card)
244 × 112 mm, 2-slot (Founders Edition)
Video encode and decode
1 × eighth-generation NVENC, 1 × fifth-generation NVDEC; AV1 encode and decode

Pros and cons

Pros

  • 7,168 CUDA cores, 20% more than the RTX 4070
  • Founders Edition is a two-slot card, 244 mm long
  • 220 W total graphics power

Cons

  • 12 GB of video memory on a 192-bit bus
  • DisplayPort 1.4a outputs and PCIe 4.0; no DLSS Multi Frame Generation

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce RTX 4070 Ti
12 GB7,6802,610 MHz504 GB/s285 WJan 2023
NVIDIAGeForce RTX 5070
12 GB6,1442,512 MHz672 GB/s250 WMar 2025
NVIDIAGeForce RTX 4070
12 GB5,8882,475 MHz504 GB/s or 480 GB/s200 WApr 2023

Newer model: GeForce RTX 5070.

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/40-series/rtx-4070-family
  2. nvidia.com/en-gb/geforce/graphics-cards/compare
  3. nvidia.com/en-gb/geforce/news/geforce-rtx-4080-4070-ti-4070-super-gpu
  4. nvidia.com/en-us/geforce/news/geforce-rtx-4080-4070-ti-4070-super-gpu
