Lenovo · ThinkPad X

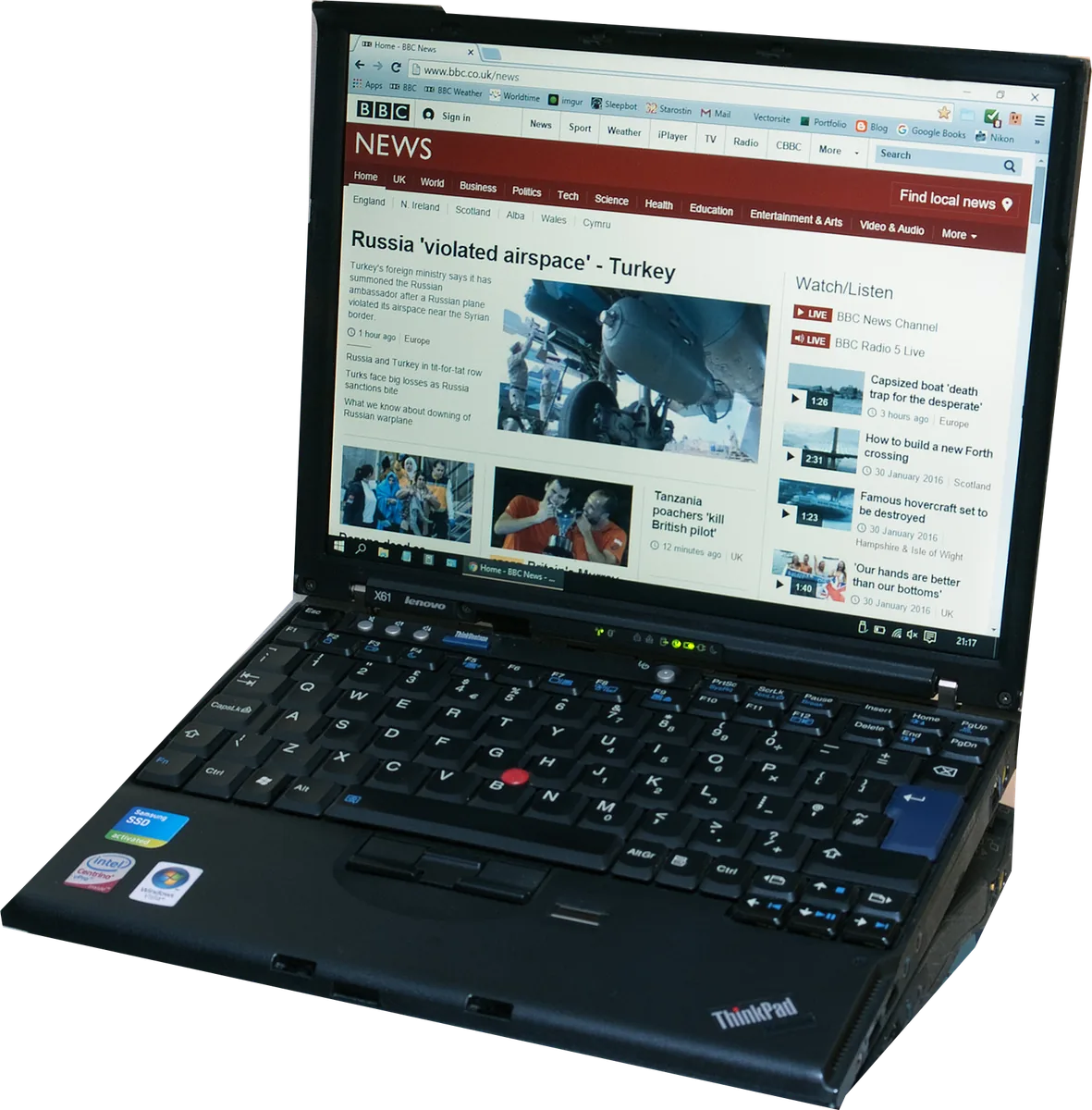

ThinkPad X61
A 12.1-inch business ultraportable with Core 2 Duo, replaceable memory and hard drive, and a TrackPoint without a touchpad.
- Size
- 12.1″
- Display
- –
- Processor
- Intel Core 2
- Memory
- 1 GB
- Weight
- 1.41 kg
- Battery
- 3.9 h
Specifications
Report a wrong or missing specDisplay
- Screen size
- 12.1″
- Resolution
- 1024 × 768
- Brightness
- 150 nits
- Touchscreen
- No
- Display type
- 12.1-inch 4:3 XGA TFT LCD with 300:1 maker contrast; native refresh and panel subtype unpublished in PSREF
- Screen finish
- Anti-glare
Performance
- Processor
- Intel Core 2 Duo T7300
- CPU cores
- 2
- Graphics
- Intel Graphics Media Accelerator X3100
- Memory
- 1 GB
- Storage
- 120 GB
- CPU
- Listed US 7675-4KU has dual-core Core 2 Duo T7300 at 2.00 GHz, 800 MHz bus and 4 MB L2 cache; later configurations added T7250, T7500, T8100 or T8300
- GPU
- Intel GMA X3100 integrated in GM965; external VGA only, no DVI output
- Memory type
- Listed 7675-4KU has 1 GB PC2-5300 DDR2-667 in one socket; two 200-pin SO-DIMM sockets, maker 4 GB maximum
- Storage type
- Listed 7675-4KU has 120 GB 5400 rpm SATA 1.5 Gb/s hard drive; replaceable 9.5 mm disk with shock mount and Active Protection System; optical drive available through optional X6 UltraBase
Battery and size
- Battery life (maker's claim)
- Up to 3.9 hours
- Weight
- 1.41 kg
- Thickness
- 35 mm
- Width × depth
- 268 × 211 mm
- Battery life detail
- Listed four-cell enhanced lithium-ion battery has maker maximum 3.9 hours; eight-cell up to 7.8 hours or eight-cell plus Extended Life Battery up to 10.7 hours. Headline starting weight 1.41 kg and depth 211 mm apply to four-cell without UltraBase; eight-cell starts at 1.63 kg and depth 238 mm. Maker height range 20–35 mm, maximum 35 mm listed
- Charger
- 65 W AC adapter
- Materials
- Magnesium-alloy casing
- Colours
- Black
Connections
- Ports
- 3 × USB-A, Ethernet, SD card slot, headphone jack
- Wi-Fi
- Intel PRO/Wireless 3945ABG, 802.11a/b/g on listed US 7675-4KU
- Bluetooth
- Bluetooth 2.0
- Webcam
- No built-in webcam listed
- Operating system
- Windows
- Port detail
- Three USB 2.0, VGA, RJ-11 modem, Gigabit RJ-45, four-pin FireWire 400, SD slot, CardBus slot and separate microphone/headphone jacks; X6 UltraBase optional, with additional ports and Ultrabay Slim
- Keyboard
- 89-key spill-resistant keyboard, ThinkVantage button and ThinkLight; maker specifies 18.5 mm pitch and 2.5 mm travel
- Trackpad
- No touchpad; TrackPoint with Press-to-Select and scroll function
- Speakers
- Mono 0.5 W speaker with dedicated volume/mute buttons
- Microphones
- Internal microphone and separate microphone-input jack
- Biometrics
- Fingerprint reader on listed model; Atmel TPM 1.2, power-on, hard-drive and supervisor passwords
Configurations
| Processor | Memory | Storage | Graphics |
|---|---|---|---|
| Intel Core 2 Duo T7300 | 1 GB | 120 GB | Intel Graphics Media Accelerator X3100 |
Pros and cons
Pros
- Maker starting weight of 1.41 kg with four-cell battery
- Two memory sockets and replaceable SATA hard drive
- Gigabit Ethernet, SD slot and three USB ports
Cons
- No built-in optical drive
- XGA display and no digital video output
- TrackPoint only, with no touchpad
Closest rivals
Model | Size | Display | Processor | Memory | Weight | Battery | Released |
|---|---|---|---|---|---|---|---|
| 12.1″ | – | Intel Core Duo T2400 | 512 MB | 1.43 kg | 3.9 h | Feb 2006 | |
| 12.1″ | – | Intel Core 2 | 2 GB – 3 GB | 1.35 kg | 3.3 h | Aug 2008 | |
| 12.1″ | – | Intel Core i5 | 2 GB – 4 GB | 1.31 kg | 3.4 h | Mar 2010 |
