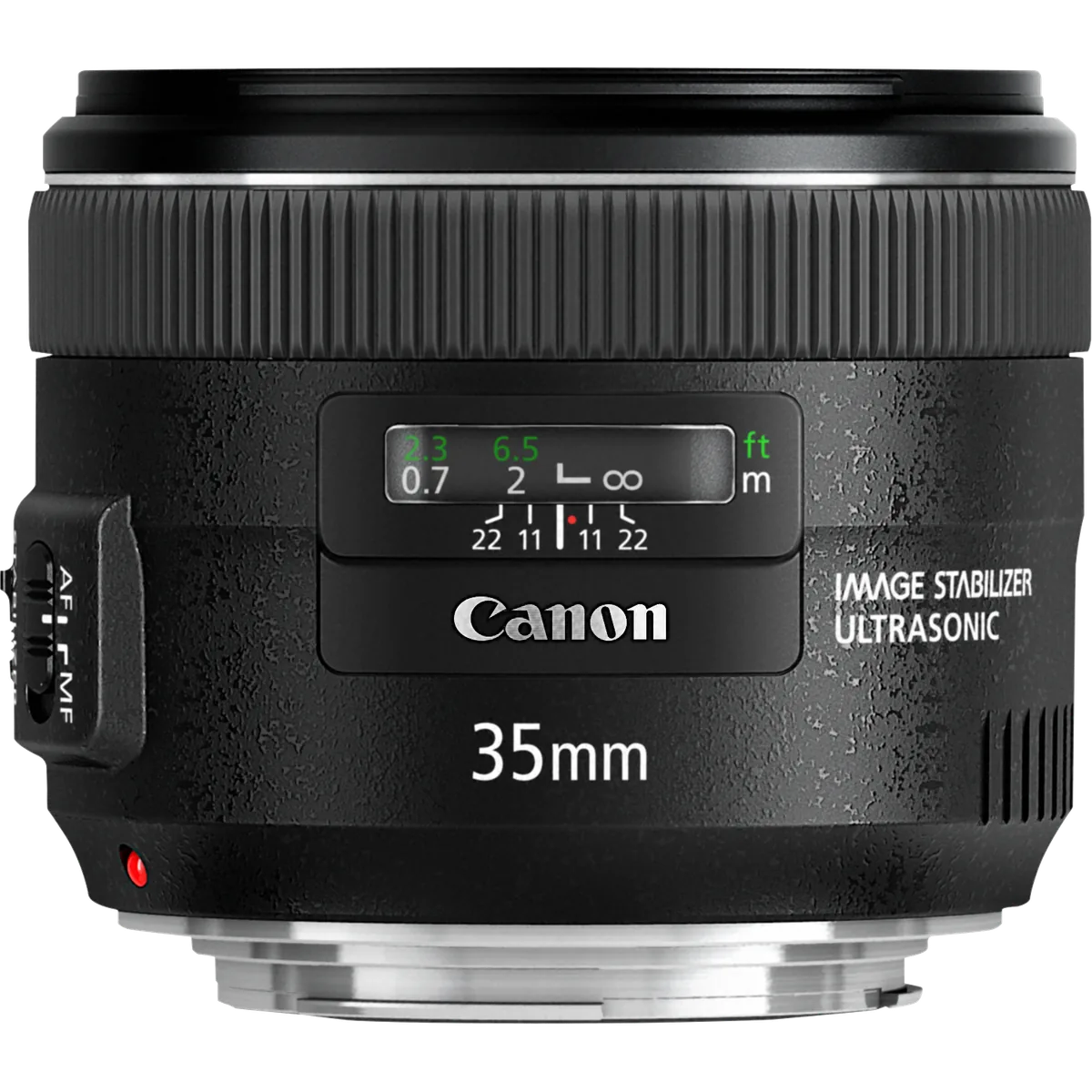

Canon EF 35mm f/2 IS USM

Canon · EF

EF 35mm f/2 IS USM

Released December 2012

An EF wide-angle prime combining an f/2 aperture, four-stop optical stabilisation, ring USM autofocus and 0.24 m closest focus.

Model history · 2 models, 1990–2012
  1. 1990EF 35mm f/2Compare
  2. 2012EF 35mm f/2 IS USM
Mount
Canon EF
Focal length
35 mm
Max aperture
f/2
Stabilisation
Yes
Weight
335 g

What reviewers say

Both reviews praise sharpness, build quality and the compact, lightweight design. Digital Camera World finds it good value with highly effective stabilisation and negligible fringing. ePHOTOzine questions its launch price beside faster alternatives, finds weaker edges and visible fringing at f/2, and achieves around three stops of stabilisation rather than Canon's four-stop claim.

From ephotozine.com and digitalcameraworld.com

Optics

Lens type
Prime
Focal length
35 mm
Maximum aperture
f/2
Minimum aperture
f/22
Optical construction
Ten elements in eight groups
Special elements
Glass-moulded aspherical lens according to Canon Camera Museum
Diaphragm
Eight blades with a circular aperture

Mount and compatibility

Mounts
Canon EF
Image circle
Full frame
Compatibility
Canon EF cameras with full-frame or APS-C sensors
Teleconverter support
Not compatible with Canon extenders according to Canon UK
Adaptor support
Canon UK confirms EOS M compatibility using the EF-EOS M Mount Adapter

Focus and stabilisation

Autofocus
Yes
Minimum focus distance
0.24 m
Maximum magnification
0.24×
Optical stabilisation
Yes
Autofocus detail
Ring USM with full-time manual focus according to Canon UK
Focus distance detail
Internal focusing with a non-rotating front filter ring according to ePHOTOzine
Magnification detail
Canon UK specifies 0.36–0.60× with EF12 II and 0.79–1.04× with EF25 II extension tubes
Stabilisation detail
Four-stop optical stabilisation according to Canon UK

Design

Dust and moisture resistant
No
Filter diameter
67 mm
Maximum diameter
77.9 mm
Length
62.6 mm
Weight
335 g
Controls
AF/MF and stabiliser switches, focus ring, distance window and depth-of-field markings
Weather resistance
No weather sealing according to Digital Camera World's exact-model review
Dimensions detail
77.9 mm maximum diameter × 62.6 mm length; 335 g according to Canon UK
Lens hood
Optional EW-72 hood; Canon UK's actual box list excludes a hood
In the box
Lens, E-67II front cap, Lens Dust Cap E and user manual according to Canon UK
Release detail
Canon Camera Museum records December 2012 marketing and explicitly identifies the October 1990 EF 35mm f/2 as its predecessor

Pros and cons

Pros

  • Four-stop optical stabilisation
  • Full-time manual focus
  • 0.24 m closest focusing distance

Cons

  • No weather sealing
  • Lens hood sold separately

Closest rivals

Model
MountFocal lengthMax apertureStabilisationWeightReleased
Canon EF35 mmf/1.4No760 gSept 2015
Canon EF28 mmf/2.8Yes260 gJun 2012
Canon EF50 mmf/1.8–160 gMay 2015

Previous model: EF 35mm f/2.
