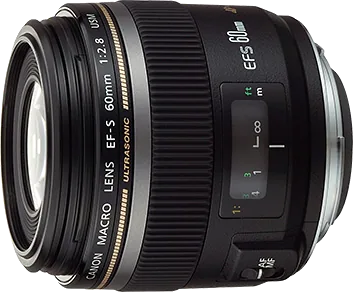

EF-S 60mm f/2.8 Macro USM

Released March 2005

A Canon EF-S macro lens with life-size magnification, internal focusing, USM autofocus and a 90 mm working distance at maximum magnification.

Mount: Canon EF-S
Focal length: 60 mm
Max aperture: f/2.8
Stabilisation: No
Weight: 335 g

Prime

What reviewers say

Reviewers praise sharpness across the frame, fast quiet autofocus, smooth manual focusing and compact construction. Both find little distortion or colour fringing, but visible vignetting at f/2.8 and diffraction at small apertures. Photozone strongly recommends it; The Digital Picture prefers longer macro lenses for insects because of the short working distance, while recommending it for products and portraits.

From photozone.de, photozone.de, photozone.de and the-digital-picture.com

Specifications

Report a wrong or missing spec

Optics

Lens type: Prime
Focal length: 60 mm
Maximum aperture: f/2.8
Minimum aperture: f/32
Optical construction: 12 elements in eight groups; three-group floating internal-focus system
Coatings: Canon describes optimised coatings to reduce flare and ghosting from sensor reflections
Aperture detail: Camera-displayed aperture assumes infinity focus; effective maximum aperture becomes f/5.84 at life-size magnification according to Canon's manual
Diaphragm: Seven blades according to Canon Camera Museum and Canon Japan
Angle of view: Horizontal 20°40′, vertical 14°10′, diagonal 24°30′

Mount and compatibility

Mounts: Canon EF-S
Image circle: APS-C
Compatibility: Canon EF-S compatible APS-C cameras; equivalent angle of view to 96 mm on full frame
Teleconverter support: Canon EF1.4X II and EF2X II extenders cannot be used

Focus and stabilisation

Autofocus: Yes
Minimum focus distance: 0.2 m
Maximum magnification: 1×
Optical stabilisation: No
Autofocus detail: USM autofocus; full-time manual focusing after One-Shot AF with the shutter button held halfway
Focus distance detail: 0.2 m minimum focus measured from the focal plane; approximately 90 mm working distance from the lens front at life-size magnification
Magnification detail: EF12 II extension tube gives 0.20–1.28×; EF25 II gives 0.44–1.61×. Optional 250D close-up lens gives 0.25–1.33× and 500D gives 0.12–1.18×
Stabilisation detail: No optical stabilisation according to The Digital Picture's exact-model specifications

Design

Dust and moisture resistant: No
Filter diameter: 52 mm
Maximum diameter: 73 mm
Length: 69.8 mm
Weight: 335 g
Controls: AF/MF switch; distance window with magnification scale
Filter detail: Front filter thread accommodates a filter and compatible macro flash together; front element does not rotate during focusing according to Photozone and The Digital Picture
Weather resistance: Canon Japan lists no dust or drip resistance
Dimensions detail: 73 mm maximum diameter × 69.8 mm from mount surface to lens front; cap and rear cap excluded
Weight detail: Canon's manual specifies 335 g for the lens alone
Lens hood: ET-67B hood and LP1016 case sold separately according to Canon's manual; Canon Japan's later accessory listing includes hood and case without clarifying regional package differences
Release detail: Canon Camera Museum records March 2005 marketing. Canon Japan's February announcement planned 17 March, while its later exact-model support sheet records 19 March 2005 as the Japanese release date. The headline retains month precision; no UK first-sale day is established.

Pros and cons

Pros

Life-size maximum magnification
Internal focusing keeps lens length constant
Full-time manual focus after One-Shot AF

Cons

No optical stabilisation
No dust or drip resistance
Hood sold separately according to Canon's manual

Closest rivals

Model	Mount	Focal length	Max aperture	Stabilisation	Weight	Released
CanonEF-S 35mm f/2.8 Macro IS STM	Canon EF-S	35 mm	f/2.8	Yes	190 g	May 2017
CanonEF-S 17–55mm f/2.8 IS USM	Canon EF-S	17–55 mm	f/2.8	Yes	645 g	May 2006
CanonEF-S 18–55mm f/3.5–5.6 II	Canon EF-S	18–55 mm	f/3.5–5.6	No	190 g	Mar 2005
