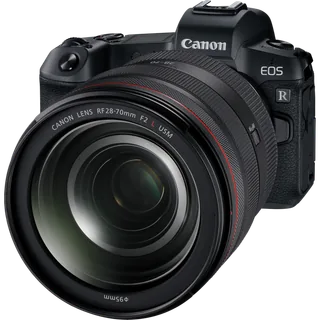

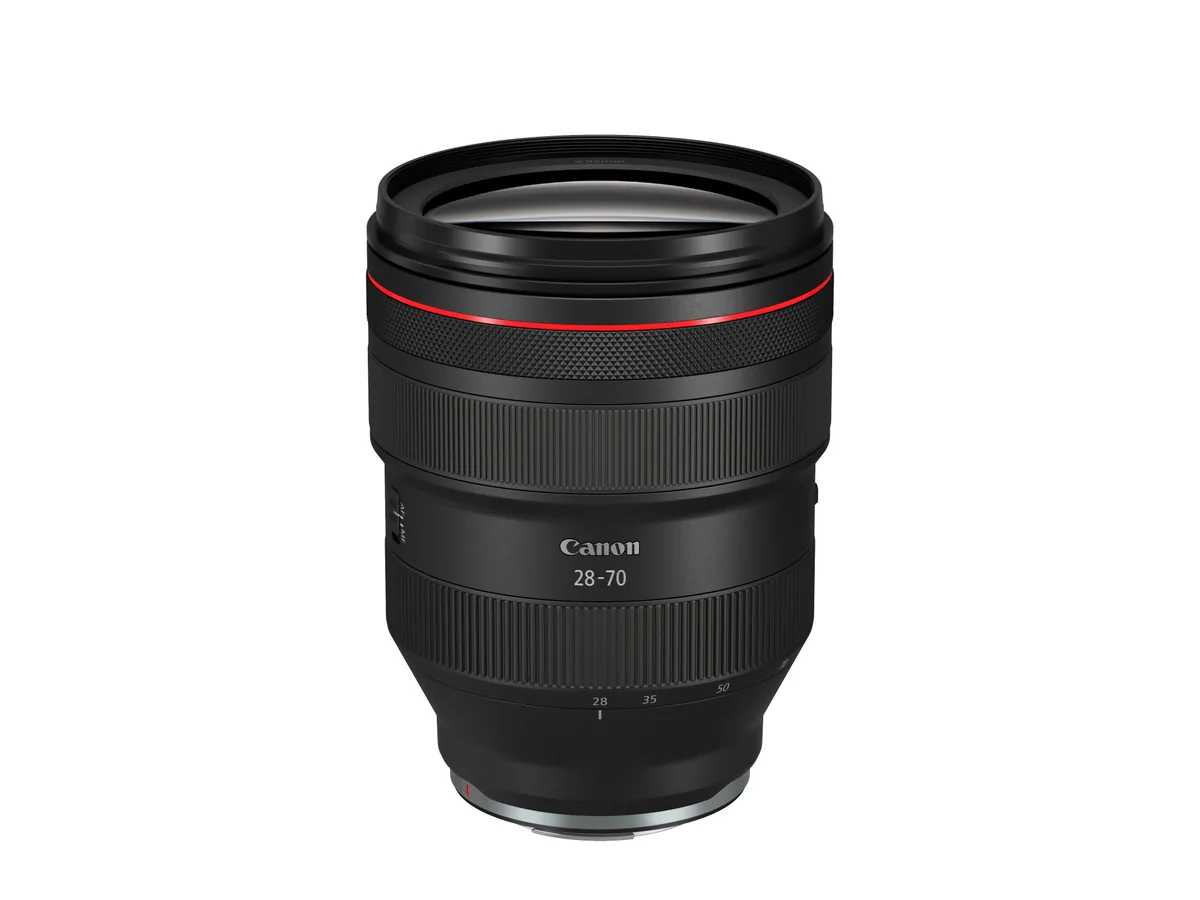

Canon RF 28–70mm F2 L USM · Canon Asia Photo Library; official press archive member RF28-70mm f2L USM.jpg; complete supplied canvas and white background retained.

Canon RF 28–70mm F2 L USM
Photo 1 of 8

Canon RF 28–70mm F2 L USM · Canon Asia Photo Library; official press archive member RF28-70mm f2L USM.jpg; complete supplied canvas and white background retained.

Canon · RF

RF 28–70mm F2 L USM

Released December 2018

A full-frame standard zoom for EOS R cameras with a constant f/2 maximum aperture, USM autofocus, a customisable control ring and dust and moisture resistant construction.

Mount
Canon RF
Focal length
28–70 mm
Max aperture
f/2
Stabilisation
No
Weight
1,430 g

What reviewers say

Both reviews praise central sharpness, subject separation and construction, but find the heavy body awkward and miss stabilisation. Their corner results disagree. OpticalLimits finds excellent wide-angle performance with softer corners at 70mm; Digital Camera World sees disappointing corners at 28mm. OpticalLimits also notes strong raw vignetting and focus breathing, limiting its appeal for video.

From opticallimits.com and digitalcameraworld.com

Specifications

Report a wrong or missing spec

Optics

Lens type
Zoom
Focal length
28–70 mm
Maximum aperture
f/2
Minimum aperture
f/22
Optical construction
Nineteen elements in thirteen groups
Special elements
Two ground and polished aspherical elements, two glass-moulded aspherical elements, one Super UD and two UD elements
Coatings
SWC and ASC coatings; front and rearmost surface fluorine coatings
Diaphragm
Nine aperture blades
Angle of view
75°–34° diagonal

Mount and compatibility

Mounts
Canon RF
Image circle
Full frame
Compatibility
Canon RF mount for full-frame and APS-C EOS R cameras

Focus and stabilisation

Autofocus
Yes
Minimum focus distance
0.39 m
Maximum magnification
0.18×
Optical stabilisation
No
Autofocus detail
USM autofocus with full-time manual override; ring-type USM drive (OpticalLimits)
Focus distance detail
Minimum focus 0.39 m
Magnification detail
Maximum 0.18×
Stabilisation detail
No optical stabiliser (OpticalLimits and Digital Camera World)

Design

Dust and moisture resistant
Yes
Filter diameter
95 mm
Maximum diameter
103.8 mm
Length
139.8 mm
Weight
1,430 g
Controls
Separate zoom, electronic manual-focus and customisable lens control rings
Zoom design
Barrel extends towards the long end of the zoom range (OpticalLimits)
Weather resistance
Dust and moisture resistant construction with front and rear fluorine coatings
Dimensions detail
103.8 mm maximum diameter × 139.8 mm length with barrel retracted
Weight detail
Approximately 1430 g lens
Lens hood
EW-103 hood included
In the box
Lens, E-95 front cap, RF dust cap, EW-103 hood, LP1424 lens case and user manual
Release detail
December 2018 marketed month in Canon Camera Museum

Pros and cons

Pros

  • Constant f/2 maximum aperture
  • Customisable lens control ring
  • Dust and moisture resistant construction

Cons

  • 1430 g lens weight
  • No optical stabilisation
  • 95 mm filter thread

Closest rivals

Model
MountFocal lengthMax apertureStabilisationWeightReleased
CanonRF 24–70mm F2.8L IS USM
Canon RF24–70 mmf/2.8Yes900 gSept 2019
CanonRF 28–70mm F2.8 IS STM
Canon RF28–70 mmf/2.8Yes490 gSept 2024
CanonRF 24–105mm F4L IS USM
Canon RF24–105 mmf/4Yes700 gOct 2018
