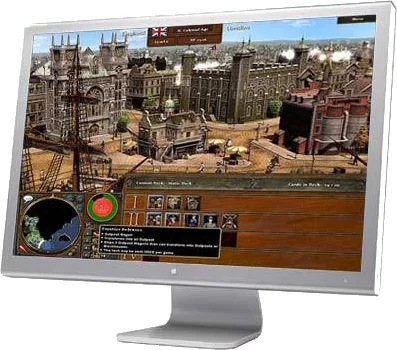

Apple's aluminium 23-inch Cinema HD Display provides a 1920 × 1200 workspace, DVI connection and USB and FireWire hubs with an optional VESA adaptor.
Size
23″
Resolution
1920 × 1200
PPI
98
Panel
IPS
Refresh
60 Hz
Brightness
270 nits
HDR
–
USB-C power
–
What reviewers say
TechRadar praised sharp images, even illumination and tidy cabling, while Macworld found good text and calibrated colour but uneven colour across the screen and restricted viewing angles. Both criticised the missing height adjustment. Macworld advised colour-critical buyers to consider the consistency problems; TechRadar considered the display an excellent creative workspace.
IPS (TFT active-matrix LCD (Apple); S-IPS identification from PRAD’s exact aluminium 23-inch datasheet, which lists later panel specifications)
Refresh rate
60 Hz
Brightness (typical)
270 nits
Contrast ratio
400:1
Screen finish
Matte
Shape
Flat
Colour depth
Up to 16.7 million colours; Apple does not specify panel bit depth
Response time detail
Apple specifies typical 16 ms without identifying grey-to-grey transitions; not entered in the grey-to-grey row. Its later Japanese sheet lists 14 ms.
Viewing angles
Original archived Apple specifications give 170° horizontally and vertically; a later Japanese sheet gives 178°.
Pixel pitch
0.258 mm
Connections
Video inputs
DVI
USB-C charging
None
USB ports
2 × USB-A
Other connections
Captive DVI, USB 2.0, FireWire 400 and DC power cables; two downstream FireWire 400 ports and Kensington security slot
USB hub detail
Two-port self-powered USB 2.0 hub; upstream USB cable must connect to computer
Design
Stand adjusts
Tilt
VESA mount
Yes
Weight with stand
7.03 kg
VESA pattern
Optional Cinema Display VESA Mount Adapter Kit; VESA FDMI MIS-D 100 C
Size with stand
536 × 450 × 187 mm (width × height × depth), from Apple's archived technical specifications
Controls
Side power and brightness buttons; resolution and colour settings through Mac OS X Displays preferences
Colours
Aluminium enclosure
Power and support
Power use
Maximum 90 W; energy saver mode 3 W or less
Power supply
External A1097 90 W adaptor; 100–240 V AC, 50–60 Hz; 24.5 V DC output
Software
Apple's UK announcement specifies July 2004 availability. Original manual supports Mac OS X 10.2.8 or later on listed DVI Macs, with compatible DVI-equipped Windows PCs also possible. Original manual explicitly specifies 1920 × 1200 at 60 Hz. Main weight follows archived maker specs (7.03 kg); original manual gives 6.75 kg without explaining the discrepancy.
In the box
Display with captive connection cables, power adaptor, AC cord and cleaning cloth
