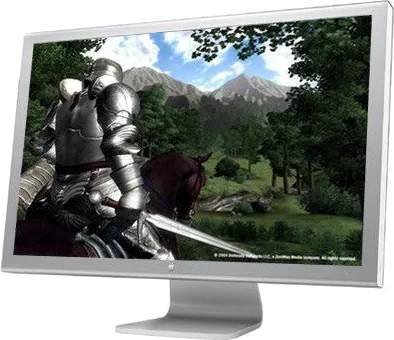

Apple's 30-inch aluminium Cinema HD Display provides a 2560 × 1600 workspace through dual-link DVI, with USB and FireWire hubs and an optional VESA adaptor.
Size
29.7″
Resolution
2560 × 1600
PPI
102
Panel
IPS
Refresh
60 Hz
Brightness
270 nits
HDR
–
USB-C power
–
What reviewers say
Macworld and TechRadar praised the expansive workspace, clear text and consistent colour, while noting the high cost and demanding graphics requirements. TechRadar criticised the missing height adjustment. In a later test, Les Numériques liked the design and Mac colour controls but found brightness uneven across the screen, visible motion trails and no HDCP support.
IPS (TFT active-matrix LCD (Apple June 2004 Technology Overview); S-IPS identification from PRAD’s exact aluminium 30-inch datasheet. Main brightness and contrast describe the original published generation.)
Refresh rate
60 Hz
Brightness (typical)
270 nits
Contrast ratio
400:1
Screen finish
Matte
Shape
Flat
Colour depth
Up to 16.7 million colours; Apple does not specify panel bit depth
Response time detail
Original June 2004 Apple Technology Overview specifies typical 16 ms without identifying grey-to-grey transitions, so main grey-to-grey response is omitted. Original brightness is 270 cd/m² and contrast 400:1. Archived support table later gives 400 cd/m² and 400:1; Japanese specifications give 400 cd/m², 700:1 and 14 ms. These later figures are not substituted into the original main fields.
Viewing angles
Original archived Apple specifications give 170° horizontally and vertically; a later Japanese sheet gives 178°.
Pixel pitch
0.250 mm
Connections
Video inputs
DVI
USB-C charging
None
USB ports
2 × USB-A
Other connections
Captive DVI, USB 2.0, FireWire 400 and DC power cables; two downstream FireWire 400 ports and Kensington security slot
USB hub detail
Two-port self-powered USB 2.0 hub; upstream USB cable must connect to computer
Design
Stand adjusts
Tilt
VESA mount
Yes
Weight with stand
12.5 kg
VESA pattern
Optional Cinema Display VESA Mount Adapter Kit; VESA FDMI MIS-D 100 C
Size with stand
688 × 543 × 215 mm (width × height × depth), from Apple's archived technical specifications
Controls
Side power and brightness buttons; resolution and colour settings through Mac OS X Displays preferences
Colours
Aluminium enclosure
Power and support
Power use
Maximum 150 W; energy saver mode 3 W or less
Power supply
External A1098 150 W adaptor; 100–240 V AC, 50–60 Hz; 24.5 V DC output
Software
Apple's June 2004 UK press release promised August sale, but delivery slipped into autumn (Computerworld/Macworld). Main release month follows MacRumors' October 2004 shipping report. At launch Apple specified Power Mac G5 with NVIDIA GeForce 6800 Ultra DDL for native resolution; a dual-link DVI graphics connection is required. Original manual explicitly specifies 2560 × 1600 at 60 Hz and 29.7-inch viewable diagonal. Main weight follows June 2004 maker Technology Overview (12.5 kg); original manual gives 12.31 kg and archived support table 12.47 kg. No basis for the discrepancies is stated.
In the box
Display with captive connection cables, power adaptor, AC cord and cleaning cloth
