Photo 1 of 3
Dell UltraSharp U2711 · Photo source
Dell · UltraSharp
UltraSharp U2711
A 27-inch QHD IPS monitor with a wide colour gamut, many legacy inputs and a height-adjustable stand.
- Size
- 27″
- Resolution
- 2560 × 1440
- PPI
- 109
- Panel
- IPS
- Refresh
- 60 Hz
- Brightness
- 350 nits
- HDR
- –
- USB-C power
- –
What reviewers say
TFTCentral and AnandTech praised the high resolution, wide gamut and broad connectivity for a 2010 monitor. TFTCentral found the Adobe RGB factory mode useful but considered the small pixel pitch an adjustment; AnandTech noted the high price and substantial power use of the CCFL backlight.
From tftcentral.co.uk and anandtech.com
Specifications
Report a wrong or missing specDisplay
- Screen size
- 27″
- Resolution
- 2560 × 1440 (QHD)
- Sharpness
- 109 pixels per inch
- Panel
- IPS (CCFL-backlit wide-gamut IPS.)
- Refresh rate
- 60 Hz
- Response time (grey to grey)
- 6 ms
- Brightness (typical)
- 350 nits
- Contrast ratio
- 1,000:1
- Colour range
- 100% sRGB; 96% Adobe RGB
- Colour accuracy (Delta E)
- Below 5
- Screen finish
- Matte
- Shape
- Flat
- Colour depth
- Up to 1.07 billion colours with 12-bit internal processing, according to Dell.
- sRGB coverage
- 100% typical, according to Dell.
- Adobe RGB coverage
- 96% typical, according to Dell.
- Colour accuracy
- Factory-calibrated sRGB and Adobe RGB presets to average Delta E below 5 on a new unit, according to Dell.
- Colour modes
- Includes sRGB, Adobe RGB and a six-axis Custom Color mode.
- Response time detail
- 6 ms grey-to-grey or 12 ms black-to-white, typical.
- Viewing angles
- 178° horizontal and vertical, typical.
- Pixel pitch
- 0.2331 mm.
Connections
- Video inputs
- HDMI, DisplayPort
- USB-C charging
- None
- USB ports
- 4 × USB-A
- Speakers
- No
- HDMI detail
- One HDMI input; Dell lists up to 1080p video modes in its manual.
- DisplayPort detail
- One DisplayPort input; also two dual-link DVI-D inputs, VGA, composite and component video.
- USB hub detail
- Four downstream USB 2.0 ports and one upstream port; integrated multi-format card reader.
- Picture by picture
- Picture-in-picture and picture-by-picture modes with a second video source.
- Audio out
- Audio line out for external speakers; optional Dell soundbar support.
Design
- Stand adjusts
- Height, tilt, swivel
- VESA mount
- Yes
- Weight with stand
- 7.72 kg
- Height adjustment
- 90 mm vertical extension, according to Dell.
- VESA pattern
- 100 × 100 mm.
- Size with stand
- 646.71 × 199.95 × 427.83–517.83 mm (width × depth × height).
- Size without stand
- 646.71 × 93 × 385.67 mm (width × depth × height).
- Weight without stand
- 7.72 kg without cables.
- Controls
- Capacitive touch controls at the front right.
Power and support
- Power use
- 113 W typical, according to Dell's manual.
- Power supply
- 100–240 V AC, 50/60 Hz.
- In the box
- Monitor and stand, power, VGA, DVI, DisplayPort and USB upstream cables, documentation and factory colour report.
Pros and cons
Pros
- 2560 × 1440 IPS panel with 96% Adobe RGB coverage
- Factory-calibrated sRGB and Adobe RGB modes
- DisplayPort, dual DVI, HDMI, VGA and analogue video inputs
Cons
- 60 Hz refresh and no adaptive sync
- No USB-C video or laptop charging
- Stand does not pivot
Closest rivals
Model | Size | Resolution | PPI | Panel | Refresh | Brightness | HDR | USB-C power | Released |
|---|---|---|---|---|---|---|---|---|---|
| 27″ | 2560 × 1440 | 109 | IPS | 60 Hz | 375 nits | – | – | Sept 2010 | |
| 27″ | 2560 × 1440 | 109 | IPS | 60 Hz | 375 nits | – | – | Sept 2011 | |
| 27″ | 2560 × 1440 | 109 | IPS | 60 Hz | 350 nits | – | – | 2012 |
Newer model: UltraSharp U2713H.
Sources
- dl.dell.com/manuals/all-products/esuprt_display_projector/esuprt_display/dell-u…
- dell.com/support/product-details/en-uk/product/dell-u2711/overview
Photo: i.dell.com

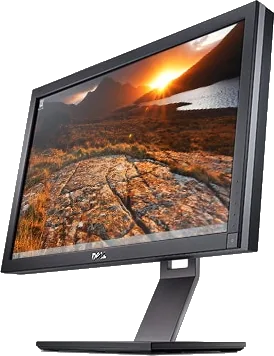

- UltraSharp U2711 — Front view with its stand.: Dell official support gallery
