UltraSharp U2717D

Released 2016

A 27-inch QHD IPS monitor with narrow borders, 99% sRGB colour, DisplayPort daisy chaining and a fully adjustable stand.

Model history · 2 models, 2014–2016

2014UltraSharp U2715H Compare
2016UltraSharp U2717D

Size: 27″
Resolution: 2560 × 1440
PPI: 109
Panel: IPS
Refresh: 60 Hz
Brightness: 350 nits
HDR: –
USB-C power: –

What reviewers say

TFTCentral and RTINGS found the U2717D useful for office work, with wide viewing angles and strong ergonomics. TFTCentral liked its improved factory calibration but saw overshoot, especially in Fast mode; RTINGS noted relatively high input lag at native resolution and limited gaming features.

From tftcentral.co.uk and rtings.com

Specifications

Report a wrong or missing spec

Display

Screen size: 27″
Resolution: 2560 × 1440 (QHD)
Sharpness: 109 pixels per inch
Panel: IPS (LED-backlit IPS-type LCD; TFTCentral identified a Samsung PLS panel in its sample.)
Refresh rate: 60 Hz
Response time (grey to grey): 6 ms
Brightness (typical): 350 nits
Contrast ratio: 1,000:1
Colour range: 99% sRGB
Colour accuracy (Delta E): Below 2
Screen finish: Matte
Shape: Flat
Colour depth: 16.7 million colours, according to Dell.
sRGB coverage: 99% typical, according to Dell.
Colour accuracy: Factory calibrated to average Delta E < 2, according to Dell.
Response time detail: 8 ms grey-to-grey in Normal mode; 6 ms in Fast mode, according to Dell.
Viewing angles: 178° horizontal and vertical, typical.
Pixel pitch: 0.2331 mm.

Connections

Video inputs: HDMI, 2 × DisplayPort 1.2
USB-C charging: None
USB ports: 4 × USB-A
Speakers: No
HDMI detail: One HDMI input with MHL support.
DisplayPort detail: One DisplayPort input, one Mini DisplayPort input and one DisplayPort MST output.
Daisy chaining: DisplayPort MST output supports one additional 2560 × 1440 60 Hz monitor, according to Dell.
USB hub detail: Four USB 3.0 downstream Type-A ports and one upstream port; one downstream port supports BC 1.2 charging.
Audio out: Stereo audio line out for speakers; Dell says headphones are unsupported.

Design

Stand adjusts: Height, tilt, swivel, pivot
VESA mount: Yes
Weight with stand: 4.5 kg
Height adjustment: 130 mm.
VESA pattern: 100 × 100 mm.
Size with stand: 611.3 × 200.3 × 410.2–540.2 mm (width × depth × height).
Size without stand: 611.3 × 48.3 × 355.6 mm (width × depth × height).
Weight without stand: 4.5 kg, without cables.

Power and support

Power use: 26 W typical, 74 W maximum with USB active, according to Dell.
Power supply: 100–240 V AC, 50/60 Hz.
Certifications: ENERGY STAR and TCO Certified Displays; EPEAT registration varies by country.

Pros and cons

Pros

2560 × 1440 panel with 99% sRGB colour
Narrow borders and four USB 3.0 downstream ports
Height, tilt, swivel and pivot adjustment

Cons

60 Hz native refresh and no adaptive sync
One HDMI input, down from two on the U2715H
No USB-C video or laptop charging

Closest rivals

Model	Size	Resolution	PPI	Panel	Refresh	Brightness	HDR	USB-C power	Released
AppleLED Cinema Display (27-inch)	27″	2560 × 1440	109	IPS	60 Hz	375 nits	–	–	Sept 2010
AppleThunderbolt Display	27″	2560 × 1440	109	IPS	60 Hz	375 nits	–	–	Sept 2011
DellUltraSharp U2711	27″	2560 × 1440	109	IPS	60 Hz	350 nits	–	–	2010

Previous model: UltraSharp U2715H. Newer model: UltraSharp U2719D.

Sources

Photo: i.dell.com

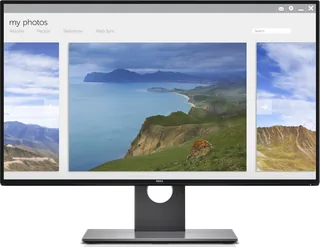

UltraSharp U2717D — Front view with photo applications inside the physical screen.: Dell official brochure; page 1, embedded member Im0.jpg

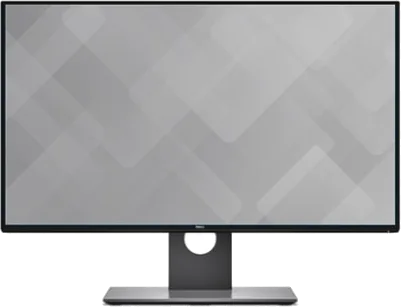

UltraSharp U2717D — Front view with its stand and blue screen.: Dell official brochure; page 2, embedded member Im0.jpg
UltraSharp U2717D — Close-up of the physical side USB ports.: Dell official brochure; page 2, embedded member Im3.jpg

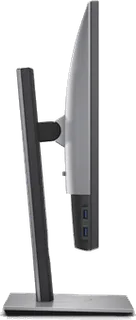

UltraSharp U2717D — Side view with its stand.: Dell official brochure; page 2, embedded member Im4.jpg

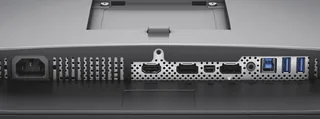

UltraSharp U2717D — Physical underside connector panel.: Dell official brochure; page 2, embedded member Im5.jpg
