Photo 1 of 6
MSI MAG 322URDF E16 · Photo source
MSI · MAG
MAG 322URDF E16
MSI's 31.5-inch 4K Rapid IPS gaming monitor with a 160 Hz refresh rate and a 1080p 320 Hz dual mode, for PC and console players who want a sharp, fast LCD at a lower price than OLED.
- Size
- 31.5″
- Resolution
- 3840 × 2160
- PPI
- 140
- Panel
- IPS
- Refresh
- 160 Hz
- Brightness
- 400 nits
- HDR
- 400
- USB-C power
- –
Specifications
Report a wrong or missing specDisplay
- Screen size
- 31.5″
- Resolution
- 3840 × 2160 (4K)
- Sharpness
- 140 pixels per inch
- Panel
- IPS (Rapid IPS; dual mode 1920 × 1080 at 320 Hz)
- Refresh rate
- 160 Hz
- Response time (grey to grey)
- 0.5 ms
- Brightness (typical)
- 400 nits
- HDR peak brightness
- 450 nits
- HDR certification
- DisplayHDR 400
- Contrast ratio
- 1,000:1
- Colour range
- 99% DCI-P3, 100% sRGB (CIE 1976 coverage)
- DCI-P3 coverage
- 99%
- Shape
- Flat
- Adaptive sync
- VESA AdaptiveSync
- Colour depth
- 10-bit (8-bit + FRC), 1.07 billion colours
- sRGB coverage
- 100% (CIE 1976 coverage)
- Adobe RGB coverage
- 93% (CIE 1976 coverage)
- HDR detail
- VESA DisplayHDR 400
- Response time detail
- 0.5 ms grey-to-grey (minimum), 1 ms MPRT
- Variable refresh range
- 48–160 Hz at 4K, 48–320 Hz at 1080p (Adaptive-Sync)
- Viewing angles
- 178° / 178°
- Pixel pitch
- 0.181 × 0.181 mm
Connections
- Video inputs
- 2 × HDMI 2.1, DisplayPort 1.4a
- USB-C charging
- None
- USB ports
- 2 × USB-A
- Speakers
- No
- HDMI detail
- 2 × HDMI 2.1, HDCP 2.3
- DisplayPort detail
- DisplayPort 1.4a, HDCP 2.3
- USB hub detail
- 2 × USB Type-A, 1 × USB-B upstream (USB 2.0)
- Audio out
- Headphone out
Design
- Stand adjusts
- Height, tilt, swivel
- VESA mount
- Yes
- Weight with stand
- 9 kg
- Height adjustment
- 110 mm
- Tilt
- −5° to 15°
- Swivel
- −30° to 30°
- Pivot
- −10° to 10°
- VESA pattern
- 100 × 100 mm
- Size with stand
- 714.4 × 261.9 × 564.5 mm (W × D × H)
- Size without stand
- 714.4 × 64.7 × 421.3 mm (W × D × H)
- Weight without stand
- 6.5 kg
Power and support
- Power use
- 33 W SDR, 80 W HDR (on mode); 0.5 W standby; 0.3 W off
- Energy class
- G
- Power supply
- Internal, 100–240 V
- Warranty
- 3 years
- In the box
- DisplayPort cable, USB A-to-B cable, power cord, quick guide
Pros and cons
Pros
- 3840 × 2160 at 160 Hz, or 1920 × 1080 at 320 Hz in dual mode
- Two HDMI 2.1 ports with Console Mode, plus DisplayPort 1.4a
- 400 nits SDR with VESA DisplayHDR 400 and 99% DCI-P3 coverage
Cons
- 1000:1 IPS contrast; DisplayHDR 400 is entry-level HDR
- No USB-C; USB hub is USB 2.0
- Stand only rotates ±10° rather than pivoting to portrait; energy class G
Closest rivals
Model | Size | Resolution | PPI | Panel | Refresh | Brightness | HDR | USB-C power | Released |
|---|---|---|---|---|---|---|---|---|---|
| 31.5″ | 3840 × 2160 | 140 | IPS | 120 Hz | 450 nits | 600 | 140 W | Feb 2025 | |
| 31.5″ | 3840 × 2160 | 140 | IPS | 120 Hz | 450 nits | 600 | 140 W | Mar 2026 | |
| 31.5″ | 3840 × 2160 | 140 | QD-OLED | 165 Hz | 250 nits | True Black 400 | 18 W | Oct 2024 |
Sources
- uk.msi.com/Monitor/MAG-322URDF-E16/Specification
- storage-asset.msi.com/specSheet/uk/monitor/MAG%20322URDF%20E16.pdf
- eprel.ec.europa.eu/screen/product/electronicdisplays/2307192
Photo: storage-asset.msi.com

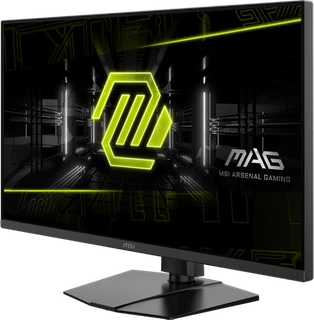

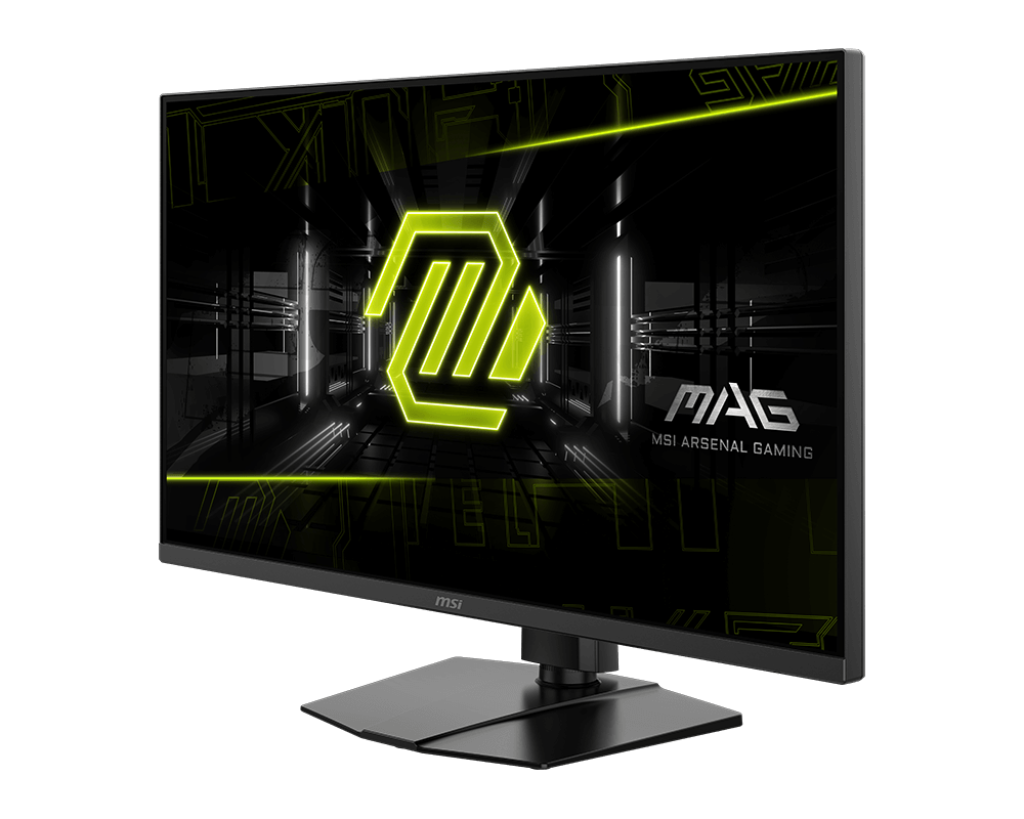

- MSI MAG 322URDF E16 — Front angled view: MSI exact-model UK store product gallery

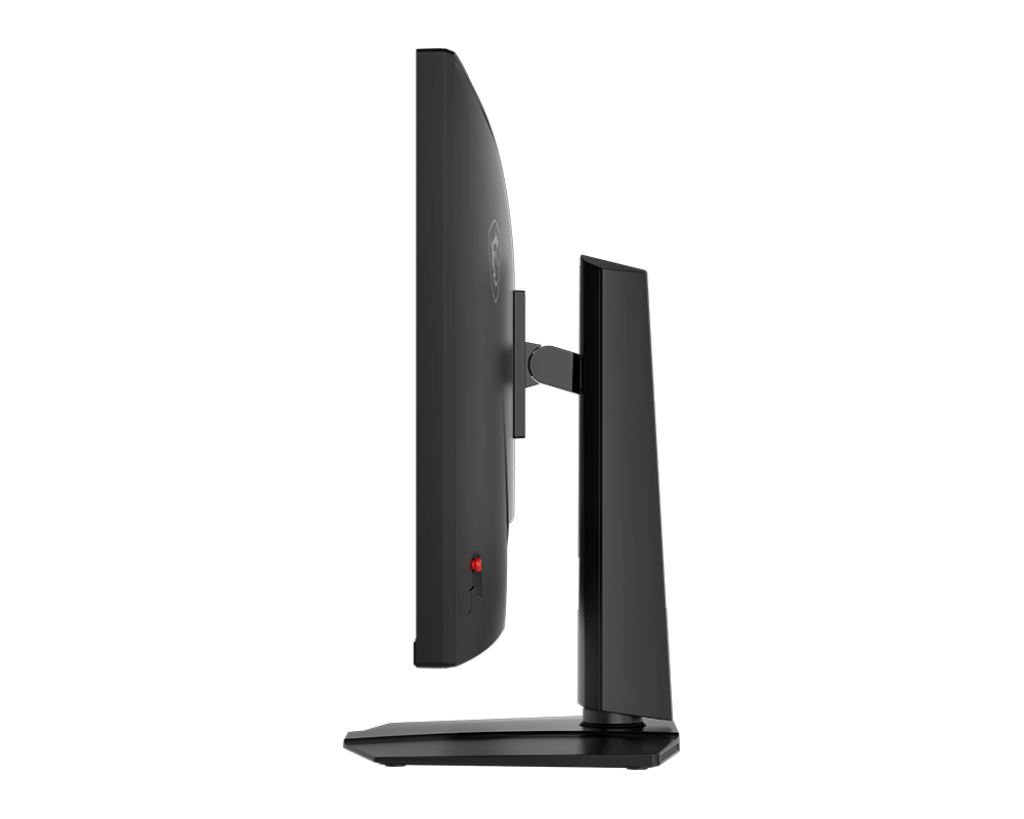

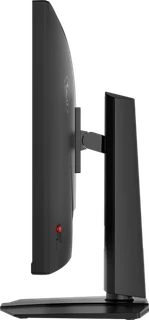

- MSI MAG 322URDF E16 — Side profile: MSI exact-model UK store product gallery

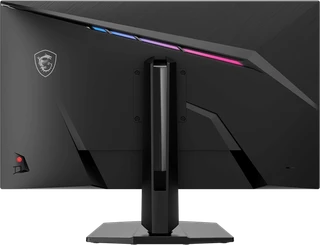

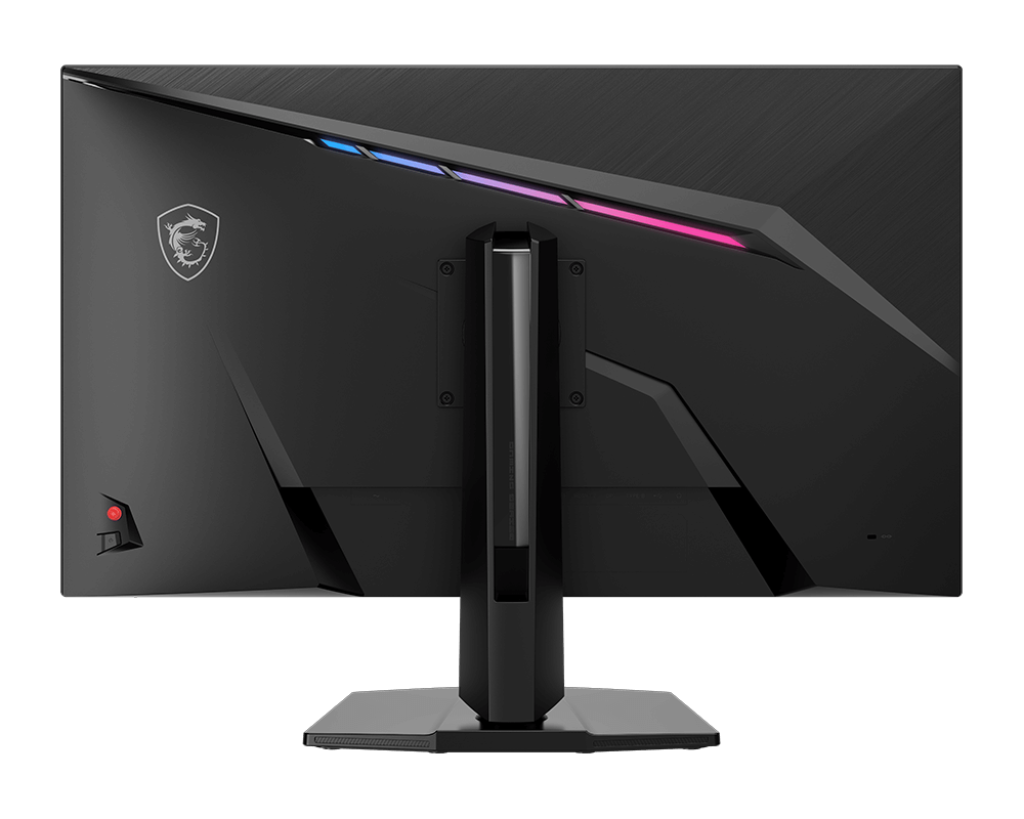

- MSI MAG 322URDF E16 — Rear view: MSI exact-model UK store product gallery

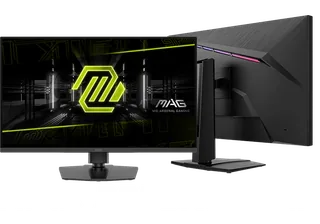

- MSI MAG 322URDF E16 — paired front and rear views with supplied model label: MSI exact-model global product page; paired front and rear product views with supplied model-identification label; complete supplied canvas, background and alpha retained

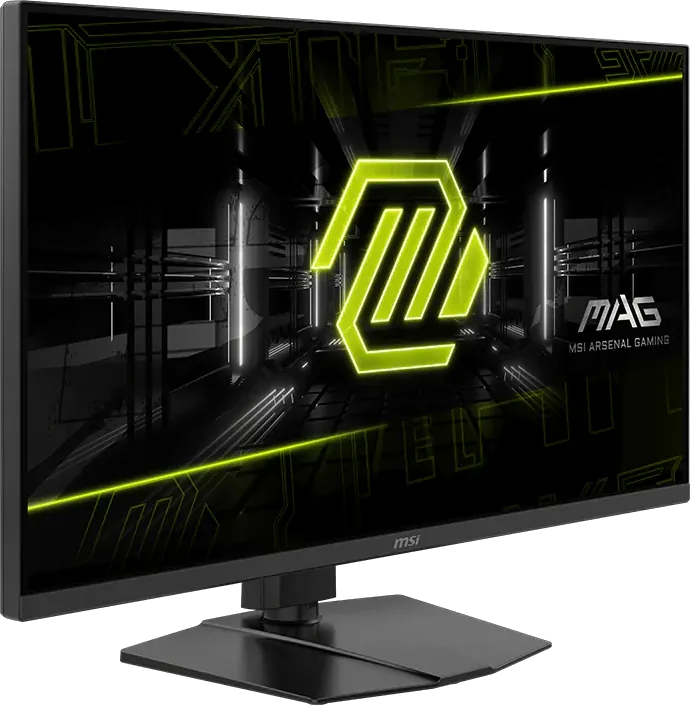

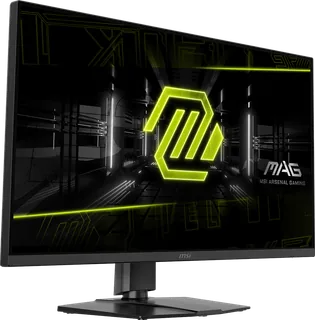

- MSI MAG 322URDF E16 — front angled view: MSI exact-model global product page; front angled product photograph; complete supplied canvas, background and alpha retained
