Sony · BRAVIA

BRAVIA XF90

Released 2018

A 2018 4K LED LCD series in 49 to 75-inch UK sizes, with full-array local dimming, X-Motion Clarity and Android TV.

Model history · 2 models, 2017–2018

2017BRAVIA XE90 Compare
2018BRAVIA XF90

Sizes: 49–75″
Panel: LED LCD
Refresh: –
HDR: Dolby Vision
HDMI 2.1: 0 of 4
Software: Android TV

What reviewers say

AVForums and Expert Reviews praised the 55-inch XF90's contrast, HDR brightness, upscaling and motion. Both found its viewing angles narrow and blooming visible around some bright objects. Expert Reviews measured 25 ms of 4K game lag but 42 ms at 1080p; AVForums also found the Android interface prone to lag and crashes.

From avforums.com and expertreviews.co.uk

Specifications

Report a wrong or missing spec

Display

Panel: LED LCD
Panel detail: Direct LED backlight with full-array local dimming and Triluminos colour. AVForums and Expert Reviews counted 48 dimming zones on their 55-inch review samples; Sony does not publish a series-wide count. X-Motion Clarity is picture processing, not a native refresh specification.
Resolution: 3840 × 2160 (4K)
HDR formats: HDR10, HLG, Dolby Vision
HDR extras: Sony announced Dolby Vision support for XF90 and now lists the series as compatible; it arrived through a firmware update after launch.
Peak brightness: AVForums measured about 1,000 nits in its brightest HDR mode and 705 nits in Cinema Pro on its UK 55-inch review sample; these are test results, not maker series specifications.
Picture processing: 4K X-Reality PRO, X-tended Dynamic Range PRO, Object-based HDR remaster, Super Bit Mapping 4K HDR and X-Motion Clarity.
Motion handling: Sony describes X-Motion Clarity but its exact UK size sheets do not publish a native refresh figure, so no Hz value is assigned to the series.
Viewing angle: AVForums and Expert Reviews report the 55-inch LCD's contrast and colour degrade when viewed from the side.

Sizes

Sizes: 49, 55, 65, 75″
Largest size: 75″

Gaming

HDMI ports: 4 (0 HDMI 2.1 at 4K 120 Hz+)
Variable refresh rate: None
HDMI detail: Four HDMI inputs. AVForums reports only HDMI 2 and 3 accept the higher-bandwidth 4K 60 Hz signal modes. ARC is supported; no HDMI 2.1 bandwidth.
Input lag: Expert Reviews measured 25 ms at 4K and 42 ms at 1080p in Game mode on its 55-inch sample.
Game features: Game mode; no HDMI VRR.

Smart TV and sound

Smart TV platform: Android TV
Processor: 4K HDR Processor X1 Extreme
Speakers: 20 W, 2.0 channels
Wi-Fi: 802.11a/b/g/n/ac
Bluetooth: 4.1
Speaker detail: Two 10 W speakers with ClearAudio+ and S-Force Front Surround.
Casting: Chromecast built in, per Sony UK specifications.
TV tuners: Sony UK lists DVB-T/T2 terrestrial, DVB-C cable and DVB-S/S2 satellite tuners.
USB: Three USB inputs, including support for media playback and USB HDD recording.
Ethernet: One LAN input.
Optical audio out: One optical digital audio output.

Design and power

Size: Without stand (W × H × D), Sony UK sheets: 49″ 1093 × 629 × 69 mm; 55″ 1228 × 706 × 69 mm; 65″ 1447 × 829 × 69 mm; 75″ 1674 × 958 × 73 mm. Configuration weights also exclude stands.
Stand: Wide-set feet; VESA is 200 × 200 mm for 49″, 300 × 300 mm for 55/65″ and 400 × 300 mm for 75″.
In the box: Sony announced the series in January 2018; AVForums reported UK retailer availability in March 2018.

Sizes

Size	Model	Weight without stand
49″	KD-49XF9005	13.6 kg
55″	KD-55XF9005	18.2 kg
65″	KD-65XF9005	24.5 kg
75″	KD-75XF9005	35 kg

Pros and cons

Pros

Direct LED full-array local dimming
HDR10, HLG and Dolby Vision support
Four HDMI inputs and Android TV

Cons

Picture loses contrast from the side
Android TV interface can be slow

Closest rivals

Model	Sizes	Panel	Refresh	HDR	HDMI 2.1	Software	Released
HisenseE8Q	50–75″	Mini-LED	144 Hz	Dolby Vision, HDR10+	2 of 4	VIDAA	2025
SamsungLED F6400	32–75″	LED LCD	–	None	0 of 4	Samsung Smart TV	2013
SamsungLED F8000	40–75″	LED LCD	–	None	0 of 4	Samsung Smart TV	2013

Previous model: BRAVIA XE90. Newer model: BRAVIA XG95.

Sources

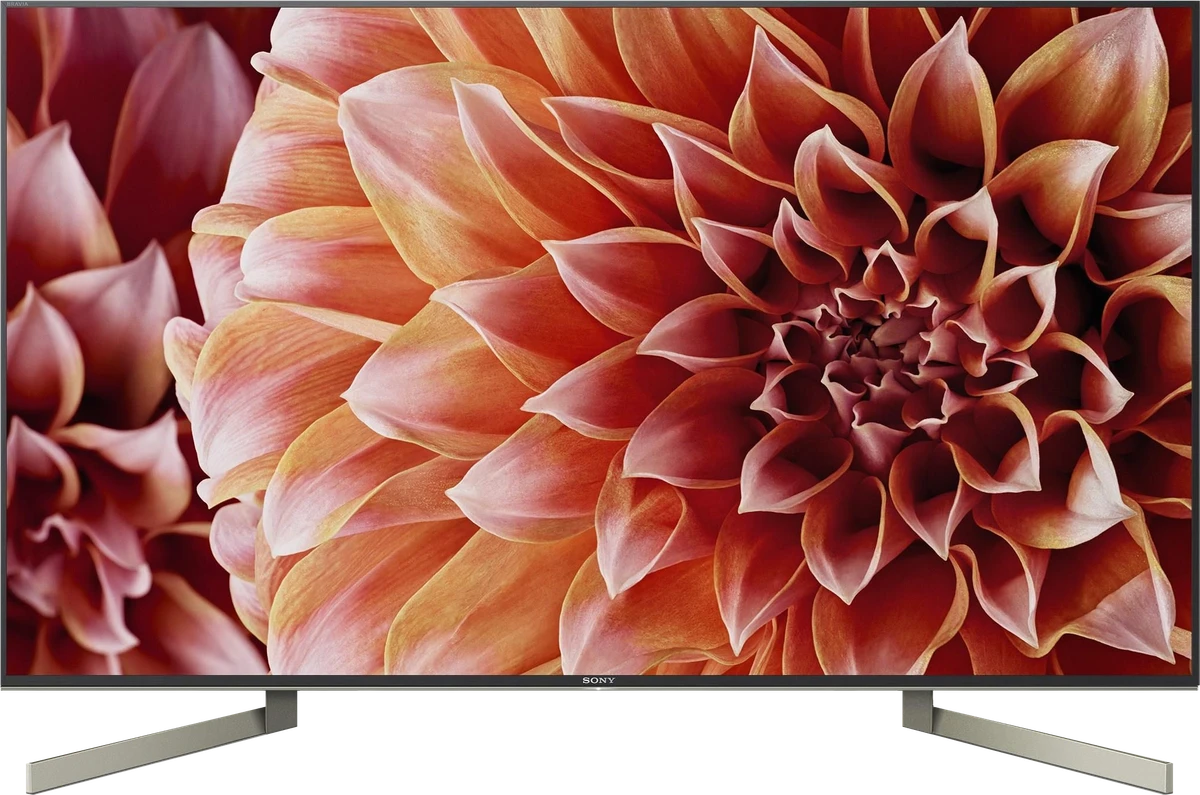

Photo: Exact Sony KD-55XF9005 front product image from Ceneo, retaining the original white background and flower screen.
