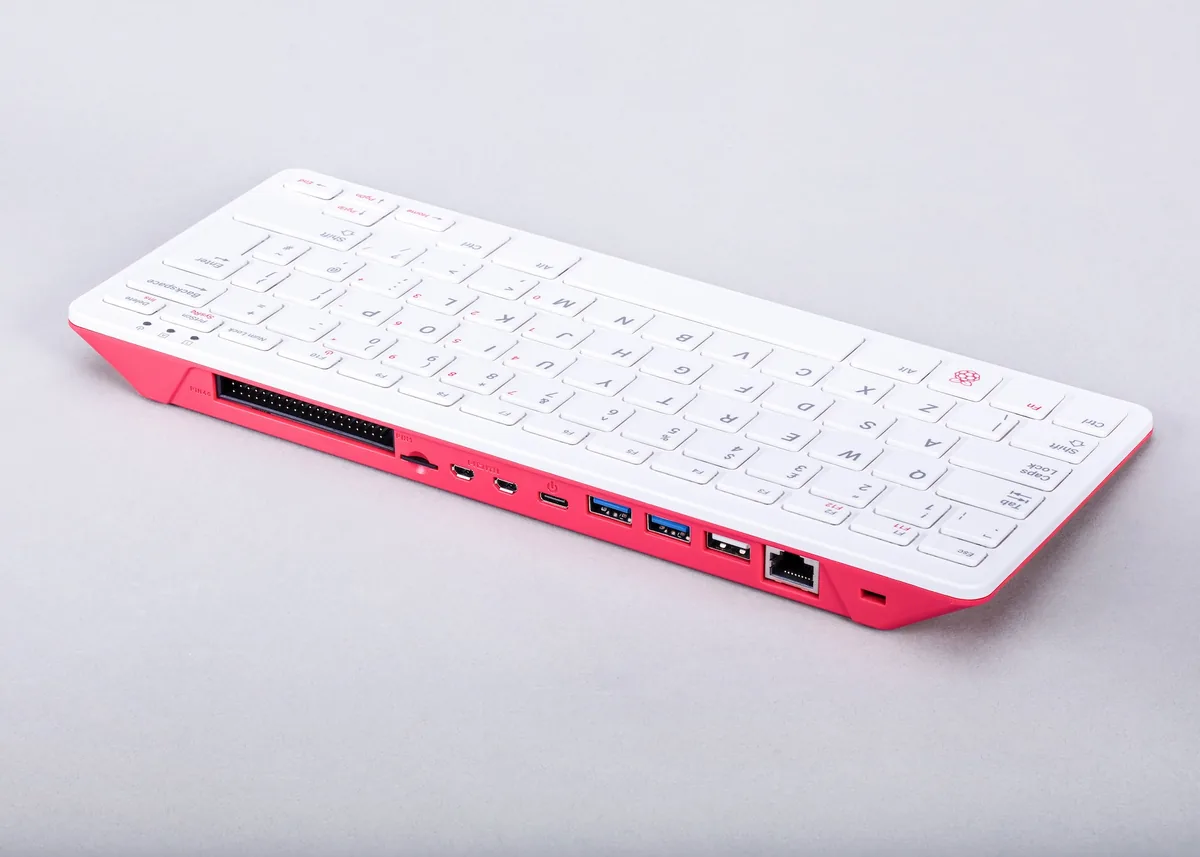

Raspberry Pi 400
A Raspberry Pi 4 built into a compact keyboard, with a 1.8GHz quad-core Arm Cortex-A72 and 4 GB of memory, as a complete low-cost desktop computer that plugs into a monitor or TV.
- Processor
- Broadcom BCM2711 (Arm Cortex-A72)
- Clock
- 1.8 GHz
- Memory
- 4 GB
- Wi-Fi
- Yes
What reviewers say
Reviewers agree it is a neat, affordable computer-in-a-keyboard that makes getting started easy, with cooling good enough for a higher default clock than the Pi 4 and room to overclock. The common criticisms are awkward access to the GPIO header for add-on boards and no camera or display connectors; Wired found the keyboard comfortable for long typing sessions.
From tomshardware.com, trustedreviews.com, wired.com, cnx-software.com and jeffgeerling.com
Specifications
Report a wrong or missing specPerformance
- Processor
- Broadcom BCM2711 (Arm Cortex-A72)
- CPU cores
- 4
- Clock
- 1.8 GHz
- Memory
- 4 GB
- CPU
- Quad-core Cortex-A72 (Arm v8) 64-bit SoC at 1.8GHz
- GPU
- VideoCore VI; OpenGL ES 3.0; H.265 4Kp60 decode, H.264 1080p60 decode and 1080p30 encode
- Memory
- 4GB LPDDR4-3200
- Storage
- microSD card slot
Connections
- Wi-Fi
- Yes
- Bluetooth
- Yes
- Ethernet
- Yes
- USB ports
- 3
- Display outputs
- 2
- GPIO pins
- 40
- PCIe
- No
- Ports
- 2 × USB 3.0, 1 × USB 2.0, Gigabit Ethernet, 2 × micro HDMI, USB-C power
- Displays
- 2 × micro HDMI, up to 4Kp60
- Wi-Fi and Bluetooth
- 2.4GHz and 5GHz 802.11b/g/n/ac Wi-Fi; Bluetooth 5.0, BLE
- GPIO
- Horizontal 40-pin header on the back
Design
- Size
- 286 × 122 mm
- Power
- 5V DC via USB-C
- Size
- 286 × 122 × 23 mm (maximum); 78-, 79- or 83-key compact keyboard depending on region
- Operating temperature
- 0°C to 50°C
Pros and cons
Pros
- Complete computer in a keyboard; just add a display
- 1.8GHz, faster by default than launch Raspberry Pi 4 boards
- Dual 4Kp60 micro HDMI output and Gigabit Ethernet
Cons
- Membrane keyboard
- One USB 2.0 port and two USB 3.0 ports
- 4GB of memory only; no PCIe or camera connector
Closest rivals
Model | Processor | Clock | Memory | Wi-Fi | Released |
|---|---|---|---|---|---|
| Broadcom BCM2711 (Arm Cortex-A72) | 1.5 GHz | 1 GB – 8 GB | Yes | Oct 2020 | |
| Broadcom BCM2711 (Arm Cortex-A72) | 1.8 GHz | 1 GB – 8 GB | Yes | Jun 2019 | |
| Broadcom BCM2837B0 (Arm Cortex-A53) | 1.4 GHz | 1 GB | Yes | Mar 2018 |
Newer model: Raspberry Pi 500.
Sources
- pip-assets.raspberrypi.com/categories/561-raspberry-pi-400/documents/RP-008346-…
- github.com/raspberrypi/documentation/blob/master/documentation/asciidoc/compute…
- raspberrypi.com/news/raspberry-pi-400-the-70-desktop-pc
- raspberrypi.com/news/raspberry-pi-500-and-raspberry-pi-monitor-on-sale-now
Photo: raw.githubusercontent.com

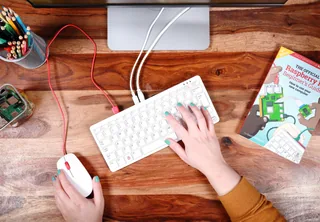

- Raspberry Pi 400 used with a mouse and monitor on a wooden desk, overhead landscape photograph: Raspberry Pi official product-page photograph; supplied framing, background and alpha preserved.

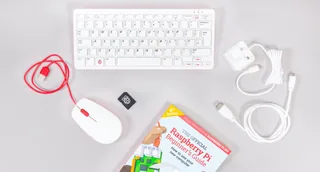

- Raspberry Pi 400 computer kit arranged on a desk with its mouse, power supply, cable, microSD card and Beginner’s Guide: Raspberry Pi official product-page photograph; supplied framing, background and alpha preserved.

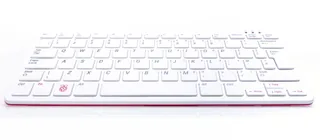

- Raspberry Pi 400 keyboard computer viewed from the front: Raspberry Pi official launch photograph; supplied framing, background and alpha preserved.

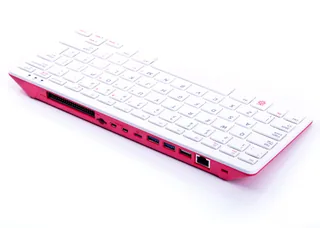

- Raspberry Pi 400 red-and-white keyboard computer viewed from above the rear ports on a white background: Raspberry Pi official launch photograph; supplied framing, background and alpha preserved.

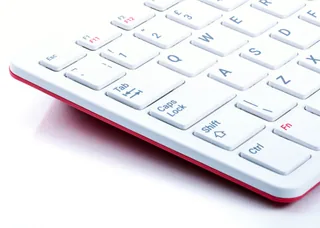

- Raspberry Pi 400 left-hand keys and red lower casing, close detail: Raspberry Pi official launch photograph; supplied framing, background and alpha preserved.

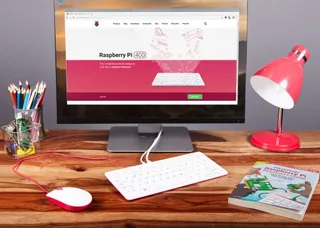

- Raspberry Pi 400 desktop setup with a monitor, mouse, lamp and Beginner’s Guide: Raspberry Pi official launch photograph; supplied framing, background and alpha preserved.

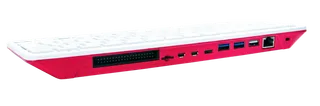

- Raspberry Pi 400 red lower casing and rear ports, low rear-angle view from the product brief: Raspberry Pi official product brief, page 2, complete supplied photograph object; supplied framing, background and alpha preserved.

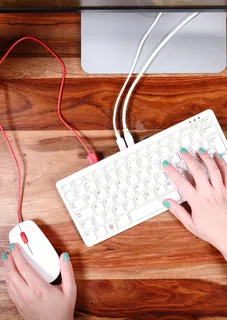

- Raspberry Pi 400 used with a mouse and monitor on a wooden desk, portrait photograph from the product brief: Raspberry Pi official product brief, page 10, complete supplied photograph object; supplied framing, background and alpha preserved.
