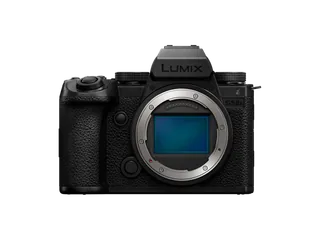

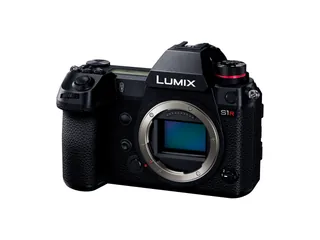

Panasonic LUMIX S1R vs Panasonic LUMIX S5IIX

Every spec side by side, from each maker's published figures.

Better figure, where one is clearly better

PanasonicLUMIX S1RPanasonicLUMIX S5IIX
Overview
ReleasedMarch 2019May 2023
Image and sensor
Camera typeMirrorlessMirrorless
Sensor formatFull frameFull frame
Sensor typeCMOSCMOS
Sensor dimensions36 × 24 mm35.6 × 23.8 mm
Effective resolution47.3 MP24.2 MP
Largest image8368 × 55846000 × 4000
RAW recordingYesYes
Standard ISO range100–25600100–51200
Sensor detail47.3 million effective and 50.4 million total pixels; primary colour filter and supersonic wave dust filter. High-resolution mode combines multiple exposures into 16736×11168 RAW files, separate from native single-exposure pixelsMaker Japan specifies 24.2 million effective pixels, 35.6 × 23.8 mm CMOS; native 3:2 stills 6000×4000. High-resolution composites up to 12000×8000 are separate from native output; BSI or stacked construction is not inferred
Image formatsJPEG, RAW and HLG PhotoJPEG, RAW and RAW+JPEG; high-resolution composite RAW generated in-camera
ISO detailStandard ISO 100–25600; expanded ISO 50 and 51200Standard ISO 100–51200; expanded 50/102400/204800. Dual Native ISO 100/640 in standard stills, 640/4000 for V-Log and 400/2500 for HLG; profile-dependent ranges apply
Lens and shooting
Lens mountL-MountL-Mount
StabilisationLens and sensor shiftLens and sensor shift
Maximum continuous burst9 fps30 fps
AutofocusContrast AF with DFD; human/animal detection, tracking and 225-area selection. Firmware 1.6 added head recognition and revised tracking; not a phase-detection sensorPhase Hybrid AF combines phase and contrast detection; 779 points (maker US). Current Japan recognition includes people, animals, cars, motorcycles, trains and aircraft; launch-era reviews described fewer subjects, so later firmware recognition is not treated as a launch feature. Continuous autofocus during zooming requires compatible updated lens firmware
ShutterFocal-plane mechanical, electronic front curtain and electronic shutter options; maker rated shutter life approximately 400000 imagesMechanical 60–1/8000 second, Bulb approximately 30 minutes; electronic first curtain 60–1/2000 with the same Bulb maximum; electronic 60–1/8000 with Bulb approximately 60 seconds
Burst detailNative 9 fps AFS/MF; mechanical/electronic front curtain 6 fps AFC, electronic 5 fps AFC. Maker buffer more than 40 RAW, 35 RAW+JPEG or 50 JPEG using Sony XQD G-series card. Reduced-resolution 6K/4K Photo modes are separate from full-resolution burstsFull-resolution electronic SH30 at 30 fps AFS/AFC/MF; SH30 PRE added in version 2.0. Current SH buffer 200 RAW/RAW+JPEG/JPEG frames. Mechanical/electronic-first-curtain 9 fps AFS/MF or 7 fps AFC; normal electronic 9/8 respectively. Normal RAW/RAW+JPEG buffer at least 200 and JPEG at least 300 frames under maker media/test conditions
Stabilisation detailFive-axis Body I.S.; firmware 1.2 dated 9 July 2019 raises rating from 5.5 to 6 stops with S-X50 at 50 mm. Compatible-lens Dual I.S. 2 rises from 6 to 6.5 stops with S-R24105 at 105 mm or S-R70200 at 200 mm, CIPA yaw/pitchFive-axis sensor-shift B.I.S. with compatible-lens Dual I.S.2; maker US Dual I.S.2 claim 6.5 stops under CIPA yaw/pitch conditions with S-E70200 at 200 mm and updated lens firmware. Active I.S. optimises video correction; electronic video modes have separate restrictions
Flash–No built-in flash; external flash sync up to 1/250 second, with reduced guide number and maker restrictions at the fastest sync setting
Video
Highest video resolution4992 × 3744 at 30 fps5952 × 3968 at 29.97 fps
Video detailFirmware 1.6 dated 24 November 2020 adds internal 4992×3744 5K at maker-labelled 30p/25p/24p, 4:2:0 10-bit LongGOP 200 Mbps; headline frame rate retains that published mode label. Original launch specifications were 4K up to 60p with 8-bit internal recording. The same update adds 4K60 4:2:2 10-bit HDMI output, distinct from internal recording. Launch review limitations are historical rather than current firmware specificationsInternal 5952×3968 3:2 open-gate 6K at 29.97p, 4:2:0 10-bit HEVC Long GOP 200 Mbps; C4K/4K 59.94p uses an APS-C crop. ALL-Intra and ProRes 422/HQ options include 5776×3056 up to 29.97p with supported USB SSD/media restrictions. RAW is separate HDMI output to compatible Atomos/Blackmagic recorders, including 5888×3312 12-bit up to 29.97p or APS-C 4128×2176 up to 59.94p; not internal RAW. Built-in fan; maker unlimited-recording claims require 0–40 °C, and Thermal Management STANDARD can stop high-resolution recording after 30 minutes. Battery/media can also limit duration
AudioBuilt-in stereo microphone, monaural speaker, microphone/line input and headphone monitoring; optional DMW-XLR1 adapterBuilt-in stereo microphone; 48 kHz/24-bit recording and compatible external/XLR high-resolution 96 kHz/24-bit options under maker mode restrictions
Screen and viewfinder
ViewfinderElectronicElectronic
Screen size3.2″3″
Screen dots2,100,0001,840,000
TouchscreenYesYes
Tilting screenYesYes
Display detailThree-point-two-inch 3:2 capacitive touchscreen, approximately 2.1 million dots and triaxial tilt; separate top status LCDThree-inch 3:2 capacitive touchscreen, approximately 1.84 million dots; free-angle articulation. Amateur Photographer and Tom's Guide report connected HDMI/USB cables can impede its movement, despite the maker launch claim of no interference
Viewfinder detailOLED approximately 5.76 million dots, 100% coverage and 0.78× with 50 mm lens at infinity, −1 dioptre and 3:2 ratio; 60/120 fps displayCurrent Japan table 0.5-inch 4:3 OLED, approximately 3.68 million dots, 100% coverage and 0.78× magnification with 50 mm lens/infinity/−1 dioptre/3:2 ratio. US launch release's 0.76× description differs and is not silently substituted
Connections and design
Wi-FiYesYes
BluetoothYesYes
Battery life (maker's claim)380 photographs370 photographs
Body weight899 g657 g
Release detailMaker Japan confirms 23 March 2019 sale; headline month avoids inferring the exact UK day. Digital Camera World includes explicitly identified pre-production S1 illustrations but reports production S1R checks and its own laboratory results; these separate samples are not treated as S1R specification sources. No inferred successor linkMaker US confirms May 2023 availability; UK launch announcement states Spring 2023. Tom's Guide's June 2023 date is not used as the global first-sale month; no exact UK retail day inferred. UK body launch price £2299
Recording mediaSlot 1 XQD, with CFexpress support requiring firmware 1.3 or later; slot 2 SD/SDHC/SDXC UHS-I/UHS-II including V90Two SD/SDHC/SDXC slots, both UHS-II including V90; supported formats can record to USB SSD
PortsUSB-C SuperSpeed USB 3.1 Gen 1, full-size HDMI Type A, 2.5 mm remote and 3.5 mm microphone/line/headphone connectionsUSB-C SuperSpeed USB 10 Gbps, full-size HDMI Type A, 2.5 mm remote and 3.5 mm microphone/headphone sockets; wired LAN streaming requires an optional USB-LAN adapter
Wireless connectionsWi-Fi 2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n/ac, subject to regional availability; Bluetooth Low Energy 4.2Wi-Fi 2.4 GHz 802.11b/g/n and 5 GHz 802.11a/n/ac; Bluetooth Low Energy 5.0. Wired/wireless IP streaming and USB tethering; regional 5 GHz restrictions apply
Battery life detailMaker 7.4 V 3050 mAh 23 Wh pack. CIPA with S-R24105 and SD approximately 380 LCD/360 EVF shots; with XQD 360 LCD/340 EVF. Conditional one-second power-save EVF 1150 SD/1100 XQD is not headlineDMW-BLK22, 7.2 V 2200 mAh; current Japan table approximately 370 LCD/EVF shots with S-R2060 and Panasonic SDXC, or 1250 under specified one-second power-save EVF conditions. Tom's Guide's quoted 330 shots is not substituted for the current maker table
ChargingUSB charging/power and supplied dedicated chargerJapan table approximately 220 minutes in-camera with bundled AC adapter or 170 with DMW-BTC15 adapter; optional DMW-BTC15 charger approximately 175 minutes
DimensionsApproximately 148.9 × 110.0 × 96.7 mm, excluding protrusionsApproximately 134.3 × 102.3 × 90.1 mm, excluding protrusions
Weight detailMaker approximately 899 g body only, 1016 g with SD/battery or 1020 g with XQD/battery; Photography Blog's 898 g prose is not substitutedMaker Australia and Germany specify 657 g body only; Japan 740 g with battery and one SD card. Lens excluded
MaterialsDust/splash-resistant construction, not waterproof; recommended −10 to 40 °CMagnesium-alloy die-cast front and rear frames; dust/splash-resistant construction, not waterproof; matte black body and dark markings
In the boxMaker Japan lists body cap, hot-shoe cover, eyecup, flash-sync cap, battery-grip contact cover, shoulder strap, cable holder, battery, charger, AC adapter, mains cable and USB C–C/A–C cables; regional contents varyMaker Japan lists body cap, hot-shoe cover, battery-grip connector cover, shoulder strap, battery, USB AC adapter and USB A–C cable; regional contents may vary
