AMD · Radeon

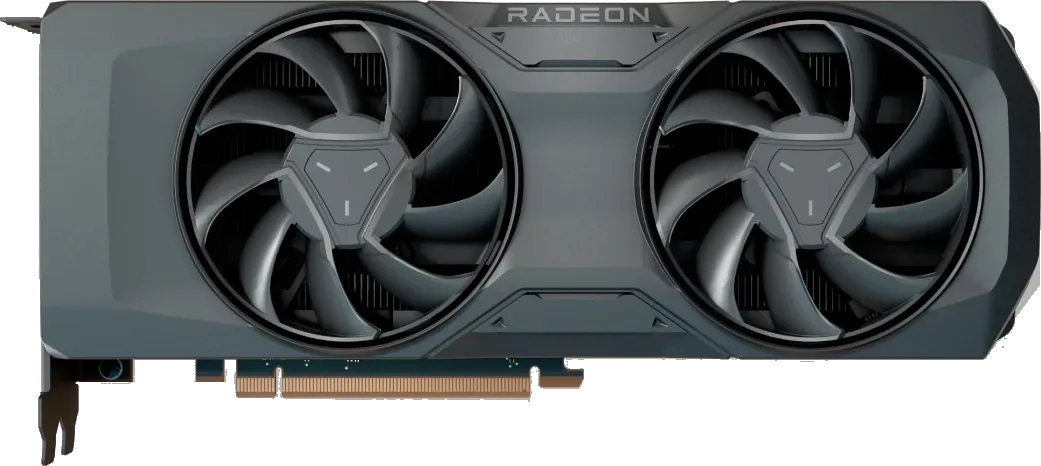

Radeon RX 7800 XT
AMD's RDNA 3 graphics card for 1440p gaming, with 16 GB of GDDR6.
- Memory
- 16 GB
- Shaders
- 3,840
- Boost clock
- 2,430 MHz
- Bandwidth
- 624 GB/s
- Power
- 263 W
What reviewers say
Reviewers agree it is strong value for 1440p gaming, with 16 GB of memory and speed slightly above the RTX 4070 in games without ray tracing. The common criticisms are that it is barely faster than the RX 6800 XT, trails NVIDIA in ray tracing and is less efficient. PC Gamer and KitGuru found the reference card quiet, Tom's Hardware did not.
From tomshardware.com, pcgamer.com and kitguru.net
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA 3
- Shader cores
- 3,840
- Boost clock
- 2,430 MHz
- Architecture
- 60 compute units, 96 ROPs, 240 texture units; game clock 2124 MHz; 28.1 billion transistors
- Ray tracing
- 60 second-generation Ray Accelerators
- AI cores
- 120 AI Accelerators; 74.6 TOPS INT8
- Upscaling and frame generation
- AMD FSR, Radeon Super Resolution
- Cache
- 64 MB AMD Infinity Cache (second generation)
Memory
- Video memory
- 16 GB GDDR6
- Memory bus
- 256-bit
- Memory bandwidth
- 624 GB/s
- Memory detail
- GDDR6 at up to 19.5 Gbps; AMD quotes up to 2708 GB/s effective bandwidth with Infinity Cache
Connections and power
- Board power
- 263 W
- Display outputs
- DisplayPort 2.1, HDMI 2.1
- Power connector
- 2 × 8-pin
- Recommended power supply
- 700 W
- Slot width
- 2.5-slot (reference card)
- Size (reference card)
- 267 mm long, 2.5-slot (reference card)
- Video encode and decode
- H.264, HEVC and AV1 encode and decode
Pros and cons
Pros
- 16 GB of GDDR6 on a 256-bit bus (624 GB/s)
- 64 MB of Infinity Cache
- DisplayPort 2.1 outputs
Cons
- 263 W typical board power; AMD recommends a 700 W power supply
- Needs two 8-pin power connectors
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 16 GB or 8 GB | 4,096 | – | 560 GB/s or 512 GB/s | 225 W | Oct 2022 | |
| 8 GB or 16 GB | 4,352 | 2,540 MHz | 288 GB/s | 160 W or 165 W | May 2023 | |
| 12 GB | 3,456 | 2,544 MHz | 432 GB/s | 245 W | Sept 2023 |
