NVIDIA GeForce RTX 4060 Ti · Photo source

NVIDIA GeForce RTX 4060 Ti
Photo 1 of 34

NVIDIA GeForce RTX 4060 Ti · Photo source

NVIDIA · GeForce

GeForce RTX 4060 Ti

Released May 2023

An Ada Lovelace graphics card sold with 8 GB or 16 GB of GDDR6, aimed at 1080p gaming.

Memory
8 GB or 16 GB
Shaders
4,352
Boost clock
2,540 MHz
Bandwidth
288 GB/s
Power
160 W or 165 W

What reviewers say

Reviewers testing the 8 GB model found it efficient and good for 1080p, with DLSS 3 frame generation, at the RTX 3060 Ti's price. All three were disappointed that it is barely faster than that card, often behind the RTX 3070, and held back by 8 GB of memory; PC Gamer called it a low-end chip at a mid-range price.

From tomshardware.com, pcgamer.com and techradar.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Ada Lovelace
Shader cores
4,352
Boost clock
2,540 MHz
Architecture

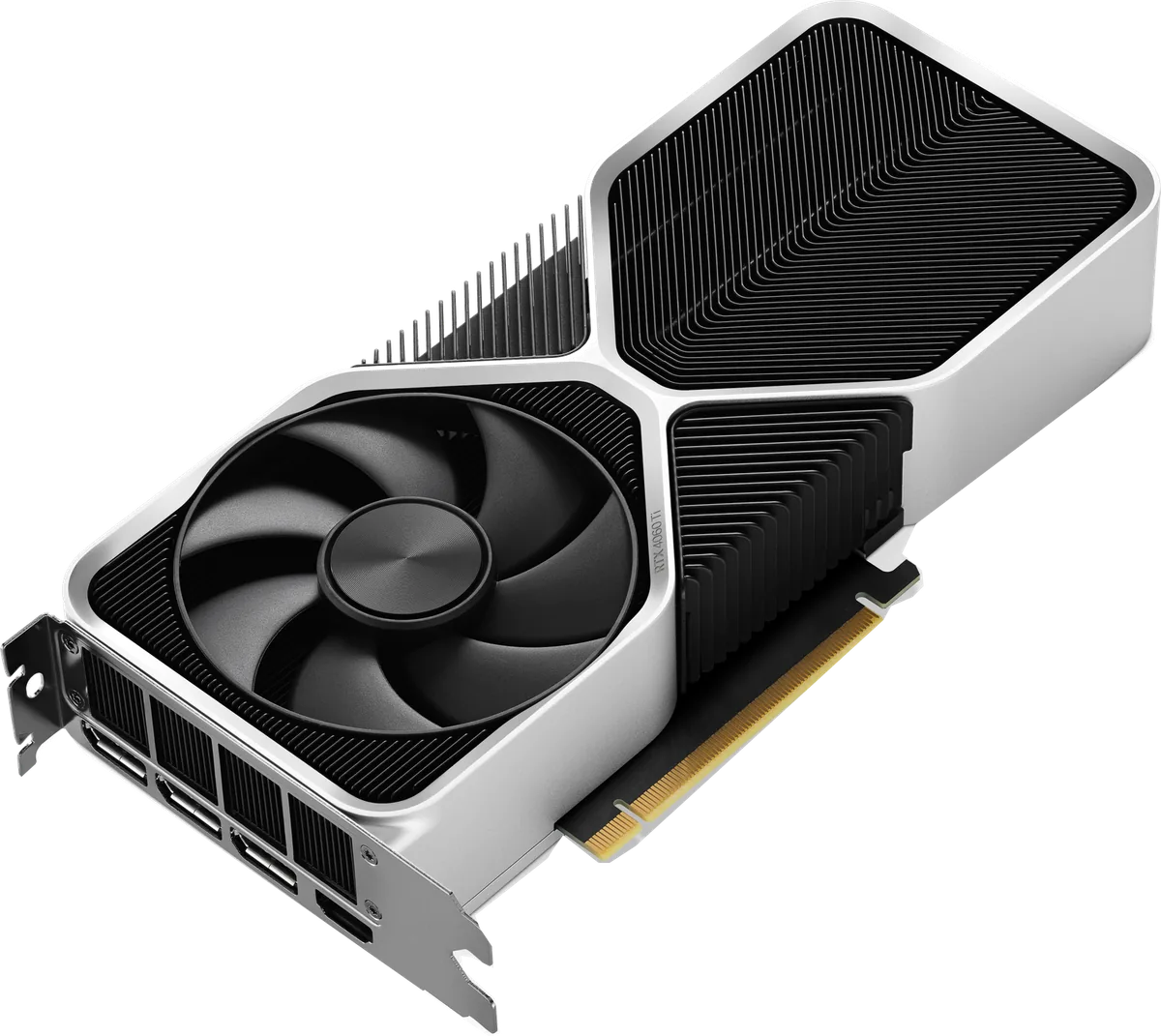

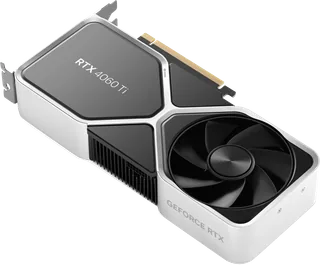

NVIDIA reference specifications; photo shows the original 8 GB Founders Edition. The 16 GB revision uses partner boards with different coolers and dimensions.
Ray tracing
Third-generation RT Cores; 51 RT TFLOPS
AI cores
Fourth-generation Tensor Cores; 353 AI TOPS
Upscaling and frame generation
DLSS 3.5 with Super Resolution, DLAA, Ray Reconstruction and Frame Generation
Base clock
2.31 GHz
Cache
32 MB L2

Memory

Video memory
8 GB GDDR6 or 16 GB GDDR6
Memory bus
128-bit
Memory bandwidth
288 GB/s
Memory detail
8 GB GDDR6 (on sale 24 May 2023) or 16 GB GDDR6 (July 2023, 165 W); both have 288 GB/s bandwidth (PNY); NVIDIA quotes 554 GB/s effective bandwidth with the L2 cache

Connections and power

Board power
160 W or 165 W
Interface
PCIe 4.0

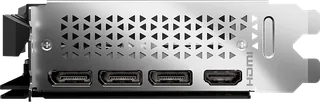

Display outputs

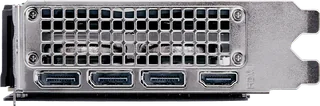

3 × DisplayPort 1.4a, 1 × HDMI 2.1a; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 240 Hz or 8K at 60 Hz with DSC
Power connector
1 × PCIe 8-pin cable, or a 300 W or greater PCIe Gen 5 cable (adapter in the box)
Recommended power supply
550 W
Slot width
2-slot (original 8 GB Founders Edition)
Size (reference card)
244 × 112 mm, 2-slot (original 8 GB Founders Edition)
Video encode and decode
1 × eighth-generation NVENC, 1 × fifth-generation NVDEC; AV1 encode and decode

Versions

VersionMemoryShadersBoost clockMemory busBandwidthBoard power
8 GB8 GB GDDR64,3522,540 MHz128-bit288 GB/s160 W
16 GB16 GB GDDR64,3522,540 MHz128-bit288 GB/s165 W

Pros and cons

Pros

  • 160 W total graphics power (165 W for 16 GB); runs from a 550 W power supply
  • Founders Edition (8 GB) is a two-slot card, 244 mm long
  • DLSS 3 Frame Generation and eighth-generation NVENC with AV1

Cons

  • 128-bit memory bus (288 GB/s)
  • DisplayPort 1.4a outputs and PCIe 4.0; no DLSS Multi Frame Generation

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
AMDRadeon RX 7800 XT
16 GB3,8402,430 MHz624 GB/s263 WSept 2023
IntelArc A770
16 GB or 8 GB4,096–560 GB/s or 512 GB/s225 WOct 2022
AMDRadeon RX 7700 XT
12 GB3,4562,544 MHz432 GB/s245 WSept 2023

Newer model: GeForce RTX 5060 Ti.

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/40-series/rtx-4060-4060ti
  2. nvidia.com/en-gb/geforce/graphics-cards/compare
  3. nvidia.com/en-gb/geforce/news/geforce-rtx-4060-4060ti
  4. nvidia.com/en-us/geforce/news/geforce-rtx-4060-4060ti
  5. pny.com/pny-geforce-rtx-4060-ti-8gb-verto-dual-fan
  6. pny.com/geforce-rtx-4060-ti-16-gb-verto-dual-fan-oc
