AMD · Radeon
Radeon RX 7900 XTX
AMD's flagship RDNA 3 graphics card, with 24 GB of GDDR6 and a chiplet design, aimed at 4K gaming.
- Memory
- 24 GB
- Shaders
- 6,144
- Boost clock
- 2,500 MHz
- Bandwidth
- 960 GB/s
- Power
- 355 W
What reviewers say
Reviewers agree it is very fast in games without ray tracing, often ahead of the pricier RTX 4080, and a big step up from the RX 6950 XT, in a compact reference design. The common criticisms are ray tracing well behind NVIDIA and high power draw; PC Gamer's two reference samples both ran with excessive hotspot temperatures, and KitGuru heard coil whine.
From tomshardware.com, pcgamer.com, techradar.com and kitguru.net
Specifications
Report a wrong or missing specPerformance
- Chip maker
- AMD
- Architecture
- RDNA 3
- Shader cores
- 6,144
- Boost clock
- 2,500 MHz
- Architecture
- 96 compute units, 192 ROPs, 384 texture units; game clock 2300 MHz; 58 billion transistors
- Manufacturing process
- Chiplet design; 5nm Graphics Compute Die (306 mm²) with 6nm Memory Cache Dies
- Ray tracing
- 96 second-generation Ray Accelerators
- AI cores
- 192 AI Accelerators; 123 TOPS INT8
- Upscaling and frame generation
- AMD FSR, Radeon Super Resolution
- Cache
- 96 MB AMD Infinity Cache (second generation)
Memory
- Video memory
- 24 GB GDDR6
- Memory bus
- 384-bit
- Memory bandwidth
- 960 GB/s
- Memory detail
- GDDR6 at up to 20 Gbps; AMD quotes up to 3500 GB/s effective bandwidth with Infinity Cache
Connections and power
- Board power
- 355 W
- Display outputs
- DisplayPort 2.1 (UHBR 13.5), HDMI 2.1a, USB Type-C
- Maximum resolution
- Up to 4K 480 Hz or 8K 165 Hz over DisplayPort 2.1
- Power connector
- 2 × 8-pin
- Recommended power supply
- 800 W
- Slot width
- 2.5-slot (reference card)
- Size (reference card)
- 287 mm long, 2.5-slot (reference card)
- Video encode and decode
- H.264, HEVC and AV1 encode and decode
Pros and cons
Pros
- 24 GB of 20 Gbps GDDR6 on a 384-bit bus (960 GB/s)
- 96 MB of Infinity Cache
- DisplayPort 2.1 outputs, plus USB-C on AMD's reference card
Cons
- 355 W typical board power; AMD recommends an 800 W power supply
- Reference card is 287 mm long and 2.5 slots thick
Closest rivals
Model | Memory | Shaders | Boost clock | Bandwidth | Power | Released |
|---|---|---|---|---|---|---|
| 20 GB | 5,376 | 2,400 MHz | 800 GB/s | 315 W | Dec 2022 | |
| 16 GB | 9,728 | 2,510 MHz | 716.8 GB/s | 320 W | Nov 2022 | |
| 8 GB | 6,144 | 1,770 MHz | 608 GB/s | 290 W | Jun 2021 |
Sources
- amd.com/en/products/graphics/desktops/radeon/7000-series/amd-radeon-rx-7900xtx.…
- amd.com/en/newsroom/press-releases/2022-11-3-amd-unveils-world-s-most-advanced-…

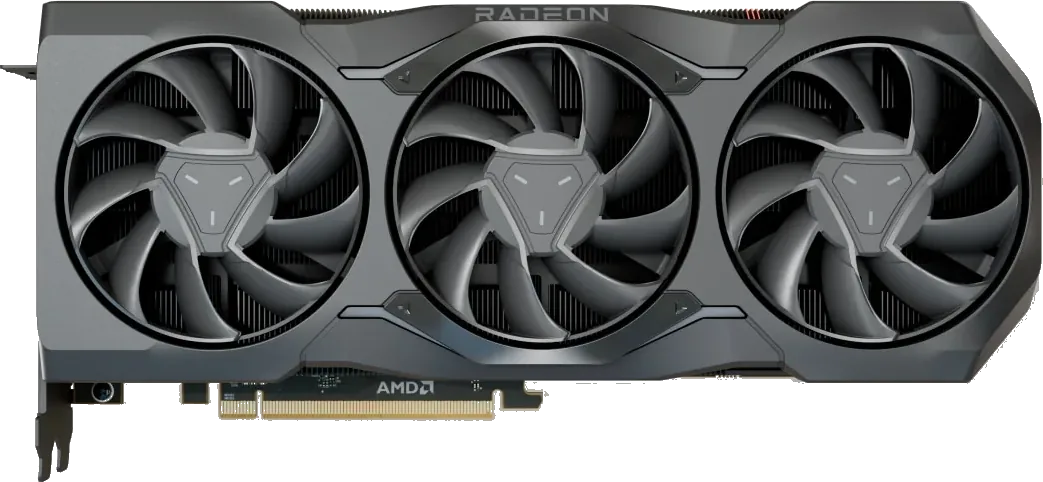

Photo: amd.com
