Photo 1 of 33

NVIDIA GeForce RTX 5060 Ti · Photo source

NVIDIA GeForce RTX 5060 Ti
Photo 1 of 33

NVIDIA GeForce RTX 5060 Ti · Photo source

NVIDIA · GeForce

GeForce RTX 5060 Ti

Released April 2025

A Blackwell graphics card sold with 16 GB or 8 GB of GDDR7, only as partner cards, aimed at 1080p and 1440p gaming.

Model history · 2 models, 2023–2025
  1. 2023GeForce RTX 4060 TiCompare
  2. 2025GeForce RTX 5060 Ti
Memory
16 GB or 8 GB
Shaders
4,608
Boost clock
2,570 MHz
Bandwidth
448 GB/s
Power
180 W

What reviewers say

Reviewers found the 16 GB model a good mainstream card, around 15 to 20 per cent faster than the RTX 4060 Ti at a lower list price, with GDDR7 memory and cool running. The common worries were street prices above list and availability; Club386 found the gain in games without ray tracing incremental, and PC Gamer thought 8 GB versions look thin for 2025.

From tomshardware.com, pcgamer.com and club386.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Blackwell
Shader cores
4,608
Boost clock
2,570 MHz
Architecture

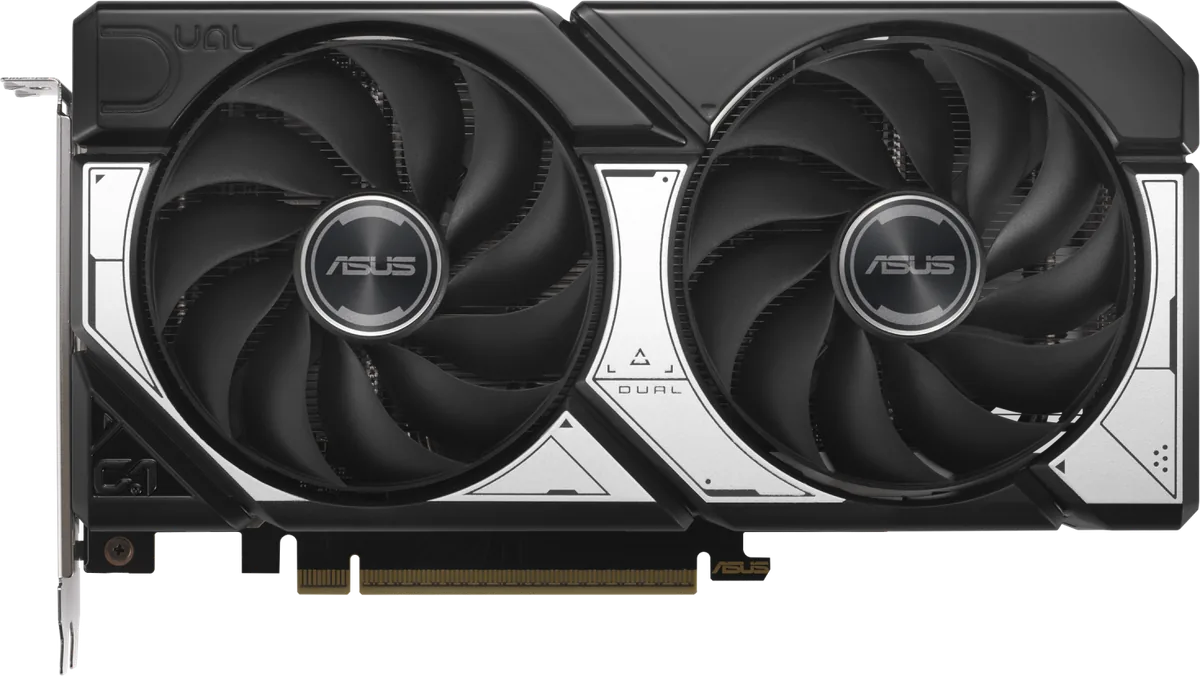

NVIDIA reference GPU specifications; photo illustrates an ASUS DUAL partner cooler. The image does not establish its memory capacity or factory overclock.
Ray tracing
Fourth-generation RT Cores; 72 RT TFLOPS
AI cores
Fifth-generation Tensor Cores; 759 AI TOPS
Upscaling and frame generation
DLSS 4.5 with Super Resolution, DLAA, Ray Reconstruction, Frame Generation, Multi Frame Generation and Dynamic Multi Frame Generation
Base clock
2.41 GHz

Memory

Video memory
16 GB GDDR7 or 8 GB GDDR7
Memory bus
128-bit
Memory bandwidth
448 GB/s
Memory detail
16 GB or 8 GB of GDDR7; both versions have the same GPU specifications; stock PNY cards specify 28 Gbps and 448 GB/s on both capacities

Connections and power

Board power
180 W
Interface
PCIe 5.0

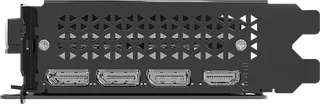

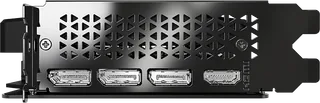

Display outputs
3 × DisplayPort 2.1b (UHBR20), 1 × HDMI 2.1b; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 480 Hz or 8K at 165 Hz with DSC
Power connector
1 × PCIe 8-pin cable, or a 300 W or greater PCIe Gen 5 cable (adapter in the box)
Recommended power supply
600 W
Video encode and decode
1 × ninth-generation NVENC, 1 × sixth-generation NVDEC; AV1 encode and decode

Versions

VersionMemoryShadersBoost clockMemory busBandwidthBoard power
16 GB16 GB GDDR74,6082,570 MHz128-bit448 GB/s180 W
8 GB8 GB GDDR74,6082,570 MHz128-bit448 GB/s180 W

Pros and cons

Pros

  • 180 W total graphics power; one 8-pin connector
  • PCIe 5.0 and DisplayPort 2.1b UHBR20 outputs

Cons

  • 128-bit memory bus
  • The 8 GB version shares the name, so check the memory when buying
  • No Founders Edition; size and cooling vary by manufacturer

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
AMDRadeon RX 9070
16 GB3,5842,520 MHz640 GB/s220 WMar 2025
AMDRadeon RX 9070 XT
16 GB4,0962,970 MHz640 GB/s304 WMar 2025
NVIDIAGeForce RTX 4060 Ti
8 GB or 16 GB4,3522,540 MHz288 GB/s160 W or 165 WMay 2023

Previous model: GeForce RTX 4060 Ti.

Sources

  1. nvidia.com/en-gb/geforce/graphics-cards/50-series/rtx-5060-family
  2. nvidia.com/en-gb/geforce/graphics-cards/compare
  3. nvidia.com/en-gb/geforce/news/rtx-5060-desktop-family-laptop-5060-coming-soon
  4. nvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-arrives-for-every-gamer…
  5. pny.com/geforce-rtx-5060-ti-8gb-models
  6. pny.com/geforce-rtx-5060-ti-16gb-models
