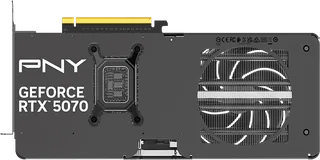

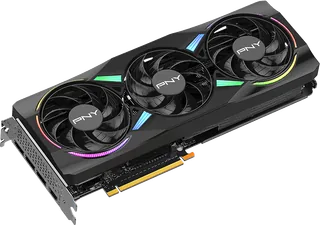

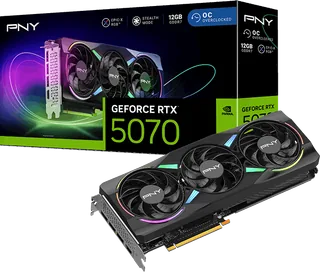

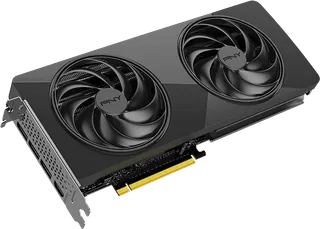

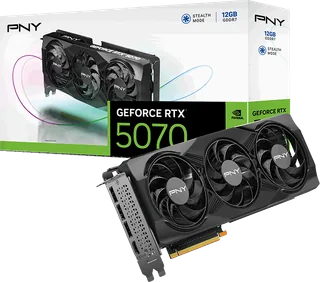

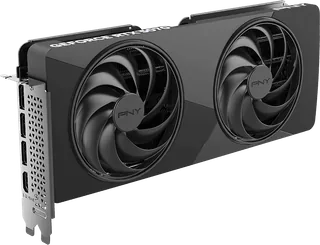

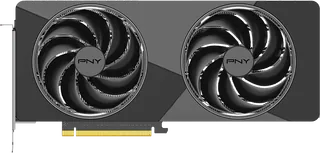

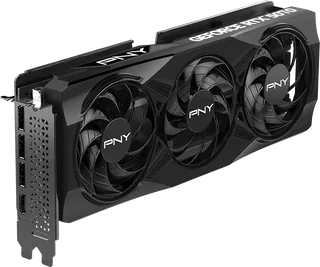

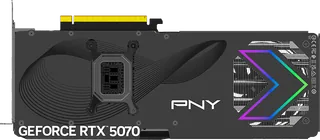

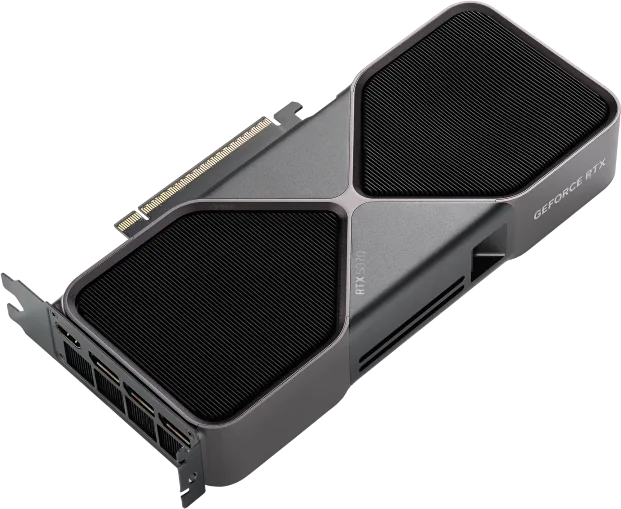

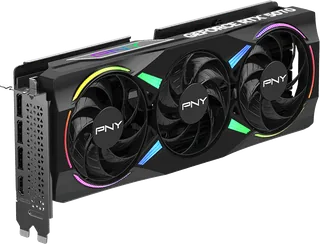

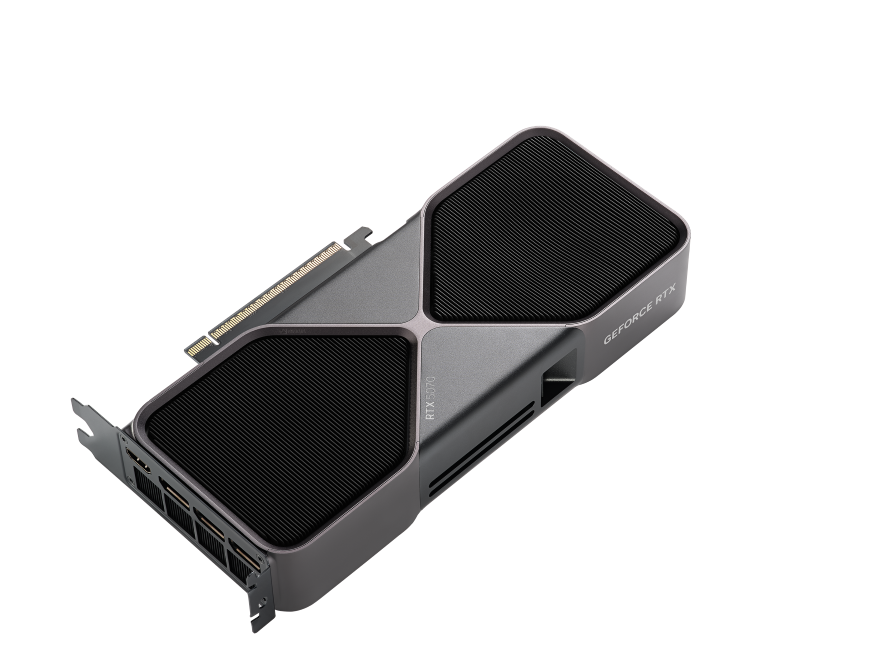

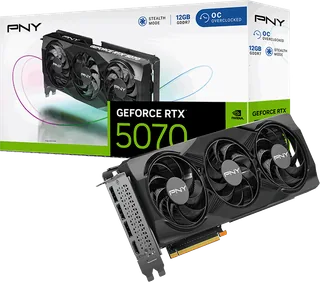

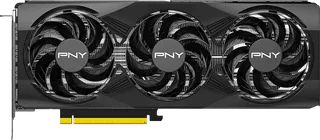

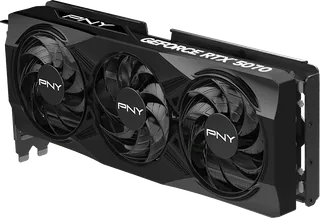

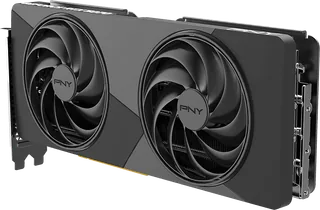

NVIDIA GeForce RTX 5070 · Photo source

NVIDIA GeForce RTX 5070
Photo 1 of 33

NVIDIA GeForce RTX 5070 · Photo source

NVIDIA · GeForce

GeForce RTX 5070

Released March 2025

A mid-range Blackwell graphics card with 12 GB of GDDR7, aimed at high-refresh 1440p gaming.

Model history · 2 models, 2024–2025
  1. 2024GeForce RTX 4070 SUPERCompare
  2. 2025GeForce RTX 5070
Memory
12 GB
Shaders
6,144
Boost clock
2,512 MHz
Bandwidth
672 GB/s
Power
250 W

What reviewers say

Reviewers like the compact Founders Edition and DLSS 4 with Multi Frame Generation, but were lukewarm overall. Tom's Hardware measured about 20 per cent more speed than the RTX 4070, while Club386 and PC Gamer found small gains in games without ray tracing and saw AMD's RX 9070 cards as stronger value; all three criticise the 12 GB of memory or the pricing.

From tomshardware.com, pcgamer.com and club386.com

Specifications

Report a wrong or missing spec

Performance

Chip maker
NVIDIA
Architecture
Blackwell
Shader cores
6,144
Boost clock
2,512 MHz
Architecture
GB205 GPU; 48 SMs
Manufacturing process
TSMC 4nm (4N NVIDIA custom process); 31.1 billion transistors; 263 mm² die
Ray tracing
48 fourth-generation RT Cores; 94 RT TFLOPS
AI cores
192 fifth-generation Tensor Cores; 988 AI TOPS
Upscaling and frame generation
DLSS 4.5 with Super Resolution, DLAA, Ray Reconstruction, Frame Generation, Multi Frame Generation and Dynamic Multi Frame Generation
Base clock
2.33 GHz
Cache
48 MB L2

Memory

Video memory
12 GB GDDR7
Memory bus
192-bit
Memory bandwidth
672 GB/s
Memory detail
GDDR7 at 28 Gbps

Connections and power

Board power
250 W
Interface
PCIe 5.0

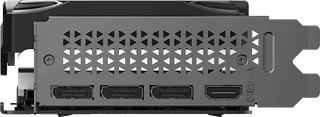

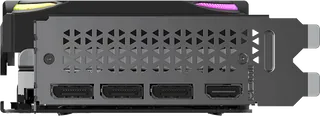

Display outputs
3 × DisplayPort 2.1b (UHBR20), 1 × HDMI 2.1b; up to 4 displays; HDCP 2.3
Maximum resolution
4K at 480 Hz or 8K at 165 Hz with DSC
Power connector
1 × 300 W or greater PCIe Gen 5 cable, or 2 × PCIe 8-pin cables with the adapter in the box
Recommended power supply
650 W
Slot width
2-slot (Founders Edition)
Size (reference card)
242 × 112 mm, 2-slot (Founders Edition)
Video encode and decode
1 × ninth-generation NVENC, 1 × sixth-generation NVDEC; AV1 encode and decode

Pros and cons

Pros

  • 12 GB of GDDR7 on a 192-bit bus (672 GB/s)
  • Founders Edition is a compact two-slot card, 242 mm long
  • DLSS Multi Frame Generation support

Cons

  • 12 GB of video memory, less than the 16 GB RTX 5070 Ti and Radeon RX 9070
  • 250 W total graphics power; NVIDIA asks for a 650 W power supply

Closest rivals

Model
MemoryShadersBoost clockBandwidthPowerReleased
NVIDIAGeForce RTX 4070 SUPER
12 GB7,1682,480 MHz504 GB/s220 WJan 2024
AMDRadeon RX 9070 XT
16 GB4,0962,970 MHz640 GB/s304 WMar 2025
NVIDIAGeForce RTX 4070
12 GB5,8882,475 MHz504 GB/s or 480 GB/s200 WApr 2023

Previous model: GeForce RTX 4070 SUPER.
